ACE_Reactor_Notify Class Reference

Abstract class for unblocking an <ACE_Reactor_Impl> from its event loop. More...

#include <Reactor_Impl.h>

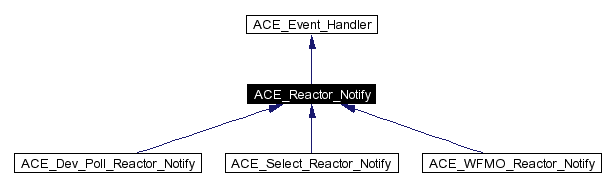

Inheritance diagram for ACE_Reactor_Notify:

Inheritance graph
[legend]

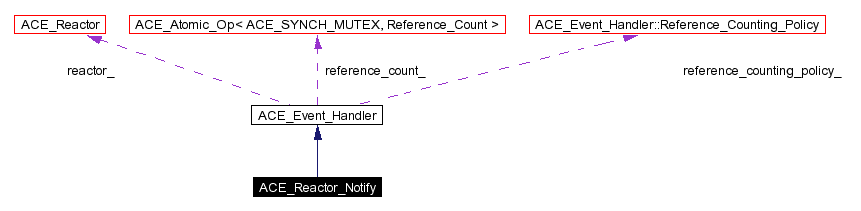

Collaboration diagram for ACE_Reactor_Notify:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual int open (ACE_Reactor_Impl *, ACE_Timer_Queue *timer_queue=0, int disable_notify=0)=0
virtual int close (void)=0
virtual int notify (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *=0)=0
virtual int dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)=0
virtual ACE_HANDLE notify_handle (void)=0
virtual int is_dispatchable (ACE_Notification_Buffer &buffer)=0
 Verify whether the buffer has dispatchable info or not.

virtual int dispatch_notify (ACE_Notification_Buffer &buffer)=0
virtual int read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)=0
virtual void max_notify_iterations (int)=0
virtual int max_notify_iterations (void)=0
virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0
virtual void dump (void) const=0
 Dump the state of an object.


Detailed Description

Abstract class for unblocking an <ACE_Reactor_Impl> from its event loop.


Member Function Documentation

virtual int ACE_Reactor_Notify::close void    [pure virtual]


Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notifications int &    number_of_active_handles,
ACE_Handle_Set   rd_mask
[pure virtual]


Handles pending threads (if any) that are waiting to unblock the <Reactor_Impl>.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notify ACE_Notification_Buffer   buffer [pure virtual]


Handle one of the notify call on the <handle>. This could be because of a thread trying to unblock the <Reactor_Impl>

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual void ACE_Reactor_Notify::dump void    const [pure virtual]


Dump the state of an object.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::is_dispatchable ACE_Notification_Buffer   buffer [pure virtual]


Verify whether the buffer has dispatchable info or not.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::max_notify_iterations void    [pure virtual]


Get the maximum number of times that the <handle_input> method will iterate and dispatch the <ACE_Event_Handlers> that are passed in via the notify queue before breaking out of its event loop.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual void ACE_Reactor_Notify::max_notify_iterations int    [pure virtual]


Set the maximum number of times that the <handle_input> method will iterate and dispatch the <ACE_Event_Handlers> that are passed in via the notify queue before breaking out of the event loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::notify ACE_Event_Handler   = 0,
ACE_Reactor_Mask    = ACE_Event_Handler::EXCEPT_MASK,
ACE_Time_Value   = 0
[pure virtual]


Called by a thread when it wants to unblock the <Reactor_Impl>. This wakeups the <Reactor_Impl> if currently blocked. Pass over both the <Event_Handler> *and* the <mask> to allow the caller to dictate which <Event_Handler> method the <Reactor_Impl> will invoke. The <ACE_Time_Value> indicates how long to blocking trying to notify the <Reactor_Impl>. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in *<timeout> elapses).

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual ACE_HANDLE ACE_Reactor_Notify::notify_handle void    [pure virtual]


Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the <Reactor_Impl>

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::open ACE_Reactor_Impl  ,
ACE_Timer_Queue   timer_queue = 0,
int    disable_notify = 0
[pure virtual]


Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::purge_pending_notifications ACE_Event_Handler   = 0,
ACE_Reactor_Mask    = ACE_Event_Handler::ALL_EVENTS_MASK
[pure virtual]


Purge any notifications pending in this reactor for the specified <ACE_Event_Handler> object. Returns the number of notifications purged. Returns -1 on error.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::read_notify_pipe ACE_HANDLE    handle,
ACE_Notification_Buffer   buffer
[pure virtual]


Read one of the notify call on the <handle> into the <buffer>. This could be because of a thread trying to unblock the <Reactor_Impl>

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.


The documentation for this class was generated from the following file:
Generated on Wed Jan 14 22:47:00 2004 for ACE by doxygen1.2.18
