/export2/deucetmp/bala/release_try/ACE_wrappers/ace/WFMO_Reactor.h File Reference

#include "ace/config-all.h"
#include "ace/Signal.h"
#include "ace/Timer_Queue.h"
#include "ace/Event_Handler.h"
#include "ace/Auto_Event.h"
#include "ace/Manual_Event.h"
#include "ace/Condition_Thread_Mutex.h"
#include "ace/Lock_Adapter_T.h"
#include "ace/Reactor_Impl.h"
#include "ace/Message_Queue.h"
#include "ace/Process_Mutex.h"
#include "ace/WFMO_Reactor.i"

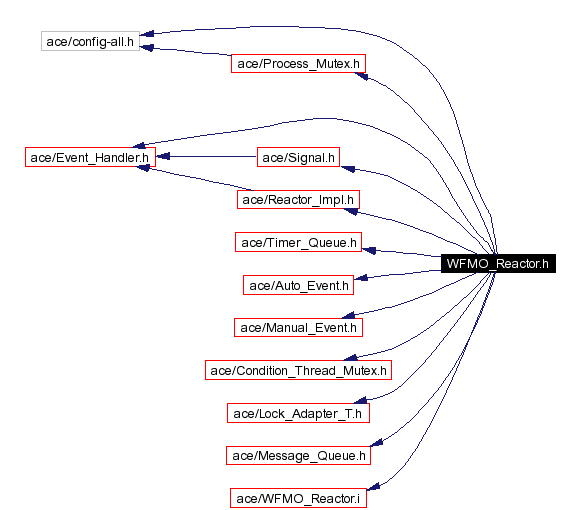

Include dependency graph for WFMO_Reactor.h:

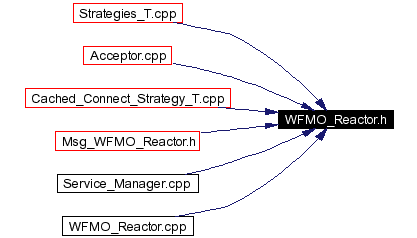

This graph shows which files directly or indirectly include this file:

Compounds
struct	_WSANETWORKEVENTS
class	ACE_Wakeup_All_Threads_Handler
	This is a helper class whose sole purpose is to handle events on <ACE_WFMO_Reactor->wakeup_all_threads_>. More...
class	ACE_WFMO_Reactor
	An object oriented event demultiplexor and event handler. ACE_WFMO_Reactor is a Windows-only implementation of the ACE_Reactor interface that uses the WaitForMultipleObjects() event demultiplexer. More...
class	ACE_WFMO_Reactor_Handler_Repository
	Used to map <ACE_HANDLE>s onto the appropriate <ACE_Event_Handler> * and other information. More...
class	Common_Info
	This struct contains the necessary information for every <Event_Handler> entry. The reason the event is not in this structure is because we need to pass an event array into WaitForMultipleObjects and therefore keeping the events seperate makes sense. More...
class	Current_Info
	This structure inherits from the common structure to add information for current entries. More...
class	To_Be_Added_Info
	This structure inherits from the common structure to add information for <to_be_added> entries. More...
class	Suspended_Info
	This structure inherits from the common structure to add information for suspended entries. More...
class	ACE_WFMO_Reactor_Notify
	Unblock the <ACE_WFMO_Reactor> from its event loop, passing it an optional <ACE_Event_Handler> to dispatch. More...
Defines
#define	FD_READ_BIT   0
#define	FD_WRITE_BIT   1
#define	FD_OOB_BIT   2
#define	FD_ACCEPT_BIT   3
#define	FD_CONNECT_BIT   4
#define	FD_CLOSE_BIT   5
#define	FD_QOS_BIT   6
#define	FD_GROUP_QOS_BIT   7
#define	FD_QOS   (1 << FD_QOS_BIT)
#define	FD_GROUP_QOS   (1 << FD_GROUP_QOS_BIT)
#define	FD_MAX_EVENTS   8
#define	FD_ALL_EVENTS   ((1 << FD_MAX_EVENTS) - 1)
#define	WSAEVENT   HANDLE
Typedefs
typedef _WSANETWORKEVENTS	WSANETWORKEVENTS
typedef _WSANETWORKEVENTS *	LPWSANETWORKEVENTS
Functions
int	WSAEventSelect (SOCKET s, WSAEVENT hEventObject, long lNetworkEvents)
int	WSAEnumNetworkEvents (SOCKET s, WSAEVENT hEventObject, LPWSANETWORKEVENTS lpNetworkEvents)

---

Detailed Description

Id:

WFMO_Reactor.h,v 4.69 2003/11/10 04:07:07 dhinton Exp

Author:

Irfan Pyarali <irfan@cs.wustl.edu> , Tim Harrison <harrison@cs.wustl.edu> , Doug Schmidt <schmidt@cs.wustl.edu>

---

Define Documentation

#define FD_ACCEPT_BIT   3

#define FD_ALL_EVENTS   ((1 << FD_MAX_EVENTS) - 1)

#define FD_CLOSE_BIT   5

#define FD_CONNECT_BIT   4

#define FD_GROUP_QOS   (1 << FD_GROUP_QOS_BIT)

#define FD_GROUP_QOS_BIT   7

#define FD_MAX_EVENTS   8

#define FD_OOB_BIT   2

#define FD_QOS   (1 << FD_QOS_BIT)

#define FD_QOS_BIT   6

#define FD_READ_BIT   0

#define FD_WRITE_BIT   1

#define WSAEVENT   HANDLE

---

Typedef Documentation

typedef struct _WSANETWORKEVENTS * LPWSANETWORKEVENTS

typedef struct _WSANETWORKEVENTS WSANETWORKEVENTS

---

Function Documentation

int WSAEnumNetworkEvents (  SOCKET    s, WSAEVENT    hEventObject, LPWSANETWORKEVENTS    lpNetworkEvents )

int WSAEventSelect (  SOCKET    s, WSAEVENT    hEventObject, long    lNetworkEvents )

---
