ACE_MEM_IO Class Reference

Defines the methods for the ACE shared memeory wrapper I/O routines (e.g., send/recv). The shared memory transport uses ACE_SOCK_* class to implement the signaling mechanism so we can easily use the new mechanism with the Reactor pattern (which uses select under the hood.) ACE_MEM_Acceptor and ACE_MEM_Connector are used to establish connections. When a connection is established, ACE_MEM_Acceptor creates the MMAP file for data exchange and sends the location of the file (complete path name) to ACE_MEM_Connector thru the socket. ACE_MEM_Connector then reads the location of the file off the socket and opens up the same MMAP file. ACE_MEM_Stream at each side then contains a reference to the ACE_Mallo object using the same MMAP file. When sending information using methods provided in this class, ACE_MEM_IO requests a chunk of memory from the MALLOC_TYPE object, copy the data into the shared memory and send the memory offset (from the start of the ACE_Malloc) across the socket. This action also servers as a signal to the other end. The receiving side then reverses the procedures and copies the information into user buffer. More...

#include <MEM_IO.h>

Inheritance diagram for ACE_MEM_IO:

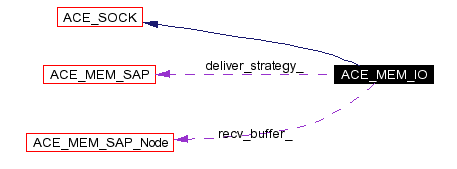

[legend]Collaboration diagram for ACE_MEM_IO:

[legend]List of all members.

Public Types
enum	Signal_Strategy { Reactive, MT }
Public Methods
	ACE_MEM_IO (void)
	Constructor.
	~ACE_MEM_IO (void)
	Destructor.
int	init (const ACE_TCHAR *name, ACE_MEM_IO::Signal_Strategy type=ACE_MEM_IO::Reactive, ACE_MEM_SAP::MALLOC_OPTIONS *options=0)
int	fini (void)
ssize_t	send (const void *buf, size_t n, int flags)
ssize_t	recv (void *buf, size_t n, int flags)
	Recv an <n> byte buffer from the shm_malloc_ thru connected socket.
ssize_t	send (const void *buf, size_t n)
ssize_t	recv (void *buf, size_t n)
	Recv an <n> byte buffer from the shm_malloc_ thru connected socket.
ssize_t	send (const void *buf, size_t n, const ACE_Time_Value *timeout)
ssize_t	send (const void *buf, size_t n, int flags, const ACE_Time_Value *timeout)
ssize_t	send (const ACE_Message_Block *message_block, const ACE_Time_Value *timeout)
ssize_t	recv (void *buf, size_t n, const ACE_Time_Value *timeout)
ssize_t	recv (void *buf, size_t n, int flags, const ACE_Time_Value *timeout)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Methods
ssize_t	fetch_recv_buf (int flag, const ACE_Time_Value *timeout)
Private Attributes
ACE_MEM_SAP *	deliver_strategy_
	Actual deliverying mechanism.
ACE_MEM_SAP_Node *	recv_buffer_
	Internal pointer for support recv/send.
ssize_t	buf_size_
	Record the current total buffer size of <recv_buffer_>.
ssize_t	cur_offset_
	Record the current read pointer location in <recv_buffer_>.

---

Detailed Description

Defines the methods for the ACE shared memeory wrapper I/O routines (e.g., send/recv). The shared memory transport uses ACE_SOCK_* class to implement the signaling mechanism so we can easily use the new mechanism with the Reactor pattern (which uses select under the hood.) ACE_MEM_Acceptor and ACE_MEM_Connector are used to establish connections. When a connection is established, ACE_MEM_Acceptor creates the MMAP file for data exchange and sends the location of the file (complete path name) to ACE_MEM_Connector thru the socket. ACE_MEM_Connector then reads the location of the file off the socket and opens up the same MMAP file. ACE_MEM_Stream at each side then contains a reference to the ACE_Mallo object using the same MMAP file. When sending information using methods provided in this class, ACE_MEM_IO requests a chunk of memory from the MALLOC_TYPE object, copy the data into the shared memory and send the memory offset (from the start of the ACE_Malloc) across the socket. This action also servers as a signal to the other end. The receiving side then reverses the procedures and copies the information into user buffer.

---

Member Enumeration Documentation

enum ACE_MEM_IO::Signal_Strategy

Enumeration values: Reactive  MT

---

Constructor & Destructor Documentation

ASYS_INLINE ACE_MEM_IO::ACE_MEM_IO (  void    )

Constructor.

ASYS_INLINE ACE_MEM_IO::~ACE_MEM_IO (  void    )

Destructor.

---

Member Function Documentation

void ACE_MEM_IO::dump (  void    )  const

Dump the state of an object. Reimplemented from ACE_SOCK. Reimplemented in ACE_MEM_Stream.

ASYS_INLINE ssize_t ACE_MEM_IO::fetch_recv_buf (  int    flag, const ACE_Time_Value *    timeout )  [private]

Return the local endpoint port number. Returns 0 if successful, else -1.

int ACE_MEM_IO::fini (  void    )

Finalizing the MEM_IO object. This method doesn't invoke the <remove> method.

int ACE_MEM_IO::init (  const ACE_TCHAR *    name, ACE_MEM_IO::Signal_Strategy    type = ACE_MEM_IO::Reactive, ACE_MEM_SAP::MALLOC_OPTIONS *    options = 0 )

Initialize the MEM_SAP object.

ASYS_INLINE ssize_t ACE_MEM_IO::recv (  void *    buf, size_t    n, int    flags, const ACE_Time_Value *    timeout )

Wait up to <timeout> amount of time to receive up to <n> bytes into <buf> from <handle> (uses the <recv> call). If <recv> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes received is returned.

ASYS_INLINE ssize_t ACE_MEM_IO::recv (  void *    buf, size_t    n, const ACE_Time_Value *    timeout )

Wait up to <timeout> amount of time to receive up to <n> bytes into <buf> from <handle> (uses the <recv> call). If <recv> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes received is returned.

ASYS_INLINE ssize_t ACE_MEM_IO::recv (  void *    buf, size_t    n )

Recv an <n> byte buffer from the shm_malloc_ thru connected socket.

ASYS_INLINE ssize_t ACE_MEM_IO::recv (  void *    buf, size_t    n, int    flags )

Recv an <n> byte buffer from the shm_malloc_ thru connected socket.

ssize_t ACE_MEM_IO::send (  const ACE_Message_Block *    message_block, const ACE_Time_Value *    timeout )

Wait to to <timeout> amount of time to send the <message_block>. If <send> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes sent is returned.

ASYS_INLINE ssize_t ACE_MEM_IO::send (  const void *    buf, size_t    n, int    flags, const ACE_Time_Value *    timeout )

Wait to to <timeout> amount of time to send up to <n> bytes into <buf> from <handle> (uses the <send> call). If <send> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes sent is returned.

ASYS_INLINE ssize_t ACE_MEM_IO::send (  const void *    buf, size_t    n, const ACE_Time_Value *    timeout )

Wait to to <timeout> amount of time to send up to <n> bytes into <buf> from <handle> (uses the <send> call). If <send> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes sent is returned.

ASYS_INLINE ssize_t ACE_MEM_IO::send (  const void *    buf, size_t    n )

Send an <n> byte buffer to the other process using shm_malloc_ connected thru the socket.

ASYS_INLINE ssize_t ACE_MEM_IO::send (  const void *    buf, size_t    n, int    flags )

Send an <n> byte buffer to the other process using shm_malloc_ connected thru the socket.

---

Member Data Documentation

ACE_MEM_IO::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented from ACE_SOCK. Reimplemented in ACE_MEM_Stream.

ssize_t ACE_MEM_IO::buf_size_ [private]

Record the current total buffer size of <recv_buffer_>.

ssize_t ACE_MEM_IO::cur_offset_ [private]

Record the current read pointer location in <recv_buffer_>.

ACE_MEM_SAP* ACE_MEM_IO::deliver_strategy_ [private]

Actual deliverying mechanism.

ACE_MEM_SAP_Node* ACE_MEM_IO::recv_buffer_ [private]

Internal pointer for support recv/send.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/MEM_IO.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/MEM_IO.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/MEM_IO.i

---
