ACE_SOCK Class Reference

An abstract class that forms the basis for more specific classes, such as <ACE_SOCK_Acceptor> and <ACE_SOCK_Stream>. Do not instantiate this class. More...

#include <SOCK.h>

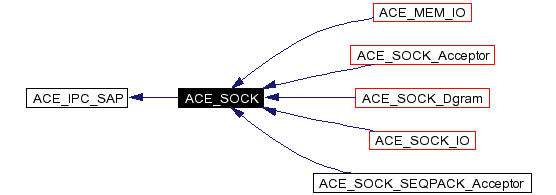

Inheritance diagram for ACE_SOCK:

[legend]Collaboration diagram for ACE_SOCK:

[legend]List of all members.

Public Methods
	~ACE_SOCK (void)
	Default ctor/dtor.
int	set_option (int level, int option, void *optval, int optlen) const
	Wrapper around the <setsockopt> system call.
int	get_option (int level, int option, void *optval, int *optlen) const
	Wrapper around the <getsockopt> system call.
int	close (void)
	Close down the socket handle.
int	get_local_addr (ACE_Addr &) const
int	get_remote_addr (ACE_Addr &) const
void	dump (void) const
	Dump the state of an object.
int	open (int type, int protocol_family, int protocol, int reuse_addr)
	Wrapper around the BSD-style <socket> system call (no QoS).
int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	Wrapper around the QoS-enabled <WSASocket> function.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Methods
	ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)
	ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	ACE_SOCK (void)

---

Detailed Description

An abstract class that forms the basis for more specific classes, such as <ACE_SOCK_Acceptor> and <ACE_SOCK_Stream>. Do not instantiate this class.

This class provides functions that are common to all of the <ACE_SOCK_*> classes. <ACE_SOCK> provides the ability to get and set socket options, get the local and remote addresses, and open and close a socket handle.

---

Constructor & Destructor Documentation

ASYS_INLINE ACE_SOCK::~ACE_SOCK (  void    )

Default ctor/dtor.

ACE_SOCK::ACE_SOCK (  int    type, int    protocol_family, int    protocol = 0, int    reuse_addr = 0 )  [protected]

Constructor with arguments to call the BSD-style <socket> system call (no QoS).

ACE_SOCK::ACE_SOCK (  int    type, int    protocol_family, int    protocol, ACE_Protocol_Info *    protocolinfo, ACE_SOCK_GROUP    g, u_long    flags, int    reuse_addr )  [protected]

Constructor with arguments to call the QoS-enabled <WSASocket> function.

ACE_SOCK::ACE_SOCK (  void    )  [protected]

Default constructor is protected to prevent instances of this class from being defined.

---

Member Function Documentation

int ACE_SOCK::close (  void    )

Close down the socket handle. Reimplemented in ACE_MEM_Stream, ACE_SOCK_Acceptor, ACE_SOCK_Dgram_Bcast, ACE_SOCK_SEQPACK_Acceptor, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

void ACE_SOCK::dump (  void    )  const

Dump the state of an object. Reimplemented from ACE_IPC_SAP. Reimplemented in ACE_LSOCK_Acceptor, ACE_LSOCK_CODgram, ACE_LSOCK_Dgram, ACE_LSOCK_Stream, ACE_MEM_Acceptor, ACE_MEM_IO, ACE_MEM_Stream, ACE_SOCK_Acceptor, ACE_SOCK_CODgram, ACE_SOCK_Dgram, ACE_SOCK_Dgram_Bcast, ACE_SOCK_Dgram_Mcast, ACE_SOCK_IO, ACE_SOCK_SEQPACK_Acceptor, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

int ACE_SOCK::get_local_addr (  ACE_Addr &    )  const

Return the local endpoint address in the referenced <ACE_Addr>. Returns 0 if successful, else -1. Reimplemented in ACE_LSOCK_Acceptor, and ACE_LSOCK_Stream.

ASYS_INLINE int ACE_SOCK::get_option (  int    level, int    option, void *    optval, int *    optlen )  const

Wrapper around the <getsockopt> system call.

int ACE_SOCK::get_remote_addr (  ACE_Addr &    )  const

Return the address of the remotely connected peer (if there is one), in the referenced <ACE_Addr>. Returns 0 if successful, else -1. Reimplemented in ACE_LSOCK_Stream, ACE_SOCK_Acceptor, ACE_SOCK_Dgram, ACE_SOCK_Dgram_Bcast, and ACE_SOCK_SEQPACK_Acceptor.

int ACE_SOCK::open (  int    type, int    protocol_family, int    protocol, ACE_Protocol_Info *    protocolinfo, ACE_SOCK_GROUP    g, u_long    flags, int    reuse_addr )

Wrapper around the QoS-enabled <WSASocket> function.

int ACE_SOCK::open (  int    type, int    protocol_family, int    protocol, int    reuse_addr )

Wrapper around the BSD-style <socket> system call (no QoS).

ASYS_INLINE int ACE_SOCK::set_option (  int    level, int    option, void *    optval, int    optlen )  const

Wrapper around the <setsockopt> system call.

---

Member Data Documentation

ACE_SOCK::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented from ACE_IPC_SAP. Reimplemented in ACE_LSOCK_Acceptor, ACE_LSOCK_CODgram, ACE_LSOCK_Dgram, ACE_LSOCK_Stream, ACE_MEM_Acceptor, ACE_MEM_IO, ACE_MEM_Stream, ACE_SOCK_Acceptor, ACE_SOCK_CODgram, ACE_SOCK_Dgram, ACE_SOCK_Dgram_Bcast, ACE_SOCK_Dgram_Mcast, ACE_SOCK_IO, ACE_SOCK_SEQPACK_Acceptor, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/SOCK.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/SOCK.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/SOCK.i

---
