ACE_MEM_Connector Class Reference

Defines the format and interface for connecting to a peer on a ACE_MEM_Stream object. More...

#include <MEM_Connector.h>

Inheritance diagram for ACE_MEM_Connector:

Inheritance graph
[legend]

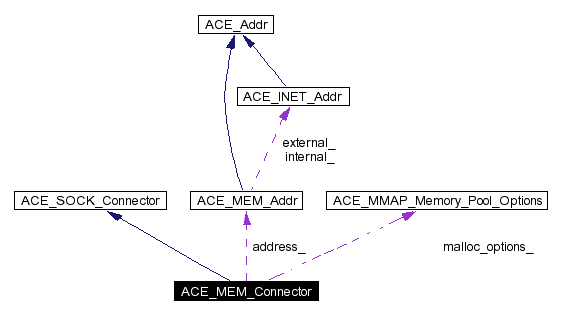

Collaboration diagram for ACE_MEM_Connector:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_INET_Addr PEER_ADDR
typedef ACE_MEM_Stream PEER_STREAM

Public Methods

 ACE_MEM_Connector (void)
 Default constructor.

 ACE_MEM_Connector (ACE_MEM_Stream &new_stream, const ACE_INET_Addr &remote_sap, ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0)
int connect (ACE_MEM_Stream &new_stream, const ACE_INET_Addr &remote_sap, ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0)
ACE_MEM_IO::Signal_Strategy preferred_strategy (void) const
 Get the preferred signaling strategy.

void preferred_strategy (ACE_MEM_IO::Signal_Strategy strategy)
 Set the preferred signaling strategy.

ACE_MEM_SAP::MALLOC_OPTIONSmalloc_options (void)
void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Attributes

ACE_MEM_Addr address_
 The acceptor address this connector is connecting to.

ACE_MEM_SAP::MALLOC_OPTIONS malloc_options_
ACE_MEM_IO::Signal_Strategy preferred_strategy_
 Preferred signaling strategy.


Detailed Description

Defines the format and interface for connecting to a peer on a ACE_MEM_Stream object.


Member Typedef Documentation

typedef ACE_INET_Addr ACE_MEM_Connector::PEER_ADDR


Reimplemented from ACE_SOCK_Connector.

typedef ACE_MEM_Stream ACE_MEM_Connector::PEER_STREAM


Reimplemented from ACE_SOCK_Connector.


Constructor & Destructor Documentation

ACE_MEM_Connector::ACE_MEM_Connector void


Default constructor.

ACE_MEM_Connector::ACE_MEM_Connector ACE_MEM_Stream   new_stream,
const ACE_INET_Addr   remote_sap,
ACE_Time_Value   timeout = 0,
const ACE_Addr   local_sap = ACE_Addr::sap_any,
int    reuse_addr = 0,
int    flags = 0,
int    perms = 0


Actively connect to a peer, producing a connected ACE_MEM_Stream object if the connection succeeds.

Parameters:
new_stream  The ACE_MEM_Stream object that will be connected to the peer.
remote_sap  The address that we are trying to connect to. The protocol family of remote_sap is used for the connected socket. That is, if remote_sap contains an IPv6 address, a socket with family PF_INET6 will be used, else it will be PF_INET.
Note:
remote_sap must be an address on the local host.
Parameters:
timeout  Pointer to an ACE_Time_Value object with amount of time to wait to connect. If the pointer is 0 then the call blocks until the connection attempt is complete, whether it succeeds or fails. If *timeout == {0, 0} then the connection is done using nonblocking mode. In this case, if the connection can't be made immediately, this method returns -1 and errno == EWOULDBLOCK. If *timeout > {0, 0} then this is the maximum amount of time to wait before timing out; if the specified amount of time passes before the connection is made, this method returns -1 and errno == ETIME. Note the difference between this case and when a blocking connect is attmpted that TCP times out - in the latter case, errno will be ETIMEDOUT.
local_sap  (optional) The local address to bind to. If it's the default value of ACE_Addr::sap_any then the OS will choose an unused port.
reuse_addr  (optional) If the value is 1, the local address (local_sap) is reused, even if it hasn't been cleaned up yet.
flags  Ignored.
perms  Ignored.


Member Function Documentation

int ACE_MEM_Connector::connect ACE_MEM_Stream   new_stream,
const ACE_INET_Addr   remote_sap,
ACE_Time_Value   timeout = 0,
const ACE_Addr   local_sap = ACE_Addr::sap_any,
int    reuse_addr = 0,
int    flags = 0,
int    perms = 0


Actively connect to a peer, producing a connected ACE_MEM_Stream object if the connection succeeds.

Parameters:
new_stream  The ACE_MEM_Stream object that will be connected to the peer.
remote_sap  The address that we are trying to connect to. The protocol family of remote_sap is used for the connected socket. That is, if remote_sap contains an IPv6 address, a socket with family PF_INET6 will be used, else it will be PF_INET.
Note:
remote_sap must be an address on the local host.
Parameters:
timeout  Pointer to an ACE_Time_Value object with amount of time to wait to connect. If the pointer is 0 then the call blocks until the connection attempt is complete, whether it succeeds or fails. If *timeout == {0, 0} then the connection is done using nonblocking mode. In this case, if the connection can't be made immediately, this method returns -1 and errno == EWOULDBLOCK. If *timeout > {0, 0} then this is the maximum amount of time to wait before timing out; if the specified amount of time passes before the connection is made, this method returns -1 and errno == ETIME. Note the difference between this case and when a blocking connect is attmpted that TCP times out - in the latter case, errno will be ETIMEDOUT.
local_sap  (optional) The local address to bind to. If it's the default value of ACE_Addr::sap_any then the OS will choose an unused port.
reuse_addr  (optional) If the value is 1, the local address (local_sap) is reused, even if it hasn't been cleaned up yet.
flags  Ignored.
perms  Ignored.
Returns:
Returns 0 if the connection succeeds. If it fails, -1 is returned and errno contains a specific error code.

void ACE_MEM_Connector::dump void    const


Dump the state of an object.

Reimplemented from ACE_SOCK_Connector.

ASYS_INLINE ACE_MEM_SAP::MALLOC_OPTIONS & ACE_MEM_Connector::malloc_options void


Accessor to underlying malloc options. This method has been deprecated.

ASYS_INLINE void ACE_MEM_Connector::preferred_strategy ACE_MEM_IO::Signal_Strategy    strategy


Set the preferred signaling strategy.

ASYS_INLINE ACE_MEM_IO::Signal_Strategy ACE_MEM_Connector::preferred_strategy void    const


Get the preferred signaling strategy.


Member Data Documentation

ACE_MEM_Connector::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_Connector.

ACE_MEM_Addr ACE_MEM_Connector::address_ [private]


The acceptor address this connector is connecting to.

ACE_MEM_SAP::MALLOC_OPTIONS ACE_MEM_Connector::malloc_options_ [private]


A cached MALLOC_OPTIONS that the MEM_Connector used to initialize the shared memory malloc update connection establishment.

ACE_MEM_IO::Signal_Strategy ACE_MEM_Connector::preferred_strategy_ [private]


Preferred signaling strategy.


The documentation for this class was generated from the following files:
Generated on Wed Jan 14 22:44:48 2004 for ACE by doxygen1.2.18
