ACE_Buffered_Svc_Handler<, > Class Template Reference

Defines the interface for a service that exchanges data with its connected peer and supports buffering. More...

#include <Svc_Handler.h>

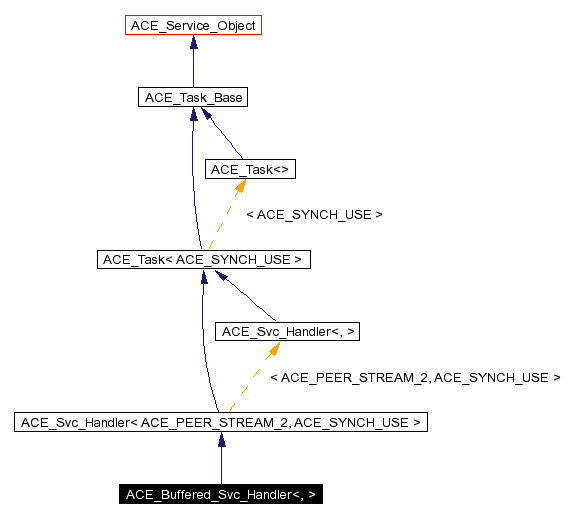

Inheritance diagram for ACE_Buffered_Svc_Handler<, >:

[legend]Collaboration diagram for ACE_Buffered_Svc_Handler<, >:

[legend]List of all members.

Public Methods
	ACE_Buffered_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance(), size_t max_buffer_size=0, ACE_Time_Value *relative_timeout=0)
virtual	~ACE_Buffered_Svc_Handler (void)
	Destructor, which calls <flush>.
virtual int	put (ACE_Message_Block *message_block, ACE_Time_Value *timeout=0)
virtual int	flush (void)
virtual int	handle_timeout (const ACE_Time_Value &time, const void *)
void	dump (void) const
	Dump the state of an object.
Protected Methods
virtual int	flush_i (void)
Protected Attributes
size_t	maximum_buffer_size_
size_t	current_buffer_size_
	Current size in bytes of the <Message_Queue> contents.
ACE_Time_Value	next_timeout_
	Timeout value used to control when the buffer is flushed.
ACE_Time_Value	interval_
	Interval of the timeout.
ACE_Time_Value *	timeoutp_
	Timeout pointer.

---

Detailed Description

template<ACE_PEER_STREAM_1, ACE_SYNCH_DECL>
class ACE_Buffered_Svc_Handler<, >

Defines the interface for a service that exchanges data with its connected peer and supports buffering.

The buffering feature makes it possible to queue up <ACE_Message_Blocks> in an <ACE_Message_Queue> until (1) the queue is "full" or (2) a period of time elapses, at which point the queue is "flushed" via <sendv_n> to the peer.

---

Constructor & Destructor Documentation

template<PR_ST_1 , ACE_SYNCH_DECL > ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler (  ACE_Thread_Manager *    thr_mgr = 0, ACE_Message_Queue< ACE_SYNCH_USE > *    mq = 0, ACE_Reactor *    reactor = ACE_Reactor::instance(), size_t    max_buffer_size = 0, ACE_Time_Value *    relative_timeout = 0 )

Constructor initializes the <thr_mgr> and <mq> by passing them down to the <ACE_Task> base class. The <reactor> is passed to the <ACE_Event_Handler>. The <max_buffer_size> and <relative_timeout> are used to determine at what point to flush the <mq>. By default, there's no buffering at all. The <relative_timeout> value is interpreted to be in a unit that's relative to the current time returned by <ACE_OS::gettimeofday>.

template<PR_ST_1 , ACE_SYNCH_DECL > ACE_Buffered_Svc_Handler<, >::~ACE_Buffered_Svc_Handler (  void    )  [virtual]

Destructor, which calls <flush>.

---

Member Function Documentation

template<PR_ST_1 , ACE_SYNCH_DECL > void ACE_Buffered_Svc_Handler<, >::dump (  void    )  const

Dump the state of an object. Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

template<PR_ST_1 , ACE_SYNCH_DECL > int ACE_Buffered_Svc_Handler<, >::flush (  void    )  [virtual]

Flush the <ACE_Message_Queue>, which writes all the queued <ACE_Message_Block>s to the <PEER_STREAM>.

template<PR_ST_1 , ACE_SYNCH_DECL > int ACE_Buffered_Svc_Handler<, >::flush_i (  void    )  [protected, virtual]

Implement the flush operation on the <ACE_Message_Queue>, which writes all the queued <ACE_Message_Block>s to the <PEER_STREAM>. Assumes that the caller holds the lock.

template<PR_ST_1 , ACE_SYNCH_DECL > int ACE_Buffered_Svc_Handler<, >::handle_timeout (  const ACE_Time_Value &    time, const void *    )  [virtual]

This method is not currently implemented -- this is where the integration with the <Reactor> would occur. Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

template<PR_ST_1 , ACE_SYNCH_DECL > int ACE_Buffered_Svc_Handler<, >::put (  ACE_Message_Block *    message_block, ACE_Time_Value *    timeout = 0 )  [virtual]

Insert the <ACE_Message_Block> chain rooted at <message_block> into the <ACE_Message_Queue> with the designated <timeout>. The <flush> method will be called if this <put> causes the number of bytes to exceed the maximum buffer size or if the timeout period has elapsed. Reimplemented from ACE_Task_Base.

---

Member Data Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL > size_t ACE_Buffered_Svc_Handler<, >::current_buffer_size_ [protected]

Current size in bytes of the <Message_Queue> contents.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL > ACE_Time_Value ACE_Buffered_Svc_Handler<, >::interval_ [protected]

Interval of the timeout.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL > size_t ACE_Buffered_Svc_Handler<, >::maximum_buffer_size_ [protected]

Maximum size the <Message_Queue> can be before we have to flush the buffer.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL > ACE_Time_Value ACE_Buffered_Svc_Handler<, >::next_timeout_ [protected]

Timeout value used to control when the buffer is flushed.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL > ACE_Time_Value* ACE_Buffered_Svc_Handler<, >::timeoutp_ [protected]

Timeout pointer.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Svc_Handler.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Svc_Handler.cpp

---
