ACE_Asynch_Write_Stream_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Stream class. More...

#include <Asynch_IO_Impl.h>

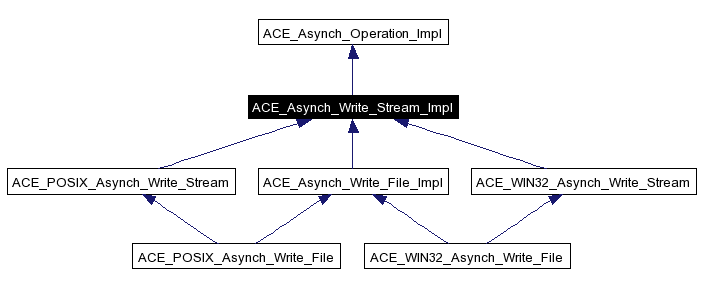

Inheritance diagram for ACE_Asynch_Write_Stream_Impl:

Inheritance graph
[legend]
Collaboration diagram for ACE_Asynch_Write_Stream_Impl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual ~ACE_Asynch_Write_Stream_Impl (void)
virtual int write (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, int priority, int signal_number)=0
virtual int writev (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, int priority, int signal_number)=0

Protected Member Functions

 ACE_Asynch_Write_Stream_Impl (void)
 Do-nothing constructor.

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Stream class.


Constructor & Destructor Documentation

ACE_Asynch_Write_Stream_Impl::~ACE_Asynch_Write_Stream_Impl void   )  [virtual]


ACE_INLINE ACE_Asynch_Write_Stream_Impl::ACE_Asynch_Write_Stream_Impl void   )  [protected]


Do-nothing constructor.


Member Function Documentation

virtual int ACE_Asynch_Write_Stream_Impl::write ACE_Message_Block message_block,
size_t  bytes_to_write,
const void *  act,
int  priority,
int  signal_number
[pure virtual]


This starts off an asynchronous write. Upto <bytes_to_write> will be written from the <message_block>.

Implemented in ACE_Asynch_Write_File_Impl, ACE_POSIX_Asynch_Write_Stream, ACE_POSIX_Asynch_Write_File, ACE_WIN32_Asynch_Write_Stream, and ACE_WIN32_Asynch_Write_File.

virtual int ACE_Asynch_Write_Stream_Impl::writev ACE_Message_Block message_block,
size_t  bytes_to_write,
const void *  act,
int  priority,
int  signal_number
[pure virtual]


Same as above but with gather support, through chaining of composite message blocks using the continuation field.

Implemented in ACE_Asynch_Write_File_Impl, ACE_WIN32_Asynch_Write_Stream, and ACE_WIN32_Asynch_Write_File.


The documentation for this class was generated from the following files:
Generated on Tue Dec 20 23:14:53 2005 for ACE by  doxygen 1.3.9.1
