ACE_Asynch_Write_Stream Class Reference

This class is a factory for starting off asynchronous writes on a stream. This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Write_Stream:

Inheritance graph
[legend]

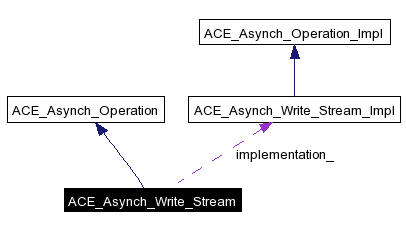

Collaboration diagram for ACE_Asynch_Write_Stream:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Asynch_Write_Stream (void)
 A do nothing constructor.
virtual ~ACE_Asynch_Write_Stream (void)
 Destructor.
int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int write (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
int writev (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Operation_Implimplementation (void) const
 Return the underlying implementation class.

Protected Attributes

ACE_Asynch_Write_Stream_Implimplementation_
 Implementation class that all methods will be forwarded to.

Detailed Description

This class is a factory for starting off asynchronous writes on a stream. This class forwards all methods to its implementation class.

Once {open} is called, multiple asynchronous {writes}s can started using this class. An ACE_Asynch_Write_Stream::Result will be passed back to the {handler} when the asynchronous write completes through the {ACE_Handler::handle_write_stream} callback.


Constructor & Destructor Documentation

ACE_Asynch_Write_Stream::ACE_Asynch_Write_Stream void   )


A do nothing constructor.

ACE_Asynch_Write_Stream::~ACE_Asynch_Write_Stream void   )  [virtual]


Destructor.


Member Function Documentation

ACE_Asynch_Operation_Impl * ACE_Asynch_Write_Stream::implementation void   )  const [virtual]


Return the underlying implementation class.

Implements ACE_Asynch_Operation.

Reimplemented in ACE_Asynch_Write_File.

int ACE_Asynch_Write_Stream::open ACE_Handler handler,
ACE_HANDLE  handle = ACE_INVALID_HANDLE,
const void *  completion_key = 0,
ACE_Proactor proactor = 0


Initializes the factory with information which will be used with each asynchronous call. If ({handle} == ACE_INVALID_HANDLE), {ACE_Handler::handle} will be called on the {handler} to get the correct handle.

Reimplemented from ACE_Asynch_Operation.

Reimplemented in ACE_Asynch_Write_File.

int ACE_Asynch_Write_Stream::write ACE_Message_Block message_block,
size_t  bytes_to_write,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN


This starts off an asynchronous write. Upto {bytes_to_write} will be written from the {message_block}. Upon successful completion of the write operation, {message_block}'s {rd_ptr} is updated to reflect the data that was written. Priority of the operation is specified by {priority}. On POSIX4-Unix, this is supported. Works like {nice} in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth. On Win32, this argument is a no-op. {signal_number} is the POSIX4 real-time signal number to be used for the operation. {signal_number} ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. This argument is a no-op on non-POSIX4 systems.

int ACE_Asynch_Write_Stream::writev ACE_Message_Block message_block,
size_t  bytes_to_write,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN


Same as above but with gather support, through chaining of composite message blocks using the continuation field.


Member Data Documentation

ACE_Asynch_Write_Stream_Impl* ACE_Asynch_Write_Stream::implementation_ [protected]


Implementation class that all methods will be forwarded to.

Reimplemented in ACE_Asynch_Write_File.


The documentation for this class was generated from the following files:
