ACE_Reactor_Impl Class Reference

An abstract class for implementing the Reactor Pattern. More...

#include <Reactor_Impl.h>

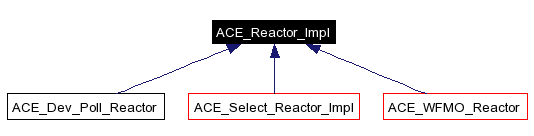

Inheritance diagram for ACE_Reactor_Impl:

Inheritance graph
[legend]
List of all members.

Public Member Functions

virtual ~ACE_Reactor_Impl (void)
 Close down and release all resources.
virtual int open (size_t size, int restart=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *=0)=0
 Initialization.
virtual int current_info (ACE_HANDLE, size_t &)=0
virtual int set_sig_handler (ACE_Sig_Handler *signal_handler)=0
 Use a user specified signal handler instead.
virtual int timer_queue (ACE_Timer_Queue *tq)=0
 Set a user-specified timer queue.
virtual ACE_Timer_Queuetimer_queue (void) const =0
 Return the current <ace_timer_queue>.
virtual int close (void)=0
 Close down and release all resources.
virtual int work_pending (const ACE_Time_Value &max_wait_time=ACE_Time_Value::zero)=0
virtual int handle_events (ACE_Time_Value *max_wait_time=0)=0
virtual int alertable_handle_events (ACE_Time_Value *max_wait_time=0)=0
virtual int handle_events (ACE_Time_Value &max_wait_time)=0
virtual int alertable_handle_events (ACE_Time_Value &max_wait_time)=0
virtual int deactivated (void)=0
virtual void deactivate (int do_stop)=0
virtual int register_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int register_handler (ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int register_handler (ACE_Event_Handler *event_handler, ACE_HANDLE event_handle=ACE_INVALID_HANDLE)=0
virtual int register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
 Register <event_handler> with all the <handles> in the <handle_set>.
virtual int register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)=0
virtual int register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0)=0
virtual int remove_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int remove_handler (ACE_HANDLE handle, ACE_Reactor_Mask mask)=0
virtual int remove_handler (const ACE_Handle_Set &handle_set, ACE_Reactor_Mask mask)=0
virtual int remove_handler (int signum, ACE_Sig_Action *new_disp, ACE_Sig_Action *old_disp=0, int sigkey=-1)=0
virtual int remove_handler (const ACE_Sig_Set &sigset)=0
 Calls <remove_handler> for every signal in <sigset>.
virtual int suspend_handler (ACE_Event_Handler *event_handler)=0
virtual int suspend_handler (ACE_HANDLE handle)=0
 Suspend <handle> temporarily.
virtual int suspend_handler (const ACE_Handle_Set &handles)=0
 Suspend all <handles> in handle set temporarily.
virtual int suspend_handlers (void)=0
 Suspend all <handles> temporarily.
virtual int resume_handler (ACE_Event_Handler *event_handler)=0
virtual int resume_handler (ACE_HANDLE handle)=0
 Resume <handle>.
virtual int resume_handler (const ACE_Handle_Set &handles)=0
 Resume all <handles> in handle set.
virtual int resume_handlers (void)=0
 Resume all <handles>.
virtual int resumable_handler (void)=0
virtual int uses_event_associations (void)=0
virtual long schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval=ACE_Time_Value::zero)=0
virtual int reset_timer_interval (long timer_id, const ACE_Time_Value &interval)=0
virtual int cancel_timer (ACE_Event_Handler *event_handler, int dont_call_handle_close=1)=0
virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)=0
virtual int schedule_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_added)=0
virtual int schedule_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_added)=0
virtual int cancel_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_cleared)=0
 Clear <masks_to_be_cleared> from the <event_handler>'s entry.
virtual int cancel_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_cleared)=0
 Clear <masks_to_be_cleared> from the <handle>'s entry.
virtual int notify (ACE_Event_Handler *event_handler=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *=0)=0
virtual void max_notify_iterations (int)=0
virtual int max_notify_iterations (void)=0
virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0
virtual ACE_Event_Handlerfind_handler (ACE_HANDLE handle)=0
virtual int handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)=0
virtual int handler (int signum, ACE_Event_Handler **=0)=0
virtual int initialized (void)=0
virtual size_t size (void) const =0
virtual ACE_Locklock (void)=0
 Returns a reference to the Reactor's internal lock.
virtual void wakeup_all_threads (void)=0
 Wake up all threads in waiting in the event loop.
virtual int owner (ACE_thread_t new_owner, ACE_thread_t *old_owner=0)=0
 Transfers ownership of Reactor_Impl to the <new_owner>.
virtual int owner (ACE_thread_t *owner)=0
 Return the ID of the "owner" thread.
virtual int restart (void)=0
 Get the existing restart value.
virtual int restart (int r)=0
 Set a new value for restart and return the original value.
virtual void requeue_position (int)=0
 Set position of the owner thread.
virtual int requeue_position (void)=0
 Get position of the owner thread.
virtual int mask_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)=0
virtual int mask_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, int ops)=0
virtual int ready_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)=0
virtual int ready_ops (ACE_HANDLE handle, ACE_Reactor_Mask, int ops)=0
 GET/SET/ADD/CLR the ready "bit" bound with the <handle> and <mask>.
virtual void dump (void) const =0
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Detailed Description

An abstract class for implementing the Reactor Pattern.


Constructor & Destructor Documentation

ACE_Reactor_Impl::~ACE_Reactor_Impl void   )  [virtual]


Close down and release all resources.


Member Function Documentation

virtual int ACE_Reactor_Impl::alertable_handle_events ACE_Time_Value max_wait_time  )  [pure virtual]


Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::alertable_handle_events ACE_Time_Value max_wait_time = 0  )  [pure virtual]


Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_timer long  timer_id,
const void **  arg = 0,
int  dont_call_handle_close = 1
[pure virtual]


Cancel the single Event_Handler that matches the <timer_id> value (which was returned from the schedule method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the Event_Handler was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_QtReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_timer ACE_Event_Handler event_handler,
int  dont_call_handle_close = 1
[pure virtual]


Cancel all Event_Handlers that match the address of <event_handler>. Returns number of handlers cancelled.

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_QtReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_wakeup ACE_HANDLE  handle,
ACE_Reactor_Mask  masks_to_be_cleared
[pure virtual]


Clear <masks_to_be_cleared> from the <handle>'s entry.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_wakeup ACE_Event_Handler event_handler,
ACE_Reactor_Mask  masks_to_be_cleared
[pure virtual]


Clear <masks_to_be_cleared> from the <event_handler>'s entry.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::close void   )  [pure virtual]


Close down and release all resources.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::current_info ACE_HANDLE  ,
size_t &
[pure virtual]


Returns 0, if the size of the current message has been put in <size> Returns -1, if not. ACE_HANDLE allows the reactor to check if the caller is valid.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::deactivate int  do_stop  )  [pure virtual]


Control whether the Reactor will handle any more incoming events or not. If <do_stop> == 1, the Reactor will be disabled. By default, a reactor is in active state and can be deactivated/reactived as wish.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::deactivated void   )  [pure virtual]


Return the status of Reactor. If this function returns 0, the reactor is actively handling events. If it returns non-zero, <handling_events> and <handle_alertable_events> return -1 immediately.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::dump void   )  const [pure virtual]


Dump the state of an object.

Implemented in ACE_Dev_Poll_Reactor, ACE_Priority_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual ACE_Event_Handler* ACE_Reactor_Impl::find_handler ACE_HANDLE  handle  )  [pure virtual]


Return the Event_Handler associated with <handle>. Return 0 if <handle> is not registered.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handle_events ACE_Time_Value max_wait_time  )  [pure virtual]


This method is just like the one above, except the <max_wait_time> value is a reference and can therefore never be NULL.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, the eventloop will return when the system queues an I/O completion routine or an Asynchronous Procedure Call.

Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handle_events ACE_Time_Value max_wait_time = 0  )  [pure virtual]


This event loop driver blocks for up to <max_wait_time> before returning. It will return earlier if events occur. Note that <max_wait_time> can be 0, in which case this method blocks indefinitely until events occur.

<max_wait_time> is decremented to reflect how much time this call took. For instance, if a time value of 3 seconds is passed to handle_events and an event occurs after 2 seconds, <max_wait_time> will equal 1 second. This can be used if an application wishes to handle events for some fixed amount of time.

Returns the total number of <ace_event_handler>s that were dispatched, 0 if the <max_wait_time> elapsed without dispatching any handlers, or -1 if an error occurs.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, the eventloop will return when the system queues an I/O completion routine or an Asynchronous Procedure Call.

Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handler int  signum,
ACE_Event_Handler **  = 0
[pure virtual]


Check to see if <signum> is associated with a valid Event_Handler bound to a signal. Return the <event_handler> associated with this <handler> if <event_handler> != 0.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handler ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
ACE_Event_Handler **  event_handler = 0
[pure virtual]


Check to see if <handle> is associated with a valid Event_Handler bound to <mask>. Return the <event_handler> associated with this <handler> if <event_handler> != 0.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::initialized void   )  [pure virtual]


Returns true if Reactor has been successfully initialized, else false.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual ACE_Lock& ACE_Reactor_Impl::lock void   )  [pure virtual]


Returns a reference to the Reactor's internal lock.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::mask_ops ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
int  ops
[pure virtual]


GET/SET/ADD/CLR the dispatch MASK "bit" bound with the <handle> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::mask_ops ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask,
int  ops
[pure virtual]


GET/SET/ADD/CLR the dispatch mask "bit" bound with the <event_handler> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::max_notify_iterations void   )  [pure virtual]


Get the maximum number of times that the ACE_Reactor_Impl will iterate and dispatch the <ace_event_handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::max_notify_iterations int   )  [pure virtual]


Set the maximum number of times that ACE_Reactor_Impl will iterate and dispatch the <ace_event_handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::notify ACE_Event_Handler event_handler = 0,
ACE_Reactor_Mask  mask = ACE_Event_Handler::EXCEPT_MASK,
ACE_Time_Value = 0
[pure virtual]


Notify <event_handler> of <mask> event. The <ace_time_value> indicates how long to blocking trying to notify. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in <timeout> elapses).

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::open size_t  size,
int  restart = 0,
ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify = 0
[pure virtual]


Initialization.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::owner ACE_thread_t owner  )  [pure virtual]


Return the ID of the "owner" thread.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::owner ACE_thread_t  new_owner,
ACE_thread_t old_owner = 0
[pure virtual]


Transfers ownership of Reactor_Impl to the <new_owner>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::purge_pending_notifications ACE_Event_Handler = 0,
ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK
[pure virtual]


Purge any notifications pending in this reactor for the specified <ace_event_handler> object. Returns the number of notifications purged. Returns -1 on error.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_Impl, and ACE_WFMO_Reactor.

virtual int ACE_Reactor_Impl::ready_ops ACE_HANDLE  handle,
ACE_Reactor_Mask  ,
int  ops
[pure virtual]


GET/SET/ADD/CLR the ready "bit" bound with the <handle> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::ready_ops ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask,
int  ops
[pure virtual]


GET/SET/ADD/CLR the ready "bit" bound with the <event_handler> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler const ACE_Sig_Set sigset,
ACE_Event_Handler new_sh,
ACE_Sig_Action new_disp = 0
[pure virtual]


Registers <new_sh> to handle a set of signals <sigset> using the <new_disp>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler int  signum,
ACE_Event_Handler new_sh,
ACE_Sig_Action new_disp = 0,
ACE_Event_Handler **  old_sh = 0,
ACE_Sig_Action old_disp = 0
[pure virtual]


Register <new_sh> to handle the signal <signum> using the <new_disp>. Returns the <old_sh> that was previously registered (if any), along with the <old_disp> of the signal handler.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler const ACE_Handle_Set handles,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[pure virtual]


Register <event_handler> with all the <handles> in the <handle_set>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler ACE_HANDLE  event_handle,
ACE_HANDLE  io_handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[pure virtual]


Register an <event_handler> that will be notified when <event_handle> is signaled. <mask> specifies the network events that the <event_handler> is interested in.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler ACE_Event_Handler event_handler,
ACE_HANDLE  event_handle = ACE_INVALID_HANDLE
[pure virtual]


Register an <event_handler> that will be notified when <event_handle> is signaled. Since no event mask is passed through this interface, it is assumed that the <event_handle> being passed in is an event handle and not an I/O handle.

Implemented in ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler ACE_HANDLE  io_handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[pure virtual]


Register <event_handler> with <mask>. The I/O handle is provided through the <io_handle> parameter.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[pure virtual]


Register <event_handler> with <mask>. The I/O handle will always come from <get_handle> on the <event_handler>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler const ACE_Sig_Set sigset  )  [pure virtual]


Calls <remove_handler> for every signal in <sigset>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler int  signum,
ACE_Sig_Action new_disp,
ACE_Sig_Action old_disp = 0,
int  sigkey = -1
[pure virtual]


Remove the ACE_Event_Handler currently associated with <signum>. Install the new disposition (if given) and return the previous disposition (if desired by the caller). Returns 0 on success and -1 if <signum> is invalid.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler const ACE_Handle_Set handle_set,
ACE_Reactor_Mask  mask
[pure virtual]


Removes all handles in <handle_set>. If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the associated <event_handler>s is not invoked.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
[pure virtual]


Removes <handle>. If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the associated <event_handler> is not invoked.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[pure virtual]


Removes <event_handler>. Note that the I/O handle will be obtained using <get_handle> method of <event_handler> . If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the <event_handler> is not invoked.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::requeue_position void   )  [pure virtual]


Get position of the owner thread.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::requeue_position int   )  [pure virtual]


Set position of the owner thread.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::reset_timer_interval long  timer_id,
const ACE_Time_Value interval
[pure virtual]


Resets the interval of the timer represented by <timer_id> to <interval>, which is specified in relative time to the current <gettimeofday>. If <interval> is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::restart int  r  )  [pure virtual]


Set a new value for restart and return the original value.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::restart void   )  [pure virtual]


Get the existing restart value.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resumable_handler void   )  [pure virtual]


Does the reactor allow the application to resume the handle on its own ie. can it pass on the control of handle resumption to the application

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_Impl, ACE_TP_Reactor, and ACE_WFMO_Reactor.

virtual int ACE_Reactor_Impl::resume_handler const ACE_Handle_Set handles  )  [pure virtual]


Resume all <handles> in handle set.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resume_handler ACE_HANDLE  handle  )  [pure virtual]


Resume <handle>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resume_handler ACE_Event_Handler event_handler  )  [pure virtual]


Resume <event_handler>. Use <ACE_Event_Handler::get_handle> to get the handle.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resume_handlers void   )  [pure virtual]


Resume all <handles>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual long ACE_Reactor_Impl::schedule_timer ACE_Event_Handler event_handler,
const void *  arg,
const ACE_Time_Value delay,
const ACE_Time_Value interval = ACE_Time_Value::zero
[pure virtual]


Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:
cancel_timer()

reset_timer_interval()

Parameters:
event_handler event handler to schedule on reactor
arg argument passed to the handle_timeout() method of event_handler
delay time interval after which the timer will expire
interval time interval after which the timer will be automatically rescheduled
Returns:
-1 on failure, a timer_id value on success

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_QtReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::schedule_wakeup ACE_HANDLE  handle,
ACE_Reactor_Mask  masks_to_be_added
[pure virtual]


Add <masks_to_be_added> to the <handle>'s entry. <event_handler> associated with <handle> must already have been registered.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::schedule_wakeup ACE_Event_Handler event_handler,
ACE_Reactor_Mask  masks_to_be_added
[pure virtual]


Add <masks_to_be_added> to the <event_handler>'s entry. <event_handler> must already have been registered.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::set_sig_handler ACE_Sig_Handler signal_handler  )  [pure virtual]


Use a user specified signal handler instead.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual size_t ACE_Reactor_Impl::size void   )  const [pure virtual]


Returns the current size of the Reactor's internal descriptor table.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handler const ACE_Handle_Set handles  )  [pure virtual]


Suspend all <handles> in handle set temporarily.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handler ACE_HANDLE  handle  )  [pure virtual]


Suspend <handle> temporarily.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handler ACE_Event_Handler event_handler  )  [pure virtual]


Suspend <event_handler> temporarily. Use <ACE_Event_Handler::get_handle> to get the handle.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handlers void   )  [pure virtual]


Suspend all <handles> temporarily.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual ACE_Timer_Queue* ACE_Reactor_Impl::timer_queue void   )  const [pure virtual]


Return the current <ace_timer_queue>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::timer_queue ACE_Timer_Queue tq  )  [pure virtual]


Set a user-specified timer queue.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::uses_event_associations void   )  [pure virtual]


Return 1 if we any event associations were made by the reactor for the handles that it waits on, 0 otherwise.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::wakeup_all_threads void   )  [pure virtual]


Wake up all threads in waiting in the event loop.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::work_pending const ACE_Time_Value max_wait_time = ACE_Time_Value::zero  )  [pure virtual]


Returns non-zero if there are I/O events "ready" for dispatching, but does not actually dispatch the event handlers. By default, don't block while checking this, i.e., "poll".

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.


Member Data Documentation

ACE_Reactor_Impl::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented in ACE_Dev_Poll_Reactor, ACE_Priority_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.


The documentation for this class was generated from the following files:
Generated on Wed Jun 8 23:56:13 2005 for ACE by  doxygen 1.3.9.1
