ACE_Reactor_Notify Class Reference

Abstract class for unblocking an <ace_reactor_impl> from its event loop. More...

#include <Reactor_Impl.h>

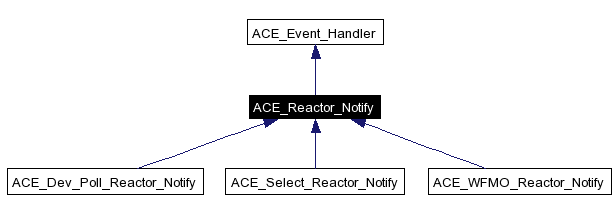

Inheritance diagram for ACE_Reactor_Notify:

[legend]Collaboration diagram for ACE_Reactor_Notify:

[legend]List of all members.

Public Member Functions
virtual int	open (ACE_Reactor_Impl *, ACE_Timer_Queue *timer_queue=0, int disable_notify=0)=0
virtual int	close (void)=0
virtual int	notify (ACE_Event_Handler *eh=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)=0
virtual int	dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)=0
virtual ACE_HANDLE	notify_handle (void)=0
virtual int	is_dispatchable (ACE_Notification_Buffer &buffer)=0
	Verify whether the buffer has dispatchable info or not.
virtual int	dispatch_notify (ACE_Notification_Buffer &buffer)=0
virtual int	read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)=0
virtual void	max_notify_iterations (int)=0
virtual int	max_notify_iterations (void)=0
virtual int	purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0
virtual void	dump (void) const =0
	Dump the state of an object.

---

Detailed Description

Abstract class for unblocking an <ace_reactor_impl> from its event loop.

---

Member Function Documentation

virtual int ACE_Reactor_Notify::close (  void   )  [pure virtual]

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notifications (  int &  number_of_active_handles, ACE_Handle_Set &  rd_mask )  [pure virtual]

Handles pending threads (if any) that are waiting to unblock the <reactor_impl>. Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notify (  ACE_Notification_Buffer &  buffer  )  [pure virtual]

Handle one of the notify call on the <handle>. This could be because of a thread trying to unblock the <reactor_impl> Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual void ACE_Reactor_Notify::dump (  void   )  const [pure virtual]

Dump the state of an object. Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::is_dispatchable (  ACE_Notification_Buffer &  buffer  )  [pure virtual]

Verify whether the buffer has dispatchable info or not. Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::max_notify_iterations (  void   )  [pure virtual]

Get the maximum number of times that the <handle_input> method will iterate and dispatch the <ace_event_handlers> that are passed in via the notify queue before breaking out of its event loop. Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual void ACE_Reactor_Notify::max_notify_iterations (  int   )  [pure virtual]

Set the maximum number of times that the <handle_input> method will iterate and dispatch the <ace_event_handlers> that are passed in via the notify queue before breaking out of the event loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead. Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::notify (  ACE_Event_Handler *  eh = 0, ACE_Reactor_Mask  mask = ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *  timeout = 0 )  [pure virtual]

Called by a thread when it wants to unblock the <reactor_impl>. This wakeups the <reactor_impl> if currently blocked. Pass over both the <event_handler> *and* the <mask> to allow the caller to dictate which <event_handler> method the <reactor_impl> will invoke. The <ace_time_value> indicates how long to blocking trying to notify the <reactor_impl>. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in *<timeout> elapses). Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual ACE_HANDLE ACE_Reactor_Notify::notify_handle (  void   )  [pure virtual]

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the <reactor_impl> Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::open (  ACE_Reactor_Impl *  , ACE_Timer_Queue *  timer_queue = 0, int  disable_notify = 0 )  [pure virtual]

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::purge_pending_notifications (  ACE_Event_Handler *  = 0, ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK )  [pure virtual]

Purge any notifications pending in this reactor for the specified <ace_event_handler> object. Returns the number of notifications purged. Returns -1 on error. Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

virtual int ACE_Reactor_Notify::read_notify_pipe (  ACE_HANDLE  handle, ACE_Notification_Buffer &  buffer )  [pure virtual]

Read one of the notify call on the <handle> into the <buffer>. This could be because of a thread trying to unblock the <reactor_impl> Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

---

The documentation for this class was generated from the following file:

• Reactor_Impl.h

---
