ACE_Asynch_Operation_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Operation. More...

#include <Asynch_IO_Impl.h>

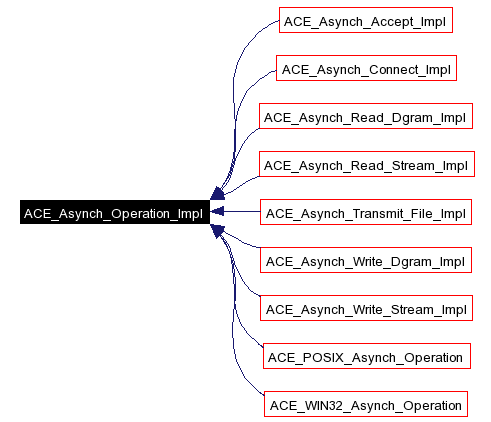

Inheritance diagram for ACE_Asynch_Operation_Impl:

Inheritance graph
[legend]
List of all members.

Public Member Functions

virtual ~ACE_Asynch_Operation_Impl (void)
virtual int open (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)=0
virtual int cancel (void)=0
virtual ACE_Proactorproactor (void) const =0
 Return the underlying proactor.

Protected Member Functions

 ACE_Asynch_Operation_Impl (void)
 Do-nothing constructor.

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Operation.


Constructor & Destructor Documentation

ACE_Asynch_Operation_Impl::~ACE_Asynch_Operation_Impl void   )  [virtual]


ACE_INLINE ACE_Asynch_Operation_Impl::ACE_Asynch_Operation_Impl void   )  [protected]


Do-nothing constructor.


Member Function Documentation

virtual int ACE_Asynch_Operation_Impl::cancel void   )  [pure virtual]


This cancels all pending accepts operations that were issued by the calling thread. The function does not cancel asynchronous operations issued by other threads.

Implemented in ACE_POSIX_Asynch_Operation, ACE_POSIX_Asynch_Accept, ACE_POSIX_Asynch_Connect, ACE_WIN32_Asynch_Operation, ACE_WIN32_Asynch_Read_Stream, ACE_WIN32_Asynch_Write_Stream, ACE_WIN32_Asynch_Read_File, ACE_WIN32_Asynch_Write_File, ACE_WIN32_Asynch_Accept, ACE_WIN32_Asynch_Connect, ACE_WIN32_Asynch_Transmit_File, ACE_WIN32_Asynch_Read_Dgram, and ACE_WIN32_Asynch_Write_Dgram.

virtual int ACE_Asynch_Operation_Impl::open const ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
const void *  completion_key,
ACE_Proactor proactor
[pure virtual]


Initializes the factory with information which will be used with each asynchronous call. If handle == ACE_INVALID_HANDLE, ACE_Handler::handle() will be called on the proxied handler to get the correct handle.

Implemented in ACE_POSIX_Asynch_Operation, ACE_POSIX_Asynch_Accept, ACE_POSIX_Asynch_Connect, ACE_WIN32_Asynch_Operation, ACE_WIN32_Asynch_Read_Stream, ACE_WIN32_Asynch_Write_Stream, ACE_WIN32_Asynch_Read_File, ACE_WIN32_Asynch_Write_File, ACE_WIN32_Asynch_Accept, ACE_WIN32_Asynch_Connect, ACE_WIN32_Asynch_Transmit_File, ACE_WIN32_Asynch_Read_Dgram, and ACE_WIN32_Asynch_Write_Dgram.

virtual ACE_Proactor* ACE_Asynch_Operation_Impl::proactor void   )  const [pure virtual]


Return the underlying proactor.

Implemented in ACE_POSIX_Asynch_Operation, ACE_WIN32_Asynch_Operation, ACE_WIN32_Asynch_Read_Stream, ACE_WIN32_Asynch_Write_Stream, ACE_WIN32_Asynch_Read_File, ACE_WIN32_Asynch_Write_File, ACE_WIN32_Asynch_Accept, ACE_WIN32_Asynch_Connect, ACE_WIN32_Asynch_Transmit_File, ACE_WIN32_Asynch_Read_Dgram, and ACE_WIN32_Asynch_Write_Dgram.


The documentation for this class was generated from the following files:
