ACE_WIN32_Asynch_Read_File Class Reference

This class is a factory for starting off asynchronous reads on a file. More...

#include <WIN32_Asynch_IO.h>

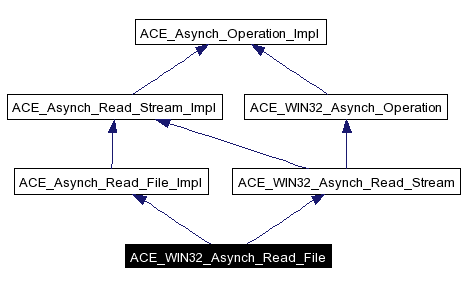

Inheritance diagram for ACE_WIN32_Asynch_Read_File:

Inheritance graph
[legend]

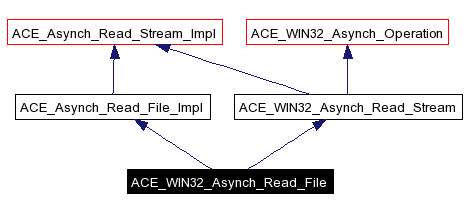

Collaboration diagram for ACE_WIN32_Asynch_Read_File:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_WIN32_Asynch_Read_File (ACE_WIN32_Proactor *win32_proactor)
 Constructor.
int read (ACE_Message_Block &message_block, size_t bytes_to_read, u_long offset, u_long offset_high, const void *act, int priority, int signal_number=0)
int readv (ACE_Message_Block &message_block, size_t bytes_to_read, u_long offset, u_long offset_high, const void *act, int priority, int signal_number=0)
virtual ~ACE_WIN32_Asynch_Read_File (void)
 Destructor.
int open (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)
int cancel (void)
ACE_Proactorproactor (void) const
 Return the underlying proactor.

Private Member Functions

int read (ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, int priority, int signal_number=0)
int readv (ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, int priority, int signal_number=0)

Detailed Description

This class is a factory for starting off asynchronous reads on a file.

Once <open> is called, multiple asynchronous <read>s can started using this class. A ACE_Asynch_Read_File::Result will be passed back to the <handler> when the asynchronous reads completes through the <ACE_Handler::handle_read_file> callback.

This class differs slightly from ACE_Asynch_Read_Stream as it allows the user to specify an offset for the read.


Constructor & Destructor Documentation

ACE_WIN32_Asynch_Read_File::ACE_WIN32_Asynch_Read_File ACE_WIN32_Proactor win32_proactor  )


Constructor.

ACE_WIN32_Asynch_Read_File::~ACE_WIN32_Asynch_Read_File void   )  [virtual]


Destructor.


Member Function Documentation

int ACE_WIN32_Asynch_Read_File::cancel void   )  [virtual]


This cancels all pending accepts operations that were issued by the calling thread. The function does not cancel asynchronous operations issued by other threads.

Reimplemented from ACE_WIN32_Asynch_Read_Stream.

int ACE_WIN32_Asynch_Read_File::open const ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
const void *  completion_key,
ACE_Proactor proactor
[virtual]


Initializes the factory with information which will be used with each asynchronous call. If (<handle> == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the <handler> to get the correct handle.

Reimplemented from ACE_WIN32_Asynch_Read_Stream.

ACE_Proactor * ACE_WIN32_Asynch_Read_File::proactor void   )  const [virtual]


Return the underlying proactor.

Reimplemented from ACE_WIN32_Asynch_Read_Stream.

int ACE_WIN32_Asynch_Read_File::read ACE_Message_Block message_block,
size_t  bytes_to_read,
const void *  act,
int  priority,
int  signal_number = 0
[private, virtual]


This method belongs to ACE_WIN32_Asynch_Read_Stream. It is here to avoid the compiler warnings. We forward this call to the ACE_WIN32_Asynch_Read_Stream class.

Implements ACE_Asynch_Read_File_Impl.

int ACE_WIN32_Asynch_Read_File::read ACE_Message_Block message_block,
size_t  bytes_to_read,
u_long  offset,
u_long  offset_high,
const void *  act,
int  priority,
int  signal_number = 0
[virtual]


This starts off an asynchronous read. Upto <bytes_to_read> will be read and stored in the <message_block>. The read will start at <offset> from the beginning of the file.

Implements ACE_Asynch_Read_File_Impl.

int ACE_WIN32_Asynch_Read_File::readv ACE_Message_Block message_block,
size_t  bytes_to_read,
const void *  act,
int  priority,
int  signal_number = 0
[private, virtual]


Same as above but with scatter support, through chaining of composite message blocks using the continuation field.

Implements ACE_Asynch_Read_File_Impl.

int ACE_WIN32_Asynch_Read_File::readv ACE_Message_Block message_block,
size_t  bytes_to_read,
u_long  offset,
u_long  offset_high,
const void *  act,
int  priority,
int  signal_number = 0
[virtual]


Same as above but with scatter support, through chaining of composite message blocks using the continuation field. NOTE: Each data block payload must be at least the size of a system memory page and must be aligned on a system memory page size boundary

Implements ACE_Asynch_Read_File_Impl.


The documentation for this class was generated from the following files:
