ACE_Proactor Class Reference

A manager for asynchronous event demultiplexing. More...

#include <Proactor.h>

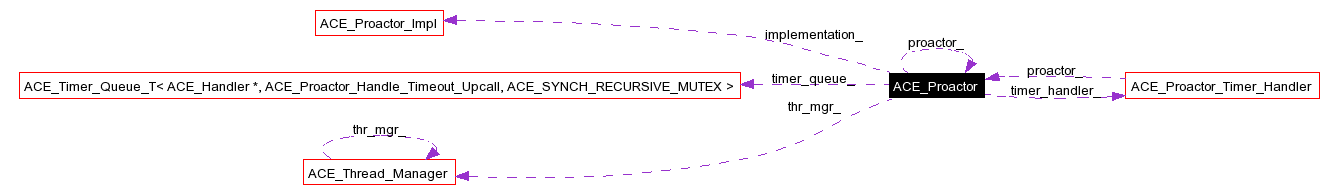

Collaboration diagram for ACE_Proactor:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Timer_Queue_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_QUEUE
 Public type.
typedef int(* PROACTOR_EVENT_HOOK )(ACE_Proactor *)

Public Member Functions

 ACE_Proactor (ACE_Proactor_Impl *implementation=0, int delete_implementation=0, TIMER_QUEUE *tq=0)
virtual ~ACE_Proactor (void)
 Virtual destruction.
virtual int close (void)
 Close the associated ACE_Proactor_Impl implementation object.
virtual int proactor_run_event_loop (PROACTOR_EVENT_HOOK=0)
virtual int proactor_run_event_loop (ACE_Time_Value &tv, PROACTOR_EVENT_HOOK=0)
virtual int proactor_end_event_loop (void)
virtual int proactor_event_loop_done (void)
 Report if the ACE_Proactor event loop is finished.
virtual int proactor_reset_event_loop (void)
virtual int register_handle (ACE_HANDLE handle, const void *completion_key)
virtual long schedule_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &time)
virtual long schedule_repeating_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &interval)
virtual long schedule_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &time, const ACE_Time_Value &interval)
virtual int cancel_timer (ACE_Handler &handler, int dont_call_handle_close=1)
virtual int cancel_timer (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual int handle_events (ACE_Time_Value &wait_time)
virtual int handle_events (void)
int wake_up_dispatch_threads (void)
 Add wakeup dispatch threads (reinit).
int close_dispatch_threads (int wait)
 Close all dispatch threads.
size_t number_of_threads (void) const
 Get number of thread used as a parameter to CreatIoCompletionPort.
void number_of_threads (size_t threads)
 Set number of thread used as a parameter to CreatIoCompletionPort.
TIMER_QUEUEtimer_queue (void) const
 Get timer queue.
void timer_queue (TIMER_QUEUE *timer_queue)
 Set timer queue.
virtual ACE_HANDLE get_handle (void) const
virtual ACE_Proactor_Implimplementation (void) const
 Get the implementation class.
virtual ACE_Asynch_Read_Stream_Implcreate_asynch_read_stream (void)
virtual ACE_Asynch_Write_Stream_Implcreate_asynch_write_stream (void)
virtual ACE_Asynch_Read_File_Implcreate_asynch_read_file (void)
virtual ACE_Asynch_Write_File_Implcreate_asynch_write_file (void)
virtual ACE_Asynch_Accept_Implcreate_asynch_accept (void)
 Create the correct implementation class for doing Asynch_Accept.
virtual ACE_Asynch_Connect_Implcreate_asynch_connect (void)
 Create the correct implementation class for doing Asynch_Connect.
virtual ACE_Asynch_Transmit_File_Implcreate_asynch_transmit_file (void)
virtual ACE_Asynch_Read_Dgram_Implcreate_asynch_read_dgram (void)
virtual ACE_Asynch_Write_Dgram_Implcreate_asynch_write_dgram (void)
virtual ACE_Asynch_Read_Stream_Result_Implcreate_asynch_read_stream_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Write_Stream_Result_Implcreate_asynch_write_stream_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_write, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Read_File_Result_Implcreate_asynch_read_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Write_File_Result_Implcreate_asynch_write_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_write, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Read_Dgram_Result_Implcreate_asynch_read_dgram_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_read, int flags, int protocol_family, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Write_Dgram_Result_Implcreate_asynch_write_dgram_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_write, int flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Accept_Result_Implcreate_asynch_accept_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Accept::Result.
virtual ACE_Asynch_Connect_Result_Implcreate_asynch_connect_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Connect::Result.
virtual ACE_Asynch_Transmit_File_Result_Implcreate_asynch_transmit_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, u_long bytes_to_write, u_long offset, u_long offset_high, u_long bytes_per_send, u_long flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Result_Implcreate_asynch_timer (ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

Static Public Member Functions

ACE_Proactorinstance (size_t threads=0)
ACE_Proactorinstance (ACE_Proactor *proactor, int delete_proactor=0)
void close_singleton (void)
 Delete the dynamically allocated Singleton.
void cleanup (void *instance, void *arg)
const ACE_TCHARdll_name (void)
 Name of dll in which the singleton instance lives.
const ACE_TCHARname (void)
 Name of component--ACE_Proactor in this case.
int run_event_loop (void)
int run_event_loop (ACE_Time_Value &tv)
int end_event_loop (void)
int reset_event_loop (void)
int check_reconfiguration (ACE_Proactor *)
int event_loop_done (void)
 Report if the <ACE_Proactor::instance> event loop is finished.

Protected Member Functions

virtual int proactor_post_wakeup_completions (int how_many)
virtual void implementation (ACE_Proactor_Impl *implementation)
 Set the implementation class.

Static Protected Member Functions

int post_wakeup_completions (int how_many)

Protected Attributes

ACE_Proactor_Implimplementation_
int delete_implementation_
ACE_Proactor_Timer_Handlertimer_handler_
 Handles timeout events.
ACE_Thread_Manager thr_mgr_
 This will manage the thread in the Timer_Handler.
TIMER_QUEUEtimer_queue_
 Timer Queue.
int delete_timer_queue_
 Flag on whether to delete the timer queue.
sig_atomic_t end_event_loop_
 Terminate the proactor event loop.
sig_atomic_t event_loop_thread_count_
 Number of threads in the event loop.
ACE_SYNCH_MUTEX mutex_
 Mutex to protect work with lists.

Static Protected Attributes

ACE_Proactorproactor_ = 0
 Pointer to a process-wide <ace_proactor>.
int delete_proactor_ = 0
 Must delete the <proactor_> if non-0.

Private Types

typedef ACE_Timer_Queue_Iterator_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_QUEUE_ITERATOR
typedef ACE_Timer_List_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_LIST
typedef ACE_Timer_List_Iterator_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_LIST_ITERATOR
typedef ACE_Timer_Heap_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_HEAP
typedef ACE_Timer_Heap_Iterator_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_HEAP_ITERATOR
typedef ACE_Timer_Wheel_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_WHEEL
typedef ACE_Timer_Wheel_Iterator_T<
ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX >
TIMER_WHEEL_ITERATOR

Private Member Functions

 ACE_Proactor (const ACE_Proactor &)
 Deny access since member-wise won't work...
ACE_Proactoroperator= (const ACE_Proactor &)

Friends

class ACE_Proactor_Timer_Handler

Detailed Description

A manager for asynchronous event demultiplexing.

See the Proactor pattern description at http://www.cs.wustl.edu/~schmidt/proactor.ps.gz for more details.


Member Typedef Documentation

typedef int(* ACE_Proactor::PROACTOR_EVENT_HOOK)(ACE_Proactor *)


You can add a hook to various run_event methods and the hook will be called after handling every proactor event. If this function returns 0, proactor_run_event_loop will check for the return value of handle_events. If it is -1, the the proactor_run_event_loop will return (pre-maturely.)

typedef ACE_Timer_Heap_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_HEAP [private]


typedef ACE_Timer_Heap_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_HEAP_ITERATOR [private]


typedef ACE_Timer_List_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_LIST [private]


typedef ACE_Timer_List_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_LIST_ITERATOR [private]


typedef ACE_Timer_Queue_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_QUEUE


Public type.

typedef ACE_Timer_Queue_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_QUEUE_ITERATOR [private]


typedef ACE_Timer_Wheel_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_WHEEL [private]


typedef ACE_Timer_Wheel_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_WHEEL_ITERATOR [private]



Constructor & Destructor Documentation

ACE_Proactor::ACE_Proactor ACE_Proactor_Impl implementation = 0,
int  delete_implementation = 0,
TIMER_QUEUE tq = 0


Constructor. If <implementation> is 0, the correct implementation object will be created. <delete_implementation> flag determines whether the implementation object should be deleted by the Proactor or not. If <tq> is 0, a new TIMER_QUEUE is created.

ACE_Proactor::~ACE_Proactor void   )  [virtual]


Virtual destruction.

ACE_Proactor::ACE_Proactor const ACE_Proactor  )  [private]


Deny access since member-wise won't work...


Member Function Documentation

int ACE_Proactor::cancel_timer long  timer_id,
const void **  act = 0,
int  dont_call_handle_close = 1
[virtual]


Cancel the single <ace_handler> that matches the <timer_id> value (which was returned from the <schedule> method). If <act> is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the <handler> was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

int ACE_Proactor::cancel_timer ACE_Handler handler,
int  dont_call_handle_close = 1
[virtual]


Cancel all timers associated with this <handler>. Returns number of timers cancelled.

int ACE_Proactor::check_reconfiguration ACE_Proactor  )  [static]


The singleton proactor is used by the <ace_service_config>. Therefore, we must check for the reconfiguration request and handle it after handling an event.

void ACE_Proactor::cleanup void *  instance,
void *  arg
[static]


Cleanup method, used by the <ace_object_manager> to destroy the singleton.

int ACE_Proactor::close void   )  [virtual]


Close the associated ACE_Proactor_Impl implementation object.

If

  • delete_implementation was specified to the open() method, the implementation object is also deleted.

int ACE_Proactor::close_dispatch_threads int  wait  )


Close all dispatch threads.

void ACE_Proactor::close_singleton void   )  [static]


Delete the dynamically allocated Singleton.

ACE_Asynch_Accept_Impl * ACE_Proactor::create_asynch_accept void   )  [virtual]


Create the correct implementation class for doing Asynch_Accept.

ACE_Asynch_Accept_Result_Impl * ACE_Proactor::create_asynch_accept_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  listen_handle,
ACE_HANDLE  accept_handle,
ACE_Message_Block message_block,
u_long  bytes_to_read,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Accept::Result.

ACE_Asynch_Connect_Impl * ACE_Proactor::create_asynch_connect void   )  [virtual]


Create the correct implementation class for doing Asynch_Connect.

ACE_Asynch_Connect_Result_Impl * ACE_Proactor::create_asynch_connect_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  connect_handle,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Connect::Result.

ACE_Asynch_Read_Dgram_Impl * ACE_Proactor::create_asynch_read_dgram void   )  [virtual]


Create the correct implementation class for doing Asynch_Read_Dgram.

ACE_Asynch_Read_Dgram_Result_Impl * ACE_Proactor::create_asynch_read_dgram_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
size_t  bytes_to_read,
int  flags,
int  protocol_family,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

ACE_Asynch_Read_File_Impl * ACE_Proactor::create_asynch_read_file void   )  [virtual]


Create the correct implementation class for doing Asynch_Read_File.

ACE_Asynch_Read_File_Result_Impl * ACE_Proactor::create_asynch_read_file_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_read,
const void *  act,
u_long  offset,
u_long  offset_high,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Read_File::Result.

ACE_Asynch_Read_Stream_Impl * ACE_Proactor::create_asynch_read_stream void   )  [virtual]


Create the correct implementation class for doing Asynch_Read_Stream.

ACE_Asynch_Read_Stream_Result_Impl * ACE_Proactor::create_asynch_read_stream_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_read,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

ACE_Asynch_Result_Impl * ACE_Proactor::create_asynch_timer ACE_Handler::Proxy_Ptr handler_proxy,
const void *  act,
const ACE_Time_Value tv,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create a timer result object which can be used with the Timer mechanism of the Proactor. If <signal_number> is -1, <posix_sig_proactor> will create a Timer object with a meaningful signal number, choosing the largest signal number from the signal mask of the Proactor.

ACE_Asynch_Transmit_File_Impl * ACE_Proactor::create_asynch_transmit_file void   )  [virtual]


Create the correct implementation class for doing Asynch_Transmit_File.

ACE_Asynch_Transmit_File_Result_Impl * ACE_Proactor::create_asynch_transmit_file_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  socket,
ACE_HANDLE  file,
ACE_Asynch_Transmit_File::Header_And_Trailer header_and_trailer,
u_long  bytes_to_write,
u_long  offset,
u_long  offset_high,
u_long  bytes_per_send,
u_long  flags,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

ACE_Asynch_Write_Dgram_Impl * ACE_Proactor::create_asynch_write_dgram void   )  [virtual]


Create the correct implementation class for doing Asynch_Write_Dgram.

ACE_Asynch_Write_Dgram_Result_Impl * ACE_Proactor::create_asynch_write_dgram_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
size_t  bytes_to_write,
int  flags,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

ACE_Asynch_Write_File_Impl * ACE_Proactor::create_asynch_write_file void   )  [virtual]


Create the correct implementation class for doing Asynch_Write_File.

ACE_Asynch_Write_File_Result_Impl * ACE_Proactor::create_asynch_write_file_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_write,
const void *  act,
u_long  offset,
u_long  offset_high,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Write_File::Result.

ACE_Asynch_Write_Stream_Impl * ACE_Proactor::create_asynch_write_stream void   )  [virtual]


Create the correct implementation class for doing Asynch_Write_Stream.

ACE_Asynch_Write_Stream_Result_Impl * ACE_Proactor::create_asynch_write_stream_result ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_write,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

const ACE_TCHAR * ACE_Proactor::dll_name void   )  [static]


Name of dll in which the singleton instance lives.

ACE_INLINE int ACE_Proactor::end_event_loop void   )  [static]


Instruct the <ACE_Proactor::instance> to terminate its event loop. This method wakes up all the threads blocked on waiting for completions and end the event loop.

ACE_INLINE int ACE_Proactor::event_loop_done void   )  [static]


Report if the <ACE_Proactor::instance> event loop is finished.

ACE_HANDLE ACE_Proactor::get_handle void   )  const [virtual]


Get the event handle. It is a no-op in POSIX platforms and it returns ACE_INVALID_HANDLE.

int ACE_Proactor::handle_events void   )  [virtual]


Block indefinitely until at least one event is dispatched.

Returns:
Returns 1 when a completion is dispatched. On error, returns -1 and sets errno accordingly.

int ACE_Proactor::handle_events ACE_Time_Value wait_time  )  [virtual]


Dispatch a single set of events, waiting up to a specified time limit if necessary.

Parameters:
wait_time the time to wait for an event to occur. This is a relative time. On successful return, the time is updated to reflect the amount of time spent waiting for event(s) to occur.
Returns:
Returns 0 if no events occur before the wait_time expires. Returns 1 when a completion is dispatched. On error, returns -1 and sets errno accordingly.

void ACE_Proactor::implementation ACE_Proactor_Impl implementation  )  [protected, virtual]


Set the implementation class.

ACE_Proactor_Impl * ACE_Proactor::implementation void   )  const [virtual]


Get the implementation class.

ACE_Proactor * ACE_Proactor::instance ACE_Proactor proactor,
int  delete_proactor = 0
[static]


Set pointer to a process-wide <ace_proactor> and return existing pointer.

ACE_Proactor * ACE_Proactor::instance size_t  threads = 0  )  [static]


Get pointer to a process-wide <ace_proactor>. <threads> should be part of another method.

const ACE_TCHAR * ACE_Proactor::name void   )  [static]


Name of component--ACE_Proactor in this case.

void ACE_Proactor::number_of_threads size_t  threads  )


Set number of thread used as a parameter to CreatIoCompletionPort.

size_t ACE_Proactor::number_of_threads void   )  const


Get number of thread used as a parameter to CreatIoCompletionPort.

ACE_Proactor& ACE_Proactor::operator= const ACE_Proactor  )  [private]


ACE_INLINE int ACE_Proactor::post_wakeup_completions int  how_many  )  [static, protected]


Post <how_many> completions to the completion port so that all threads can wake up. This is used in conjunction with the <run_event_loop>.

int ACE_Proactor::proactor_end_event_loop void   )  [virtual]


Instruct the ACE_Proactor to terminate its event loop and notifies the ACE_Proactor so that it can wake up and close down gracefully.

int ACE_Proactor::proactor_event_loop_done void   )  [virtual]


Report if the ACE_Proactor event loop is finished.

int ACE_Proactor::proactor_post_wakeup_completions int  how_many  )  [protected, virtual]


Post <how_many> completions to the completion port so that all threads can wake up. This is used in conjunction with the <proactor_run_event_loop>.

int ACE_Proactor::proactor_reset_event_loop void   )  [virtual]


Resets the <ACE_Proactor::end_event_loop_> static so that the <run_event_loop> method can be restarted.

int ACE_Proactor::proactor_run_event_loop ACE_Time_Value tv,
PROACTOR_EVENT_HOOK  = 0
[virtual]


Run the event loop until the <ACE_Proactor::handle_events> method returns -1, the <end_proactor_event_loop> method is invoked, or the <ace_time_value> expires, in which case a 0 is returned.

int ACE_Proactor::proactor_run_event_loop PROACTOR_EVENT_HOOK  = 0  )  [virtual]


Run the event loop until the <ACE_Proactor::handle_events> method returns -1 or the <end_proactor_event_loop> method is invoked.

int ACE_Proactor::register_handle ACE_HANDLE  handle,
const void *  completion_key
[virtual]


This method adds the <handle> to the I/O completion port. This function is a no-op function for Unix systems and returns 0;

ACE_INLINE int ACE_Proactor::reset_event_loop void   )  [static]


Resets the <ACE_Proactor::end_event_loop_> static so that the <run_event_loop> method can be restarted.

ACE_INLINE int ACE_Proactor::run_event_loop ACE_Time_Value tv  )  [static]


Run the event loop until the <ACE_Proactor::handle_events> method returns -1, the <end_event_loop> method is invoked, or the <ace_time_value> expires, in which case 0 is returned.

ACE_INLINE int ACE_Proactor::run_event_loop void   )  [static]


Run the event loop until the <ACE_Proactor::handle_events> method returns -1 or the <end_event_loop> method is invoked.

long ACE_Proactor::schedule_repeating_timer ACE_Handler handler,
const void *  act,
const ACE_Time_Value interval
[virtual]


long ACE_Proactor::schedule_timer ACE_Handler handler,
const void *  act,
const ACE_Time_Value time,
const ACE_Time_Value interval
[virtual]


This combines the above two methods into one. Mostly for backward compatibility.

long ACE_Proactor::schedule_timer ACE_Handler handler,
const void *  act,
const ACE_Time_Value time
[virtual]


Schedule a <handler> that will expire after <time>. If it expires then <act> is passed in as the value to the <handler>'s <handle_timeout> callback method. This method returns a <timer_id>. This <timer_id> can be used to cancel a timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

void ACE_Proactor::timer_queue TIMER_QUEUE timer_queue  )


Set timer queue.

ACE_Proactor::TIMER_QUEUE * ACE_Proactor::timer_queue void   )  const


Get timer queue.

int ACE_Proactor::wake_up_dispatch_threads void   )


Add wakeup dispatch threads (reinit).


Friends And Related Function Documentation

friend class ACE_Proactor_Timer_Handler [friend]


Timer handler runs a thread and manages the timers, on behalf of the Proactor.


Member Data Documentation

int ACE_Proactor::delete_implementation_ [protected]


Flag used to indicate whether we are responsible for cleaning up the implementation instance.

int ACE_Proactor::delete_proactor_ = 0 [static, protected]


Must delete the <proactor_> if non-0.

Controls whether the Proactor is deleted when we shut down (we can only delete it safely if we created it!)

int ACE_Proactor::delete_timer_queue_ [protected]


Flag on whether to delete the timer queue.

sig_atomic_t ACE_Proactor::end_event_loop_ [protected]


Terminate the proactor event loop.

sig_atomic_t ACE_Proactor::event_loop_thread_count_ [protected]


Number of threads in the event loop.

ACE_Proactor_Impl* ACE_Proactor::implementation_ [protected]


Delegation/implementation class that all methods will be forwarded to.

ACE_SYNCH_MUTEX ACE_Proactor::mutex_ [protected]


Mutex to protect work with lists.

ACE_Proactor * ACE_Proactor::proactor_ = 0 [static, protected]


Pointer to a process-wide <ace_proactor>.

ACE_Thread_Manager ACE_Proactor::thr_mgr_ [protected]


This will manage the thread in the Timer_Handler.

ACE_Proactor_Timer_Handler* ACE_Proactor::timer_handler_ [protected]


Handles timeout events.

TIMER_QUEUE* ACE_Proactor::timer_queue_ [protected]


Timer Queue.


The documentation for this class was generated from the following files:
Generated on Wed Jun 8 23:56:10 2005 for ACE by  doxygen 1.3.9.1
