ACE_Asynch_Connect Class Reference

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Connect:

Inheritance graph
[legend]

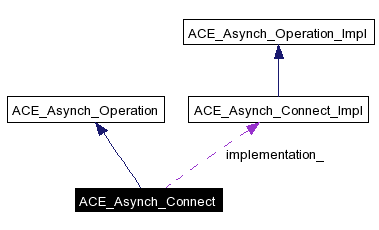

Collaboration diagram for ACE_Asynch_Connect:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Asynch_Connect (void)
 A do nothing constructor.
virtual ~ACE_Asynch_Connect (void)
 Destructor.
int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Operation_Implimplementation (void) const
 Return the underlying implementation class.

Protected Attributes

ACE_Asynch_Connect_Implimplementation_

Detailed Description

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class.

Once open is called, multiple asynchronous connect operationss can started using this class. A ACE_Asynch_Connect::Result will be passed back to the associated ACE_Handler when the asynchronous connect completes through the ACE_Handler::handle_connect() callback.


Constructor & Destructor Documentation

ACE_Asynch_Connect::ACE_Asynch_Connect void   )


A do nothing constructor.

ACE_Asynch_Connect::~ACE_Asynch_Connect void   )  [virtual]


Destructor.


Member Function Documentation

int ACE_Asynch_Connect::connect ACE_HANDLE  connect_handle,
const ACE_Addr remote_sap,
const ACE_Addr local_sap,
int  reuse_addr,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN


This starts off an asynchronous Connect.

ACE_Asynch_Operation_Impl * ACE_Asynch_Connect::implementation void   )  const [virtual]


Return the underlying implementation class.

Implements ACE_Asynch_Operation.

int ACE_Asynch_Connect::open ACE_Handler handler,
ACE_HANDLE  handle = ACE_INVALID_HANDLE,
const void *  completion_key = 0,
ACE_Proactor proactor = 0


Initializes the factory with information which will be used with each asynchronous call.

Note:
  • handle is ignored and should be ACE_INVALID_HANDLE.

Reimplemented from ACE_Asynch_Operation.


Member Data Documentation

ACE_Asynch_Connect_Impl* ACE_Asynch_Connect::implementation_ [protected]


Delegation/implementation class that all methods will be forwarded to.


The documentation for this class was generated from the following files:
