TAO_DIOP_Transport Class Reference

Specialization of the base TAO_Transport class to handle the DIOP protocol. More...

#include <DIOP_Transport.h>

Inheritance diagram for TAO_DIOP_Transport:

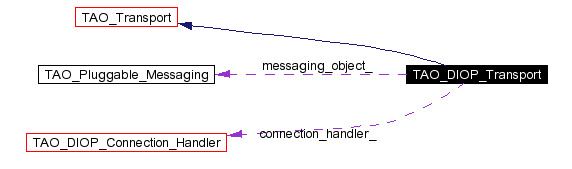

[legend]Collaboration diagram for TAO_DIOP_Transport:

[legend]List of all members.

Public Methods
	TAO_DIOP_Transport (TAO_DIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core, CORBA::Boolean flag)
	Constructor.
	~TAO_DIOP_Transport (void)
	Default destructor.
virtual int	handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time=0, int block=0)
	Look for the documentation in Transport.h.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, int message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, int message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
virtual int	messaging_init (CORBA::Octet major, CORBA::Octet minor)
	Initialising the messaging object.
Protected Methods
Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
virtual ACE_Event_Handler *	event_handler_i (void)
virtual TAO_Connection_Handler *	connection_handler_i (void)
virtual TAO_Pluggable_Messaging *	messaging_object (void)
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *max_wait_time)
	Write the complete Message_Block chain to the connection.
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
	Read len bytes from into buf.
virtual int	register_handler (void)
Private Attributes
TAO_DIOP_Connection_Handler *	connection_handler_
TAO_Pluggable_Messaging *	messaging_object_
	Our messaging object.

---

Detailed Description

Specialization of the base TAO_Transport class to handle the DIOP protocol.

---

Constructor & Destructor Documentation

TAO_DIOP_Transport::TAO_DIOP_Transport (  TAO_DIOP_Connection_Handler *    handler, TAO_ORB_Core *    orb_core, CORBA::Boolean    flag )

Constructor.

TAO_DIOP_Transport::~TAO_DIOP_Transport (  void    )

Default destructor.

---

Member Function Documentation

TAO_Connection_Handler * TAO_DIOP_Transport::connection_handler_i (  void    )  [protected, virtual]

Implements TAO_Transport.

ACE_Event_Handler * TAO_DIOP_Transport::event_handler_i (  void    )  [protected, virtual]

Implements TAO_Transport.

int TAO_DIOP_Transport::handle_input (  TAO_Resume_Handle &    rh, ACE_Time_Value *    max_wait_time = 0, int    block = 0 )  [virtual]

Look for the documentation in Transport.h. Reimplemented from TAO_Transport.

int TAO_DIOP_Transport::messaging_init (  CORBA::Octet    major, CORBA::Octet    minor )  [virtual]

Initialising the messaging object. Implements TAO_Transport.

TAO_Pluggable_Messaging * TAO_DIOP_Transport::messaging_object (  void    )  [protected, virtual]

Implements TAO_Transport.

ssize_t TAO_DIOP_Transport::recv (  char *    buf, size_t    len, const ACE_Time_Value *    s = 0 )  [protected, virtual]

Read len bytes from into buf. Implements TAO_Transport.

int TAO_DIOP_Transport::register_handler (  void    )  [protected, virtual]

Reimplemented from TAO_Transport.

ssize_t TAO_DIOP_Transport::send (  iovec *    iov, int    iovcnt, size_t &    bytes_transferred, const ACE_Time_Value *    max_wait_time )  [protected, virtual]

Write the complete Message_Block chain to the connection. Implements TAO_Transport.

int TAO_DIOP_Transport::send_message (  TAO_OutputCDR &    stream, TAO_Stub *    stub = 0, int    message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *    max_time_wait = 0 )  [virtual]

Implements TAO_Transport.

int TAO_DIOP_Transport::send_request (  TAO_Stub *    stub, TAO_ORB_Core *    orb_core, TAO_OutputCDR &    stream, int    message_semantics, ACE_Time_Value *    max_wait_time )  [virtual]

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Implements TAO_Transport.

---

Member Data Documentation

TAO_DIOP_Connection_Handler* TAO_DIOP_Transport::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

TAO_Pluggable_Messaging* TAO_DIOP_Transport::messaging_object_ [private]

Our messaging object.

---

The documentation for this class was generated from the following files:

• DIOP_Transport.h
• DIOP_Transport.cpp

---
