CORBA::NamedValue Class Reference

CORBA Name/value pair implementation. More...

#include <NVList.h>

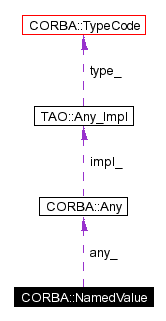

Collaboration diagram for CORBA::NamedValue:

Collaboration graph
List of all members.

Public Types

typedef NamedValue_ptr _ptr_type
typedef NamedValue_var _var_type

Public Methods

const char * name (void) const
 optional name

Any_ptr value (void) const
 return the value

Flags flags (void) const
 return the parameter mode flag

ULong _incr_refcnt (void)
ULong _decr_refcnt (void)

Static Public Methods

NamedValue * _duplicate (NamedValue *)
NamedValue * _nil (void)

Protected Methods

 ~NamedValue (void)

Private Methods

 NamedValue (void)

Private Attributes

ULong refcount_
 maintains how many references exist to this object

TAO_SYNCH_MUTEX refcount_lock_
 Protects the reference count.

Any any_
 holds the value

Flags flags_
 parameter mode flags

char * name_
 optional IDL name of the parameter


class ORB
class NVList
class Request

Detailed Description

CORBA Name/value pair implementation.

These occur only in "NVList" (named value list) data structures. The binary form of the data structure is frozen and visible to programs using it (e.g. from C). The C++ class supports some programming discipline, e.g. to avoid memory leaks. They just represent parameters to calls. The name is optional, and the value is packaged as an Any. The flags indicate parameter mode, and some ownership rules for "top level" memory.

Member Typedef Documentation

typedef NamedValue_ptr CORBA::NamedValue::_ptr_type

typedef NamedValue_var CORBA::NamedValue::_var_type

Constructor & Destructor Documentation

CORBA::NamedValue::~NamedValue void    [protected]


Protected destructor to enforce proper memory management through the reference counting mechanism.

ACE_INLINE CORBA::NamedValue::NamedValue void    [private]

private constructor. Cannot be directly instantiated other than by its friends.

Member Function Documentation

CORBA::ULong CORBA::NamedValue::_decr_refcnt void

ACE_INLINE CORBA::NamedValue * CORBA::NamedValue::_duplicate NamedValue *    [static]

CORBA::ULong CORBA::NamedValue::_incr_refcnt void

ACE_INLINE CORBA::NamedValue * CORBA::NamedValue::_nil void    [static]

ACE_INLINE CORBA::Flags CORBA::NamedValue::flags void    const

return the parameter mode flag

ACE_INLINE const char * CORBA::NamedValue::name void    const

optional name

ACE_INLINE CORBA::Any_ptr CORBA::NamedValue::value void    const

return the value

Friends And Related Function Documentation

friend class NVList [friend]

friend class ORB [friend]

friend class Request [friend]

Member Data Documentation

Any CORBA::NamedValue::any_ [private]

holds the value

Flags CORBA::NamedValue::flags_ [private]

parameter mode flags

char* CORBA::NamedValue::name_ [private]

optional IDL name of the parameter

ULong CORBA::NamedValue::refcount_ [private]

maintains how many references exist to this object

TAO_SYNCH_MUTEX CORBA::NamedValue::refcount_lock_ [private]

Protects the reference count.

The documentation for this class was generated from the following files:
Generated on Fri Apr 2 17:40:03 2004 for TAO by doxygen1.2.18
