CORBA::NVList Class Reference

CORBA::NVList implementation. More...

#include <NVList.h>

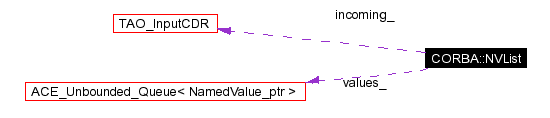

Collaboration diagram for CORBA::NVList:

[legend]List of all members.

Public Types
typedef NVList_ptr	_ptr_type
typedef NVList_var	_var_type
Public Methods
ULong	count (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) const
	return the current number of elements in the list
NamedValue_ptr	add (Flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	add an element and just initialize the flags
NamedValue_ptr	add_item (const char *, Flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	add an element and initialize its name and flags
NamedValue_ptr	add_value (const char *, const Any &, Flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	initializes a value, name, and flags
NamedValue_ptr	add_item_consume (char *, Flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
NamedValue_ptr	add_value_consume (char *, Any_ptr, Flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
NamedValue_ptr	item (ULong n ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	retrieve the item at the nth location. Raises Bounds
void	remove (ULong n ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	remove element at index n. Raises Bounds
ULong	_incr_refcnt (void)
ULong	_decr_refcnt (void)
void	_tao_incoming_cdr (TAO_InputCDR &cdr, int flag, bool &lazy_evaluation ACE_ENV_ARG_DECL)
void	_tao_encode (TAO_OutputCDR &cdr, int flag ACE_ENV_ARG_DECL_WITH_DEFAULTS)
void	_tao_decode (TAO_InputCDR &cdr, int flag ACE_ENV_ARG_DECL)
	Decode the NVList arguments from the <cdr> stream.
ptrdiff_t	_tao_target_alignment (void)
Boolean	_lazy_has_arguments (void) const
Static Public Methods
NVList *	_duplicate (NVList *)
NVList *	_nil (void)
Protected Methods
	~NVList (void)
	Destructor.
Private Methods
	NVList (void)
NamedValue_ptr	add_element (Flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
void	evaluate (ACE_ENV_SINGLE_ARG_DECL)
Private Attributes
ACE_Unbounded_Queue< NamedValue_ptr >	values_
	internal list of parameters stored as NamedValues
ULong	max_
	maximum length of list
ULong	refcount_
	maintains how many references exist to this object
TAO_SYNCH_MUTEX	refcount_lock_
	Protects the reference count.
TAO_InputCDR *	incoming_
int	incoming_flag_
Friends
class	ORB
class	Request

---

Detailed Description

CORBA::NVList implementation.

This is used in the (client side) DII (Dynamic Invocation Interface) to hold parameters, except for the return parameter. It's used in the same role in the (server side) DSI (Dynamic Skeleton Interface).

Each user (client, server) provides the typecode and memory for each parameter using an NVList, then talks to the ORB using a Request or ServerRequest pseudo-object. The ORB copies data to/from the IPC messages (e.g. IIOP::Request, IIOP::Response) as appropriate.

---

Member Typedef Documentation

typedef NVList_ptr CORBA::NVList::_ptr_type

typedef NVList_var CORBA::NVList::_var_type

---

Constructor & Destructor Documentation

CORBA::NVList::~NVList (  void    )  [protected]

Destructor. Protected destructor to enforce proper memory management through the reference counting mechanism.

ACE_INLINE CORBA::NVList::NVList (  void    )  [private]

constructor - cannot be instantiated directly other than through the CORBA::ORB::create_list method

---

Member Function Documentation

CORBA::ULong CORBA::NVList::_decr_refcnt (  void    )

ACE_INLINE CORBA::NVList * CORBA::NVList::_duplicate (  NVList *    )  [static]

CORBA::ULong CORBA::NVList::_incr_refcnt (  void    )

CORBA::Boolean CORBA::NVList::_lazy_has_arguments (  void    )  const

If this list is used by a DII request, this will tell us if our CDR stream contains any marshaled arguments (needed for GIOP 1.2).

ACE_INLINE CORBA::NVList * CORBA::NVList::_nil (  void    )  [static]

void CORBA::NVList::_tao_decode (  TAO_InputCDR &    cdr, int flag    ACE_ENV_ARG_DECL )

Decode the NVList arguments from the <cdr> stream.

void CORBA::NVList::_tao_encode (  TAO_OutputCDR &    cdr, int flag    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Encode the NVList into the CDR stream. <flag> masks the type of arguments (IN, OUT or INOUT) that are to be marshaled.

void CORBA::NVList::_tao_incoming_cdr (  TAO_InputCDR &    cdr, int    flag, bool &lazy_evaluation    ACE_ENV_ARG_DECL )

Set the incoming CDR stream, this is used by TAO to perform lazy evaluation of the NVList in an incoming ServerRequest. The <flag> is used to check which parameters (IN, OUT and/or INOUT) are to be extracted

ptrdiff_t CORBA::NVList::_tao_target_alignment (  void    )

Return the required alignment to marshal the NVList without any re-alignment. It returns ACE_CDR::MAX_ALIGNMENT to indicate errors.

CORBA::NamedValue_ptr CORBA::NVList::add (  Flags    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

add an element and just initialize the flags

CORBA::NamedValue_ptr CORBA::NVList::add_element (  Flags    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [private]

helper to increase the list size. This is used by all the add_ methods of the NVList class

CORBA::NamedValue_ptr CORBA::NVList::add_item (  const char *   , Flags    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

add an element and initialize its name and flags

CORBA::NamedValue_ptr CORBA::NVList::add_item_consume (  char *   , Flags    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

just like add_item. In addition, memory management of char * name is taken over by the NVList

CORBA::NamedValue_ptr CORBA::NVList::add_value (  const char *   , const Any &   , Flags    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

initializes a value, name, and flags

NamedValue_ptr CORBA::NVList::add_value_consume (  char *   , Any_ptr   , Flags    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

just like add_value. In addition, the NVList controls the memory management of the char *name and Any *value parameter

ACE_INLINE CORBA::ULong CORBA::NVList::count (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  const

return the current number of elements in the list

void CORBA::NVList::evaluate (  ACE_ENV_SINGLE_ARG_DECL    )  [private]

Lazy evaluation routine to fill up the Anys in the NVList from the CDR stream.

CORBA::NamedValue_ptr CORBA::NVList::item (  ULong n    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

retrieve the item at the nth location. Raises Bounds

void CORBA::NVList::remove (  ULong n    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

remove element at index n. Raises Bounds

---

Friends And Related Function Documentation

friend class ORB [friend]

friend class Request [friend]

---

Member Data Documentation

TAO_InputCDR* CORBA::NVList::incoming_ [private]

When the NVList is used as part of a Server Request we can simply store the CDR buffer and perform lazy evaluation to compute the Anys.

int CORBA::NVList::incoming_flag_ [private]

The flags used to check which parameters are actually extracted from the <incoming_> buffer

ULong CORBA::NVList::max_ [private]

maximum length of list

ULong CORBA::NVList::refcount_ [private]

maintains how many references exist to this object

TAO_SYNCH_MUTEX CORBA::NVList::refcount_lock_ [private]

Protects the reference count.

ACE_Unbounded_Queue<NamedValue_ptr> CORBA::NVList::values_ [private]

internal list of parameters stored as NamedValues

---

The documentation for this class was generated from the following files:

• NVList.h
• NVList.cpp
• NVList.i

---
