ACE_Token_Invariant_Manager Class Reference

Token Invariants. More...

#include <Token_Invariants.h>

Inheritance diagram for ACE_Token_Invariant_Manager:

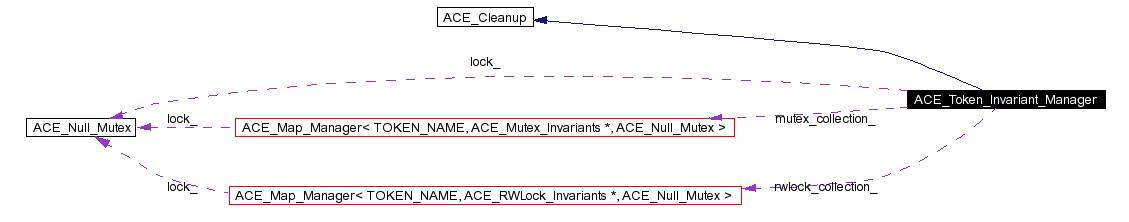

[legend]Collaboration diagram for ACE_Token_Invariant_Manager:

[legend]List of all members.

Public Methods
int	acquired (const ACE_Token_Proxy *proxy)
void	releasing (const ACE_Token_Proxy *proxy)
	Updates internal database.
int	mutex_acquired (const ACE_TCHAR *token_name)
void	mutex_releasing (const ACE_TCHAR *token_name)
	Updates internal database.
int	reader_acquired (const ACE_TCHAR *token_name)
int	writer_acquired (const ACE_TCHAR *token_name)
void	rwlock_releasing (const ACE_TCHAR *token_name)
	Updates internal database.
void	dump (void) const
	Dump the state of the class.
	ACE_Token_Invariant_Manager (void)
	Prevent non-singleton construction.
virtual	~ACE_Token_Invariant_Manager (void)
	Destruction.
Static Public Methods
ACE_Token_Invariant_Manager *	instance (void)
	Singleton access point.
Protected Types
typedef ACE_Token_Name	TOKEN_NAME
	This may be changed to a template type.
typedef ACE_Map_Manager< TOKEN_NAME, ACE_Mutex_Invariants *, ACE_Null_Mutex >	MUTEX_COLLECTION
	COLLECTION maintains a mapping from token names to mutexes.
typedef MUTEX_COLLECTION::ITERATOR	MUTEX_COLLECTION_ITERATOR
	Allows iterations through collection.
typedef MUTEX_COLLECTION::ENTRY	MUTEX_COLLECTION_ENTRY
	Allows iterations through collection.
typedef ACE_Map_Manager< TOKEN_NAME, ACE_RWLock_Invariants *, ACE_Null_Mutex >	RWLOCK_COLLECTION
	COLLECTION maintains a mapping from token names to mutexes.
typedef RWLOCK_COLLECTION::ITERATOR	RWLOCK_COLLECTION_ITERATOR
	Allows iterations through collection.
typedef RWLOCK_COLLECTION::ENTRY	RWLOCK_COLLECTION_ENTRY
	Allows iterations through collection.
Protected Methods
int	get_mutex (const ACE_TCHAR *token_name, ACE_Mutex_Invariants *&inv)
	Return or create.
int	get_rwlock (const ACE_TCHAR *token_name, ACE_RWLock_Invariants *&inv)
	Return or create.
Protected Attributes
ACE_TOKEN_CONST::MUTEX	lock_
	ACE_Mutex_Token used to lock internal data structures.
MUTEX_COLLECTION	mutex_collection_
	MUTEX_COLLECTION maintains a mapping from token names to mutexes.
RWLOCK_COLLECTION	rwlock_collection_
	MUTEX_COLLECTION maintains a mapping from token names to mutexes.
Static Protected Attributes
ACE_Token_Invariant_Manager *	instance_ = 0
	Singleton pointer.

---

Detailed Description

Token Invariants.

The Token Invariant Manager allows applications to test that invariants are always satisfied. Currently, Token_Invariants can test mutexes and readers/writer locks. Does not test recursive acquisition. Note that this class does not ever clean its database. Until destroyed, it's size will forever increase.

---

Member Typedef Documentation

typedef ACE_Map_Manager<TOKEN_NAME, ACE_Mutex_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::MUTEX_COLLECTION [protected]

COLLECTION maintains a mapping from token names to mutexes.

typedef MUTEX_COLLECTION::ENTRY ACE_Token_Invariant_Manager::MUTEX_COLLECTION_ENTRY [protected]

Allows iterations through collection. Deprecated: Deprecated typedef. Use MUTEX_COLLECTION::ENTRY trait instead.

typedef MUTEX_COLLECTION::ITERATOR ACE_Token_Invariant_Manager::MUTEX_COLLECTION_ITERATOR [protected]

Allows iterations through collection. Deprecated: Deprecated typedef. Use MUTEX_COLLECTION::ITERATOR trait instead.

typedef ACE_Map_Manager<TOKEN_NAME, ACE_RWLock_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::RWLOCK_COLLECTION [protected]

COLLECTION maintains a mapping from token names to mutexes.

typedef RWLOCK_COLLECTION::ENTRY ACE_Token_Invariant_Manager::RWLOCK_COLLECTION_ENTRY [protected]

Allows iterations through collection. Deprecated: Deprecated typedef. Use RWLOCK_COLLECTION::ENTRY trait instead.

typedef RWLOCK_COLLECTION::ITERATOR ACE_Token_Invariant_Manager::RWLOCK_COLLECTION_ITERATOR [protected]

Allows iterations through collection. Deprecated: Deprecated typedef. Use RWLOCK_COLLECTION::ITERATOR trait instead.

typedef ACE_Token_Name ACE_Token_Invariant_Manager::TOKEN_NAME [protected]

This may be changed to a template type.

---

Constructor & Destructor Documentation

ACE_Token_Invariant_Manager::ACE_Token_Invariant_Manager (  void    )

Prevent non-singleton construction.

ACE_Token_Invariant_Manager::~ACE_Token_Invariant_Manager (  void    )  [virtual]

Destruction.

---

Member Function Documentation

int ACE_Token_Invariant_Manager::acquired (  const ACE_Token_Proxy *    proxy )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::dump (  void    )  const

Dump the state of the class.

int ACE_Token_Invariant_Manager::get_mutex (  const ACE_TCHAR *    token_name, ACE_Mutex_Invariants *&    inv )  [protected]

Return or create.

int ACE_Token_Invariant_Manager::get_rwlock (  const ACE_TCHAR *    token_name, ACE_RWLock_Invariants *&    inv )  [protected]

Return or create.

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance (  void    )  [static]

Singleton access point.

int ACE_Token_Invariant_Manager::mutex_acquired (  const ACE_TCHAR *    token_name )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::mutex_releasing (  const ACE_TCHAR *    token_name )

Updates internal database.

int ACE_Token_Invariant_Manager::reader_acquired (  const ACE_TCHAR *    token_name )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::releasing (  const ACE_Token_Proxy *    proxy )

Updates internal database.

void ACE_Token_Invariant_Manager::rwlock_releasing (  const ACE_TCHAR *    token_name )

Updates internal database.

int ACE_Token_Invariant_Manager::writer_acquired (  const ACE_TCHAR *    token_name )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

---

Member Data Documentation

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance_ = 0 [static, protected]

Singleton pointer.

ACE_TOKEN_CONST::MUTEX ACE_Token_Invariant_Manager::lock_ [protected]

ACE_Mutex_Token used to lock internal data structures.

MUTEX_COLLECTION ACE_Token_Invariant_Manager::mutex_collection_ [protected]

MUTEX_COLLECTION maintains a mapping from token names to mutexes.

RWLOCK_COLLECTION ACE_Token_Invariant_Manager::rwlock_collection_ [protected]

MUTEX_COLLECTION maintains a mapping from token names to mutexes.

---

The documentation for this class was generated from the following files:

• Token_Invariants.h
• Token_Invariants.cpp

---
