ACE_Service_Type_Impl Class Reference

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams. More...

#include <Service_Types.h>

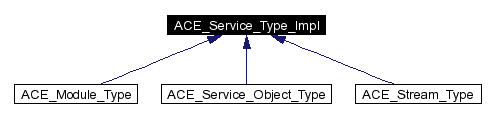

Inheritance diagram for ACE_Service_Type_Impl:

[legend]List of all members.

Public Methods
	ACE_Service_Type_Impl (void *object, const ACE_TCHAR *s_name, u_int flags=0, ACE_Service_Object_Exterminator gobbler=0)
virtual	~ACE_Service_Type_Impl (void)
virtual int	suspend (void) const=0
virtual int	resume (void) const=0
virtual int	init (int argc, ACE_TCHAR *argv[]) const=0
virtual int	fini (void) const
virtual int	info (ACE_TCHAR **str, size_t len) const=0
void *	object (void) const
	The pointer to the service.
const ACE_TCHAR *	name (void) const
	Get the name of the service.
void	name (const ACE_TCHAR *)
	Set the name of the service.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Attributes
const ACE_TCHAR *	name_
	Name of the service.
void *	obj_
ACE_Service_Object_Exterminator	gobbler_
	Destroy function to deallocate obj_.
u_int	flags_
	Flags that control serivce behavior (particularly deletion).

---

Detailed Description

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams.

This class provides the root of the implementation hierarchy of the "Bridge" pattern. It maintains a pointer to the appropriate type of service implementation, i.e., ACE_Service_Object, ACE_Module, or ACE_Stream.

---

Constructor & Destructor Documentation

ACE_Service_Type_Impl::ACE_Service_Type_Impl (  void *    object, const ACE_TCHAR *    s_name, u_int    flags = 0, ACE_Service_Object_Exterminator    gobbler = 0 )

ACE_Service_Type_Impl::~ACE_Service_Type_Impl (  void    )  [virtual]

---

Member Function Documentation

void ACE_Service_Type_Impl::dump (  void    )  const

Dump the state of an object. Reimplemented in ACE_Module_Type, and ACE_Stream_Type.

int ACE_Service_Type_Impl::fini (  void    )  const [virtual]

Reimplemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

virtual int ACE_Service_Type_Impl::info (  ACE_TCHAR **    str, size_t    len )  const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

virtual int ACE_Service_Type_Impl::init (  int    argc, ACE_TCHAR *    argv[] )  const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

ACE_INLINE void ACE_Service_Type_Impl::name (  const ACE_TCHAR *    )

Set the name of the service.

ACE_INLINE const ACE_TCHAR * ACE_Service_Type_Impl::name (  void    )  const

Get the name of the service.

ACE_INLINE void * ACE_Service_Type_Impl::object (  void    )  const

The pointer to the service.

virtual int ACE_Service_Type_Impl::resume (  void    )  const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

virtual int ACE_Service_Type_Impl::suspend (  void    )  const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

---

Member Data Documentation

ACE_Service_Type_Impl::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented in ACE_Module_Type, and ACE_Stream_Type.

u_int ACE_Service_Type_Impl::flags_ [protected]

Flags that control serivce behavior (particularly deletion).

ACE_Service_Object_Exterminator ACE_Service_Type_Impl::gobbler_ [protected]

Destroy function to deallocate obj_.

const ACE_TCHAR* ACE_Service_Type_Impl::name_ [protected]

Name of the service.

void* ACE_Service_Type_Impl::obj_ [protected]

Pointer to object that implements the service. This actually points to an ACE_Service_Object, ACE_Module, or ACE_Stream.

---

The documentation for this class was generated from the following files:

• Service_Types.h
• Service_Types.cpp
• Service_Types.i

---
