ACE_Asynch_Write_Stream Class Reference

This class is a factory for starting off asynchronous writes on a stream. This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Write_Stream:

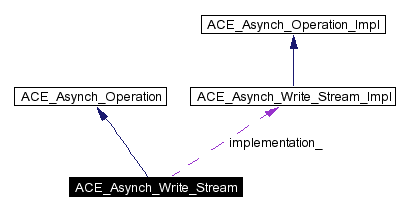

[legend]Collaboration diagram for ACE_Asynch_Write_Stream:

[legend]List of all members.

Public Methods
	ACE_Asynch_Write_Stream (void)
	A do nothing constructor.
virtual	~ACE_Asynch_Write_Stream (void)
	Destructor.
int	open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int	write (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
int	writev (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Operation_Impl *	implementation (void) const
	Return the underlying implementation class.
Protected Attributes
ACE_Asynch_Write_Stream_Impl *	implementation_
	Implementation class that all methods will be forwarded to.

---

Detailed Description

This class is a factory for starting off asynchronous writes on a stream. This class forwards all methods to its implementation class.

Once <open> is called, multiple asynchronous <writes>s can started using this class. An ACE_Asynch_Write_Stream::Result will be passed back to the <handler> when the asynchronous write completes through the <ACE_Handler::handle_write_stream> callback.

---

Constructor & Destructor Documentation

ACE_Asynch_Write_Stream::ACE_Asynch_Write_Stream (  void    )

A do nothing constructor.

ACE_Asynch_Write_Stream::~ACE_Asynch_Write_Stream (  void    )  [virtual]

Destructor.

---

Member Function Documentation

ACE_Asynch_Operation_Impl * ACE_Asynch_Write_Stream::implementation (  void    )  const [virtual]

Return the underlying implementation class. Implements ACE_Asynch_Operation. Reimplemented in ACE_Asynch_Write_File.

int ACE_Asynch_Write_Stream::open (  ACE_Handler &    handler, ACE_HANDLE    handle = ACE_INVALID_HANDLE, const void *    completion_key = 0, ACE_Proactor *    proactor = 0 )

Initializes the factory with information which will be used with each asynchronous call. If (<handle> == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the <handler> to get the correct handle. Reimplemented from ACE_Asynch_Operation. Reimplemented in ACE_Asynch_Write_File.

int ACE_Asynch_Write_Stream::write (  ACE_Message_Block &    message_block, size_t    bytes_to_write, const void *    act = 0, int    priority = 0, int    signal_number = ACE_SIGRTMIN )

This starts off an asynchronous write. Upto <bytes_to_write> will be written from the <message_block>. Upon successful completion of the write operation, <message_block>'s <rd_ptr> is updated to reflect the data that was written. Priority of the operation is specified by <priority>. On POSIX4-Unix, this is supported. Works like <nice> in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth. On Win32, this argument is a no-op. <signal_number> is the POSIX4 real-time signal number to be used for the operation. <signal_number> ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. This argument is a no-op on non-POSIX4 systems.

int ACE_Asynch_Write_Stream::writev (  ACE_Message_Block &    message_block, size_t    bytes_to_write, const void *    act = 0, int    priority = 0, int    signal_number = ACE_SIGRTMIN )

Same as above but with gather support, through chaining of composite message blocks using the continuation field.

---

Member Data Documentation

ACE_Asynch_Write_Stream_Impl* ACE_Asynch_Write_Stream::implementation_ [protected]

Implementation class that all methods will be forwarded to. Reimplemented in ACE_Asynch_Write_File.

---

The documentation for this class was generated from the following files:

• Asynch_IO.h
• Asynch_IO.cpp

---
