The Stream EndPoint. Used to implement one endpoint of a stream that implements the transport layer. More...

#include <AVStreams_i.h>

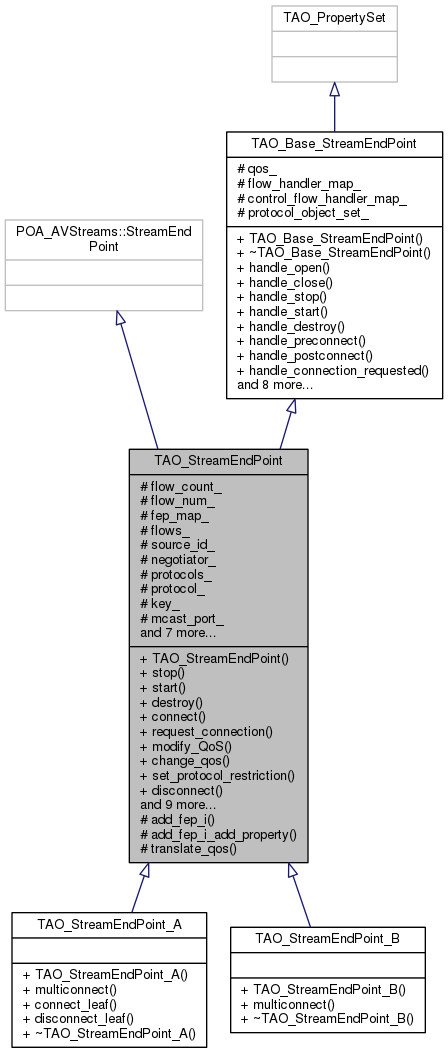

Inheritance diagram for TAO_StreamEndPoint:

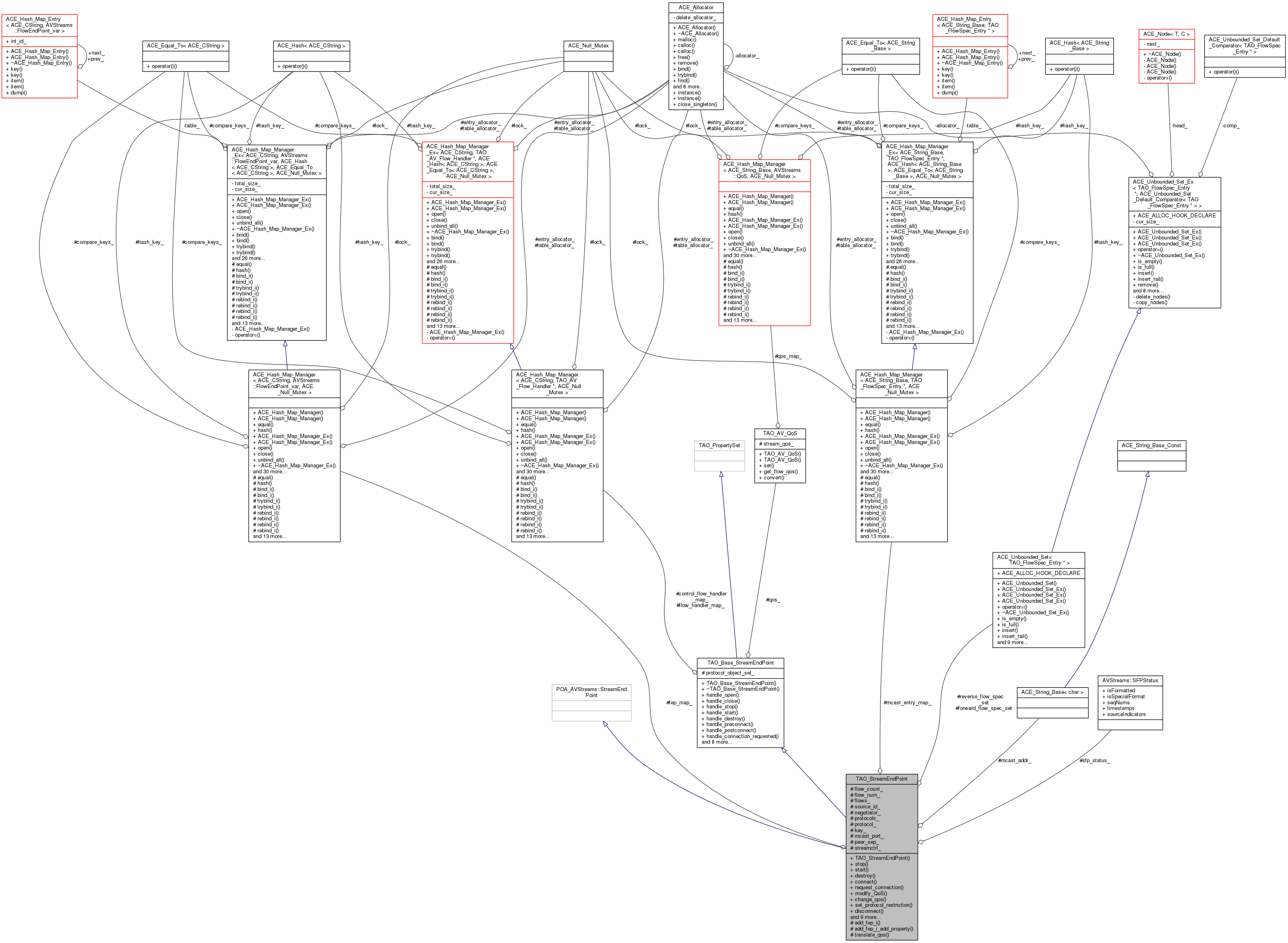

Collaboration diagram for TAO_StreamEndPoint:

Public Member Functions
	TAO_StreamEndPoint (void)
	Constructor. More...

virtual void	stop (const AVStreams::flowSpec &the_spec)
	Stop the stream. Empty the_spec means, for all the flows. More...

virtual void	start (const AVStreams::flowSpec &the_spec)
	Start the stream, Empty the_spec means, for all the flows. More...

virtual void	destroy (const AVStreams::flowSpec &the_spec)
	Destroy the stream, Empty the_spec means, for all the flows. More...

virtual CORBA::Boolean	connect (AVStreams::StreamEndPoint_ptr responder, AVStreams::streamQoS &qos_spec, const AVStreams::flowSpec &the_spec)
	Called by StreamCtrl. responder is the peer to connect to. More...

virtual CORBA::Boolean	request_connection (AVStreams::StreamEndPoint_ptr initiator, CORBA::Boolean is_mcast, AVStreams::streamQoS &qos, AVStreams::flowSpec &the_spec)

virtual CORBA::Boolean	modify_QoS (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_flows)
	Change the transport qos on a stream. More...

virtual int	change_qos (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_flows)

virtual CORBA::Boolean	set_protocol_restriction (const AVStreams::protocolSpec &the_pspec)
	Used to restrict the set of protocols. More...

virtual void	disconnect (const AVStreams::flowSpec &the_spec)
	disconnect the flows More...

virtual void	set_FPStatus (const AVStreams::flowSpec &the_spec, const char *fp_name, const CORBA::Any &fp_settings)
	Used to control the flow. More...

virtual CORBA::Object_ptr	get_fep (const char *flow_name)
	Not implemented in the light profile, throws notsupported. More...

virtual char *	add_fep (CORBA::Object_ptr the_fep)
	Not implemented in the light profile, throws notsupported. More...

virtual void	remove_fep (const char *fep_name)
	Not implemented in the light profile, throws notsupported. More...

virtual void	set_negotiator (AVStreams::Negotiator_ptr new_negotiator)
	Used to "attach" a negotiator to the endpoint. More...

virtual void	set_key (const char *flow_name, const AVStreams::key &the_key)
	Used for public key encryption. More...

virtual void	set_source_id (CORBA::Long source_id)
	Used to set a unique id for packets sent by this streamendpoint. More...

virtual	~TAO_StreamEndPoint (void)
	Destructor. More...

CORBA::Boolean	multiconnect (AVStreams::streamQoS &the_qos, AVStreams::flowSpec &the_spec)

Public Member Functions inherited from TAO_Base_StreamEndPoint
	TAO_Base_StreamEndPoint (void)

virtual	~TAO_Base_StreamEndPoint (void)

virtual int	handle_open (void)
	called when streamendpoint is instantiated More...

virtual int	handle_close (void)
	called when streamendpoint is being destructed More...

virtual int	handle_stop (const AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual int	handle_start (const AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual int	handle_destroy (const AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual CORBA::Boolean	handle_preconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual CORBA::Boolean	handle_postconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual CORBA::Boolean	handle_connection_requested (AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual int	get_callback (const char flowname, TAO_AV_Callback &callback)

virtual int	get_control_callback (const char flowname, TAO_AV_Callback &callback)

virtual int	set_protocol_object (const char flowname, TAO_AV_Protocol_Object object)

virtual void	set_flow_handler (const char flowname, TAO_AV_Flow_Handler handler)

virtual void	set_control_flow_handler (const char flowname, TAO_AV_Flow_Handler handler)

TAO_AV_QoS &	qos (void)

void	protocol_object_set (void)

int	is_protocol_object_set (void)

Protected Member Functions
char *	add_fep_i (AVStreams::FlowEndPoint_ptr fep)
	Helper methods to implement add_fep() More...

char *	add_fep_i_add_property (AVStreams::FlowEndPoint_ptr fep)

int	translate_qos (const AVStreams::streamQoS &application_qos, AVStreams::streamQoS &network_qos)
	translate from application level to network level qos. More...

Protected Attributes
u_int	flow_count_

u_int	flow_num_
	current flow number used for system generation of flow names. More...

FlowEndPoint_Map	fep_map_
	hash table for the flownames and its corresponding flowEndpoint reference. More...

AVStreams::flowSpec	flows_
	sequence of supported flow names. More...

CORBA::Long	source_id_
	source id used for multicast. More...

AVStreams::Negotiator_var	negotiator_
	our local negotiator for QoS. More...

AVStreams::protocolSpec	protocols_
	Our available list of protocols. More...

CORBA::String_var	protocol_
	Chosen protocol for this streamendpoint based on availableprotocols property. More...

AVStreams::key	key_
	Key used for encryption. More...

u_short	mcast_port_

ACE_CString	mcast_addr_

ACE_Hash_Map_Manager < ACE_CString, TAO_FlowSpec_Entry *, ACE_Null_Mutex >	mcast_entry_map_

TAO_AV_FlowSpecSet	forward_flow_spec_set

TAO_AV_FlowSpecSet	reverse_flow_spec_set

AVStreams::StreamEndPoint_var	peer_sep_

AVStreams::SFPStatus *	sfp_status_

AVStreams::StreamCtrl_var	streamctrl_

Protected Attributes inherited from TAO_Base_StreamEndPoint
TAO_AV_QoS	qos_

Flow_Handler_Map	flow_handler_map_

Flow_Handler_Map	control_flow_handler_map_

int	protocol_object_set_

Detailed Description

The Stream EndPoint. Used to implement one endpoint of a stream that implements the transport layer.

Constructor & Destructor Documentation

TAO_StreamEndPoint::TAO_StreamEndPoint ( void )

Constructor.

TAO_StreamEndPoint::~TAO_StreamEndPoint ( void )

virtual

Destructor.

Member Function Documentation

char * TAO_StreamEndPoint::add_fep ( CORBA::Object_ptr the_fep )

virtual

Not implemented in the light profile, throws notsupported.

char * TAO_StreamEndPoint::add_fep_i ( AVStreams::FlowEndPoint_ptr fep )

protected

Helper methods to implement add_fep()

char * TAO_StreamEndPoint::add_fep_i_add_property ( AVStreams::FlowEndPoint_ptr fep )

protected

int TAO_StreamEndPoint::change_qos	(	AVStreams::streamQoS &	new_qos,
		const AVStreams::flowSpec &	the_flows
	)

virtual

CORBA::Boolean TAO_StreamEndPoint::connect	(	AVStreams::StreamEndPoint_ptr	responder,
		AVStreams::streamQoS &	qos_spec,
		const AVStreams::flowSpec &	the_spec
	)

virtual

Called by StreamCtrl. responder is the peer to connect to.

void TAO_StreamEndPoint::destroy ( const AVStreams::flowSpec & the_spec )

virtual

Destroy the stream, Empty the_spec means, for all the flows.

void TAO_StreamEndPoint::disconnect ( const AVStreams::flowSpec & the_spec )

virtual

disconnect the flows

CORBA::Object_ptr TAO_StreamEndPoint::get_fep ( const char * flow_name )

virtual

Not implemented in the light profile, throws notsupported.

CORBA::Boolean TAO_StreamEndPoint::modify_QoS	(	AVStreams::streamQoS &	new_qos,
		const AVStreams::flowSpec &	the_flows
	)

virtual

Change the transport qos on a stream.

CORBA::Boolean TAO_StreamEndPoint::multiconnect	(	AVStreams::streamQoS &	the_qos,
		AVStreams::flowSpec &	the_spec
	)

void TAO_StreamEndPoint::remove_fep ( const char * fep_name )

virtual

Not implemented in the light profile, throws notsupported.

CORBA::Boolean TAO_StreamEndPoint::request_connection	(	AVStreams::StreamEndPoint_ptr	initiator,
		CORBA::Boolean	is_mcast,
		AVStreams::streamQoS &	qos,
		AVStreams::flowSpec &	the_spec
	)

virtual

Called by the peer StreamEndPoint. The flow_spec indicates the flows (which contain transport addresses etc.)

void TAO_StreamEndPoint::set_FPStatus	(	const AVStreams::flowSpec &	the_spec,
		const char *	fp_name,
		const CORBA::Any &	fp_settings
	)

virtual

Used to control the flow.

void TAO_StreamEndPoint::set_key	(	const char *	flow_name,
		const AVStreams::key &	the_key
	)

virtual

Used for public key encryption.

void TAO_StreamEndPoint::set_negotiator ( AVStreams::Negotiator_ptr new_negotiator )

virtual

Used to "attach" a negotiator to the endpoint.

CORBA::Boolean TAO_StreamEndPoint::set_protocol_restriction ( const AVStreams::protocolSpec & the_pspec )

virtual

Used to restrict the set of protocols.

void TAO_StreamEndPoint::set_source_id ( CORBA::Long source_id )

virtual

Used to set a unique id for packets sent by this streamendpoint.

void TAO_StreamEndPoint::start ( const AVStreams::flowSpec & the_spec )

virtual

Start the stream, Empty the_spec means, for all the flows.

void TAO_StreamEndPoint::stop ( const AVStreams::flowSpec & the_spec )

virtual

Stop the stream. Empty the_spec means, for all the flows.

int TAO_StreamEndPoint::translate_qos	(	const AVStreams::streamQoS &	application_qos,
		AVStreams::streamQoS &	network_qos
	)

protected

translate from application level to network level qos.

Member Data Documentation

FlowEndPoint_Map TAO_StreamEndPoint::fep_map_

protected

hash table for the flownames and its corresponding flowEndpoint reference.

u_int TAO_StreamEndPoint::flow_count_

protected

Count of the number of flows in this streamendpoint, used to generate unique names for the flows.

u_int TAO_StreamEndPoint::flow_num_

protected

current flow number used for system generation of flow names.

AVStreams::flowSpec TAO_StreamEndPoint::flows_

protected

sequence of supported flow names.

TAO_AV_FlowSpecSet TAO_StreamEndPoint::forward_flow_spec_set

protected

AVStreams::key TAO_StreamEndPoint::key_

protected

Key used for encryption.

ACE_CString TAO_StreamEndPoint::mcast_addr_

protected

ACE_Hash_Map_Manager<ACE_CString, TAO_FlowSpec_Entry*,ACE_Null_Mutex> TAO_StreamEndPoint::mcast_entry_map_

protected

u_short TAO_StreamEndPoint::mcast_port_

protected

TAO_Forward_FlowSpec_Entry forward_entries_ [FLOWSPEC_MAX]; TAO_Reverse_FlowSpec_Entry reverse_entries_ [FLOWSPEC_MAX];

AVStreams::Negotiator_var TAO_StreamEndPoint::negotiator_

protected

our local negotiator for QoS.

AVStreams::StreamEndPoint_var TAO_StreamEndPoint::peer_sep_

protected

CORBA::String_var TAO_StreamEndPoint::protocol_

protected

Chosen protocol for this streamendpoint based on availableprotocols property.

AVStreams::protocolSpec TAO_StreamEndPoint::protocols_

protected

Our available list of protocols.

TAO_AV_FlowSpecSet TAO_StreamEndPoint::reverse_flow_spec_set

protected

AVStreams::SFPStatus* TAO_StreamEndPoint::sfp_status_

protected

CORBA::Long TAO_StreamEndPoint::source_id_

protected

source id used for multicast.

AVStreams::StreamCtrl_var TAO_StreamEndPoint::streamctrl_

protected

The documentation for this class was generated from the following files:
