#include <FlowSpec_Entry.h>

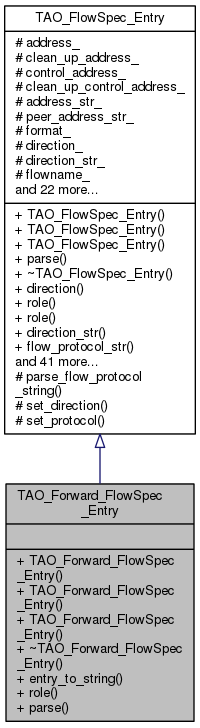

Inheritance diagram for TAO_Forward_FlowSpec_Entry:

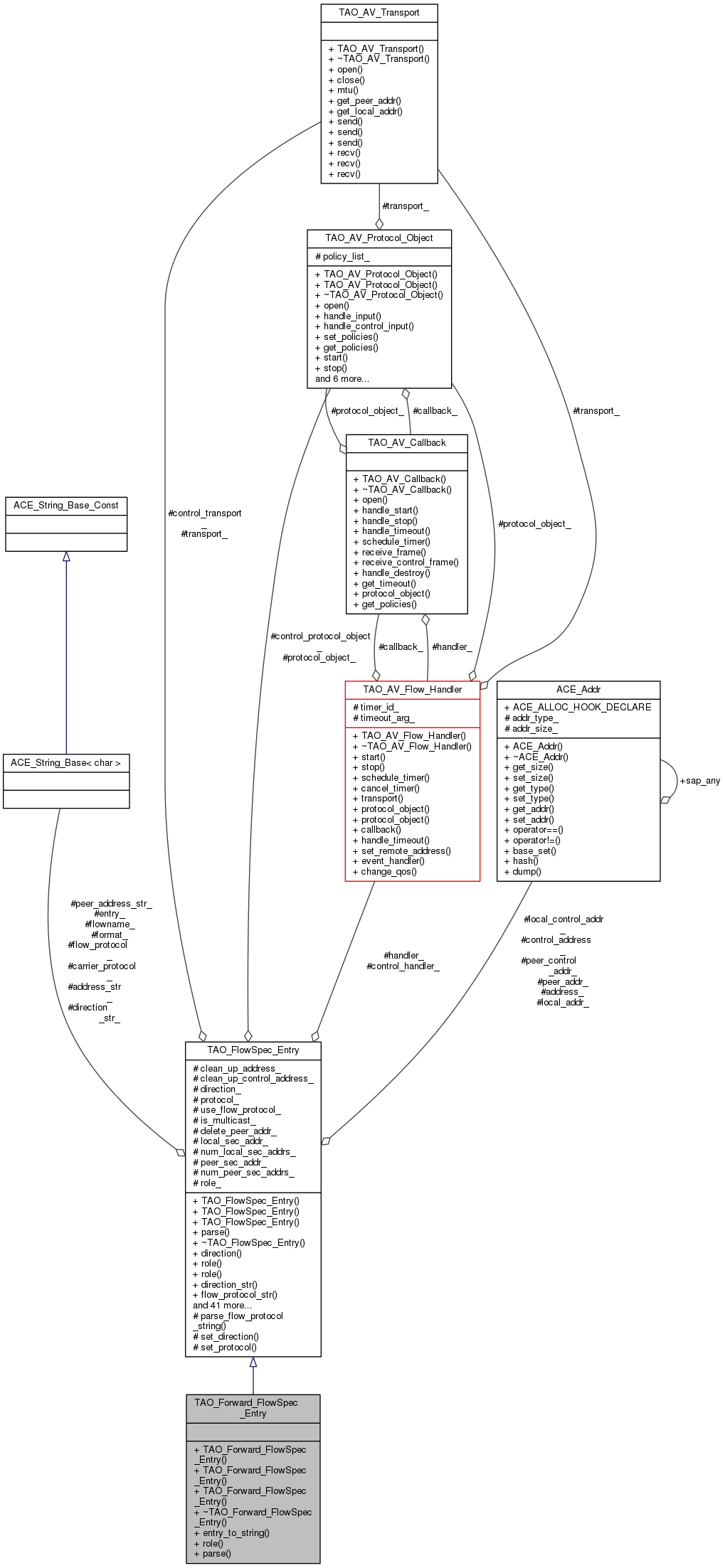

Collaboration diagram for TAO_Forward_FlowSpec_Entry:

Public Types
enum	Position { TAO_AV_FLOWNAME = 0, TAO_AV_DIRECTION = 1, TAO_AV_FORMAT = 2, TAO_AV_FLOW_PROTOCOL = 3, TAO_AV_ADDRESS = 4, TAO_AV_PEER_ADDR = 5 }

Public Types inherited from TAO_FlowSpec_Entry
enum	Direction { TAO_AV_INVALID = -1, TAO_AV_DIR_IN = 0, TAO_AV_DIR_OUT = 1 }

enum	Role { TAO_AV_INVALID_ROLE = -1, TAO_AV_PRODUCER = 0, TAO_AV_CONSUMER = 1 }

Public Member Functions
	TAO_Forward_FlowSpec_Entry (void)
	default constructor. More...

	TAO_Forward_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char carrier_protocol, ACE_Addr address, ACE_Addr *control_address=0)
	constructor to construct an entry from the arguments. More...

	TAO_Forward_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char *address)

virtual	~TAO_Forward_FlowSpec_Entry (void)

virtual const char *	entry_to_string (void)
	converts the entry to a string. More...

virtual Role	role (void)

virtual int	parse (const char *flowSpec_entry)
	construct the entry from a string specified by the flowSpec grammar. More...

Public Member Functions inherited from TAO_FlowSpec_Entry
	TAO_FlowSpec_Entry (void)
	default constructor. More...

	TAO_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char carrier_protocol, ACE_Addr fwd_address, ACE_Addr *control_address=0)
	constructor to construct an entry from the arguments. More...

	TAO_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char *fwd_address)

virtual	~TAO_FlowSpec_Entry (void)
	virtual destructor. More...

int	direction (void)
	accessor to the direction. More...

void	role (Role role)

const char *	direction_str (void) const
	accessor to string version of direction . More...

const char *	flow_protocol_str (void) const
	accessor to the flow protocol string. More...

void	flow_protocol_str (const char *flow_protocol_str)
	set the flow protocol string. More...

ACE_Addr *	address (void)
	accessor to address of the carrier protocol. More...

ACE_Addr *	control_address (void)

void	address (ACE_Addr *address, bool cleanup=false)

void	control_address (ACE_Addr *address)

const char *	address_str (void) const
	Address in string format i. hostname:port. More...

TAO_AV_Core::Protocol	carrier_protocol (void)
	accessor to carrier protocol i.e TCP,UDP,RTP/UDP. More...

const char *	carrier_protocol_str (void) const
	accessor to string version of carrier protocol. More...

const char *	format (void) const
	accessor to format to be used for this flow. More...

const char *	flowname (void) const
	accessor to name of this flow. More...

int	set_peer_addr (ACE_Addr *peer_addr)

ACE_Addr *	get_peer_addr (void)

int	set_peer_control_addr (ACE_Addr *peer_control_addr)

ACE_Addr *	get_peer_control_addr (void)

int	set_local_sec_addr (char **local_sec_addr, int size)

char **	get_local_sec_addr (void)

int	num_local_sec_addrs (void)

int	set_peer_sec_addr (char **peer_sec_addr, int size)

char **	get_peer_sec_addr (void)

int	num_peer_sec_addrs (void)

int	set_local_addr (ACE_Addr *local_addr)

ACE_Addr *	get_local_addr (void)

char *	get_local_addr_str (void)

int	set_local_control_addr (ACE_Addr *local_control_addr)

ACE_Addr *	get_local_control_addr (void)

char *	get_local_control_addr_str (void)

TAO_AV_Transport *	transport (void)

void	transport (TAO_AV_Transport *transport)

TAO_AV_Transport *	control_transport (void)

void	control_transport (TAO_AV_Transport *control_transport)

TAO_AV_Flow_Handler *	handler (void)

void	handler (TAO_AV_Flow_Handler *handler)

TAO_AV_Flow_Handler *	control_handler (void)

void	control_handler (TAO_AV_Flow_Handler *control_handler)

TAO_AV_Protocol_Object *	protocol_object (void)

void	protocol_object (TAO_AV_Protocol_Object *object)

TAO_AV_Protocol_Object *	control_protocol_object (void)

void	control_protocol_object (TAO_AV_Protocol_Object *object)

int	parse_address (const char *format_string, TAO_AV_Core::Flow_Component flow_component)
	sets the address for this flow. More...

int	is_multicast (void)
	returns true for a multicast address. More...

Additional Inherited Members
Protected Member Functions inherited from TAO_FlowSpec_Entry
int	parse_flow_protocol_string (const char *flow_options_string)
	parses the flow protocol string with tokens separated by : More...

int	set_direction (const char *direction_string)
	sets the direction flag. More...

int	set_protocol (void)
	sets the protocol_ enum from the carrier_protocol_ string. More...

Protected Attributes inherited from TAO_FlowSpec_Entry
ACE_Addr *	address_
	Addr information for the carrier protocol. More...

int	clean_up_address_

ACE_Addr *	control_address_

int	clean_up_control_address_

ACE_CString	address_str_
	Fwd Addr in string format i.e hostname:port. More...

ACE_CString	peer_address_str_
	Peer Addr in string format i.e hostname:port. More...

ACE_CString	format_
	format string. More...

Direction	direction_
	Direction of this flow. More...

ACE_CString	direction_str_
	string representation of the direction. More...

ACE_CString	flowname_
	name of this flow. More...

TAO_AV_Core::Protocol	protocol_
	name of the protocol used. More...

ACE_CString	carrier_protocol_
	carrier protocol string. More...

ACE_CString	flow_protocol_
	flow protocol string. More...

int	use_flow_protocol_

ACE_CString	entry_
	The flowspec entry;. More...

int	is_multicast_

bool	delete_peer_addr_

ACE_Addr *	peer_addr_

char **	local_sec_addr_

int	num_local_sec_addrs_

char **	peer_sec_addr_

int	num_peer_sec_addrs_

ACE_Addr *	peer_control_addr_

ACE_Addr *	local_addr_

ACE_Addr *	local_control_addr_

TAO_AV_Transport *	transport_

TAO_AV_Transport *	control_transport_

TAO_AV_Flow_Handler *	handler_

TAO_AV_Flow_Handler *	control_handler_

TAO_AV_Protocol_Object *	protocol_object_

TAO_AV_Protocol_Object *	control_protocol_object_

Role	role_

Member Enumeration Documentation

enum TAO_Forward_FlowSpec_Entry::Position

Enumerator
TAO_AV_FLOWNAME
TAO_AV_DIRECTION
TAO_AV_FORMAT
TAO_AV_FLOW_PROTOCOL
TAO_AV_ADDRESS
TAO_AV_PEER_ADDR

Constructor & Destructor Documentation

TAO_Forward_FlowSpec_Entry::TAO_Forward_FlowSpec_Entry ( void )

default constructor.

TAO_Forward_FlowSpec_Entry::TAO_Forward_FlowSpec_Entry	(	const char *	flowname,
		const char *	direction,
		const char *	format_name,
		const char *	flow_protocol,
		const char *	carrier_protocol,
		ACE_Addr *	address,
		ACE_Addr *	control_address = `0`
	)

constructor to construct an entry from the arguments.

TAO_Forward_FlowSpec_Entry::TAO_Forward_FlowSpec_Entry	(	const char *	flowname,
		const char *	direction,
		const char *	format_name,
		const char *	flow_protocol,
		const char *	address
	)
