TAO_AV_Flow_Handler Class Reference

#include <Transport.h>

Inheritance diagram for TAO_AV_Flow_Handler:

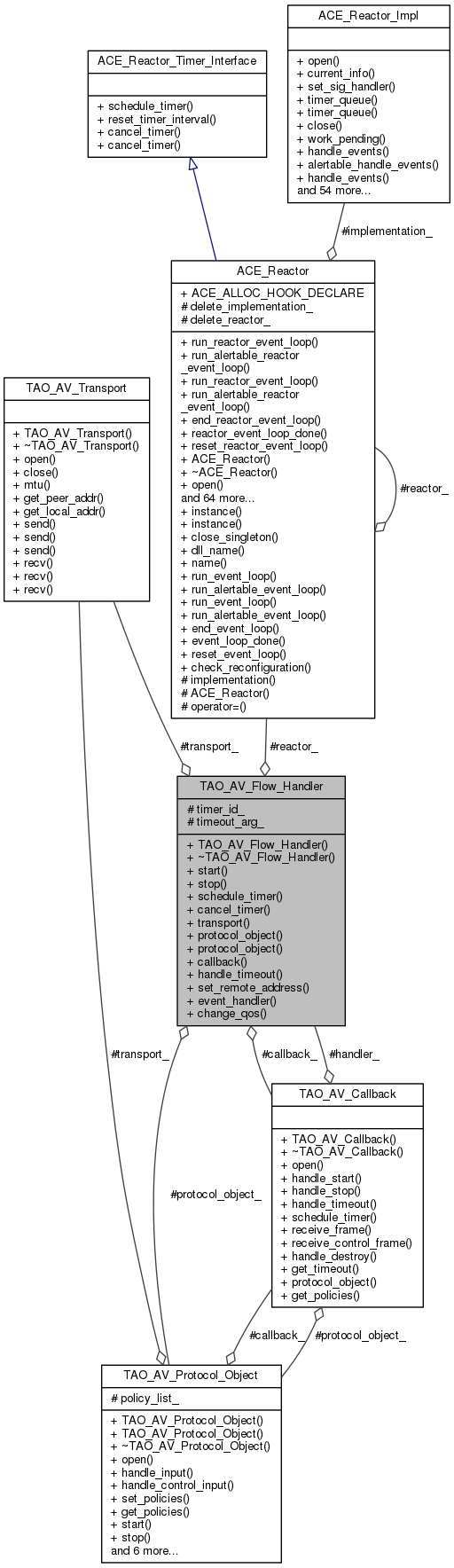

Collaboration diagram for TAO_AV_Flow_Handler:

Public Member Functions
	TAO_AV_Flow_Handler (void)
	Constructor. More...
virtual	~TAO_AV_Flow_Handler (void)
virtual int	start (TAO_FlowSpec_Entry::Role role)
	Start/stop the flow handler. More...
virtual int	stop (TAO_FlowSpec_Entry::Role role)
virtual int	schedule_timer (void)
	Schedule timer. Uses the get_timeout method on the callback. More...
virtual int	cancel_timer (void)
TAO_AV_Transport *	transport (void)
	get the transport. More...
TAO_AV_Protocol_Object *	protocol_object (void)
	set/get protocol_object. More...
void	protocol_object (TAO_AV_Protocol_Object *protocol_object)
void	callback (TAO_AV_Callback *callback)
	set the callback. More...
virtual int	handle_timeout (const ACE_Time_Value &tv, const void *arg=0)
	Handle timeout. called from reactor. More...
virtual int	set_remote_address (ACE_Addr *address)
	set the remote address. More...
virtual ACE_Event_Handler *	event_handler (void)=0
	get the underlying event handler. To be overridden by the derived clases. More...
virtual int	change_qos (AVStreams::QoS)

Protected Attributes
TAO_AV_Transport *	transport_
TAO_AV_Callback *	callback_
TAO_AV_Protocol_Object *	protocol_object_
long	timer_id_
ACE_Reactor *	reactor_
void *	timeout_arg_

Constructor & Destructor Documentation

TAO_AV_Flow_Handler::TAO_AV_Flow_Handler

(

void

)

Constructor.

TAO_AV_Flow_Handler::~TAO_AV_Flow_Handler ( void  )

virtual

Member Function Documentation

void TAO_AV_Flow_Handler::callback

(

TAO_AV_Callback *

callback

)

set the callback.

int TAO_AV_Flow_Handler::cancel_timer ( void  )

virtual

int TAO_AV_Flow_Handler::change_qos ( AVStreams::QoS  )

virtual

Reimplemented in TAO_AV_UDP_Flow_Handler.

virtual ACE_Event_Handler* TAO_AV_Flow_Handler::event_handler ( void  )

pure virtual

get the underlying event handler. To be overridden by the derived clases.

Implemented in TAO_AV_UDP_Flow_Handler, TAO_AV_TCP_Flow_Handler, and TAO_AV_UDP_MCast_Flow_Handler.

int TAO_AV_Flow_Handler::handle_timeout ( const ACE_Time_Value &  tv, const void *  arg = 0  )

virtual

Handle timeout. called from reactor.

Reimplemented in TAO_AV_UDP_Flow_Handler, TAO_AV_TCP_Flow_Handler, and TAO_AV_UDP_MCast_Flow_Handler.

TAO_AV_Protocol_Object * TAO_AV_Flow_Handler::protocol_object

(

void

)

set/get protocol_object.

void TAO_AV_Flow_Handler::protocol_object

(

TAO_AV_Protocol_Object *

protocol_object

)

int TAO_AV_Flow_Handler::schedule_timer ( void  )

virtual

Schedule timer. Uses the get_timeout method on the callback.

int TAO_AV_Flow_Handler::set_remote_address ( ACE_Addr *  address )

virtual

set the remote address.

Reimplemented in TAO_AV_UDP_Flow_Handler.

int TAO_AV_Flow_Handler::start ( TAO_FlowSpec_Entry::Role  role )

virtual

Start/stop the flow handler.

int TAO_AV_Flow_Handler::stop ( TAO_FlowSpec_Entry::Role  role )

virtual

TAO_AV_Transport * TAO_AV_Flow_Handler::transport

(

void

)

get the transport.

Member Data Documentation

TAO_AV_Callback* TAO_AV_Flow_Handler::callback_

protected

TAO_AV_Protocol_Object* TAO_AV_Flow_Handler::protocol_object_

protected

ACE_Reactor* TAO_AV_Flow_Handler::reactor_

protected

void* TAO_AV_Flow_Handler::timeout_arg_

protected

long TAO_AV_Flow_Handler::timer_id_

protected

TAO_AV_Transport* TAO_AV_Flow_Handler::transport_

protected

---

The documentation for this class was generated from the following files:

• Transport.h
• Transport.cpp
