TAO_Notify_EventChannel Class Reference

Implementation of CosNotifyChannelAdmin::EventChannel. More...

#include <EventChannel.h>

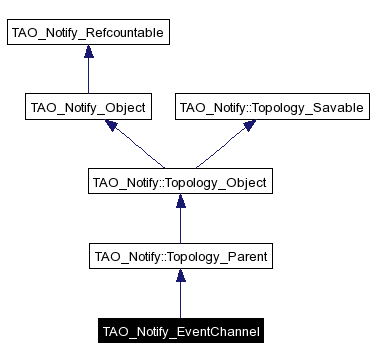

Inheritance diagram for TAO_Notify_EventChannel:

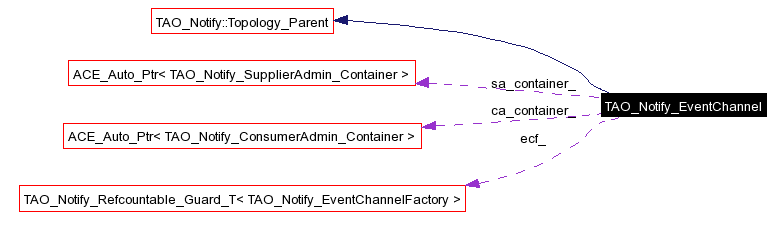

[legend]Collaboration diagram for TAO_Notify_EventChannel:

[legend]List of all members.

Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannel >	Ptr
typedef CosNotifyChannelAdmin::ChannelIDSeq	SEQ
typedef CosNotifyChannelAdmin::ChannelIDSeq_var	SEQ_VAR
Public Member Functions
	TAO_Notify_EventChannel (void)
	Constuctor.
virtual	~TAO_Notify_EventChannel ()
	Destructor.
void	init (TAO_Notify_EventChannelFactory *ecf, const CosNotification::QoSProperties &initial_qos, const CosNotification::AdminProperties &initial_admin ACE_ENV_ARG_DECL)
	Init.
void	init (TAO_Notify::Topology_Parent *parent ACE_ENV_ARG_DECL)
	Init (for reload).
void	remove (TAO_Notify_ConsumerAdmin *consumer_admin ACE_ENV_ARG_DECL)
	Remove ConsumerAdmin from its container.
void	remove (TAO_Notify_SupplierAdmin *supplier_admin ACE_ENV_ARG_DECL)
	Remove SupplierAdmin from its container.
virtual void	_add_ref (ACE_ENV_SINGLE_ARG_DECL)
	ServantBase refcount methods.
virtual void	_remove_ref (ACE_ENV_SINGLE_ARG_DECL)
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver ACE_ENV_ARG_DECL)
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs ACE_ENV_ARG_DECL)
virtual void	reconnect (ACE_ENV_SINGLE_ARG_DECL)
virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.
TAO_Notify_ProxyConsumer *	find_proxy_consumer (TAO_Notify::IdVec &id_path, size_t position ACE_ENV_ARG_DECL)
TAO_Notify_ProxySupplier *	find_proxy_supplier (TAO_Notify::IdVec &id_path, size_t position ACE_ENV_ARG_DECL)
virtual int	shutdown (ACE_ENV_SINGLE_ARG_DECL)
	Shutdown.
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
Private Types
typedef TAO_Notify_Container_T< TAO_Notify_ConsumerAdmin >	TAO_Notify_ConsumerAdmin_Container
typedef TAO_Notify_Container_T< TAO_Notify_SupplierAdmin >	TAO_Notify_SupplierAdmin_Container
Private Member Functions
virtual void	save_attrs (TAO_Notify::NVPList &attrs)
virtual void	destroy (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
	=CosNotifyChannelAdmin::EventChannel methods
virtual ::CosNotifyChannelAdmin::EventChannelFactory_ptr	MyFactory (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotifyChannelAdmin::ConsumerAdmin_ptr	default_consumer_admin (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotifyChannelAdmin::SupplierAdmin_ptr	default_supplier_admin (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotifyFilter::FilterFactory_ptr	default_filter_factory (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotifyChannelAdmin::ConsumerAdmin_ptr	new_for_consumers (CosNotifyChannelAdmin::InterFilterGroupOperator op, CosNotifyChannelAdmin::AdminID_out id ACE_ENV_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotifyChannelAdmin::SupplierAdmin_ptr	new_for_suppliers (CosNotifyChannelAdmin::InterFilterGroupOperator op, CosNotifyChannelAdmin::AdminID_out id ACE_ENV_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotifyChannelAdmin::ConsumerAdmin_ptr	get_consumeradmin (CosNotifyChannelAdmin::AdminID id ACE_ENV_ARG_DECL) throw ( CORBA::SystemException , CosNotifyChannelAdmin::AdminNotFound )
virtual ::CosNotifyChannelAdmin::SupplierAdmin_ptr	get_supplieradmin (CosNotifyChannelAdmin::AdminID id ACE_ENV_ARG_DECL) throw ( CORBA::SystemException , CosNotifyChannelAdmin::AdminNotFound )
virtual ::CosNotifyChannelAdmin::AdminIDSeq *	get_all_consumeradmins (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotifyChannelAdmin::AdminIDSeq *	get_all_supplieradmins (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosNotification::QoSProperties *	get_qos (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
	Get the QoS Properties.
virtual void	set_qos (const CosNotification::QoSProperties &qos ACE_ENV_ARG_DECL) throw ( CORBA::SystemException , CosNotification::UnsupportedQoS )
	Set the QoS Properties.
virtual void	validate_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos ACE_ENV_ARG_DECL) throw ( CORBA::SystemException , CosNotification::UnsupportedQoS )
virtual ::CosNotification::AdminProperties *	get_admin (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual void	set_admin (const CosNotification::AdminProperties &admin ACE_ENV_ARG_DECL) throw ( CORBA::SystemException , CosNotification::UnsupportedAdmin )
virtual ::CosEventChannelAdmin::ConsumerAdmin_ptr	for_consumers (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
virtual ::CosEventChannelAdmin::SupplierAdmin_ptr	for_suppliers (ACE_ENV_SINGLE_ARG_DECL) throw ( CORBA::SystemException )
TAO_Notify_ConsumerAdmin_Container &	ca_container ()
TAO_Notify_SupplierAdmin_Container &	sa_container ()
virtual void	release (void)
	Release.
Private Attributes
TAO_Notify_EventChannelFactory::Ptr	ecf_
TAO_SYNCH_MUTEX	default_admin_mutex_
CosNotifyChannelAdmin::ConsumerAdmin_var	default_consumer_admin_
CosNotifyChannelAdmin::SupplierAdmin_var	default_supplier_admin_
ACE_Auto_Ptr< TAO_Notify_ConsumerAdmin_Container >	ca_container_
	ConsumerAdmin Container.
ACE_Auto_Ptr< TAO_Notify_SupplierAdmin_Container >	sa_container_
	SupplierAdmin Container.
Friends
class	TAO_Notify_Builder

---

Detailed Description

Implementation of CosNotifyChannelAdmin::EventChannel.

---

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannel > TAO_Notify_EventChannel::Ptr

Reimplemented from TAO_Notify_Refcountable.

typedef CosNotifyChannelAdmin::ChannelIDSeq TAO_Notify_EventChannel::SEQ

typedef CosNotifyChannelAdmin::ChannelIDSeq_var TAO_Notify_EventChannel::SEQ_VAR

typedef TAO_Notify_Container_T<TAO_Notify_ConsumerAdmin> TAO_Notify_EventChannel::TAO_Notify_ConsumerAdmin_Container [private]

typedef TAO_Notify_Container_T<TAO_Notify_SupplierAdmin> TAO_Notify_EventChannel::TAO_Notify_SupplierAdmin_Container [private]

---

Constructor & Destructor Documentation

TAO_Notify_EventChannel::TAO_Notify_EventChannel (  void   )

Constuctor.

TAO_Notify_EventChannel::~TAO_Notify_EventChannel (   )  [virtual]

Destructor.

---

Member Function Documentation

void TAO_Notify_EventChannel::_add_ref (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

ServantBase refcount methods.

void TAO_Notify_EventChannel::_remove_ref (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

TAO_Notify_EventChannel::TAO_Notify_ConsumerAdmin_Container & TAO_Notify_EventChannel::ca_container (   )  [private]

CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::default_consumer_admin (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosNotifyFilter::FilterFactory_ptr TAO_Notify_EventChannel::default_filter_factory (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::default_supplier_admin (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

void TAO_Notify_EventChannel::destroy (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private, virtual]

=CosNotifyChannelAdmin::EventChannel methods

TAO_Notify_ProxyConsumer * TAO_Notify_EventChannel::find_proxy_consumer (  TAO_Notify::IdVec &  id_path, size_t position  ACE_ENV_ARG_DECL )

TAO_Notify_ProxySupplier * TAO_Notify_EventChannel::find_proxy_supplier (  TAO_Notify::IdVec &  id_path, size_t position  ACE_ENV_ARG_DECL )

CosEventChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::for_consumers (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosEventChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::for_suppliers (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosNotification::AdminProperties * TAO_Notify_EventChannel::get_admin (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosNotifyChannelAdmin::AdminIDSeq * TAO_Notify_EventChannel::get_all_consumeradmins (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosNotifyChannelAdmin::AdminIDSeq * TAO_Notify_EventChannel::get_all_supplieradmins (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::get_consumeradmin (  CosNotifyChannelAdmin::AdminID id  ACE_ENV_ARG_DECL  )  throw ( CORBA::SystemException , CosNotifyChannelAdmin::AdminNotFound ) [private]

virtual TAO_Notify_Object::ID TAO_Notify_EventChannel::get_id (   )  const [inline, virtual]

Find the id associated with topology object. A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us. Reimplemented from TAO_Notify::Topology_Object.

CosNotification::QoSProperties * TAO_Notify_EventChannel::get_qos (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

Get the QoS Properties. Reimplemented from TAO_Notify_Object.

CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::get_supplieradmin (  CosNotifyChannelAdmin::AdminID id  ACE_ENV_ARG_DECL  )  throw ( CORBA::SystemException , CosNotifyChannelAdmin::AdminNotFound ) [private]

void TAO_Notify_EventChannel::init (  TAO_Notify::Topology_Parent *parent  ACE_ENV_ARG_DECL  )

Init (for reload).

void TAO_Notify_EventChannel::init (  TAO_Notify_EventChannelFactory *  ecf, const CosNotification::QoSProperties &  initial_qos, const CosNotification::AdminProperties &initial_admin  ACE_ENV_ARG_DECL )

Init.

void TAO_Notify_EventChannel::load_attrs (  const TAO_Notify::NVPList &  attrs  )  [virtual]

Load our attributes. Each derived type should call the superclass load first before loading its own attributes. Reimplemented from TAO_Notify_Object.

TAO_Notify::Topology_Object * TAO_Notify_EventChannel::load_child (  const ACE_CString &  type, CORBA::Long  id, const TAO_Notify::NVPList &attrs  ACE_ENV_ARG_DECL )  [virtual]

CosNotifyChannelAdmin::EventChannelFactory_ptr TAO_Notify_EventChannel::MyFactory (  ACE_ENV_SINGLE_ARG_DECL   )  throw ( CORBA::SystemException ) [private]

CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::new_for_consumers (  CosNotifyChannelAdmin::InterFilterGroupOperator  op, CosNotifyChannelAdmin::AdminID_out id  ACE_ENV_ARG_DECL )  throw ( CORBA::SystemException ) [private]

CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::new_for_suppliers (  CosNotifyChannelAdmin::InterFilterGroupOperator  op, CosNotifyChannelAdmin::AdminID_out id  ACE_ENV_ARG_DECL )  throw ( CORBA::SystemException ) [private]

void TAO_Notify_EventChannel::reconnect (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

Re-establish connections that we had before a shutdown. After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same. Reimplemented from TAO_Notify::Topology_Savable.

void TAO_Notify_EventChannel::release (  void   )  [private, virtual]

Release. Implements TAO_Notify_Refcountable.

void TAO_Notify_EventChannel::remove (  TAO_Notify_SupplierAdmin *supplier_admin  ACE_ENV_ARG_DECL  )

Remove SupplierAdmin from its container.

void TAO_Notify_EventChannel::remove (  TAO_Notify_ConsumerAdmin *consumer_admin  ACE_ENV_ARG_DECL  )

Remove ConsumerAdmin from its container.

TAO_Notify_EventChannel::TAO_Notify_SupplierAdmin_Container & TAO_Notify_EventChannel::sa_container (   )  [private]

void TAO_Notify_EventChannel::save_attrs (  TAO_Notify::NVPList &  attrs  )  [private, virtual]

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs. Reimplemented from TAO_Notify_Object.

void TAO_Notify_EventChannel::save_persistent (  TAO_Notify::Topology_Saver &saver  ACE_ENV_ARG_DECL  )  [virtual]

void TAO_Notify_EventChannel::set_admin (  const CosNotification::AdminProperties &admin  ACE_ENV_ARG_DECL  )  throw ( CORBA::SystemException , CosNotification::UnsupportedAdmin ) [private, virtual]

void TAO_Notify_EventChannel::set_qos (  const CosNotification::QoSProperties &qos  ACE_ENV_ARG_DECL  )  throw ( CORBA::SystemException , CosNotification::UnsupportedQoS ) [private, virtual]

Set the QoS Properties. Reimplemented from TAO_Notify_Object.

int TAO_Notify_EventChannel::shutdown (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

Shutdown. Reimplemented from TAO_Notify_Object.

virtual void TAO_Notify_EventChannel::validate_qos (  const CosNotification::QoSProperties &  required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos  ACE_ENV_ARG_DECL )  throw ( CORBA::SystemException , CosNotification::UnsupportedQoS ) [private, virtual]

---

Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]

Reimplemented from TAO_Notify_Object.

---

Member Data Documentation

ACE_Auto_Ptr< TAO_Notify_ConsumerAdmin_Container > TAO_Notify_EventChannel::ca_container_ [private]

ConsumerAdmin Container.

TAO_SYNCH_MUTEX TAO_Notify_EventChannel::default_admin_mutex_ [private]

CosNotifyChannelAdmin::ConsumerAdmin_var TAO_Notify_EventChannel::default_consumer_admin_ [private]

CosNotifyChannelAdmin::SupplierAdmin_var TAO_Notify_EventChannel::default_supplier_admin_ [private]

TAO_Notify_EventChannelFactory::Ptr TAO_Notify_EventChannel::ecf_ [private]

= Data Members The parent object.

ACE_Auto_Ptr< TAO_Notify_SupplierAdmin_Container > TAO_Notify_EventChannel::sa_container_ [private]

SupplierAdmin Container.

---

The documentation for this class was generated from the following files:

• EventChannel.h
• EventChannel.cpp

---
