Token Invariants. More...

#include <Token_Invariants.h>

Inheritance diagram for ACE_Token_Invariant_Manager:

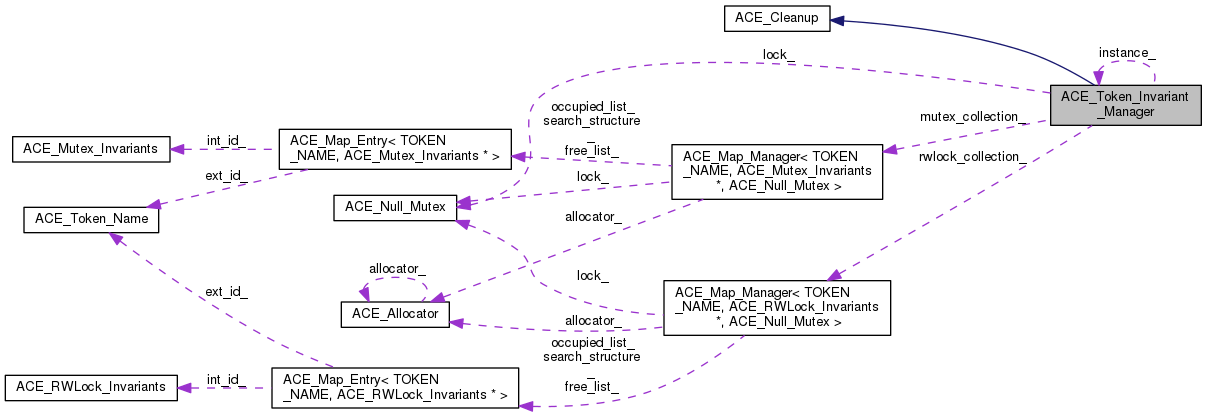

Collaboration diagram for ACE_Token_Invariant_Manager:

[legend]

Public Member Functions
int	acquired (const ACE_Token_Proxy *proxy)

void	releasing (const ACE_Token_Proxy *proxy)
	Updates internal database. More...

int	mutex_acquired (const ACE_TCHAR *token_name)

void	mutex_releasing (const ACE_TCHAR *token_name)
	Updates internal database. More...

int	reader_acquired (const ACE_TCHAR *token_name)

int	writer_acquired (const ACE_TCHAR *token_name)

void	rwlock_releasing (const ACE_TCHAR *token_name)
	Updates internal database. More...

void	dump (void) const
	Dump the state of the class. More...

	ACE_Token_Invariant_Manager (void)
	Prevent non-singleton construction. More...

virtual	~ACE_Token_Invariant_Manager (void)
	Destruction. More...

Public Member Functions inherited from ACE_Cleanup
	ACE_Cleanup (void)
	No-op constructor. More...

virtual	~ACE_Cleanup (void)
	Destructor. More...

virtual void	cleanup (void *param=0)
	Cleanup method that, by default, simply deletes itself. More...

Static Public Member Functions
static ACE_Token_Invariant_Manager *	instance (void)
	Singleton access point. More...

Protected Types
typedef ACE_Token_Name	TOKEN_NAME
	This may be changed to a template type. More...

typedef ACE_Map_Manager< TOKEN_NAME, ACE_Mutex_Invariants *, ACE_Null_Mutex >	MUTEX_COLLECTION
	COLLECTION maintains a mapping from token names to mutexes. More...

typedef ACE_Map_Manager< TOKEN_NAME, ACE_RWLock_Invariants *, ACE_Null_Mutex >	RWLOCK_COLLECTION
	COLLECTION maintains a mapping from token names to mutexes. More...

Protected Member Functions
int	get_mutex (const ACE_TCHAR token_name, ACE_Mutex_Invariants &inv)
	Return or create. More...

int	get_rwlock (const ACE_TCHAR token_name, ACE_RWLock_Invariants &inv)
	Return or create. More...

Protected Attributes
ACE_TOKEN_CONST::MUTEX	lock_
	ACE_Mutex_Token used to lock internal data structures. More...

MUTEX_COLLECTION	mutex_collection_
	MUTEX_COLLECTION maintains a mapping from token names to mutexes. More...

RWLOCK_COLLECTION	rwlock_collection_
	MUTEX_COLLECTION maintains a mapping from token names to mutexes. More...

Static Protected Attributes
static ACE_Token_Invariant_Manager *	instance_ = 0
	Singleton pointer. More...

Detailed Description

Token Invariants.

The Token Invariant Manager allows applications to test that invariants are always satisfied. Currently, Token_Invariants can test mutexes and readers/writer locks. Does not test recursive acquisition. Note that this class does not ever clean its database. Until destroyed, it's size will forever increase.

Member Typedef Documentation

typedef ACE_Map_Manager<TOKEN_NAME, ACE_Mutex_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::MUTEX_COLLECTION

protected

COLLECTION maintains a mapping from token names to mutexes.

typedef ACE_Map_Manager<TOKEN_NAME, ACE_RWLock_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::RWLOCK_COLLECTION

protected

COLLECTION maintains a mapping from token names to mutexes.

typedef ACE_Token_Name ACE_Token_Invariant_Manager::TOKEN_NAME

protected

This may be changed to a template type.

Constructor & Destructor Documentation

ACE_Token_Invariant_Manager::ACE_Token_Invariant_Manager ( void )

Prevent non-singleton construction.

ACE_Token_Invariant_Manager::~ACE_Token_Invariant_Manager ( void )

virtual

Destruction.

Member Function Documentation

int ACE_Token_Invariant_Manager::acquired ( const ACE_Token_Proxy * proxy )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::dump ( void ) const

Dump the state of the class.

int ACE_Token_Invariant_Manager::get_mutex	(	const ACE_TCHAR *	token_name,
		ACE_Mutex_Invariants *&	inv
	)

protected

Return or create.

int ACE_Token_Invariant_Manager::get_rwlock	(	const ACE_TCHAR *	token_name,
		ACE_RWLock_Invariants *&	inv
	)

protected

Return or create.

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance ( void )

static

Singleton access point.

int ACE_Token_Invariant_Manager::mutex_acquired ( const ACE_TCHAR * token_name )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::mutex_releasing ( const ACE_TCHAR * token_name )

Updates internal database.

int ACE_Token_Invariant_Manager::reader_acquired ( const ACE_TCHAR * token_name )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

void ACE_Token_Invariant_Manager::releasing ( const ACE_Token_Proxy * proxy )

Updates internal database.

void ACE_Token_Invariant_Manager::rwlock_releasing ( const ACE_TCHAR * token_name )

Updates internal database.

int ACE_Token_Invariant_Manager::writer_acquired ( const ACE_TCHAR * token_name )

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

Member Data Documentation

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance_ = 0

staticprotected

Singleton pointer.

ACE_TOKEN_CONST::MUTEX ACE_Token_Invariant_Manager::lock_

protected

ACE_Mutex_Token used to lock internal data structures.

MUTEX_COLLECTION ACE_Token_Invariant_Manager::mutex_collection_

protected

MUTEX_COLLECTION maintains a mapping from token names to mutexes.

RWLOCK_COLLECTION ACE_Token_Invariant_Manager::rwlock_collection_

protected

MUTEX_COLLECTION maintains a mapping from token names to mutexes.

The documentation for this class was generated from the following files:
