Define a map abstraction that associates EXT_IDs with INT_IDs. More...

#include <Map_Manager.h>

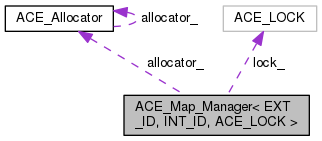

Collaboration diagram for ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >:

Public Types
typedef EXT_ID	KEY

typedef INT_ID	VALUE

typedef ACE_LOCK	lock_type

typedef ACE_Map_Entry< EXT_ID, INT_ID >	ENTRY

typedef ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	ITERATOR

typedef ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK >	CONST_ITERATOR

typedef ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	REVERSE_ITERATOR

typedef ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	iterator

typedef ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK >	const_iterator

typedef ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	reverse_iterator

Public Member Functions
	ACE_Map_Manager (ACE_Allocator *alloc=0)
	Initialize a ACE_Map_Manager with the ACE_DEFAULT_MAP_SIZE. More...

	ACE_Map_Manager (size_t size, ACE_Allocator *alloc=0)
	Initialize a ACE_Map_Manager with size entries. More...

int	open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
	Initialize a ACE_Map_Manager with size length. More...

int	close (void)

	~ACE_Map_Manager (void)

int	bind (const EXT_ID &ext_id, const INT_ID &int_id)

int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id)

int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id)

int	rebind (const EXT_ID &ext_id, const INT_ID &int_id)

int	trybind (const EXT_ID &ext_id, INT_ID &int_id)

int	find (const EXT_ID &ext_id, INT_ID &int_id) const

int	find (const EXT_ID &ext_id) const
	Returns 0 if the ext_id is in the mapping, otherwise -1. More...

int	unbind (const EXT_ID &ext_id)

int	unbind (const EXT_ID &ext_id, INT_ID &int_id)

void	unbind_all (void)

size_t	current_size (void) const
	Return the current size of the map. More...

size_t	total_size (void) const
	Return the total size of the map. More...

ACE_LOCK &	mutex (void)

void	dump (void) const
	Dump the state of an object. More...

ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	begin (void)
	Return forward iterator. More...

ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	end (void)

ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	rbegin (void)
	Return reverse iterator. More...

ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	rend (void)

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Types
enum	{ MAX_EXPONENTIAL = 64 * 1024, LINEAR_INCREASE = 32 * 1024 }

Protected Member Functions
int	bind_i (const EXT_ID &ext_id, const INT_ID &int_id)

int	shared_bind (const EXT_ID &ext_id, const INT_ID &int_id)

int	rebind_i (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id)

int	rebind_i (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id)

int	rebind_i (const EXT_ID &ext_id, const INT_ID &int_id)

int	trybind_i (const EXT_ID &ext_id, INT_ID &int_id)

int	find_i (const EXT_ID &ext_id, INT_ID &int_id)

int	find_and_return_index (const EXT_ID &ext_id, ACE_UINT32 &slot)

int	unbind_i (const EXT_ID &ext_id, INT_ID &int_id)

int	unbind_i (const EXT_ID &ext_id)

int	unbind_and_return_index (const EXT_ID &ext_id, ACE_UINT32 &slot)

void	unbind_slot (ACE_UINT32 slot)
	Unbind slot. More...

int	resize_i (ACE_UINT32 size)
	Resize the map. Must be called with locks held. More...

int	close_i (void)
	Close down a <Map_Manager>. Must be called with locks held. More...

int	equal (const EXT_ID &id1, const EXT_ID &id2)

ACE_UINT32	new_size (void)

void	free_search_structure (void)

ACE_UINT32	free_list_id (void) const
	Id of the free list sentinel. More...

ACE_UINT32	occupied_list_id (void) const
	Id of the occupied list sentinel. More...

int	next_free (ACE_UINT32 &slot)
	Finds the next free slot. More...

void	move_from_free_list_to_occupied_list (ACE_UINT32 slot)
	Move from free list to occupied list. More...

void	move_from_occupied_list_to_free_list (ACE_UINT32 slot)
	Move from occupied list to free list. More...

void	shared_move (ACE_UINT32 slot, ACE_Map_Entry< EXT_ID, INT_ID > &current_list, ACE_UINT32 current_list_id, ACE_Map_Entry< EXT_ID, INT_ID > &new_list, ACE_UINT32 new_list_id)
	Move helper. More...

Protected Attributes
ACE_Allocator *	allocator_
	Pointer to a memory allocator. More...

ACE_LOCK	lock_
	Synchronization variable for the MT_SAFE ACE_Map_Manager. More...

ACE_Map_Entry< EXT_ID, INT_ID > *	search_structure_
	Implement the Map as a resizeable array of ACE_Map_Entry. More...

ACE_UINT32	total_size_
	Total number of elements in this->search_structure_. More...

ACE_UINT32	cur_size_
	Current size of the map. More...

ACE_Map_Entry< EXT_ID, INT_ID >	free_list_
	Free list. More...

ACE_Map_Entry< EXT_ID, INT_ID >	occupied_list_
	Occupied list. More...

Private Member Functions
void	operator= (const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > &)

	ACE_Map_Manager (const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > &)

Friends
class	ACE_Map_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK >

class	ACE_Map_Const_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK >

class	ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >

class	ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK >

class	ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >

Detailed Description

template<class EXT_ID, class INT_ID, class ACE_LOCK>
class ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >

Define a map abstraction that associates EXT_IDs with INT_IDs.

The EXT_ID must support operator==. This constraint can be alleviated via template specialization, as shown in the $ACE_ROOT/tests/Conn_Test.cpp test. This class uses an ACE_Allocator to allocate memory. The user can make this a persistant class by providing an ACE_Allocator with a persistable memory pool. This implementation of a map uses an array, which is searched linearly. For more efficient searching you should use the ACE_Hash_Map_Manager.

Member Typedef Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Const_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::CONST_ITERATOR

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Const_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::const_iterator

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Entry<EXT_ID, INT_ID> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ENTRY

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ITERATOR

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::iterator

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef EXT_ID ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::KEY

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_LOCK ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::lock_type

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Reverse_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::REVERSE_ITERATOR

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Reverse_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::reverse_iterator

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef INT_ID ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::VALUE

Member Enumeration Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

anonymous enum

protected

Enumerator
MAX_EXPONENTIAL	Grow map exponentially up to 64K.
LINEAR_INCREASE	Afterwards grow in chunks of 32K.

Constructor & Destructor Documentation

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_Map_Manager ( ACE_Allocator * alloc = 0 )

inline

Initialize a ACE_Map_Manager with the ACE_DEFAULT_MAP_SIZE.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_Map_Manager	(	size_t	size,
		ACE_Allocator *	alloc = `0`
	)

inline

Initialize a ACE_Map_Manager with size entries.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::~ACE_Map_Manager ( void )

inline

Close down a ACE_Map_Manager and release dynamically allocated resources.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_Map_Manager ( const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > & )

private

Member Function Documentation

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::begin ( void )

inline

Return forward iterator.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::bind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id
	)

inline

Associate ext_id with int_id. If ext_id is already in the map then the ACE_Map_Entry is not changed.

Return values

0	If a new entry is bound successfully.
1	If an attempt is made to bind an existing entry.
-1	If failures occur.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::bind_i	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id
	)

protected

Performs the binding of ext_id to int_id. Must be called with locks held.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::close ( void )

inline

Close down a ACE_Map_Manager and release dynamically allocated resources.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::close_i ( void )

protected

Close down a <Map_Manager>. Must be called with locks held.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

size_t ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::current_size ( void ) const

inline

Return the current size of the map.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::dump ( void ) const

Dump the state of an object.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::end ( void )

inline

template<class EXT_ID, class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::equal	(	const EXT_ID &	id1,
		const EXT_ID &	id2
	)

inlineprotected

Returns 1 if <id1> == <id2>, else 0. This is defined as a separate method to facilitate template specialization.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)		const

inline

Locate ext_id and pass out parameter via int_id.

Return values

0	If found.
-1	If not found.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find ( const EXT_ID & ext_id ) const

inline

Returns 0 if the ext_id is in the mapping, otherwise -1.

template<class EXT_ID, class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find_and_return_index	(	const EXT_ID &	ext_id,
		ACE_UINT32 &	slot
	)

protected

Performs a find using ext_id as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find_i	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

protected

Performs a find of int_id using ext_id as the key. Must be called with locks held.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::free_list_id ( void ) const

inlineprotected

Id of the free list sentinel.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::free_search_structure ( void )

protected

Explicitly call the destructors and free up the <search_structure_>.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::move_from_free_list_to_occupied_list ( ACE_UINT32 slot )

inlineprotected

Move from free list to occupied list.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::move_from_occupied_list_to_free_list ( ACE_UINT32 slot )

inlineprotected

Move from occupied list to free list.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_LOCK & ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::mutex ( void )

inline

Returns a reference to the underlying ACE_LOCK. This makes it possible to acquire the lock explicitly, which can be useful in some cases if you instantiate the ACE_Atomic_Op with an ACE_Recursive_Mutex or ACE_Process_Mutex, or if you need to guard the state of an iterator.

Note: The right name would be lock, but HP/C++ will choke on that!

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::new_size ( void )

protected

This function returns the new size of the Map Manager. This function is called when we run out of room and need to resize.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::next_free ( ACE_UINT32 & slot )

protected

Finds the next free slot.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::occupied_list_id ( void ) const

inlineprotected

Id of the occupied list sentinel.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

class ACE_LOCK int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::open	(	size_t	length = `ACE_DEFAULT_MAP_SIZE`,
		ACE_Allocator *	alloc = `0`
	)

Initialize a ACE_Map_Manager with size length.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::operator= ( const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > & )

private

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rbegin ( void )

inline

Return reverse iterator.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		EXT_ID &	old_ext_id,
		INT_ID &	old_int_id
	)

inline

Reassociate ext_id with int_id. If ext_id is not in the map then behaves just like bind(). Otherwise, store the old values of ext_id and int_id into the "out" parameters and rebind the new parameters. This is very useful if you need to have an atomic way of updating <Map_Entries> and you also need full control over memory allocation.

Return values

0	If a new entry is bound successfully.
1	If an existing entry was rebound.
-1	If failures occur.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		INT_ID &	old_int_id
	)

inline

Reassociate ext_id with int_id. If ext_id is not in the map then behaves just like bind(). Otherwise, store the old values of int_id into the "out" parameter and rebind the new parameters.

Return values

0	If a new entry is bound successfully.
1	If an existing entry was rebound.
-1	If failures occur.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id
	)

inline

Reassociate ext_id with int_id. Old values in the map are ignored.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind_i	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		EXT_ID &	old_ext_id,
		INT_ID &	old_int_id
	)

protected

Performs a rebinding of <ext_it> to int_id. Also, recovers old values. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind_i	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		INT_ID &	old_int_id
	)

protected

Performs a rebinding of <ext_it> to int_id. Also, recovers old values. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind_i	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id
	)

protected

Performs a rebinding of <ext_it> to int_id. Must be called with locks held.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rend ( void )

inline

template<class EXT_ID , class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::resize_i ( ACE_UINT32 size )

protected

Resize the map. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::shared_bind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id
	)

protected

Bind an entry (without finding first). Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::shared_move	(	ACE_UINT32	slot,
		ACE_Map_Entry< EXT_ID, INT_ID > &	current_list,
		ACE_UINT32	current_list_id,
		ACE_Map_Entry< EXT_ID, INT_ID > &	new_list,
		ACE_UINT32	new_list_id
	)

protected

Move helper.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

size_t ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::total_size ( void ) const

inline

Return the total size of the map.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::trybind	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

inline

Associate ext_id with int_id if and only if ext_id is not in the map. If ext_id is already in the map then the int_id parameter is overwritten with the existing value in the map

Return values

0	If a new entry is bound successfully.
1	If an attempt is made to bind an existing entry.
-1	If failures occur.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::trybind_i	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

protected

Performs a conditional bind of int_id using ext_id as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind ( const EXT_ID & ext_id )

inline

Unbind (remove) the ext_id from the map. Don't return the int_id to the caller (this is useful for collections where the int_ids are not dynamically allocated...) Returns 0 if successful, else -1.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

inline

Break any association of ext_id. Returns the value of int_id in case the caller needs to deallocate memory. Returns 0 if successful, else -1.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_all ( void )

Unbind all entires.

template<class EXT_ID, class INT_ID , class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_and_return_index	(	const EXT_ID &	ext_id,
		ACE_UINT32 &	slot
	)

protected

Performs an unbind using ext_id as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_i	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

protected

Performs an unbind of int_id using ext_id as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK >

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_i ( const EXT_ID & ext_id )

inlineprotected

Performs an unbind using ext_id as the key. Must be called with locks held.

template<class EXT_ID , class INT_ID , class ACE_LOCK >

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_slot ( ACE_UINT32 slot )

protected

Unbind slot.

Friends And Related Function Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK >

friend

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Const_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK >

friend

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >

friend

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK >

friend

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >

friend

Member Data Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Allocator* ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::allocator_

protected

Pointer to a memory allocator.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::cur_size_

protected

Current size of the map.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Entry<EXT_ID, INT_ID> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::free_list_

protected

Free list.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_LOCK ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::lock_

mutableprotected

Synchronization variable for the MT_SAFE ACE_Map_Manager.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Entry<EXT_ID, INT_ID> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::occupied_list_

protected

Occupied list.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Entry<EXT_ID, INT_ID>* ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::search_structure_

protected

Implement the Map as a resizeable array of ACE_Map_Entry.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::total_size_

protected

Total number of elements in this->search_structure_.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Friends

Detailed Description

template<class EXT_ID, class INT_ID, class ACE_LOCK> class ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>
class ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >
