Allows atomic token group operations AND provides a ACE_Token manager interface. More...

#include <Token_Collection.h>

Inheritance diagram for ACE_Token_Collection:

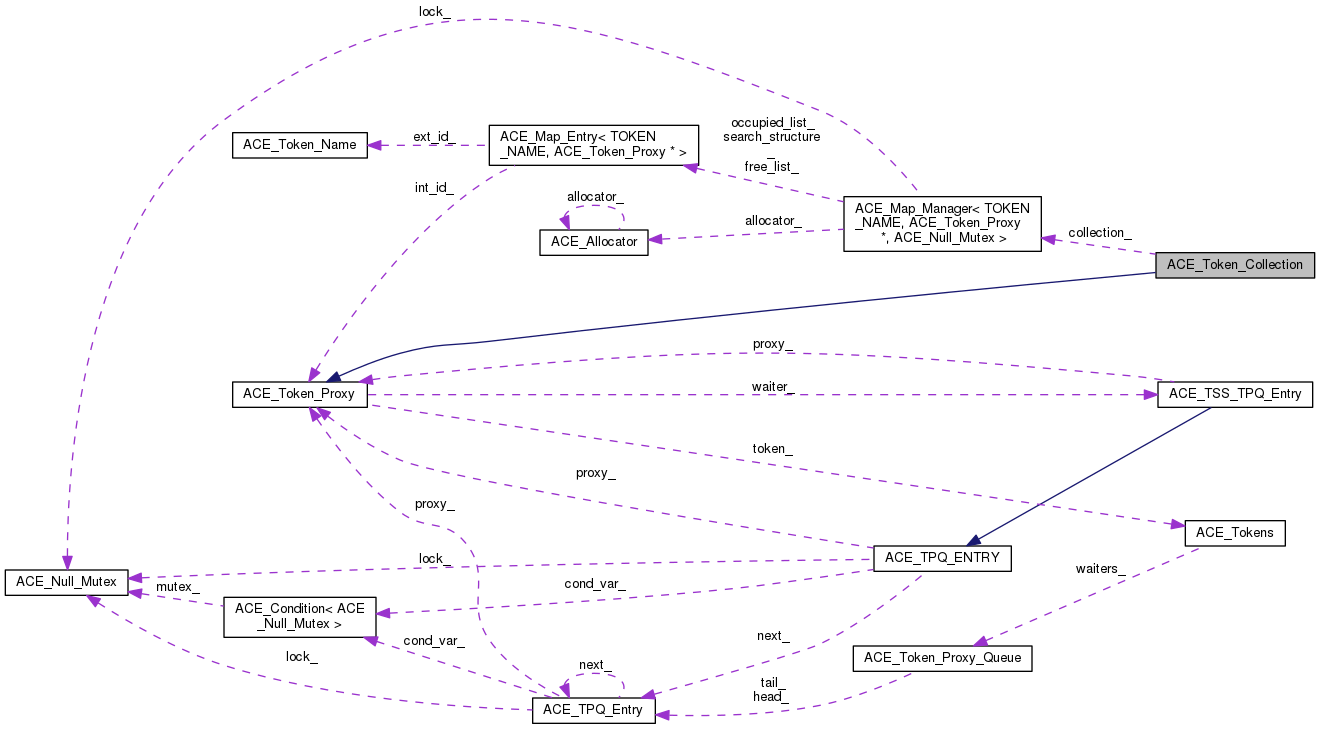

Collaboration diagram for ACE_Token_Collection:

[legend]

Public Member Functions
	ACE_Token_Collection (bool debug=false, const ACE_TCHAR *name=0)

int	insert (ACE_Token_Proxy &token)

int	extract (const ACE_TCHAR token_name, ACE_Token_Proxy &proxy)

ACE_Token_Proxy *	is_member (const ACE_TCHAR *token_name)
	Returns the proxy if true. 0 otherwise. More...

int	is_member (const ACE_Token_Proxy &token)

virtual int	acquire (int notify=0, void(sleep_hook)(void )=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	acquire (const ACE_TCHAR token_name, int notify=0, void(sleep_hook)(void *)=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	tryacquire (void(sleep_hook)(void )=0)
	Try to acquire all tokens in collection. More...

virtual int	tryacquire (const ACE_TCHAR token_name, void(sleep_hook)(void *)=0)
	Try to acquire token_name. More...

virtual int	renew (int requeue_position=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	renew (const ACE_TCHAR *token_name, int requeue_position=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	release (ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	release (const ACE_TCHAR *token_name, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

	~ACE_Token_Collection (void)

void	dump (void) const
	Dump the state of the class. More...

virtual const ACE_TCHAR *	name (void) const

Public Member Functions inherited from ACE_Token_Proxy
	ACE_Token_Proxy (void)
	Construction. More...

virtual	~ACE_Token_Proxy (void)
	Destructor. More...

virtual int	open (const ACE_TCHAR *name, int ignore_deadlock=0, int debug=0)

virtual int	remove (ACE_Synch_Options &options=ACE_Synch_Options::defaults)
	Calls remove on the token. More...

virtual int	acquire_read (int notify=0, void(sleep_hook)(void )=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	acquire_write (int notify=0, void(sleep_hook)(void )=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	tryacquire_read (void(sleep_hook)(void )=0)

virtual int	tryacquire_write (void(sleep_hook)(void )=0)

virtual const ACE_TCHAR *	client_id (void) const

virtual void	client_id (const ACE_TCHAR *client_id)

virtual void	sleep_hook (void)

virtual void	token_acquired (ACE_TPQ_Entry *)

virtual const ACE_TCHAR *	owner_id (void)
	The client id of the current token holder. More...

void	dump (void) const
	Dump the state of the class. More...

virtual int	type (void) const

Protected Types
typedef ACE_Token_Name	TOKEN_NAME

typedef ACE_Map_Manager< TOKEN_NAME, ACE_Token_Proxy *, ACE_Null_Mutex >	COLLECTION
	COLLECTION maintains a mapping from token names to ACE_Tokens*. More...

Protected Member Functions
virtual ACE_Token_Proxy *	clone (void) const
	Return a dynamically allocated clone of the derived class. More...

virtual ACE_Tokens *	create_token (const ACE_TCHAR *name)

Protected Member Functions inherited from ACE_Token_Proxy
	ACE_Token_Proxy (const ACE_Token_Proxy &)
	Duplication. More...

int	handle_options (ACE_Synch_Options &options, ACE_TOKEN_CONST::COND_VAR &cv)
	Handles cond_var waits. More...

Protected Attributes
COLLECTION	collection_
	COLLECTION maintains a mapping from token names to ACE_Tokens*. More...

bool	debug_
	Whether to print out debug messages or not. More...

ACE_TCHAR	name_ [ACE_MAXTOKENNAMELEN]
	Name of the collection. More...

Protected Attributes inherited from ACE_Token_Proxy
int	ignore_deadlock_
	If this is set, we ignore deadlock. More...

int	debug_
	Print a bunch of debug messages. More...

ACE_Tokens *	token_

ACE_TSS_TPQ_Entry	waiter_
	Waiter info used for asynchronous transactions. More...

Detailed Description

Allows atomic token group operations AND provides a ACE_Token manager interface.

There are two types of operations offered by ACE_Token_Collection. The first is atomic operations on collections of Token_Proxies. In this respect, the ACE_Token_Collection can be thought of as a single token consisting of multiple Token_Proxies. The second role of the ACE_Token_Collection is as a ACE_Token manager. ACE_Token_Collection allows individual operations on single members of a collection of Token_Proxies. This provides a single access point for operations on multiple tokens.

Bug:: Although ACE_Token_Collection inherits from ACE_Token_Proxy, it can not be including in a collection. This is because <clone> returns zero for now.

Member Typedef Documentation

typedef ACE_Map_Manager<TOKEN_NAME, ACE_Token_Proxy *, ACE_Null_Mutex> ACE_Token_Collection::COLLECTION

protected

COLLECTION maintains a mapping from token names to ACE_Tokens*.

typedef ACE_Token_Name ACE_Token_Collection::TOKEN_NAME

protected

Constructor & Destructor Documentation

ACE_Token_Collection::ACE_Token_Collection	(	bool	debug = `false`,
		const ACE_TCHAR *	name = `0`
	)

debug print out verbose debugging messages. name will give a name to the collection. Collections don't really need names, but are sometimes useful for debugging.

ACE_Token_Collection::~ACE_Token_Collection ( void )

Member Function Documentation

int ACE_Token_Collection::acquire	(	int	notify = `0`,
		void()(void )	sleep_hook = `0`,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

virtual

Acquire "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be acquired. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem. If and error or deadlock occurs for one of the tokens, all the tokens will be released and the method will return -1. Note that returning on detection of deadlock prevents livelock between competing collections. If a collection returns after detecting deadlock, it is the application's responsibility to not to blindly loop on the collection::acquire operation. In other words, once the collection reports deadlock, it is out of our hands.

Reimplemented from ACE_Token_Proxy.

int ACE_Token_Collection::acquire	(	const ACE_TCHAR *	token_name,
		int	notify = `0`,
		void()(void )	sleep_hook = `0`,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

virtual

Acquire the token corresponding to token_name. The other parameters are passed to <token>::acquire.

ACE_Token_Proxy * ACE_Token_Collection::clone ( void ) const

protectedvirtual

Return a dynamically allocated clone of the derived class.

Implements ACE_Token_Proxy.

ACE_Tokens * ACE_Token_Collection::create_token ( const ACE_TCHAR * name )

protectedvirtual

Make the correct type of ACE_Tokens. This is called by the Token Manager.

Implements ACE_Token_Proxy.

void ACE_Token_Collection::dump ( void ) const

Dump the state of the class.

int ACE_Token_Collection::extract	(	const ACE_TCHAR *	token_name,
		ACE_Token_Proxy *&	proxy
	)

Removes the ACE_Token matching the given token_name from the collection. On success, extract returns 0. On failure (token_name was not in the collection,) extract returns -1. On success, the state of the token found is copied into proxy. The returned ACE_Token_Proxy* must be deleted by the user.

int ACE_Token_Collection::insert ( ACE_Token_Proxy & token )

Insert a Token into the collection. All ACE_Token type operations performed on the collection will also be performed on the new_proxy until it is removed. Note that no operations performed prior to the insertion will be performed. Returns: 0 on success, -1 on failure with errno == problem. If a token proxy already exists in the collection with the same name, the insertion will fail. Also, <token> is copied. Note that during the copy, client_id's are not inherited. The client ID of the thread using the collection will be used. Client ID's can be changed explicity on each proxy using is_member.

ACE_Token_Proxy * ACE_Token_Collection::is_member ( const ACE_TCHAR * token_name )

Returns the proxy if true. 0 otherwise.

int ACE_Token_Collection::is_member ( const ACE_Token_Proxy & token )

Is the specified token in the collection? 1, yes. 0, no.

const ACE_TCHAR * ACE_Token_Collection::name ( void ) const

inlinevirtual

Return the name of the collection. Not very functionally important, but sometimes a useful debugging tool.

Reimplemented from ACE_Token_Proxy.

int ACE_Token_Collection::release ( ACE_Synch_Options & options = ACE_Synch_Options::defaults )

virtual

Releases "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be released. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem.

Reimplemented from ACE_Token_Proxy.

int ACE_Token_Collection::release	(	const ACE_TCHAR *	token_name,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

virtual

Release the token corresponding to <token_name>. The other parameters are passed to <token>::release.

int ACE_Token_Collection::renew	(	int	requeue_position = `0`,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

virtual

Renews "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be renewed. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem.

Reimplemented from ACE_Token_Proxy.

int ACE_Token_Collection::renew	(	const ACE_TCHAR *	token_name,
		int	requeue_position = `0`,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

virtual

Renew the token corresponding to token_name. The other parameters are passed to <token>::renew.

int ACE_Token_Collection::tryacquire ( void(*)(void *) sleep_hook = 0 )

virtual

Try to acquire all tokens in collection.

Reimplemented from ACE_Token_Proxy.

int ACE_Token_Collection::tryacquire	(	const ACE_TCHAR *	token_name,
		void()(void )	sleep_hook = `0`
	)

virtual

Try to acquire token_name.

Member Data Documentation

COLLECTION ACE_Token_Collection::collection_

protected

COLLECTION maintains a mapping from token names to ACE_Tokens*.

bool ACE_Token_Collection::debug_

protected

Whether to print out debug messages or not.

ACE_TCHAR ACE_Token_Collection::name_[ACE_MAXTOKENNAMELEN]

protected

Name of the collection.
