A factory class that produces ACE_SPIPE_Stream objects. More...

#include <SPIPE_Acceptor.h>

Inheritance diagram for ACE_SPIPE_Acceptor:

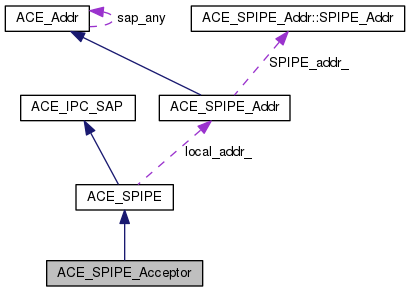

Collaboration diagram for ACE_SPIPE_Acceptor:

[legend]

Public Types
typedef ACE_SPIPE_Addr	PEER_ADDR

typedef ACE_SPIPE_Stream	PEER_STREAM

Public Member Functions
	ACE_SPIPE_Acceptor (void)
	Default constructor. More...

	ACE_SPIPE_Acceptor (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE\|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener. More...

int	open (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE\|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener. More...

int	close (void)
	Close down the passive-mode STREAM pipe listener. More...

int	remove (void)
	Remove the underlying mounted pipe from the file system. More...

int	accept (ACE_SPIPE_Stream &ipc_sap_spipe, ACE_SPIPE_Addr remote_addr=0, ACE_Time_Value timeout=0, bool restart=true, bool reset_new_handle=false)

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_SPIPE
int	close (void)
	Close down the SPIPE without removing the rendezvous point. More...

int	remove (void)

int	get_local_addr (ACE_SPIPE_Addr &) const
	Return the local address of this endpoint. More...

int	disable (int signum) const

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>. More...

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle (void) const
	Get the underlying handle. More...

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle. More...

void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_SPIPE
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Private Member Functions
int	create_new_instance (int perms=0)
	Create a new instance of an SPIPE. More...

Additional Inherited Members
Protected Member Functions inherited from ACE_SPIPE
	ACE_SPIPE (void)
	Ensure that this class is an abstract base class. More...

Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP (void)
	Default constructor. More...

	~ACE_IPC_SAP (void)
	Protected destructor. More...

Protected Attributes inherited from ACE_SPIPE
ACE_SPIPE_Addr	local_addr_
	Our local address. More...

Detailed Description

A factory class that produces ACE_SPIPE_Stream objects.

ACE_SPIPE_Acceptor is a factory class that accepts SPIPE connections. Each accepted connection produces an ACE_SPIPE_Stream object.

Warning: Windows: Works only on Windows NT 4 and higher. To use this class with the ACE_Reactor framework, note that the handle to demultiplex on is an event handle and should be registered with the ACE_Reactor::register_handler (ACE_Event_Handler *, ACE_HANDLE) method.; Works on non-Windows platforms only when ACE_HAS_STREAM_PIPES is defined.

Member Typedef Documentation

typedef ACE_SPIPE_Addr ACE_SPIPE_Acceptor::PEER_ADDR

typedef ACE_SPIPE_Stream ACE_SPIPE_Acceptor::PEER_STREAM

Constructor & Destructor Documentation

ACE_SPIPE_Acceptor::ACE_SPIPE_Acceptor ( void )

Default constructor.

ACE_SPIPE_Acceptor::ACE_SPIPE_Acceptor	(	const ACE_SPIPE_Addr &	local_sap,
		int	reuse_addr = `1`,
		int	perms = `ACE_DEFAULT_FILE_PERMS`,
		LPSECURITY_ATTRIBUTES	sa = `0`,
		int	pipe_mode = `PIPE_TYPE_MESSAGE \| PIPE_READMODE_MESSAGE`
	)

Initiate a passive-mode STREAM pipe listener.

Parameters

local_sap	The name of the pipe instance to open and listen on.
reuse_addr	Optional, and ignored. Needed for API compatibility with other acceptor classes.
perms	Optional, the protection mask to create the pipe with. Ignored on Windows.
sa	Optional, ignored on non-Windows. The SECURITY_ATTRIBUTES to create the named pipe instances with. This pointer is remembered and reused on each new named pipe instance, so only pass a value that remains valid as long as this object does.
pipe_mode	Optional, ignored on non-Windows. The NT pipe mode used when creating the pipe.

Member Function Documentation

int ACE_SPIPE_Acceptor::accept	(	ACE_SPIPE_Stream &	ipc_sap_spipe,
		ACE_SPIPE_Addr *	remote_addr = `0`,
		ACE_Time_Value *	timeout = `0`,
		bool	restart = `true`,
		bool	reset_new_handle = `false`
	)

Accept a new data transfer connection.

Parameters

ipc_sap_spipe	The ACE_SPIPE_Stream to initialize with the newly-accepted pipe.
remote_addr	Optional, accepts the address of the peer.
timeout	0 means block forever, {0, 0} means poll.
restart	1 means "restart if interrupted."

Return values

0	for success.
-1	for failure.

int ACE_SPIPE_Acceptor::close ( void )

Close down the passive-mode STREAM pipe listener.

int ACE_SPIPE_Acceptor::create_new_instance ( int perms = 0 )

private

Create a new instance of an SPIPE.

void ACE_SPIPE_Acceptor::dump ( void ) const

Dump the state of an object.

int ACE_SPIPE_Acceptor::open	(	const ACE_SPIPE_Addr &	local_sap,
		int	reuse_addr = `1`,
		int	perms = `ACE_DEFAULT_FILE_PERMS`,
		LPSECURITY_ATTRIBUTES	sa = `0`,
		int	pipe_mode = `PIPE_TYPE_MESSAGE \| PIPE_READMODE_MESSAGE`
	)

Initiate a passive-mode STREAM pipe listener.

Parameters

local_sap	The name of the pipe instance to open and listen on.
reuse_addr	Optional, and ignored. Needed for API compatibility with other acceptor classes.
perms	Optional, the protection mask to create the pipe with. Ignored on Windows.
sa	Optional, ignored on non-Windows. The SECURITY_ATTRIBUTES to create the named pipe instances with. This pointer is remembered and reused on each new named pipe instance, so only pass a value that remains valid as long as this object does.
pipe_mode	Optional, ignored on non-Windows. The NT pipe mode used when creating the pipe.

Return values

0	for success.
-1	for failure.

int ACE_SPIPE_Acceptor::remove ( void )

Remove the underlying mounted pipe from the file system.

Member Data Documentation

ACE_SPIPE_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

The documentation for this class was generated from the following files:
