ACE_POSIX_Asynch_Result Class Reference

#include <POSIX_Asynch_IO.h>

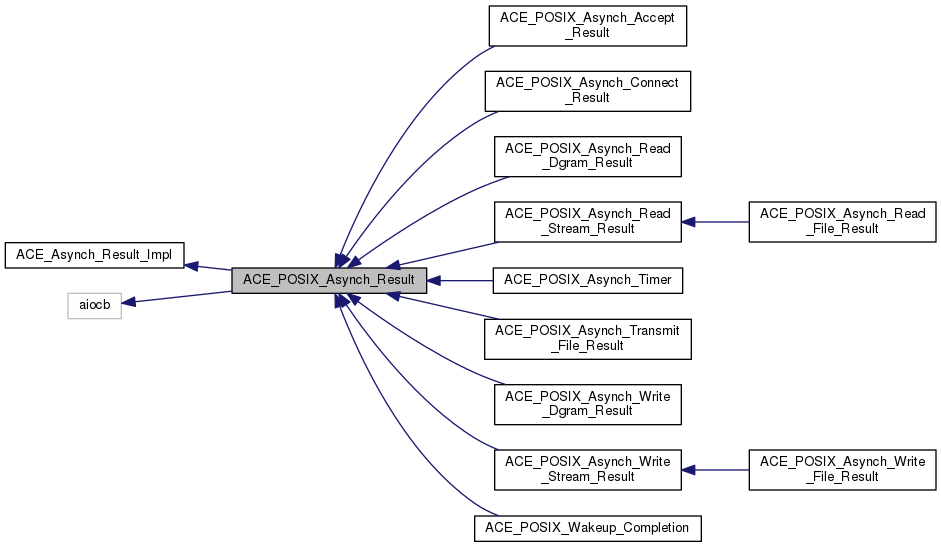

Inheritance diagram for ACE_POSIX_Asynch_Result:
Inheritance graph
[legend]

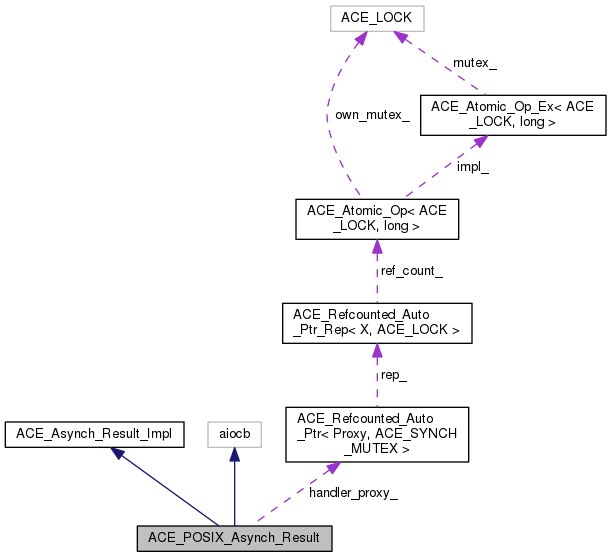

Collaboration diagram for ACE_POSIX_Asynch_Result:
Collaboration graph
[legend]

Public Member Functions

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation. More...

const void * act (void) const
 ACT associated with the operation. More...

int success (void) const
 Did the operation succeed? More...

const void * completion_key (void) const

u_long error (void) const
 Error value if the operation fails. More...

ACE_HANDLE event (void) const
 This returns ACE_INVALID_HANDLE on POSIX4 platforms. More...

u_long offset (void) const

u_long offset_high (void) const

int priority (void) const
 Priority of the operation. More...

int signal_number (void) const

int post_completion (ACE_Proactor_Impl *proactor)
 Post this to the Proactor. More...

virtual ~ACE_POSIX_Asynch_Result (void)
 Destructor. More...

void set_error (u_long errcode)
 Simulate error value to use in the post_completion () More...

void set_bytes_transferred (size_t nbytes)
 Simulate value to use in the post_completion () More...

- Public Member Functions inherited from ACE_Asynch_Result_Impl
virtual ~ACE_Asynch_Result_Impl (void)

virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0)=0
 This is called when the asynchronous operation completes. More...


Protected Member Functions

 ACE_POSIX_Asynch_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, ACE_HANDLE event, u_long offset, u_long offset_high, int priority, int signal_number)
 Constructor. <Event> is not used on POSIX. More...

- Protected Member Functions inherited from ACE_Asynch_Result_Impl
 ACE_Asynch_Result_Impl (void)
 Do-nothing constructor. More...


Protected Attributes

ACE_Handler::Proxy_Ptr handler_proxy_
 Handler that will be called back. More...

const void * act_

size_t bytes_transferred_
 Bytes transferred by this operation. More...

int success_
 Success indicator. More...

const void * completion_key_
 ACT associated with handle. More...

u_long error_
 Error if operation failed. More...


Detailed Description

This class provides concrete implementation for ACE_Asynch_Result for POSIX4 platforms. This class extends aiocb and makes it more useful.

Constructor & Destructor Documentation

ACE_POSIX_Asynch_Result::~ACE_POSIX_Asynch_Result ( void  )
virtual

Destructor.

ACE_POSIX_Asynch_Result::ACE_POSIX_Asynch_Result ( const ACE_Handler::Proxy_Ptr handler_proxy,
const void *  act,
ACE_HANDLE  event,
u_long  offset,
u_long  offset_high,
int  priority,
int  signal_number
)
protected

Constructor. <Event> is not used on POSIX.

Member Function Documentation

const void * ACE_POSIX_Asynch_Result::act ( void  ) const
virtual

ACT associated with the operation.

Implements ACE_Asynch_Result_Impl.

size_t ACE_POSIX_Asynch_Result::bytes_transferred ( void  ) const
virtual

Number of bytes transferred by the operation.

Implements ACE_Asynch_Result_Impl.

const void * ACE_POSIX_Asynch_Result::completion_key ( void  ) const
virtual

This is the ACT associated with the handle on which the Asynch_Operation takes place.

Note
This is not implemented for POSIX4 platforms.

Implements ACE_Asynch_Result_Impl.

u_long ACE_POSIX_Asynch_Result::error ( void  ) const
virtual

Error value if the operation fails.

Implements ACE_Asynch_Result_Impl.

ACE_HANDLE ACE_POSIX_Asynch_Result::event ( void  ) const
virtual

This returns ACE_INVALID_HANDLE on POSIX4 platforms.

Implements ACE_Asynch_Result_Impl.

u_long ACE_POSIX_Asynch_Result::offset ( void  ) const
virtual

This really make sense only when doing file I/O.

@ On POSIX4-Unix, offset_high should be supported using aiocb64.

Implements ACE_Asynch_Result_Impl.

u_long ACE_POSIX_Asynch_Result::offset_high ( void  ) const
virtual
int ACE_POSIX_Asynch_Result::post_completion ( ACE_Proactor_Impl proactor)
virtual

Post this to the Proactor.

Implements ACE_Asynch_Result_Impl.

int ACE_POSIX_Asynch_Result::priority ( void  ) const
virtual

Priority of the operation.

Implements ACE_Asynch_Result_Impl.

void ACE_POSIX_Asynch_Result::set_bytes_transferred ( size_t  nbytes)

Simulate value to use in the post_completion ()

void ACE_POSIX_Asynch_Result::set_error ( u_long  errcode)

Simulate error value to use in the post_completion ()

int ACE_POSIX_Asynch_Result::signal_number ( void  ) const
virtual

POSIX4 realtime signal number to be used for the operation. <signal_number> ranges from SIGRTMIN to SIGRTMAX. By default, SIGRTMIN is used to issue <aio_> calls.

Implements ACE_Asynch_Result_Impl.

int ACE_POSIX_Asynch_Result::success ( void  ) const
virtual

Did the operation succeed?

Implements ACE_Asynch_Result_Impl.

Member Data Documentation

const void* ACE_POSIX_Asynch_Result::act_
protected

ACT for this operation. We could use <aiocb::aio_sigevent.sigev_value.sival_ptr> for this. But it doesnot provide the constness, so this may be better.

size_t ACE_POSIX_Asynch_Result::bytes_transferred_
protected

Bytes transferred by this operation.

const void* ACE_POSIX_Asynch_Result::completion_key_
protected

ACT associated with handle.

u_long ACE_POSIX_Asynch_Result::error_
protected

Error if operation failed.

ACE_Handler::Proxy_Ptr ACE_POSIX_Asynch_Result::handler_proxy_
protected

Handler that will be called back.

int ACE_POSIX_Asynch_Result::success_
protected

Success indicator.


The documentation for this class was generated from the following files:
