Abstract base class for the all the classes that provide concrete implementations for ACE_Asynch_Result. More...

#include <Asynch_IO_Impl.h>

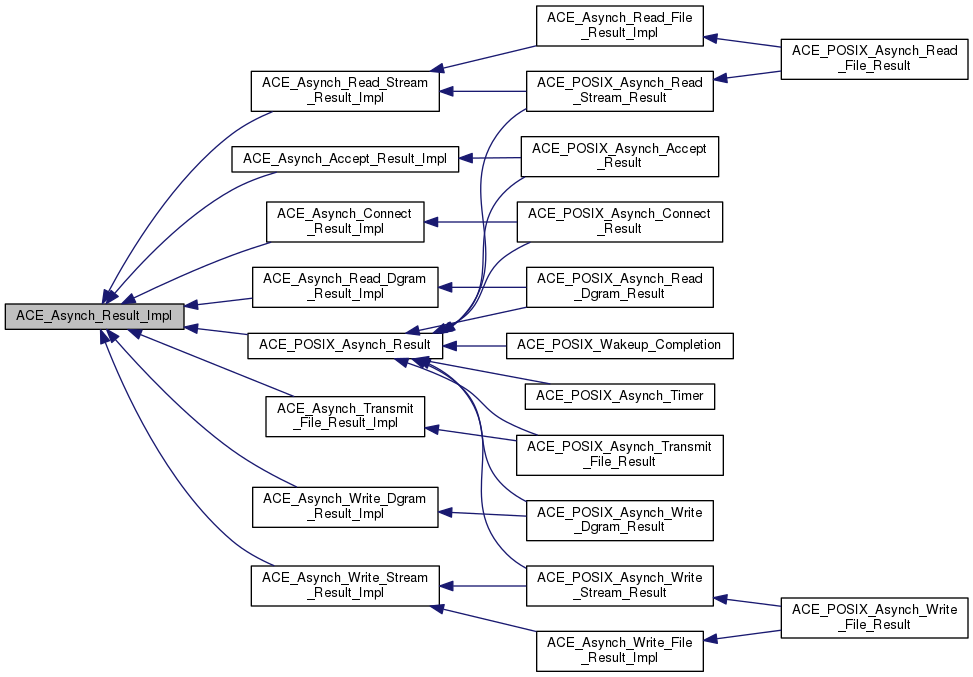

Inheritance diagram for ACE_Asynch_Result_Impl:

[legend]

Public Member Functions
virtual	~ACE_Asynch_Result_Impl (void)

virtual size_t	bytes_transferred (void) const =0
	Number of bytes transferred by the operation. More...

virtual const void *	act (void) const =0
	ACT associated with the operation. More...

virtual int	success (void) const =0
	Did the operation succeed? More...

virtual const void *	completion_key (void) const =0

virtual u_long	error (void) const =0
	Error value if the operation fail. More...

virtual ACE_HANDLE	event (void) const =0
	Event associated with the OVERLAPPED structure. More...

virtual u_long	offset (void) const =0
	This really make sense only when doing file I/O. More...

virtual u_long	offset_high (void) const =0

virtual int	priority (void) const =0
	Priority of the operation. More...

virtual int	signal_number (void) const =0

virtual void	complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0)=0
	This is called when the asynchronous operation completes. More...

virtual int	post_completion (ACE_Proactor_Impl *proactor)=0
	Post `this` to the Proactor's completion port. More...

Protected Member Functions
	ACE_Asynch_Result_Impl (void)
	Do-nothing constructor. More...

Detailed Description

Abstract base class for the all the classes that provide concrete implementations for ACE_Asynch_Result.

Constructor & Destructor Documentation

ACE_Asynch_Result_Impl::~ACE_Asynch_Result_Impl ( void )

virtual

ACE_Asynch_Result_Impl::ACE_Asynch_Result_Impl ( void )

inlineprotected

Do-nothing constructor.

Member Function Documentation

virtual const void* ACE_Asynch_Result_Impl::act ( void ) const

pure virtual

ACT associated with the operation.

Implemented in ACE_POSIX_Asynch_Result.

virtual size_t ACE_Asynch_Result_Impl::bytes_transferred ( void ) const

pure virtual

Number of bytes transferred by the operation.

Implemented in ACE_POSIX_Asynch_Result.

virtual void ACE_Asynch_Result_Impl::complete	(	size_t	bytes_transferred,
		int	success,
		const void *	completion_key,
		u_long	error = `0`
	)

pure virtual

This is called when the asynchronous operation completes.

Implemented in ACE_POSIX_Asynch_Read_Dgram_Result, ACE_POSIX_Asynch_Write_Dgram_Result, ACE_POSIX_Asynch_Transmit_File_Result, ACE_POSIX_Asynch_Connect_Result, ACE_POSIX_Asynch_Timer, ACE_POSIX_Asynch_Accept_Result, ACE_POSIX_Asynch_Write_File_Result, ACE_POSIX_Asynch_Read_File_Result, ACE_POSIX_Asynch_Write_Stream_Result, ACE_POSIX_Asynch_Read_Stream_Result, and ACE_POSIX_Wakeup_Completion.

virtual const void* ACE_Asynch_Result_Impl::completion_key ( void ) const

pure virtual

This ACT is not the same as the ACT associated with the asynchronous operation.

Implemented in ACE_POSIX_Asynch_Result.

virtual u_long ACE_Asynch_Result_Impl::error ( void ) const

pure virtual

Error value if the operation fail.

Implemented in ACE_POSIX_Asynch_Result.

virtual ACE_HANDLE ACE_Asynch_Result_Impl::event ( void ) const

pure virtual

Event associated with the OVERLAPPED structure.

Implemented in ACE_POSIX_Asynch_Result.

virtual u_long ACE_Asynch_Result_Impl::offset ( void ) const

pure virtual

This really make sense only when doing file I/O.

Implemented in ACE_POSIX_Asynch_Result.

virtual u_long ACE_Asynch_Result_Impl::offset_high ( void ) const

pure virtual

Implemented in ACE_POSIX_Asynch_Result.

virtual int ACE_Asynch_Result_Impl::post_completion ( ACE_Proactor_Impl * proactor )

pure virtual

Post this to the Proactor's completion port.

Implemented in ACE_POSIX_Asynch_Result.

virtual int ACE_Asynch_Result_Impl::priority ( void ) const

pure virtual

Priority of the operation.

Implemented in ACE_POSIX_Asynch_Result.

virtual int ACE_Asynch_Result_Impl::signal_number ( void ) const

pure virtual

POSIX4 real-time signal number to be used for the operation. signal_number ranges from SIGRTMIN to SIGRTMAX. By default, SIGRTMIN is used to issue <aio_> calls. This is a no-op on non-POSIX4 systems and returns 0.

Implemented in ACE_POSIX_Asynch_Result.

virtual int ACE_Asynch_Result_Impl::success ( void ) const

pure virtual

Did the operation succeed?

Implemented in ACE_POSIX_Asynch_Result.

The documentation for this class was generated from the following files:
