A threaded message queueing facility, modeled after the queueing facilities in System V STREAMs which can enqueue multiple messages in one call. More...

#include <Message_Queue_T.h>

Inheritance diagram for ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >:

[legend]

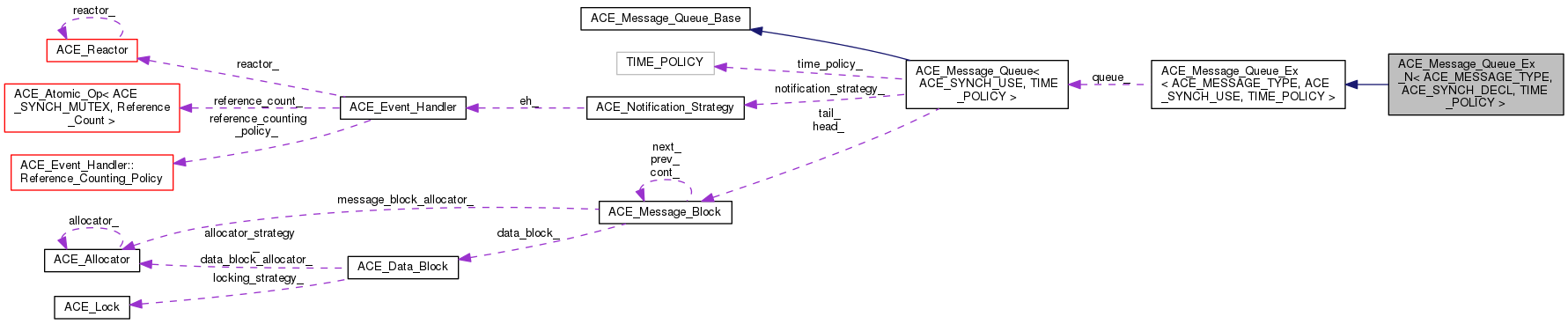

Collaboration diagram for ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >:

[legend]

Public Member Functions
	ACE_Message_Queue_Ex_N (size_t high_water_mark=ACE_Message_Queue_Base::DEFAULT_HWM, size_t low_water_mark=ACE_Message_Queue_Base::DEFAULT_LWM, ACE_Notification_Strategy *ns=0)

virtual	~ACE_Message_Queue_Ex_N (void)
	Close down the message queue and release all resources. More...

virtual int	enqueue_head (ACE_MESSAGE_TYPE new_item, ACE_Time_Value tv=0)

virtual int	enqueue_tail (ACE_MESSAGE_TYPE new_item, ACE_Time_Value tv=0)

Public Member Functions inherited from ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >
virtual int	close (void)

virtual	~ACE_Message_Queue_Ex (void)
	Releases all resources from the message queue and marks it deactivated. More...

virtual int	flush (void)

virtual int	flush_i (void)

virtual ACE_SYNCH_MUTEX_T &	lock (void)
	Returns a reference to the lock used by the ACE_Message_Queue_Ex. More...

ACE_Time_Value_T< TIME_POLICY >	gettimeofday ()

void	set_time_policy (TIME_POLICY const &time_policy)

virtual void	dump (void) const
	Dump the state of an object. More...

	ACE_Message_Queue_Ex (size_t high_water_mark=ACE_Message_Queue_Base::DEFAULT_HWM, size_t low_water_mark=ACE_Message_Queue_Base::DEFAULT_LWM, ACE_Notification_Strategy *ns=0)

virtual int	open (size_t hwm=ACE_Message_Queue_Base::DEFAULT_HWM, size_t lwm=ACE_Message_Queue_Base::DEFAULT_LWM, ACE_Notification_Strategy *=0)

virtual int	peek_dequeue_head (ACE_MESSAGE_TYPE &first_item, ACE_Time_Value timeout=0)

virtual int	enqueue_prio (ACE_MESSAGE_TYPE new_item, ACE_Time_Value timeout=0, unsigned long priority=DEFAULT_PRIORITY)

virtual int	enqueue_deadline (ACE_MESSAGE_TYPE new_item, ACE_Time_Value timeout=0)

virtual int	enqueue (ACE_MESSAGE_TYPE new_item, ACE_Time_Value timeout=0)

virtual int	dequeue (ACE_MESSAGE_TYPE &first_item, ACE_Time_Value timeout=0)
	This method is an alias for the following <dequeue_head> method. More...

virtual int	dequeue_head (ACE_MESSAGE_TYPE &first_item, ACE_Time_Value timeout=0)

virtual int	dequeue_prio (ACE_MESSAGE_TYPE &dequeued, ACE_Time_Value timeout=0)

virtual int	dequeue_tail (ACE_MESSAGE_TYPE &dequeued, ACE_Time_Value timeout=0)

virtual int	dequeue_deadline (ACE_MESSAGE_TYPE &dequeued, ACE_Time_Value timeout=0)

virtual bool	is_full (void)
	True if queue is full, else false. More...

virtual bool	is_empty (void)
	True if queue is empty, else false. More...

virtual size_t	message_bytes (void)

virtual void	message_bytes (size_t new_size)

virtual size_t	message_length (void)

virtual void	message_length (size_t new_length)

virtual size_t	message_count (void)

virtual size_t	high_water_mark (void)

virtual void	high_water_mark (size_t hwm)

virtual size_t	low_water_mark (void)

virtual void	low_water_mark (size_t lwm)

virtual int	deactivate (void)

virtual int	activate (void)

virtual int	pulse (void)

virtual int	state (void)

virtual int	deactivated (void)

virtual int	notify (void)

virtual ACE_Notification_Strategy *	notification_strategy (void)
	Get the notification strategy for the <Message_Queue> More...

virtual void	notification_strategy (ACE_Notification_Strategy *s)
	Set the notification strategy for the <Message_Queue> More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Member Functions
ACE_Message_Block *	wrap_with_mbs_i (ACE_MESSAGE_TYPE *new_item)

Additional Inherited Members
Public Types inherited from ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >
enum

typedef ACE_Message_Queue_Ex_Iterator< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >	ITERATOR

typedef ACE_Message_Queue_Ex_Reverse_Iterator< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >	REVERSE_ITERATOR

Protected Attributes inherited from ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >
ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >	queue_
	Implement this via an ACE_Message_Queue. More...

Detailed Description

template<class ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, class TIME_POLICY = ACE_System_Time_Policy>
class ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >

A threaded message queueing facility, modeled after the queueing facilities in System V STREAMs which can enqueue multiple messages in one call.

As ACE_Message_Queue_Ex, ACE_Message_Queue_Ex_N is a strongly-typed version of the ACE_Message_Queue. If ACE_SYNCH_DECL is ACE_MT_SYNCH then all operations are thread-safe. Otherwise, if it's ACE_NULL_SYNCH then there's no locking overhead.

The ACE_MESSAGE_TYPE messages that are sent to this queue can be chained. Messages are expected to have a next method that returns the next message in the chain; ACE_Message_Queue_Ex_N uses this method to run through all the incoming messages and enqueue them in one call.

Constructor & Destructor Documentation

template<class ACE_MESSAGE_TYPE , ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

class TIME_POLICY ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >::ACE_Message_Queue_Ex_N	(	size_t	high_water_mark = `ACE_Message_Queue_Base::DEFAULT_HWM`,
		size_t	low_water_mark = `ACE_Message_Queue_Base::DEFAULT_LWM`,
		ACE_Notification_Strategy *	ns = `0`
	)

Initialize an ACE_Message_Queue_Ex_N. The high_water_mark determines how many bytes can be stored in a queue before it's considered "full." Supplier threads must block until the queue is no longer full. The low_water_mark determines how many bytes must be in the queue before supplier threads are allowed to enqueue additional messages. By default, the high_water_mark equals the low_water_mark, which means that suppliers will be able to enqueue new messages as soon as a consumer removes any message from the queue. Making the low_water_mark smaller than the high_water_mark forces consumers to drain more messages from the queue before suppliers can enqueue new messages, which can minimize the "silly window syndrome."

template<class ACE_MESSAGE_TYPE , ACE_SYNCH_DECL , class TIME_POLICY >

ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >::~ACE_Message_Queue_Ex_N ( void )

virtual

Close down the message queue and release all resources.

Member Function Documentation

template<class ACE_MESSAGE_TYPE , ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >::enqueue_head	(	ACE_MESSAGE_TYPE *	new_item,
		ACE_Time_Value *	tv = `0`
	)

virtual

Enqueue one or more ACE_MESSAGE_TYPE objects at the head of the queue. If the new_item next() pointer is non-zero, it is assumed to be the start of a series of ACE_MESSAGE_TYPE objects connected via their next() pointers. The series of blocks will be added to the queue in the same order they are passed in as.

Parameters

new_item	Pointer to an `ACE_MESSAGE_TYPE` that will be added to the queue. If the block's `next()` pointer is non-zero, all blocks chained from the `next()` pointer are enqueued as well.
tv	The absolute time the caller will wait until for the block to be queued.

Return values

>0	The number of `ACE_MESSAGE_TYPE` objects on the queue after adding the specified block(s).
-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

Reimplemented from ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >.

template<class ACE_MESSAGE_TYPE , ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >::enqueue_tail	(	ACE_MESSAGE_TYPE *	new_item,
		ACE_Time_Value *	tv = `0`
	)

virtual

Enqueue one or more ACE_MESSAGE_TYPE objects at the tail of the queue. If the new_item next() pointer is non-zero, it is assumed to be the start of a series of ACE_MESSAGE_TYPE objects connected via their next() pointers. The series of blocks will be added to the queue in the same order they are passed in as.

Parameters

new_item	Pointer to an `ACE_MESSAGE_TYPE` that will be added to the queue. If the block's `next()` pointer is non-zero, all blocks chained from the `next()` pointer are enqueued as well.
tv	The absolute time the caller will wait until for the block to be queued.

Return values

>0	The number of `ACE_MESSAGE_TYPE` objects on the queue after adding the specified block(s).
-1	On failure. errno holds the reason. Common errno values are: EWOULDBLOCK: the timeout elapsed ESHUTDOWN: the queue was deactivated or pulsed

Reimplemented from ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE, TIME_POLICY >.

template<class ACE_MESSAGE_TYPE , ACE_SYNCH_DECL , class TIME_POLICY >

ACE_Message_Block * ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >::wrap_with_mbs_i ( ACE_MESSAGE_TYPE * new_item )

protected

An helper method that wraps the incoming chain messages with ACE_Message_Blocks.

Member Data Documentation

template<class ACE_MESSAGE_TYPE , ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, ACE_SYNCH_DECL, TIME_POLICY >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

The documentation for this class was generated from the following files:
