TAO_Notify_ProxyPushConsumer Class Reference

#include <ProxyPushConsumer.h>

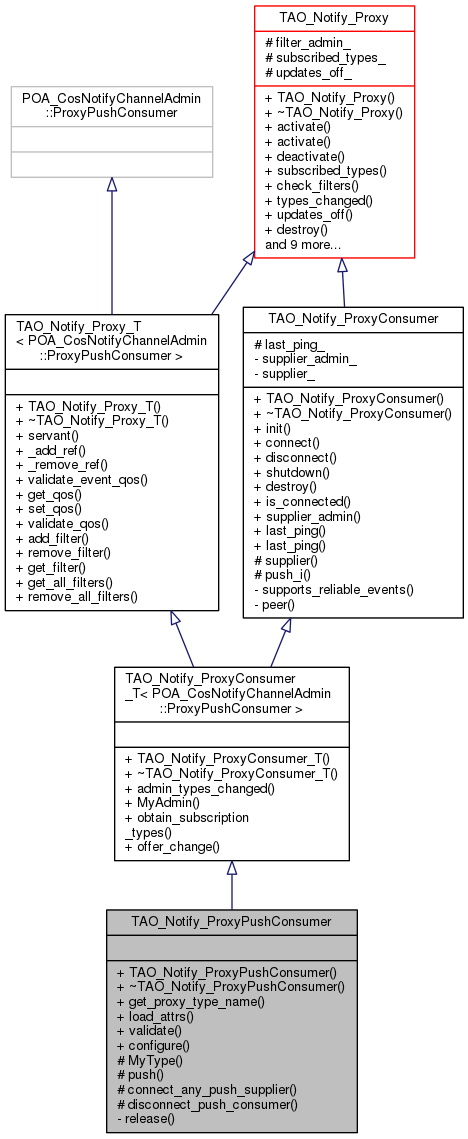

Inheritance diagram for TAO_Notify_ProxyPushConsumer:

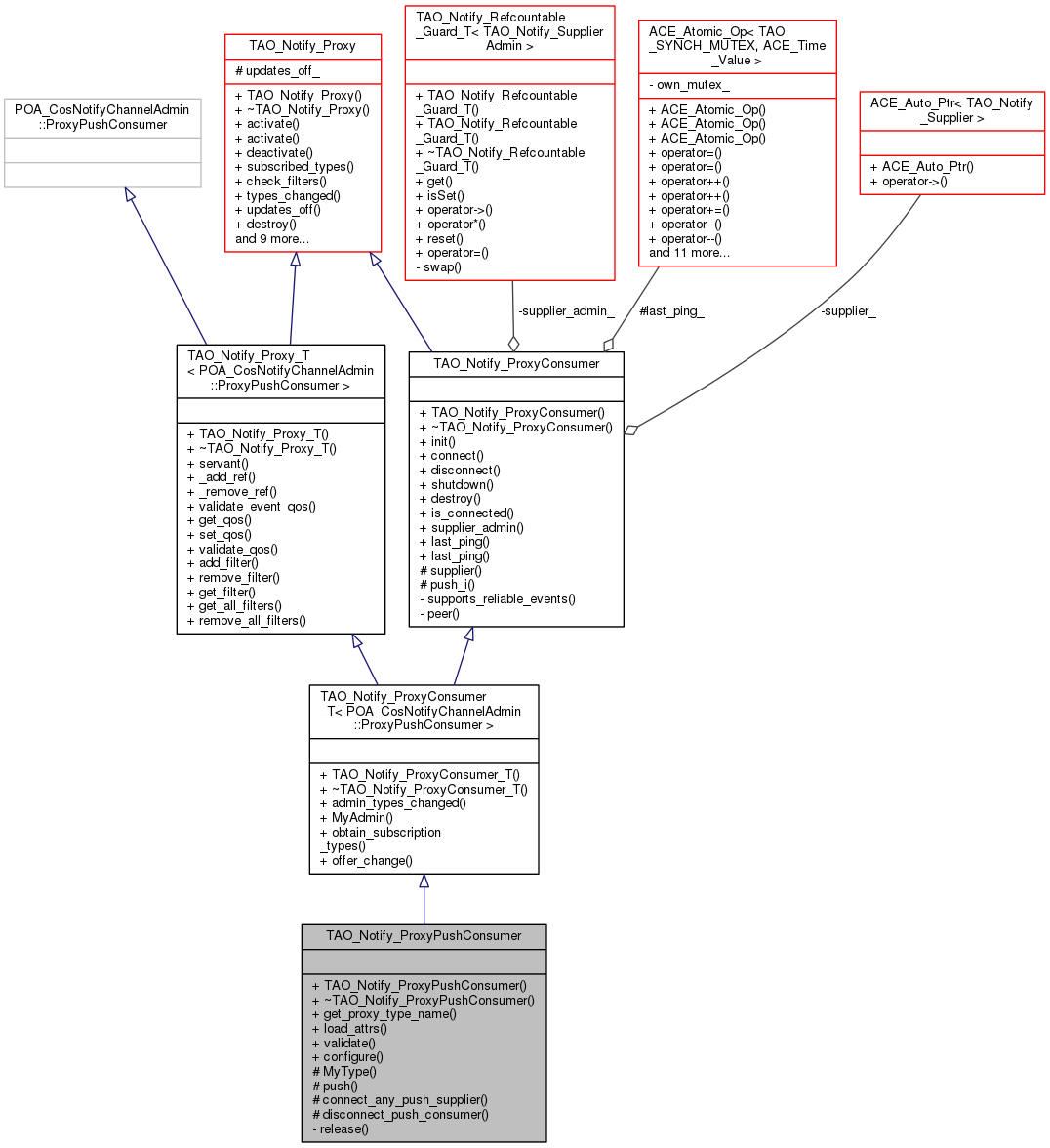

Collaboration diagram for TAO_Notify_ProxyPushConsumer:

Public Member Functions
	TAO_Notify_ProxyPushConsumer (void)
	Constructor. More...
virtual	~TAO_Notify_ProxyPushConsumer ()
	Destructor. More...
virtual const char *	get_proxy_type_name (void) const
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
virtual void	validate ()
virtual void	configure (TAO_Notify_SupplierAdmin &admin, CosNotifyChannelAdmin::ProxyID_out proxy_id)
Public Member Functions inherited from TAO_Notify_ProxyConsumer_T< POA_CosNotifyChannelAdmin::ProxyPushConsumer >
	TAO_Notify_ProxyConsumer_T (void)
	Constructor. More...
	~TAO_Notify_ProxyConsumer_T ()
	Destructor. More...
virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
	Notification of subscriptions set at the admin. More...
virtual CosNotifyChannelAdmin::SupplierAdmin_ptr	MyAdmin (void)
virtual CosNotification::EventTypeSeq *	obtain_subscription_types (CosNotifyChannelAdmin::ObtainInfoMode mode)
virtual void	offer_change (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
Public Member Functions inherited from TAO_Notify_Proxy_T< POA_CosNotifyChannelAdmin::ProxyPushConsumer >
	TAO_Notify_Proxy_T (void)
	Constructor. More...
	~TAO_Notify_Proxy_T ()
	Destructor. More...
virtual PortableServer::Servant	servant (void)
	Implements TAO_Notify_Object::servant method. More...
virtual void	_add_ref (void)
	ServantBase refcount methods. More...
virtual void	_remove_ref (void)
virtual void	validate_event_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)
virtual CosNotification::QoSProperties *	get_qos ()
virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties. More...
virtual void	validate_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)
virtual CosNotifyFilter::FilterID	add_filter (CosNotifyFilter::Filter_ptr new_filter)
virtual void	remove_filter (CosNotifyFilter::FilterID filter)
virtual CosNotifyFilter::Filter_ptr	get_filter (CosNotifyFilter::FilterID filter)
virtual CosNotifyFilter::FilterIDSeq *	get_all_filters ()
virtual void	remove_all_filters ()
Public Member Functions inherited from TAO_Notify_Proxy
	TAO_Notify_Proxy (void)
	Constructor. More...
virtual	~TAO_Notify_Proxy ()
	Destructor. More...
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate. More...
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID. More...
void	deactivate (void)
	Deactivate. More...
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types. More...
CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters. More...
void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised. More...
CORBA::Boolean	updates_off (void)
	Have updates been turned off. More...
virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types. More...
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Object::qos_changed. More...
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void	save_attrs (TAO_Notify::NVPList &attrs)
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it. More...
Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change (void)
Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor. More...
virtual	~Topology_Object ()
	The destructor. More...
virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>. More...
virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object. More...
void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object. More...
bool	is_changed (void) const
	Is there an unsaved change for this object or its children? More...
Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object (void)
	Destructor. More...
ID	id (void) const
	This Object's ID. More...
void	deactivate (void)
	Deactivate. More...
bool	has_shutdown (void)
	Have we been shutdown. returns true if shutdown. More...
void	execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr	ref (void)
	Get CORBA Ref. More...
CosNotification::QoSProperties *	get_qos (void)
	Get the QoS Properties. More...
bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timer *	timer (void)
	Obtain the Timer manager associated with this object. More...
TAO_Notify_Event_Manager &	event_manager (void)
	Accessor for the Event Manager. More...
TAO_Notify_Worker_Task *	get_worker_task (void)
	Allow access to the underlying worker task. More...
Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor. More...
virtual	~TAO_Notify_Refcountable ()
CORBA::ULong	_incr_refcnt (void)
CORBA::ULong	_decr_refcnt (void)
Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable (void)
	Destructor. More...
virtual void	reconnect (void)
Public Member Functions inherited from TAO_Notify_ProxyConsumer
	TAO_Notify_ProxyConsumer (void)
	Constructor. More...
virtual	~TAO_Notify_ProxyConsumer (void)
	Destructor. More...
virtual void	init (TAO_Notify::Topology_Parent *topology_parent)
	init: overrides Topology_Object method More...
void	connect (TAO_Notify_Supplier *supplier)
	Connect. More...
void	disconnect (void)
	Disconnect. More...
virtual int	shutdown (void)
	Shutdown (TAO_Notify_Container_T method) More...
virtual void	destroy (void)
	Destroy this object. More...
bool	is_connected (void) const
	Return true if connected. More...
TAO_Notify_SupplierAdmin &	supplier_admin (void)
	The SA parent. More...
ACE_Time_Value	last_ping () const
void	last_ping (const ACE_Time_Value &tv)

Protected Member Functions
virtual CosNotifyChannelAdmin::ProxyType	MyType (void)
	= CosNotifyChannelAdmin::ProxyPushConsumer methods More...
virtual void	push (const CORBA::Any &data)
virtual void	connect_any_push_supplier (CosEventComm::PushSupplier_ptr push_supplier)
virtual void	disconnect_push_consumer (void)
Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent (void) const
	Should this object be saved? More...
bool	self_change (void)
	Method to report change in this object. More...
Topology_Parent *	topology_parent () const
	pointer to our topological parent More...
bool	send_change (void)
	Handle details of propagating change. More...
bool	send_deletion_change ()
	Handle details of propagating change for a deleted object. More...
Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object (void)
	Constructor. More...
void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>. More...
void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object. More...
void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas. More...
void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa. More...
TAO_Notify_POA_Helper *	proxy_poa (void)
	Accessor for the proxy_poa_. More...
TAO_Notify_POA_Helper *	object_poa (void)
	Accessor for the object_poa_. More...
TAO_Notify_POA_Helper *	poa (void)
	Get the POA assigned to us. More...
void	set_event_manager (TAO_Notify_Event_Manager *event_manager)
void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)
TAO_Notify_AdminProperties &	admin_properties (void)
	Accessor for the Admin Properties. More...
Protected Member Functions inherited from TAO_Notify_ProxyConsumer
TAO_Notify_Supplier *	supplier (void)
	Access the Supplier. More...
void	push_i (TAO_Notify_Event *event)
	Accept an event from the Supplier. More...

Private Types
typedef TAO_Notify_ProxyConsumer_T < POA_CosNotifyChannelAdmin::ProxyPushConsumer >	SuperClass

Private Member Functions
virtual void	release (void)
	Release. More...

Friends
class	TAO_Notify_Builder

Additional Inherited Members
Public Types inherited from TAO_Notify_Proxy
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Proxy >	Ptr
typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ
typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR
Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects. More...
Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Refcountable >	Ptr
Public Types inherited from TAO_Notify_ProxyConsumer
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_ProxyConsumer >	Ptr
Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration. More...
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager. More...
CORBA::Boolean	updates_off_
	True if updates have been turned off. More...
Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent More...
bool	children_changed_
	true of any of this object's children changed since last save_persistent More...
Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;. More...
Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members. More...
TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables. More...
Protected Attributes inherited from TAO_Notify_ProxyConsumer
ACE_Atomic_Op< TAO_SYNCH_MUTEX, ACE_Time_Value >	last_ping_

Member Typedef Documentation

typedef TAO_Notify_ProxyConsumer_T<POA_CosNotifyChannelAdmin::ProxyPushConsumer> TAO_Notify_ProxyPushConsumer::SuperClass

private

Constructor & Destructor Documentation

TAO_Notify_ProxyPushConsumer::TAO_Notify_ProxyPushConsumer

(

void

)

Constructor.

TAO_Notify_ProxyPushConsumer::~TAO_Notify_ProxyPushConsumer ( )

virtual

Destructor.

Member Function Documentation

void TAO_Notify_ProxyPushConsumer::configure ( TAO_Notify_SupplierAdmin &  admin, CosNotifyChannelAdmin::ProxyID_out  proxy_id  )

virtual

void TAO_Notify_ProxyPushConsumer::connect_any_push_supplier ( CosEventComm::PushSupplier_ptr  push_supplier )

protectedvirtual

void TAO_Notify_ProxyPushConsumer::disconnect_push_consumer ( void  )

protectedvirtual

const char * TAO_Notify_ProxyPushConsumer::get_proxy_type_name ( void  ) const

virtual

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxyPushConsumer::load_attrs ( const TAO_Notify::NVPList &  attrs )

virtual

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.

Reimplemented from TAO_Notify_Object.

CosNotifyChannelAdmin::ProxyType TAO_Notify_ProxyPushConsumer::MyType ( void  )

protectedvirtual

= CosNotifyChannelAdmin::ProxyPushConsumer methods

void TAO_Notify_ProxyPushConsumer::push ( const CORBA::Any &  data )

protectedvirtual

void TAO_Notify_ProxyPushConsumer::release ( void  )

privatevirtual

Release.

Implements TAO_Notify_Refcountable.

void TAO_Notify_ProxyPushConsumer::validate ( )

virtual

Implements TAO_Notify_Proxy.

Friends And Related Function Documentation

friend class TAO_Notify_Builder

friend

---

The documentation for this class was generated from the following files:

• ProxyPushConsumer.h
• ProxyPushConsumer.cpp
