Handles requests on a single connection. More...

#include <SSLIOP_Connection_Handler.h>

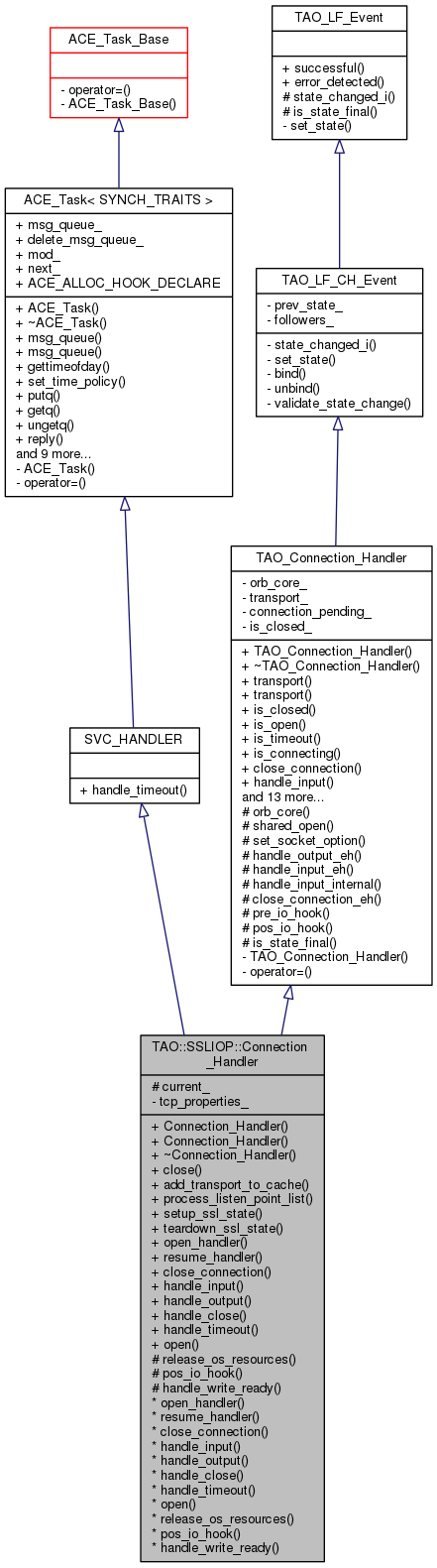

Inheritance diagram for TAO::SSLIOP::Connection_Handler:

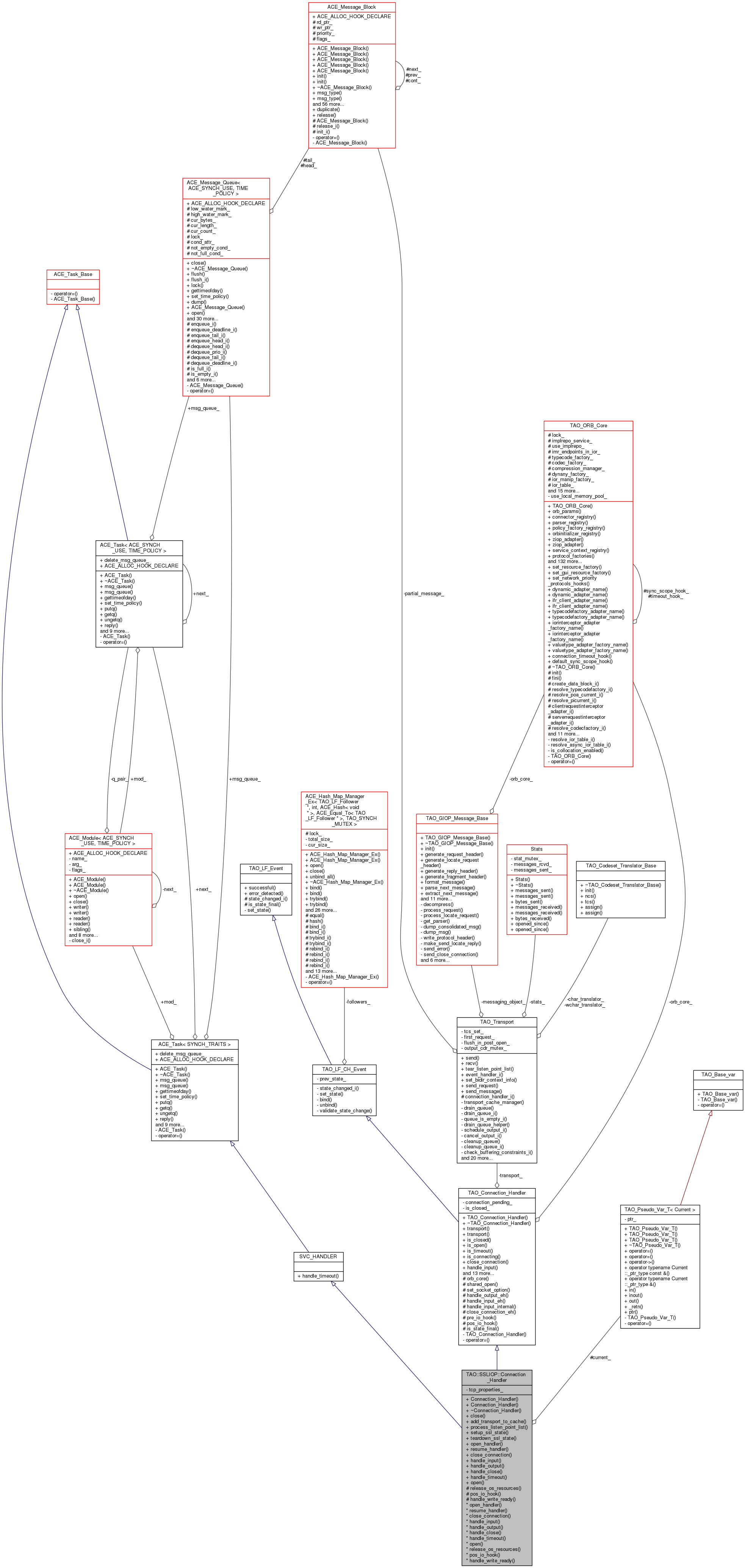

Collaboration diagram for TAO::SSLIOP::Connection_Handler:

Public Member Functions
	Connection_Handler (ACE_Thread_Manager *t=0)

	Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor. More...

	~Connection_Handler (void)
	Destructor. More...

int	close (u_long=0)

int	add_transport_to_cache (void)
	Add ourselves to cache. More...

int	process_listen_point_list (IIOP::ListenPointList &listen_list)
	Process the listen_list. More...

int	setup_ssl_state (TAO::SSLIOP::Current_Impl &previous_current_impl, TAO::SSLIOP::Current_Impl new_current_impl, bool &setup_done)

void	teardown_ssl_state (TAO::SSLIOP::Current_Impl *previous_current_impl, bool &setup_done)
	Teardown the SSL session state. More...

Connection Handler overloads
Connection Handler overloads.
virtual int	open_handler (void *)

Event Handler overloads
virtual int	resume_handler (void)

virtual int	close_connection (void)

virtual int	handle_input (ACE_HANDLE)

virtual int	handle_output (ACE_HANDLE)

virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	open (void *)

Public Member Functions inherited from ACE_Task< SYNCH_TRAITS >
	ACE_Task (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > mq=0)

virtual	~ACE_Task (void)

ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue (void)

void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Time_Value_T< TIME_POLICY >	gettimeofday (void) const

void	set_time_policy (TIME_POLICY const &time_policy)

int	putq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	getq (ACE_Message_Block &mb, ACE_Time_Value timeout=0)

int	ungetq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	reply (ACE_Message_Block mb, ACE_Time_Value tv=0)

int	put_next (ACE_Message_Block msg, ACE_Time_Value timeout=0)

const ACE_TCHAR *	name (void) const

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next (void)

void	next (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	sibling (void)

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	module (void) const

int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)

void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)

void	dump (void) const

Public Member Functions inherited from TAO_Connection_Handler
	TAO_Connection_Handler (TAO_ORB_Core *orb_core)

virtual	~TAO_Connection_Handler (void)

TAO_Transport *	transport (void)

void	transport (TAO_Transport *transport)

bool	is_closed (void) const

bool	is_open (void) const

bool	is_timeout (void) const

bool	is_connecting (void) const

int	svc_i (void)

virtual int	close_handler (u_long flags=0)

void	connection_pending (void)

void	cancel_pending_connection (void)

virtual int	set_dscp_codepoint (CORBA::Boolean set_network_priority)

virtual int	set_dscp_codepoint (CORBA::Long dscp_codepoint)

	TAO_LF_CH_Event (void)

virtual	~TAO_LF_CH_Event (void)

int	successful (void) const

int	error_detected (void) const

Protected Member Functions
TAO_Connection Handler overloads
virtual int	release_os_resources (void)

virtual void	pos_io_hook (int &return_value)

virtual int	handle_write_ready (const ACE_Time_Value *timeout)

Protected Member Functions inherited from TAO_Connection_Handler
TAO_ORB_Core *	orb_core (void)

int	shared_open (void)

int	set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)

int	handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int	handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int	handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)

int	close_connection_eh (ACE_Event_Handler *eh)

virtual void	pre_io_hook (int &return_value)

virtual int	is_state_final (void)

Protected Attributes
TAO::SSLIOP::Current_var	current_

Private Attributes
TAO_IIOP_Properties *	tcp_properties_
	TCP configuration for this connection. More...

Additional Inherited Members
Public Attributes inherited from ACE_Task< SYNCH_TRAITS >
ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue_

bool	delete_msg_queue_

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod_

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next_

	ACE_ALLOC_HOOK_DECLARE

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

Constructor & Destructor Documentation

TAO::SSLIOP::Connection_Handler::Connection_Handler ( ACE_Thread_Manager * t = 0 )

TAO::SSLIOP::Connection_Handler::Connection_Handler ( TAO_ORB_Core * orb_core )

Constructor.

TAO::SSLIOP::Connection_Handler::~Connection_Handler ( void )

Destructor.

Member Function Documentation

int TAO::SSLIOP::Connection_Handler::add_transport_to_cache ( void )

Add ourselves to cache.

int TAO::SSLIOP::Connection_Handler::close ( u_long flags = 0 )

Close called by the Acceptor or Connector when connection establishment fails.

int TAO::SSLIOP::Connection_Handler::close_connection ( void )

virtual

Implements TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)

virtual

int TAO::SSLIOP::Connection_Handler::handle_input ( ACE_HANDLE h )

virtual

Implements TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::handle_output ( ACE_HANDLE handle )

virtual

int TAO::SSLIOP::Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)

virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO::SSLIOP::Connection_Handler::handle_write_ready ( const ACE_Time_Value * timeout )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::open ( void * )

virtual

int TAO::SSLIOP::Connection_Handler::open_handler ( void * v )

virtual

Implements TAO_Connection_Handler.

void TAO::SSLIOP::Connection_Handler::pos_io_hook ( int & return_value )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::process_listen_point_list ( IIOP::ListenPointList & listen_list )

Process the listen_list.

int TAO::SSLIOP::Connection_Handler::release_os_resources ( void )

protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO::SSLIOP::Connection_Handler::resume_handler ( void )

virtual

int TAO::SSLIOP::Connection_Handler::setup_ssl_state	(	TAO::SSLIOP::Current_Impl *&	previous_current_impl,
		TAO::SSLIOP::Current_Impl *	new_current_impl,
		bool &	setup_done
	)

Make the SSL session state available to the SSLIOP::Current object.

void TAO::SSLIOP::Connection_Handler::teardown_ssl_state	(	TAO::SSLIOP::Current_Impl *	previous_current_impl,
		bool &	setup_done
	)

Teardown the SSL session state.

Member Data Documentation

TAO::SSLIOP::Current_var TAO::SSLIOP::Connection_Handler::current_

protected

Reference to the SSLIOP::Current object (downcast to gain access to the low-level management methods).

TAO_IIOP_Properties* TAO::SSLIOP::Connection_Handler::tcp_properties_

private

TCP configuration for this connection.

The documentation for this class was generated from the following files:
