TAO_UIPMC_Endpoint Class Reference

TAO_UIPMC_Endpoint. More...

#include <UIPMC_Endpoint.h>

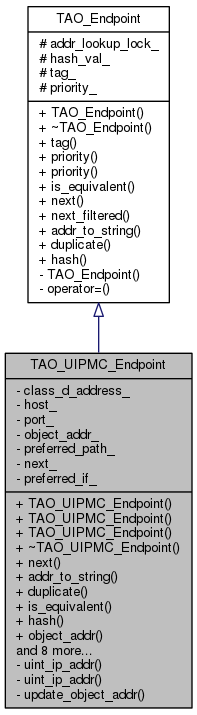

Inheritance diagram for TAO_UIPMC_Endpoint:
Inheritance graph

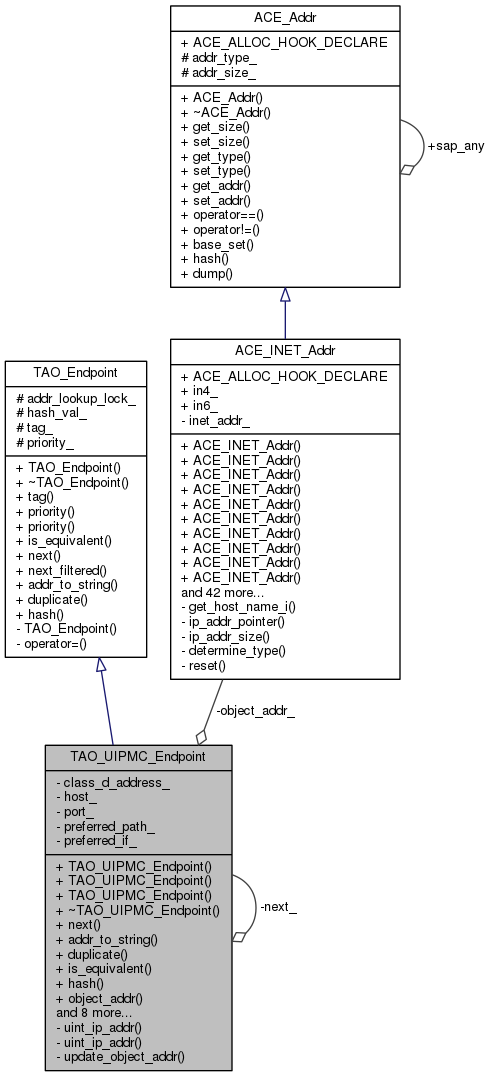

Collaboration diagram for TAO_UIPMC_Endpoint:
Collaboration graph

Public Member Functions

 TAO_UIPMC_Endpoint (void)
 Default constructor. More...

 TAO_UIPMC_Endpoint (const ACE_INET_Addr &addr)
 Constructor. More...

 TAO_UIPMC_Endpoint (const CORBA::Octet class_d_address[4], CORBA::UShort port)
 Constructor. @ Frank - deprecate this. More...

 ~TAO_UIPMC_Endpoint (void)
 Destructor. More...

virtual TAO_Endpointnext (void)

virtual int addr_to_string (char *buffer, size_t length)

virtual TAO_Endpointduplicate (void)
 Makes a copy of this TAO_Endpoint. More...

CORBA::Boolean is_equivalent (const TAO_Endpoint *other_endpoint)

CORBA::ULong hash (void)
 Return a hash value for this object. More...

const ACE_INET_Addrobject_addr (void) const
 Return a reference to the object_addr . More...

void object_addr (const ACE_INET_Addr &addr)
 Set the IP multicast address and port. More...

const char * host (void) const

CORBA::UShort port (void) const
 Return the port number. More...

CORBA::UShort port (CORBA::UShort p)
 Set the port number. More...

bool is_preferred_network (void) const
 Do we have a preferred local network interface set for this target? More...

const char * preferred_network (void) const
 Return the preferred network interface if any. More...

CORBA::ULong preferred_interfaces (TAO_ORB_Core *oc)

const char * preferred_if (void) const
 Acessor for the preferred network interface name if set. More...

- Public Member Functions inherited from TAO_Endpoint
 TAO_Endpoint (CORBA::ULong tag, CORBA::Short priority=TAO_INVALID_PRIORITY)

virtual ~TAO_Endpoint (void)

CORBA::ULong tag (void) const

void priority (CORBA::Short priority)

CORBA::Short priority (void) const

virtual TAO_Endpointnext_filtered (TAO_ORB_Core *, TAO_Endpoint *root)


Private Member Functions

ACE_UINT32 uint_ip_addr (void) const
 Helper methods for getting and setting the IP address. @ Vadym - deprecate these. More...

void uint_ip_addr (ACE_UINT32 ip_addr)

void update_object_addr (void)
 Helper method to update the cached object address. @ Vadym - deprecate this. More...


Private Attributes

CORBA::Octet class_d_address_ [4]
 IP Multicast address. @ Frank - deprecate this. More...

CORBA::String_var host_
 String representing the host address. More...

CORBA::UShort port_
 UDP port number. More...

ACE_INET_Addr object_addr_

TAO::IIOP_Endpoint_Info preferred_path_
 Preferred path for routing this endpoint. More...

TAO_UIPMC_Endpointnext_

CORBA::String_var preferred_if_
 Preferred interface name (if set) More...


Additional Inherited Members

- Protected Attributes inherited from TAO_Endpoint
TAO_SYNCH_MUTEX addr_lookup_lock_

CORBA::ULong hash_val_

CORBA::ULong const tag_

CORBA::Short priority_


Detailed Description

TAO_UIPMC_Endpoint.

UIPMC-specific implementation of PP Framework Endpoint interface.

Constructor & Destructor Documentation

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint ( void  )

Default constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint ( const ACE_INET_Addr addr)

Constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint ( const CORBA::Octet  class_d_address[4],
CORBA::UShort  port
)

Constructor. @ Frank - deprecate this.

TAO_UIPMC_Endpoint::~TAO_UIPMC_Endpoint ( void  )

Destructor.

Member Function Documentation

int TAO_UIPMC_Endpoint::addr_to_string ( char *  buffer,
size_t  length
)
virtual

Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::duplicate ( void  )
virtual

Makes a copy of this TAO_Endpoint.

Implements TAO_Endpoint.

CORBA::ULong TAO_UIPMC_Endpoint::hash ( void  )
virtual

Return a hash value for this object.

Implements TAO_Endpoint.

const char * TAO_UIPMC_Endpoint::host ( void  ) const

Return a pointer to the stringified host address (not including the port). This class retains ownership of the address memory.

CORBA::Boolean TAO_UIPMC_Endpoint::is_equivalent ( const TAO_Endpoint other_endpoint)
virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

bool TAO_UIPMC_Endpoint::is_preferred_network ( void  ) const

Do we have a preferred local network interface set for this target?

TAO_Endpoint * TAO_UIPMC_Endpoint::next ( void  )
virtual

Implements TAO_Endpoint.

const ACE_INET_Addr & TAO_UIPMC_Endpoint::object_addr ( void  ) const

Return a reference to the object_addr .

void TAO_UIPMC_Endpoint::object_addr ( const ACE_INET_Addr addr)

Set the IP multicast address and port.

CORBA::UShort TAO_UIPMC_Endpoint::port ( void  ) const

Return the port number.

CORBA::UShort TAO_UIPMC_Endpoint::port ( CORBA::UShort  p)

Set the port number.

const char * TAO_UIPMC_Endpoint::preferred_if ( void  ) const

Acessor for the preferred network interface name if set.

CORBA::ULong TAO_UIPMC_Endpoint::preferred_interfaces ( TAO_ORB_Core oc)

Transform this endpoint into (potentially) a chain of endpoints in preferrence order of specific local interface bind address (if the ORB is thus configured)

const char * TAO_UIPMC_Endpoint::preferred_network ( void  ) const

Return the preferred network interface if any.

ACE_UINT32 TAO_UIPMC_Endpoint::uint_ip_addr ( void  ) const
private

Helper methods for getting and setting the IP address. @ Vadym - deprecate these.

void TAO_UIPMC_Endpoint::uint_ip_addr ( ACE_UINT32  ip_addr)
private
void TAO_UIPMC_Endpoint::update_object_addr ( void  )
private

Helper method to update the cached object address. @ Vadym - deprecate this.

Member Data Documentation

CORBA::Octet TAO_UIPMC_Endpoint::class_d_address_[4]
private

IP Multicast address. @ Frank - deprecate this.

CORBA::String_var TAO_UIPMC_Endpoint::host_
private

String representing the host address.

TAO_UIPMC_Endpoint* TAO_UIPMC_Endpoint::next_
private

UIPMC Endpoints can be strung into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_UIPMC_Endpoint::object_addr_
private

Cached instance of ACE_INET_Addr for use in making invocations, etc.

CORBA::UShort TAO_UIPMC_Endpoint::port_
private

UDP port number.

CORBA::String_var TAO_UIPMC_Endpoint::preferred_if_
private

Preferred interface name (if set)

TAO::IIOP_Endpoint_Info TAO_UIPMC_Endpoint::preferred_path_
private

Preferred path for routing this endpoint.


The documentation for this class was generated from the following files:
