Base class for ACE_Message_Queue, which is the central queuing facility for messages in the ACE framework. More...

#include <Message_Queue.h>

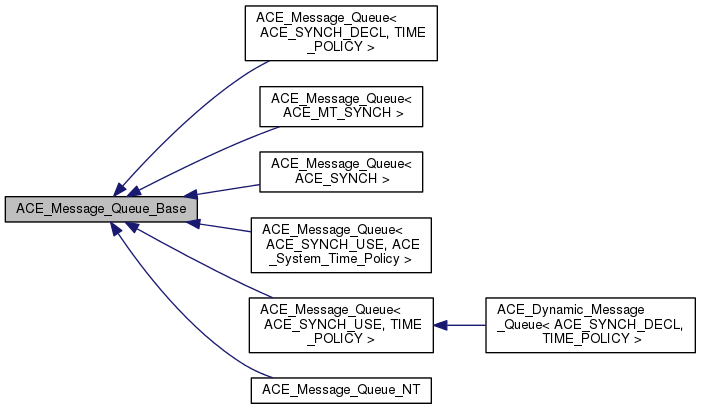

Inheritance diagram for ACE_Message_Queue_Base:

Public Types
enum	{ DEFAULT_HWM = 16 * 1024, DEFAULT_LWM = 16 * 1024, ACTIVATED = 1, DEACTIVATED = 2, PULSED = 3 }

Public Member Functions
	ACE_Message_Queue_Base (void)

virtual int	close (void)=0
	Close down the message queue and release all resources. More...

virtual	~ACE_Message_Queue_Base (void)
	Close down the message queue and release all resources. More...

virtual int	peek_dequeue_head (ACE_Message_Block &first_item, ACE_Time_Value timeout=0)=0

virtual int	enqueue_tail (ACE_Message_Block new_item, ACE_Time_Value timeout=0)=0

virtual int	enqueue (ACE_Message_Block new_item, ACE_Time_Value timeout=0)=0

virtual int	dequeue_head (ACE_Message_Block &first_item, ACE_Time_Value timeout=0)=0

virtual int	dequeue (ACE_Message_Block &first_item, ACE_Time_Value timeout=0)=0

virtual bool	is_full (void)=0
	True if queue is full, else false. More...

virtual bool	is_empty (void)=0
	True if queue is empty, else false. More...

virtual size_t	message_bytes (void)=0

virtual size_t	message_length (void)=0

virtual size_t	message_count (void)=0
	Number of total messages on the queue. More...

virtual void	message_bytes (size_t new_size)=0

virtual void	message_length (size_t new_length)=0

virtual int	deactivate (void)=0

virtual int	activate (void)=0

virtual int	pulse (void)=0

virtual int	state (void)
	Returns the current state of the queue. More...

virtual int	deactivated (void)=0

virtual ACE_Notification_Strategy *	notification_strategy (void)=0
	Get the notification strategy for the Message_Queue. More...

virtual void	notification_strategy (ACE_Notification_Strategy *s)=0
	Set the notification strategy for the Message_Queue. More...

virtual void	dump (void) const =0
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Attributes
int	state_

Private Member Functions
	ACE_Message_Queue_Base (const ACE_Message_Queue_Base &)

void	operator= (const ACE_Message_Queue_Base &)

Detailed Description

Base class for ACE_Message_Queue, which is the central queuing facility for messages in the ACE framework.

For all the ACE_Time_Value pointer parameters the caller will block until action is possible if timeout == 0. Otherwise, it will wait until the absolute time specified in *timeout elapses.

A queue is always in one of three states: . ACTIVATED . DEACTIVATED . PULSED

Member Enumeration Documentation

anonymous enum

Enumerator
DEFAULT_HWM	Default high watermark (16 K).
DEFAULT_LWM	Default low watermark (same as high water mark).
ACTIVATED	Message queue is active and processing normally.
DEACTIVATED	Queue is deactivated; no enqueue or dequeue operations allowed.
PULSED	Message queue was pulsed; enqueue and dequeue may proceed normally.

Constructor & Destructor Documentation

ACE_Message_Queue_Base::ACE_Message_Queue_Base ( void )

inline

ACE_Message_Queue_Base::~ACE_Message_Queue_Base ( void )

virtual

Close down the message queue and release all resources.

ACE_Message_Queue_Base::ACE_Message_Queue_Base ( const ACE_Message_Queue_Base & )

private

Member Function Documentation

virtual int ACE_Message_Queue_Base::activate ( void )

pure virtual

Reactivate the queue so that threads can enqueue and dequeue messages again.

Return values

The	queue's state before this call.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::close ( void )

pure virtual

Close down the message queue and release all resources.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::deactivate ( void )

pure virtual

Deactivate the queue and wake up all threads waiting on the queue so they can continue. No messages are removed from the queue, however. Any other operations called until the queue is activated again will immediately return -1 with errno ESHUTDOWN.

Return values

The	queue's state before this call.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::deactivated ( void )

pure virtual

Returns 1 if the state of the queue is DEACTIVATED, and 0 if the queue's state is ACTIVATED or PULSED.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::dequeue	(	ACE_Message_Block *&	first_item,
		ACE_Time_Value *	timeout = `0`
	)

pure virtual

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::dequeue_head	(	ACE_Message_Block *&	first_item,
		ACE_Time_Value *	timeout = `0`
	)

pure virtual

Dequeue and return the <ACE_Message_Block *> at the head of the queue. Returns number of items in queue if the call succeeds or -1 otherwise. These calls return -1 when queue is closed, deactivated (in which case errno == ESHUTDOWN), when a signal occurs (in which case errno == EINTR, or if the time specified in timeout elapses (in which case errno == EWOULDBLOCK).

Implemented in ACE_Dynamic_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual void ACE_Message_Queue_Base::dump ( void ) const

pure virtual

Dump the state of an object.

Implemented in ACE_Dynamic_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::enqueue	(	ACE_Message_Block *	new_item,
		ACE_Time_Value *	timeout = `0`
	)

pure virtual

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::enqueue_tail	(	ACE_Message_Block *	new_item,
		ACE_Time_Value *	timeout = `0`
	)

pure virtual

Enqueue a <ACE_Message_Block *> into the tail of the queue. Returns number of items in queue if the call succeeds or -1 otherwise. These calls return -1 when queue is closed, deactivated (in which case errno == ESHUTDOWN), when a signal occurs (in which case errno == EINTR, or if the time specified in timeout elapses (in which case errno == EWOULDBLOCK).

Implemented in ACE_Dynamic_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual bool ACE_Message_Queue_Base::is_empty ( void )

pure virtual

True if queue is empty, else false.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual bool ACE_Message_Queue_Base::is_full ( void )

pure virtual

True if queue is full, else false.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual size_t ACE_Message_Queue_Base::message_bytes ( void )

pure virtual

Number of total bytes on the queue, i.e., sum of the message block sizes.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual void ACE_Message_Queue_Base::message_bytes ( size_t new_size )

pure virtual

New value of the number of total bytes on the queue, i.e., sum of the message block sizes.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual size_t ACE_Message_Queue_Base::message_count ( void )

pure virtual

Number of total messages on the queue.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual size_t ACE_Message_Queue_Base::message_length ( void )

pure virtual

Number of total length on the queue, i.e., sum of the message block lengths.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual void ACE_Message_Queue_Base::message_length ( size_t new_length )

pure virtual

New value of the number of total length on the queue, i.e., sum of the message block lengths.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual ACE_Notification_Strategy* ACE_Message_Queue_Base::notification_strategy ( void )

pure virtual

Get the notification strategy for the Message_Queue.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual void ACE_Message_Queue_Base::notification_strategy ( ACE_Notification_Strategy * s )

pure virtual

Set the notification strategy for the Message_Queue.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

void ACE_Message_Queue_Base::operator= ( const ACE_Message_Queue_Base & )

private

virtual int ACE_Message_Queue_Base::peek_dequeue_head	(	ACE_Message_Block *&	first_item,
		ACE_Time_Value *	timeout = `0`
	)

pure virtual

Retrieve the first ACE_Message_Block without removing it. Note that timeout uses <{absolute}> time rather than <{relative}> time. If the timeout elapses without receiving a message -1 is returned and errno is set to EWOULDBLOCK. If the queue is deactivated -1 is returned and errno is set to ESHUTDOWN. Otherwise, returns -1 on failure, else the number of items still on the queue.

Implemented in ACE_Dynamic_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

virtual int ACE_Message_Queue_Base::pulse ( void )

pure virtual

Pulse the queue to wake up any waiting threads. Changes the queue state to PULSED; future enqueue/dequeue operations proceed as in ACTIVATED state.

Return values

The	queue's state before this call.

Implemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >, and ACE_Message_Queue_NT.

int ACE_Message_Queue_Base::state ( void )

virtual

Returns the current state of the queue.

Reimplemented in ACE_Message_Queue< ACE_SYNCH_DECL, TIME_POLICY >, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy >, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_MT_SYNCH >, and ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY >.

Member Data Documentation

ACE_Message_Queue_Base::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

int ACE_Message_Queue_Base::state_

protected

Indicates the state of the queue, which can be <ACTIVATED>, <DEACTIVATED>, or <PULSED>.
