TAO::Synch_Oneway_Invocation Class Reference

All the action for a synchronous oneway invocation happen here. More...

#include <Synch_Invocation.h>

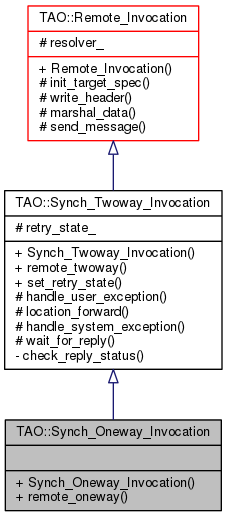

Inheritance diagram for TAO::Synch_Oneway_Invocation:

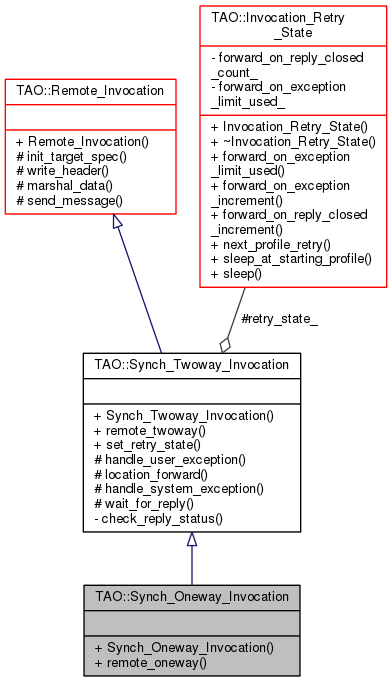

Collaboration diagram for TAO::Synch_Oneway_Invocation:

Public Member Functions
	Synch_Oneway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail)
	Constructor used by TAO::Invocation_Adapter. More...
Invocation_Status	remote_oneway (ACE_Time_Value *max_wait_time)
Public Member Functions inherited from TAO::Synch_Twoway_Invocation
	Synch_Twoway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected=true)
	Constructor used by TAO::Invocation_Adapter. More...
Invocation_Status	remote_twoway (ACE_Time_Value *max_wait_time)
void	set_retry_state (Invocation_Retry_State *retry_state)
Public Member Functions inherited from TAO::Remote_Invocation
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)
Public Member Functions inherited from TAO::Invocation_Base
virtual	~Invocation_Base (void)
TAO_Stub *	stub (void) const
	Accessor and mutator methods. More...
CORBA::Object_ptr	forwarded_reference (void)
void	forwarded_reference (CORBA::Object_ptr o)
	Accessor and mutator methods. More...
TAO_Service_Context &	request_service_context (void)
	Accessors for the service context list. More...
TAO_Service_Context &	reply_service_context (void)
	Accessor and mutator methods. More...
CORBA::Object_ptr	steal_forwarded_reference (void)
	Return the forwarded object location by loosing ownership. More...
CORBA::Object_ptr	effective_target (void) const
	Return the effective target of the invocation. More...
CORBA::Object_ptr	target (void) const
	Return the target object. More...
CORBA::Boolean	response_expected (void) const
	Does this invocation return a response? More...
GIOP::ReplyStatusType	reply_status (void) const
	Accessor of reply_status of the invocation. More...
void	reply_status (GIOP::ReplyStatusType s)
	Mutator of reply_status of the invocation. More...
TAO_Operation_Details &	operation_details (void)
	The operaton details of the invocation. More...
size_t &	stack_size (void)
CORBA::Exception *	caught_exception (void)
	The client requestor adapter. More...
TAO::Invocation_Status	invoke_status (void) const
	Invocation status. More...
void	invoke_status (Invocation_Status s)
	Mutator to set the invocation status. More...
PortableInterceptor::ReplyStatus	pi_reply_status (void) const
	The client requestor adapter. More...
bool	is_remote_request () const

Additional Inherited Members
Public Attributes inherited from TAO::Invocation_Base
void exception CORBA::Exception *	exception
	Change the exception status. More...
Protected Member Functions inherited from TAO::Synch_Twoway_Invocation
virtual Invocation_Status	handle_user_exception (TAO_InputCDR &cdr)
Invocation_Status	location_forward (TAO_InputCDR &cdr)
	Helper method used to handle location forwarded replies. More...
Invocation_Status	handle_system_exception (TAO_InputCDR &cdr)
Invocation_Status	wait_for_reply (ACE_Time_Value *max_wait_time, TAO_Synch_Reply_Dispatcher &rd, TAO_Bind_Dispatcher_Guard &bd)
	As the name suggests waits for a reply from the remote ORB. More...
Protected Attributes inherited from TAO::Synch_Twoway_Invocation
Invocation_Retry_State *	retry_state_

Detailed Description

All the action for a synchronous oneway invocation happen here.

This class inherits from twoway invocation for the following reasons

• We deal with oneway invocation in more or less the same way as two but for waiting for the reply

• For some SYNC_SCOPE policies namely SYNC_WITH_TARGET and SYNC_WITH_SERVER the invocation classes have to treat the invocation as a twoway invocation (more or less)

Constructor & Destructor Documentation

TAO::Synch_Oneway_Invocation::Synch_Oneway_Invocation	(	CORBA::Object_ptr	otarget,
		Profile_Transport_Resolver &	resolver,
		TAO_Operation_Details &	detail
	)

Constructor used by TAO::Invocation_Adapter.

Parameters

otarget	The original target on which this invocation was started. This is there to be passed up to its parent class.
resolver	The profile and transport holder.
detail	Operation details of the invocation on the target

Member Function Documentation

Invocation_Status TAO::Synch_Oneway_Invocation::remote_oneway

(

ACE_Time_Value *

max_wait_time

)

Method used by the adapter to kickstart an oneway invocation to the remote object.

---

The documentation for this class was generated from the following files:

• Synch_Invocation.h
• Synch_Invocation.cpp
