CORBA::Exception Class Reference

Exception. More...

#include <Exception.h>

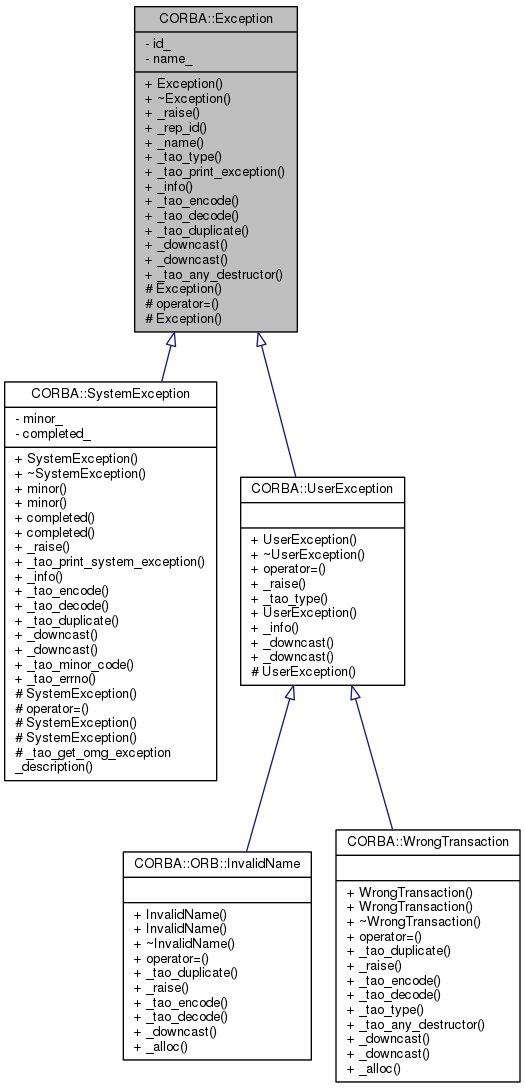

Inheritance diagram for CORBA::Exception:

Collaboration diagram for CORBA::Exception:

Public Member Functions
	Exception (const Exception &src)
	Copy constructor. More...
virtual	~Exception (void)
	Destructor. More...
virtual void	_raise (void) const =0
virtual const char *	_rep_id (void) const
	Return the repository ID of the Exception. More...
virtual const char *	_name (void) const
	Return the name of the Exception. More...
virtual CORBA::TypeCode_ptr	_tao_type (void) const =0
	Will be overridden in the concrete derived classes. More...
void	_tao_print_exception (const char *info, FILE *f=stdout) const
	Print the exception to output determined by f. More...
virtual ACE_CString	_info (void) const =0
virtual void	_tao_encode (TAO_OutputCDR &cdr) const =0
virtual void	_tao_decode (TAO_InputCDR &cdr)=0
virtual CORBA::Exception *	_tao_duplicate (void) const =0
	Deep copy. More...

Static Public Member Functions
static Exception *	_downcast (Exception *x)
static Exception const *	_downcast (Exception const *x)
static void	_tao_any_destructor (void *)
	Used in the non-copying Any insertion operator. More...

Protected Member Functions
	Exception (void)
	Default constructor. More...
Exception &	operator= (const Exception &src)
	Assignment operator. More...
	Exception (const char *repository_id, const char *local_name)
	Construct from a repository id. More...

Private Attributes
CORBA::String_var	id_
	Repository Id. More...
CORBA::String_var	name_
	Local name. More...

Detailed Description

Exception.

CORBA2-specified exception hierarchy. All exceptions have a type (represented by a TypeCode) and a widely scoped type ID (in the TypeCode) that are generated by any OMG-IDL compiler and available through the Interface Repository. Think of it as a "globally scoped" name distinguishing each exception.

Todo:

According to the OMG CORBA C++ Mapping version 1.1, the copy constructors should be moved to "protected" section in class declarations. Since the current MS Visual C++ 7.1 compiler will cause some problems to TAO's exception mechanism, we defer doing this until we drop support for MSVC++ 7.1. Maybe there is another solution, have to test that later.

Constructor & Destructor Documentation

CORBA::Exception::Exception

(

const Exception &

src

)

Copy constructor.

Note

This constructor should be protected, but VC7.1 at warning level 4 complains about the inaccessible copy constructor preventing it from being caught. However, that probably isn't true for most cases since CORBA exceptions are typically caught by reference, not by copy.

CORBA::Exception::~Exception ( void  )

virtual

Destructor.

CORBA::Exception::Exception ( void  )

protected

Default constructor.

CORBA::Exception::Exception ( const char *  repository_id, const char *  local_name  )

protected

Construct from a repository id.

Member Function Documentation

CORBA::Exception * CORBA::Exception::_downcast ( CORBA::Exception *  x )

static

CORBA::Exception const * CORBA::Exception::_downcast ( CORBA::Exception const *  x )

static

virtual ACE_CString CORBA::Exception::_info ( void  ) const

pure virtual

Returns a string containing information about the exception. This function is not CORBA compliant.

Implemented in CORBA::SystemException, and CORBA::UserException.

const char * CORBA::Exception::_name ( void  ) const

virtual

Return the name of the Exception.

virtual void CORBA::Exception::_raise ( void  ) const

pure virtual

Implemented in CORBA::ORB::InvalidName, CORBA::SystemException, CORBA::WrongTransaction, and CORBA::UserException.

const char * CORBA::Exception::_rep_id ( void  ) const

virtual

Return the repository ID of the Exception.

void CORBA::Exception::_tao_any_destructor ( void *  x )

static

Used in the non-copying Any insertion operator.

virtual void CORBA::Exception::_tao_decode ( TAO_InputCDR &  cdr )

pure virtual

Implemented in CORBA::ORB::InvalidName, CORBA::SystemException, and CORBA::WrongTransaction.

virtual CORBA::Exception* CORBA::Exception::_tao_duplicate ( void  ) const

pure virtual

Deep copy.

The following operation is used in the implementation of it performs a deep copy of the exception, normally it is implemented as:

class SomeException : public // Derives from CORBA::Exception
{
public:
  virtual CORBA::Exception *_tao_duplicate (void) const
  {
    CORBA::Exception *result = 0;
    ACE_NEW_RETURN (
        result,
        SomeException (*this),
        0
      );
    return result;
  }
};

Implemented in CORBA::ORB::InvalidName, CORBA::SystemException, and CORBA::WrongTransaction.

virtual void CORBA::Exception::_tao_encode ( TAO_OutputCDR &  cdr ) const

pure virtual

Implemented in CORBA::ORB::InvalidName, CORBA::SystemException, and CORBA::WrongTransaction.

void CORBA::Exception::_tao_print_exception	(	const char *	info,
		FILE *	f = stdout
	)		const

Print the exception to output determined by f.

Note

This method is TAO-specific.

virtual CORBA::TypeCode_ptr CORBA::Exception::_tao_type ( void  ) const

pure virtual

Will be overridden in the concrete derived classes.

Implemented in CORBA::WrongTransaction, and CORBA::UserException.

CORBA::Exception & CORBA::Exception::operator= ( const Exception &  src )

protected

Assignment operator.

Member Data Documentation

CORBA::String_var CORBA::Exception::id_

private

Repository Id.

CORBA::String_var CORBA::Exception::name_

private

Local name.

---

The documentation for this class was generated from the following files:

• Exception.h
• Exception.cpp
• Exception.inl
