TAO_Thread_Per_Connection_Handler Class Reference

Definition for the thread-per-connection strategy. More...

#include <Thread_Per_Connection_Handler.h>

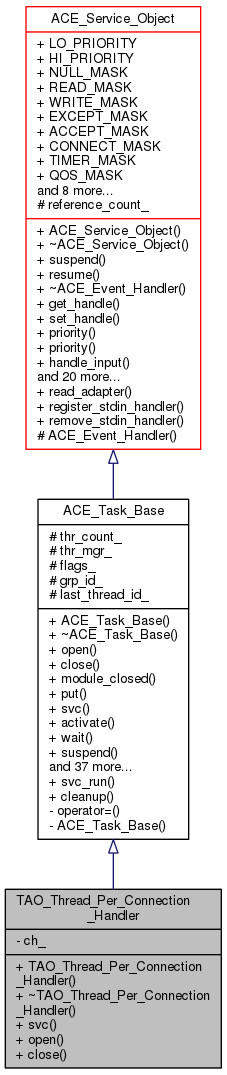

Inheritance diagram for TAO_Thread_Per_Connection_Handler:

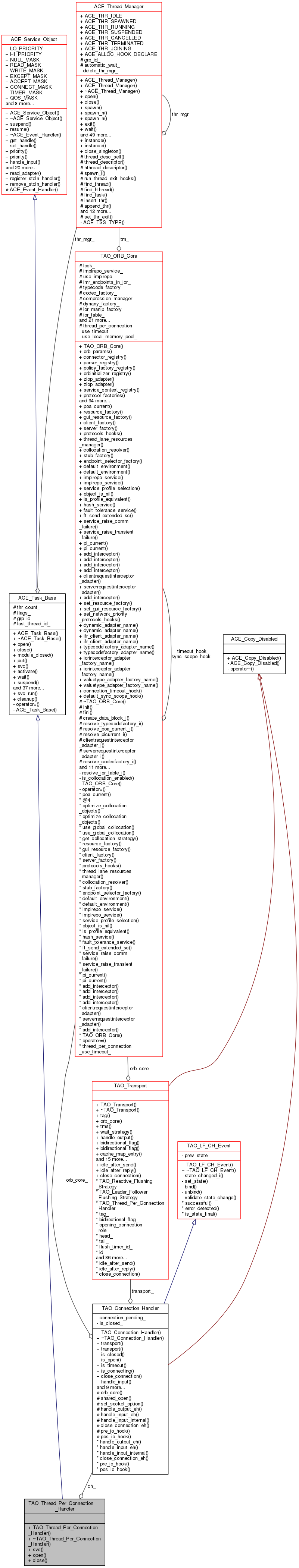

Collaboration diagram for TAO_Thread_Per_Connection_Handler:

List of all members.

Public Member Functions
	TAO_Thread_Per_Connection_Handler (TAO_Connection_Handler *ch, TAO_ORB_Core *oc)
	~TAO_Thread_Per_Connection_Handler (void)
virtual int	svc (void)
	Template hook method that the thread uses...
virtual int	open (void *)
virtual int	close (u_long)
Public Member Functions inherited from ACE_Task_Base
	ACE_Task_Base (ACE_Thread_Manager *=0)
virtual	~ACE_Task_Base (void)
virtual int	module_closed (void)
virtual int	put (ACE_Message_Block *, ACE_Time_Value *=0)
virtual int	activate (long flags=THR_NEW_LWP|THR_JOINABLE|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base *task=0, ACE_hthread_t thread_handles[]=0, void *stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)
virtual int	wait (void)
virtual int	suspend (void)
virtual int	resume (void)
int	grp_id (void) const
void	grp_id (int)
ACE_Thread_Manager *	thr_mgr (void) const
void	thr_mgr (ACE_Thread_Manager *)
int	is_reader (void) const
int	is_writer (void) const
size_t	thr_count (void) const
ACE_thread_t	last_thread (void) const
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object (void)
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
	ACE_Shared_Object (void)
virtual	~ACE_Shared_Object (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini (void)
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Private Attributes
TAO_Connection_Handler *	ch_

Additional Inherited Members
Static Public Member Functions inherited from ACE_Task_Base
static ACE_THR_FUNC_RETURN	svc_run (void *)
static void	cleanup (void *object, void *params)
Static Public Member Functions inherited from ACE_Service_Object
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Protected Attributes inherited from ACE_Task_Base
size_t	thr_count_
ACE_Thread_Manager *	thr_mgr_
u_long	flags_
int	grp_id_
ACE_thread_t	last_thread_id_
Protected Attributes inherited from ACE_Service_Object
Atomic_Reference_Count	reference_count_
Protected Attributes inherited from ACE_Event_Handler

---

Detailed Description

Definition for the thread-per-connection strategy.

This object acts as an active object, encapsulating the protocol specific handler which the active thread uses to process incoming messages.

---

Constructor & Destructor Documentation

TAO_Thread_Per_Connection_Handler::TAO_Thread_Per_Connection_Handler	(	TAO_Connection_Handler *	ch,
		TAO_ORB_Core *	oc
	)

TAO_Thread_Per_Connection_Handler::~TAO_Thread_Per_Connection_Handler

(

void

)

---

Member Function Documentation

int TAO_Thread_Per_Connection_Handler::close ( u_long  )

virtual

Reimplemented from ACE_Task_Base.

int TAO_Thread_Per_Connection_Handler::open ( void *  v )

virtual

Reimplemented from ACE_Task_Base.

int TAO_Thread_Per_Connection_Handler::svc ( void  )

virtual

Template hook method that the thread uses...

Please see the documentation in ace/Task.h for details.

Reimplemented from ACE_Task_Base.

---

Member Data Documentation

TAO_Connection_Handler* TAO_Thread_Per_Connection_Handler::ch_

private

Pointer to protocol specific code that does the bunch of the job.

---

The documentation for this class was generated from the following files:

• Thread_Per_Connection_Handler.h
• Thread_Per_Connection_Handler.cpp
