TAO_Connection_Handler Class Reference

TAO_Connection_Handler. More...

#include <Connection_Handler.h>

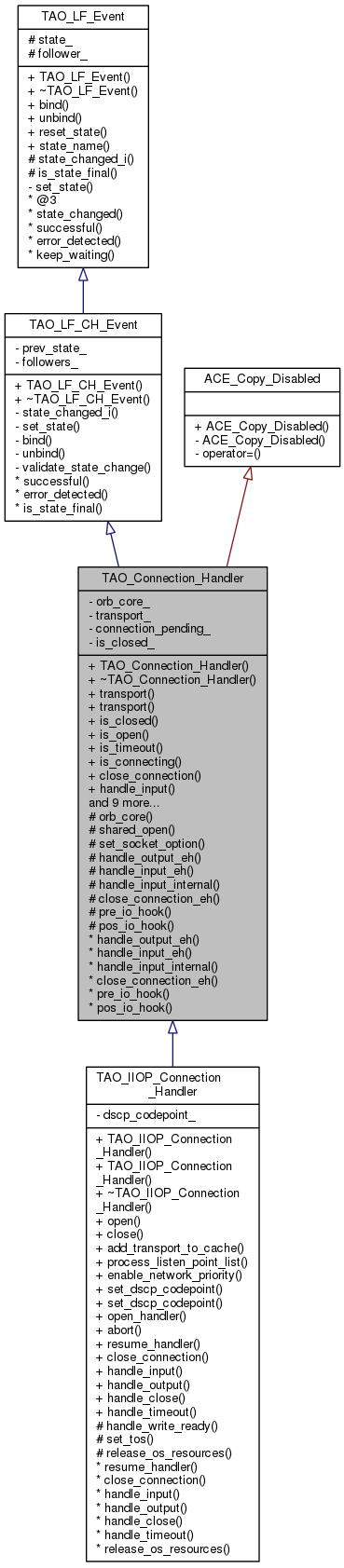

Inheritance diagram for TAO_Connection_Handler:
Inheritance graph

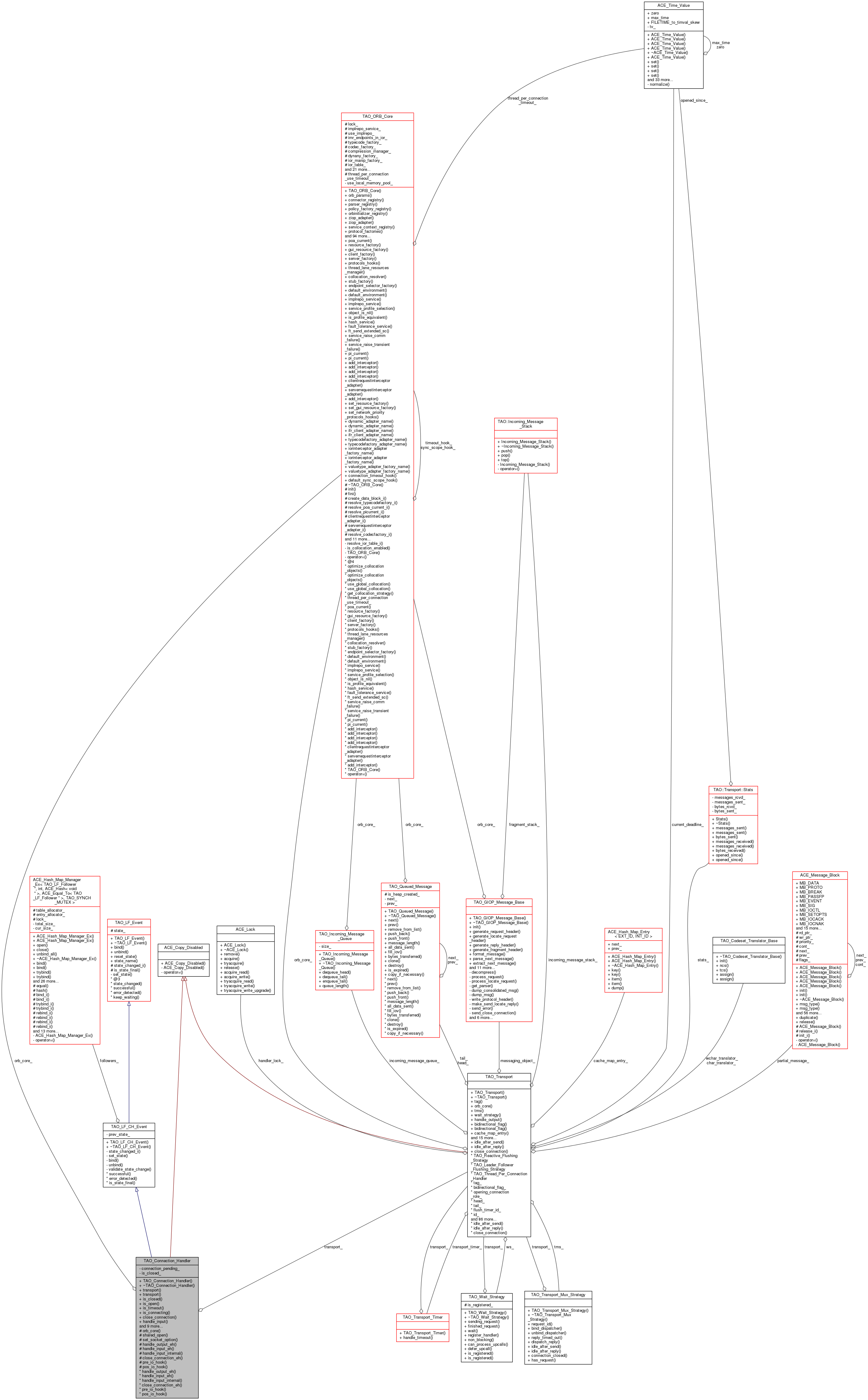

Collaboration diagram for TAO_Connection_Handler:
Collaboration graph

List of all members.

Public Member Functions

 TAO_Connection_Handler (TAO_ORB_Core *orb_core)
 Constructor.
virtual ~TAO_Connection_Handler (void)
 Destructor.
TAO_Transporttransport (void)
 Return the underlying transport object.
void transport (TAO_Transport *transport)
 Set the underlying transport object.
bool is_closed (void) const
 Is the handler closed or timed out?
bool is_open (void) const
 Is the handler open?
bool is_timeout (void) const
 Closed due to timeout?
bool is_connecting (void) const
 Is the handler in the process of being connected?
virtual int close_connection (void)=0
 Close the underlying connection.
virtual int handle_input (ACE_HANDLE fd)=0
int svc_i (void)
virtual int open_handler (void *)=0
 A open () hook.
virtual int close_handler (u_long flags=0)
void connection_pending (void)
void cancel_pending_connection (void)
virtual int set_dscp_codepoint (CORBA::Boolean set_network_priority)
virtual int set_dscp_codepoint (CORBA::Long dscp_codepoint)
virtual int release_os_resources (void)
 Release the OS resources related to this handler.
virtual int handle_write_ready (const ACE_Time_Value *timeout)
- Public Member Functions inherited from TAO_LF_CH_Event
 TAO_LF_CH_Event (void)
 Constructor.
virtual ~TAO_LF_CH_Event (void)
 Destructor.
int successful (void) const
int error_detected (void) const
- Public Member Functions inherited from TAO_LF_Event
 TAO_LF_Event (void)
 Constructor.
virtual ~TAO_LF_Event (void)
 Destructor.
void reset_state (int new_state)
 Reset the state, irrespective of the previous states.
void state_changed (int new_state, TAO_Leader_Follower &lf)
int keep_waiting (void)
 Check if we should keep waiting.

Protected Member Functions

TAO_ORB_Coreorb_core (void)
 Return our TAO_ORB_Core pointer.
int shared_open (void)
int set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)
 Set options on the socket.
Helper methods for Event_Handler-based derived classes.

Many (actually all so far) implementations of TAO_Connection_Handler are a mixin of TAO_Connection_Handler and some form of ACE_Event_Handler. The following methods simplify such implementations by capturing the common code in a single place.

int handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
 Implement the handle_output() callback.
int handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
 Implement the handle_input() callback.
int handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)
 Implement the handle_output() callback.
int close_connection_eh (ACE_Event_Handler *eh)
virtual void pre_io_hook (int &return_value)
virtual void pos_io_hook (int &return_value)
- Protected Member Functions inherited from TAO_LF_CH_Event
virtual int is_state_final (void)
 Check whether we have reached the final state..

Private Attributes

TAO_ORB_Core *const orb_core_
 Pointer to the TAO_ORB_Core.
TAO_Transporttransport_
 Transport object reference.
bool connection_pending_
 Stores the connection pending state.
bool is_closed_

Additional Inherited Members

- Private Member Functions inherited from ACE_Copy_Disabled
 ACE_Copy_Disabled (void)

Detailed Description

TAO_Connection_Handler.

This class is an abstraction for the connection handlers. The connections handler in every protocol can derive from this class as well as the ACE_Svc_Handler specialised for the right protocol. This way, most of the common code for the different protocols would be in this implementation.


Constructor & Destructor Documentation

TAO_Connection_Handler::TAO_Connection_Handler ( TAO_ORB_Core orb_core)
explicit

Constructor.

TAO_Connection_Handler::~TAO_Connection_Handler ( void  )
virtual

Destructor.


Member Function Documentation

void TAO_Connection_Handler::cancel_pending_connection ( void  )

A pending connection may be canceled due to an error detected while the initiating thread is still in the Connector.

virtual int TAO_Connection_Handler::close_connection ( void  )
pure virtual

Close the underlying connection.

Used by the ORB to actively close connections that are idle, stale or somehow are determined to be broken before the Reactor does.

Returns:
Return 0 if the connection was already closed, non-zero otherwise.

Implemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::close_connection_eh ( ACE_Event_Handler eh)
protected

Implement close_connection() for Connection_Handlers that are also Event_Handlers.

int TAO_Connection_Handler::close_handler ( u_long  flags = 0)
virtual

A close() hook, called by the Transport Connector when they want to close this handler

void TAO_Connection_Handler::connection_pending ( void  )

When waiting for an asynchronous connection to complete an additional reference must be maintained, related to bugzilla #2417. However once the connection is successfully established, this reference must be removed. Using connection_pending allows the connection handler to know that it is opening as a result of a delayed asynch connection rather than an immediate synch connection, which has no additional reference needs.

virtual int TAO_Connection_Handler::handle_input ( ACE_HANDLE  fd)
pure virtual

The event handler calls, here so that other objects who hold a reference to this object can call the event handler methods.

Implemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::handle_input_eh ( ACE_HANDLE  h,
ACE_Event_Handler eh
)
protected

Implement the handle_input() callback.

int TAO_Connection_Handler::handle_input_internal ( ACE_HANDLE  h,
ACE_Event_Handler eh
)
protected

Implement the handle_output() callback.

int TAO_Connection_Handler::handle_output_eh ( ACE_HANDLE  h,
ACE_Event_Handler eh
)
protected

Implement the handle_output() callback.

int TAO_Connection_Handler::handle_write_ready ( const ACE_Time_Value timeout)
virtual

Derived classes should implement this for proper support with the Blocking Flushing Strategy.

Reimplemented in TAO_IIOP_Connection_Handler.

bool TAO_Connection_Handler::is_closed ( void  ) const

Is the handler closed or timed out?

bool TAO_Connection_Handler::is_connecting ( void  ) const

Is the handler in the process of being connected?

bool TAO_Connection_Handler::is_open ( void  ) const

Is the handler open?

bool TAO_Connection_Handler::is_timeout ( void  ) const

Closed due to timeout?

virtual int TAO_Connection_Handler::open_handler ( void *  )
pure virtual

A open () hook.

See Thread_Per_Connection_Handler for a use case

Implemented in TAO_IIOP_Connection_Handler.

TAO_ORB_Core * TAO_Connection_Handler::orb_core ( void  )
protected

Return our TAO_ORB_Core pointer.

void TAO_Connection_Handler::pos_io_hook ( int &  return_value)
protectedvirtual

Post-invocation hook for I/O operations (handle_input() & handle_output()) See the SSLIOP protocol for an interesting use-case

void TAO_Connection_Handler::pre_io_hook ( int &  return_value)
protectedvirtual

Pre-invocation hook for I/O operations (handle_input() & handle_output()) See the SSLIOP protocol for an interesting use-case

int TAO_Connection_Handler::release_os_resources ( void  )
virtual

Release the OS resources related to this handler.

Reimplemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::set_dscp_codepoint ( CORBA::Boolean  set_network_priority)
virtual

Set the Diff-Serv codepoint on outgoing packets. Only has effect for remote protocols (e.g., IIOP); no effect for local protocols (UIOP). Default implementation is for local protocols. Remote protocols must overwrite implementation.

Reimplemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::set_dscp_codepoint ( CORBA::Long  dscp_codepoint)
virtual

Reimplemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::set_socket_option ( ACE_SOCK sock,
int  snd_size,
int  rcv_size
)
protected

Set options on the socket.

int TAO_Connection_Handler::shared_open ( void  )
protected

A common function called at the start of any protocol-specific open. Returns -1 on a failure (although no failure mode is currently defined).

int TAO_Connection_Handler::svc_i ( void  )

This method is invoked from the svc () method of the Svc_Handler Object.

TAO_Transport * TAO_Connection_Handler::transport ( void  )

Return the underlying transport object.

void TAO_Connection_Handler::transport ( TAO_Transport transport)

Set the underlying transport object.


Member Data Documentation

bool TAO_Connection_Handler::connection_pending_
private

Stores the connection pending state.

bool TAO_Connection_Handler::is_closed_
private

Once closed make sure the transport is not added back to the cache. This is distinct from the leader-follower state so it cannot be reset.

TAO_ORB_Core* const TAO_Connection_Handler::orb_core_
private

Pointer to the TAO_ORB_Core.

TAO_Transport* TAO_Connection_Handler::transport_
private

Transport object reference.
