Implements a factory to create Endpoints and VDevs. More...

#include <AVStreams_i.h>

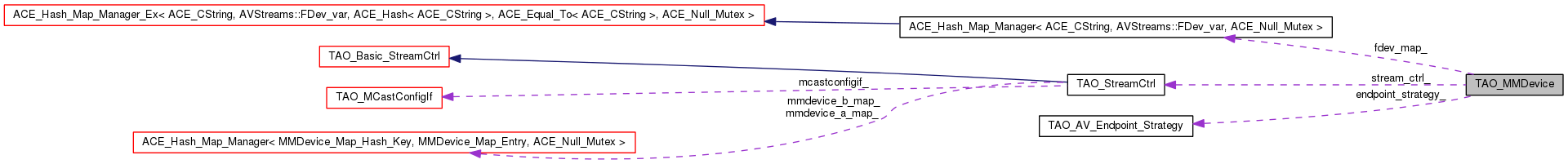

Collaboration diagram for TAO_MMDevice:

Public Types
enum	MMDevice_Type { MMDEVICE_A = 0, MMDEVICE_B = 1 }
	Constructor. More...
Public Member Functions
	TAO_MMDevice (TAO_AV_Endpoint_Strategy *endpoint_strategy_)
virtual AVStreams::StreamEndPoint_ptr	create_A_B (MMDevice_Type type, AVStreams::StreamCtrl_ptr the_requester, AVStreams::VDev_out the_vdev, AVStreams::streamQoS &the_qos, CORBA::Boolean_out met_qos, char *&named_vdev, const AVStreams::flowSpec &the_spec)
virtual AVStreams::StreamCtrl_ptr	bind (AVStreams::MMDevice_ptr peer_device, AVStreams::streamQoS &the_qos, CORBA::Boolean_out is_met, const AVStreams::flowSpec &the_spec)
virtual AVStreams::StreamCtrl_ptr	bind_mcast (AVStreams::MMDevice_ptr first_peer, AVStreams::streamQoS &the_qos, CORBA::Boolean_out is_met, const AVStreams::flowSpec &the_spec)
	Multicast bind.
virtual AVStreams::StreamEndPoint_A_ptr	create_A (AVStreams::StreamCtrl_ptr the_requester, AVStreams::VDev_out the_vdev, AVStreams::streamQoS &the_qos, CORBA::Boolean_out met_qos, char *&named_vdev, const AVStreams::flowSpec &the_spec)
	Called by StreamCtrl to create a "A" type streamandpoint and vdev.
virtual AVStreams::StreamEndPoint_B_ptr	create_B (AVStreams::StreamCtrl_ptr the_requester, AVStreams::VDev_out the_vdev, AVStreams::streamQoS &the_qos, CORBA::Boolean_out met_qos, char *&named_vdev, const AVStreams::flowSpec &the_spec)
	Called by StreamCtrl to create a "B" type streamandpoint and vdev.
virtual void	destroy (AVStreams::StreamEndPoint_ptr the_ep, const char *vdev_name)
	Remove the StreamEndPoint and the related vdev.
virtual char *	add_fdev (CORBA::Object_ptr the_fdev)
	Not supported in the light profile, raises notsupported.
virtual CORBA::Object_ptr	get_fdev (const char *flow_name)
	Not supported in the light profile, raises notsupported.
virtual void	remove_fdev (const char *flow_name)
	Not supported in the light profile, raises notsupported.
virtual	~TAO_MMDevice (void)
	Destructor.
Protected Types
typedef ACE_Hash_Map_Manager < ACE_CString, AVStreams::FDev_var, ACE_Null_Mutex >	FDev_Map
typedef ACE_Hash_Map_Iterator < ACE_CString, AVStreams::FDev_var, ACE_Null_Mutex >	FDev_Map_Iterator
typedef ACE_Hash_Map_Entry < ACE_CString, AVStreams::FDev_var >	FDev_Map_Entry
Protected Member Functions
char *	add_fdev_i (AVStreams::FDev_ptr fdev)
	Helper method to implement add_fdev()
Protected Attributes
TAO_AV_Endpoint_Strategy *	endpoint_strategy_
u_int	flow_count_
u_int	flow_num_
	current flow number used for system generation of flow names.
FDev_Map	fdev_map_
AVStreams::flowSpec	flows_
	sequence of supported flow names.
TAO_StreamCtrl *	stream_ctrl_

Detailed Description

Implements a factory to create Endpoints and VDevs.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<ACE_CString,AVStreams::FDev_var,ACE_Null_Mutex> TAO_MMDevice::FDev_Map [protected]

typedef ACE_Hash_Map_Entry<ACE_CString,AVStreams::FDev_var> TAO_MMDevice::FDev_Map_Entry [protected]

typedef ACE_Hash_Map_Iterator<ACE_CString,AVStreams::FDev_var,ACE_Null_Mutex> TAO_MMDevice::FDev_Map_Iterator [protected]

Member Enumeration Documentation

enum TAO_MMDevice::MMDevice_Type

Constructor.

Enumerator:

MMDEVICE_A
MMDEVICE_B

Constructor & Destructor Documentation

TAO_MMDevice::TAO_MMDevice ( TAO_AV_Endpoint_Strategy * endpoint_strategy_ )

TAO_MMDevice::~TAO_MMDevice ( void ) [virtual]

Destructor.

Member Function Documentation

char * TAO_MMDevice::add_fdev ( CORBA::Object_ptr the_fdev ) [virtual]

Not supported in the light profile, raises notsupported.

char * TAO_MMDevice::add_fdev_i ( AVStreams::FDev_ptr fdev ) [protected]

Helper method to implement add_fdev()

AVStreams::StreamCtrl_ptr TAO_MMDevice::bind	(	AVStreams::MMDevice_ptr	peer_device,
		AVStreams::streamQoS &	the_qos,
		CORBA::Boolean_out	is_met,
		const AVStreams::flowSpec &	the_spec
	)		`[virtual]`

Can be used to request the MMDevice to create a new StreamCtrl, and call bind_devs on it

AVStreams::StreamCtrl_ptr TAO_MMDevice::bind_mcast	(	AVStreams::MMDevice_ptr	first_peer,
		AVStreams::streamQoS &	the_qos,
		CORBA::Boolean_out	is_met,
		const AVStreams::flowSpec &	the_spec
	)		`[virtual]`

Multicast bind.

AVStreams::StreamEndPoint_A_ptr TAO_MMDevice::create_A	(	AVStreams::StreamCtrl_ptr	the_requester,
		AVStreams::VDev_out	the_vdev,
		AVStreams::streamQoS &	the_qos,
		CORBA::Boolean_out	met_qos,
		char *&	named_vdev,
		const AVStreams::flowSpec &	the_spec
	)		`[virtual]`

Called by StreamCtrl to create a "A" type streamandpoint and vdev.

AVStreams::StreamEndPoint_ptr TAO_MMDevice::create_A_B	(	MMDevice_Type	type,
		AVStreams::StreamCtrl_ptr	the_requester,
		AVStreams::VDev_out	the_vdev,
		AVStreams::streamQoS &	the_qos,
		CORBA::Boolean_out	met_qos,
		char *&	named_vdev,
		const AVStreams::flowSpec &	the_spec
	)		`[virtual]`

AVStreams::StreamEndPoint_B_ptr TAO_MMDevice::create_B	(	AVStreams::StreamCtrl_ptr	the_requester,
		AVStreams::VDev_out	the_vdev,
		AVStreams::streamQoS &	the_qos,
		CORBA::Boolean_out	met_qos,
		char *&	named_vdev,
		const AVStreams::flowSpec &	the_spec
	)		`[virtual]`
