TAO_StreamCtrl Class Reference

Implementation the A/V StreamCtrl class. this class is used to control the stream. It should be subclassed by applications that want to provide more control features. More...

#include <AVStreams_i.h>

Inheritance diagram for TAO_StreamCtrl:
Inheritance graph
[legend]

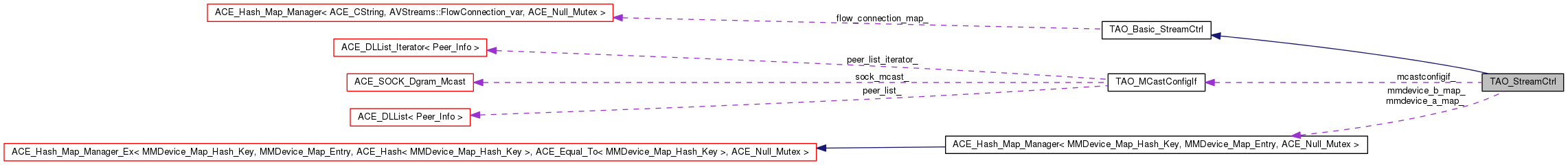

Collaboration diagram for TAO_StreamCtrl:
Collaboration graph
[legend]

List of all members.

Classes

struct  MMDevice_Map_Entry

Public Member Functions

 TAO_StreamCtrl (void)
 Default Constructor.
virtual ~TAO_StreamCtrl (void)
 virtual destructor.
virtual void stop (const AVStreams::flowSpec &the_spec)
virtual void start (const AVStreams::flowSpec &the_spec)
virtual void destroy (const AVStreams::flowSpec &the_spec)
virtual CORBA::Boolean bind_devs (AVStreams::MMDevice_ptr a_party, AVStreams::MMDevice_ptr b_party, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_flows)
virtual CORBA::Boolean bind (AVStreams::StreamEndPoint_A_ptr a_party, AVStreams::StreamEndPoint_B_ptr b_party, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_flows)
virtual void unbind_dev (AVStreams::MMDevice_ptr dev, const AVStreams::flowSpec &the_spec)
virtual void unbind_party (AVStreams::StreamEndPoint_ptr the_ep, const AVStreams::flowSpec &the_spec)
 Unbind the_ep from the stream. Empty the_spec means apply to all flows.
virtual void unbind (void)
 unbind the stream. Same effect as Basic_StreamCtrl::destroy ()
virtual AVStreams::VDev_ptr get_related_vdev (AVStreams::MMDevice_ptr adev, AVStreams::StreamEndPoint_out sep)
virtual CORBA::Boolean modify_QoS (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_spec)

Protected Types

typedef ACE_Hash_Map_Manager
< MMDevice_Map_Hash_Key,
MMDevice_Map_Entry,
ACE_Null_Mutex
MMDevice_Map
typedef ACE_Hash_Map_Iterator
< MMDevice_Map_Hash_Key,
MMDevice_Map_Entry,
ACE_Null_Mutex
MMDevice_Map_Iterator

Protected Attributes

MMDevice_Map mmdevice_a_map_
MMDevice_Map mmdevice_b_map_
TAO_MCastConfigIfmcastconfigif_
AVStreams::MCastConfigIf_var mcastconfigif_ptr_
AVStreams::StreamCtrl_var streamctrl_
CORBA::ULong source_id_

Detailed Description

Implementation the A/V StreamCtrl class. this class is used to control the stream. It should be subclassed by applications that want to provide more control features.


Member Typedef Documentation


Constructor & Destructor Documentation

TAO_StreamCtrl::TAO_StreamCtrl ( void  )

Default Constructor.

TAO_StreamCtrl::~TAO_StreamCtrl ( void  ) [virtual]

virtual destructor.


Member Function Documentation

CORBA::Boolean TAO_StreamCtrl::bind ( AVStreams::StreamEndPoint_A_ptr  a_party,
AVStreams::StreamEndPoint_B_ptr  b_party,
AVStreams::streamQoS the_qos,
const AVStreams::flowSpec the_flows
) [virtual]

Establish a connection between two streamendpoints. This can be used if the streamendpoints have been created independent of a MMDevice

CORBA::Boolean TAO_StreamCtrl::bind_devs ( AVStreams::MMDevice_ptr  a_party,
AVStreams::MMDevice_ptr  b_party,
AVStreams::streamQoS the_qos,
const AVStreams::flowSpec the_flows
) [virtual]

Establish a stream between a_party and b_party, with qos the_qos, and for the flows in the_flows if the_flows is empty, bind all the flows Causes a connection to be established between the StreamEndpoints. Returns success/failure

void TAO_StreamCtrl::destroy ( const AVStreams::flowSpec the_spec) [virtual]

Tears down the stream. This will close the connection, and delete the streamendpoint and vdev associated with this stream Empty the_spec means apply operation to all flows

Reimplemented from TAO_Basic_StreamCtrl.

AVStreams::VDev_ptr TAO_StreamCtrl::get_related_vdev ( AVStreams::MMDevice_ptr  adev,
AVStreams::StreamEndPoint_out  sep
) [virtual]
CORBA::Boolean TAO_StreamCtrl::modify_QoS ( AVStreams::streamQoS new_qos,
const AVStreams::flowSpec the_spec
) [virtual]

Changes the QoS associated with the stream Empty the_spec means apply operation to all flows

Reimplemented from TAO_Basic_StreamCtrl.

void TAO_StreamCtrl::start ( const AVStreams::flowSpec the_spec) [virtual]

Start the transfer of data in the stream. Empty the_spec means apply operation to all flows

Reimplemented from TAO_Basic_StreamCtrl.

void TAO_StreamCtrl::stop ( const AVStreams::flowSpec the_spec) [virtual]

Stop the transfer of data of the stream Empty the_spec means apply operation to all flows

Reimplemented from TAO_Basic_StreamCtrl.

void TAO_StreamCtrl::unbind ( void  ) [virtual]

unbind the stream. Same effect as Basic_StreamCtrl::destroy ()

void TAO_StreamCtrl::unbind_dev ( AVStreams::MMDevice_ptr  dev,
const AVStreams::flowSpec the_spec
) [virtual]
void TAO_StreamCtrl::unbind_party ( AVStreams::StreamEndPoint_ptr  the_ep,
const AVStreams::flowSpec the_spec
) [virtual]

Unbind the_ep from the stream. Empty the_spec means apply to all flows.


Member Data Documentation

AVStreams::MCastConfigIf_var TAO_StreamCtrl::mcastconfigif_ptr_ [protected]
AVStreams::StreamCtrl_var TAO_StreamCtrl::streamctrl_ [protected]
