TAO_Notify_Admin Class Reference

Base class for the ConsumerAdmin and SupplierAdmin. More...

#include <Admin.h>

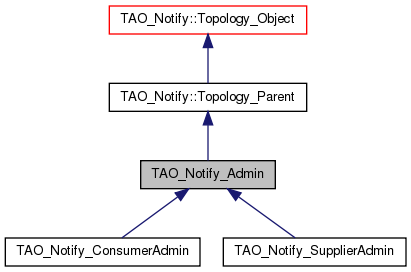

Inheritance diagram for TAO_Notify_Admin:
Inheritance graph

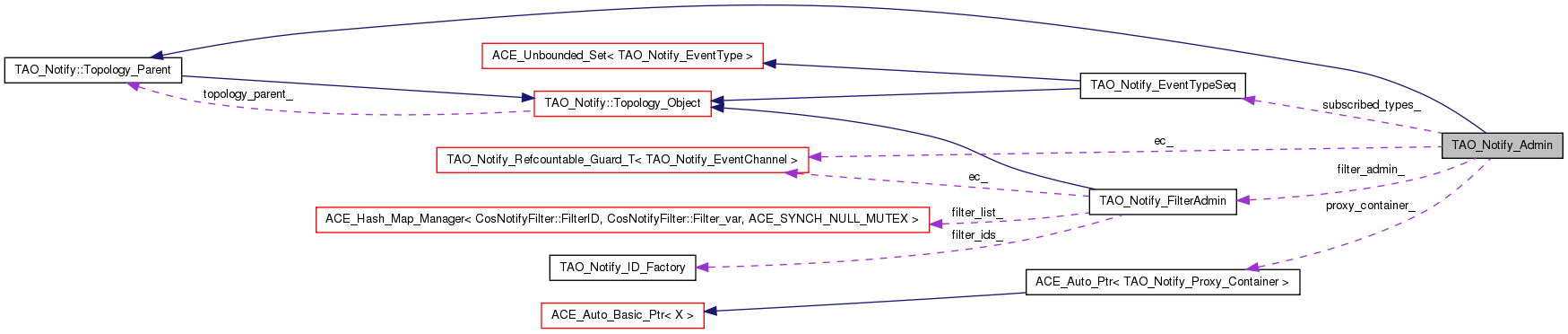

Collaboration diagram for TAO_Notify_Admin:
Collaboration graph

List of all members.

Public Types


Public Member Functions

 TAO_Notify_Admin ()
virtual ~TAO_Notify_Admin ()
void init (TAO_Notify::Topology_Parent *parent)
void insert (TAO_Notify_Proxy *proxy)
 Insert the proxy in the <proxy_container_>.
void cleanup_proxy (TAO_Notify_Proxy *proxy, bool is_supplier, bool experienced_timeout)
 Remove type from container_ and cleanup any EC resources.
TAO_Notify_FilterAdminfilter_admin (void)
 Access Admin FilterAdmin.
void filter_operator (CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
 Set Filter operator.
CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator (void)
 Access Filter operator.
void subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
 Obtain the Admin's subscribed types.
TAO_Notify_EventChannelevent_channel () const
virtual int shutdown (void)
virtual void save_persistent (TAO_Notify::Topology_Saver &saver)
load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
 Create a child of the appropriate type and return it.
virtual void reconnect (void)
virtual void validate ()
void set_default (bool is_default)
bool is_default () const
virtual void load_attrs (const TAO_Notify::NVPList &attrs)

Protected Types

typedef TAO_Notify_Container_T
< TAO_Notify_Proxy

Protected Member Functions

void save_attrs (TAO_Notify::NVPList &attrs)
virtual const char * get_admin_type_name (void) const =0
TAO_Notify_Proxy_Containerproxy_container ()

Protected Attributes

TAO_Notify_EventChannel::Ptr ec_
 = Data Members
TAO_Notify_EventTypeSeq subscribed_types_
 The types that we've subscribed our proxy objects with the event manager.
TAO_Notify_FilterAdmin filter_admin_
 Filter Administration.
CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator_
 Filter operator.
bool is_default_

Private Member Functions

void remove (TAO_Notify_Proxy *proxy)
 Remove type from container_.

Private Attributes

< TAO_Notify_Proxy_Container
 The Proxy Container.


class TAO_Notify_Builder

Detailed Description

Base class for the ConsumerAdmin and SupplierAdmin.

Member Typedef Documentation

typedef CosNotifyChannelAdmin::AdminIDSeq_var TAO_Notify_Admin::SEQ_VAR

Constructor & Destructor Documentation

TAO_Notify_Admin::TAO_Notify_Admin (  )


TAO_Notify_Admin::~TAO_Notify_Admin (  ) [virtual]


Member Function Documentation

void TAO_Notify_Admin::cleanup_proxy ( TAO_Notify_Proxy proxy,
bool  is_supplier,
bool  experienced_timeout

Remove type from container_ and cleanup any EC resources.

TAO_Notify_EventChannel * TAO_Notify_Admin::event_channel (  ) const
TAO_Notify_FilterAdmin & TAO_Notify_Admin::filter_admin ( void   )

Access Admin FilterAdmin.

void TAO_Notify_Admin::filter_operator ( CosNotifyChannelAdmin::InterFilterGroupOperator  filter_operator )

Set Filter operator.

CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator ( void   )

Access Filter operator.

virtual const char* TAO_Notify_Admin::get_admin_type_name ( void   ) const [protected, pure virtual]
void TAO_Notify_Admin::init ( TAO_Notify::Topology_Parent parent )


void TAO_Notify_Admin::insert ( TAO_Notify_Proxy proxy )

Insert the proxy in the <proxy_container_>.

bool TAO_Notify_Admin::is_default ( void   ) const
void TAO_Notify_Admin::load_attrs ( const TAO_Notify::NVPList attrs ) [virtual]

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.

Reimplemented from TAO_Notify_Object.

TAO_Notify::Topology_Object * TAO_Notify_Admin::load_child ( const ACE_CString type,
CORBA::Long  id,
const TAO_Notify::NVPList attrs
) [virtual]

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

Reimplemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.

TAO_Notify_Admin::TAO_Notify_Proxy_Container & TAO_Notify_Admin::proxy_container (  ) [protected]
void TAO_Notify_Admin::reconnect ( void   ) [virtual]

Re-establish connections that we had before a shutdown.

After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.

Reimplemented from TAO_Notify::Topology_Savable.

void TAO_Notify_Admin::remove ( TAO_Notify_Proxy proxy ) [private]

Remove type from container_.

void TAO_Notify_Admin::save_attrs ( TAO_Notify::NVPList attrs ) [protected, virtual]

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented from TAO_Notify_Object.

void TAO_Notify_Admin::save_persistent ( TAO_Notify::Topology_Saver saver ) [virtual]

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

void TAO_Notify_Admin::set_default ( bool  is_default )
int TAO_Notify_Admin::shutdown ( void   ) [virtual]


Reimplemented from TAO_Notify_Object.

void TAO_Notify_Admin::subscribed_types ( TAO_Notify_EventTypeSeq subscribed_types )

Obtain the Admin's subscribed types.

void TAO_Notify_Admin::validate (  ) [virtual]

Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]

Reimplemented from TAO_Notify_Object.

Member Data Documentation

= Data Members

The EventChannel.

Filter Administration.

Filter operator.

The Proxy Container.

The types that we've subscribed our proxy objects with the event manager.

The documentation for this class was generated from the following files:
