TAO_FlowConnection Class Reference

This class currently supports only one producer and one consumer per flow. More...

#include <AVStreams_i.h>

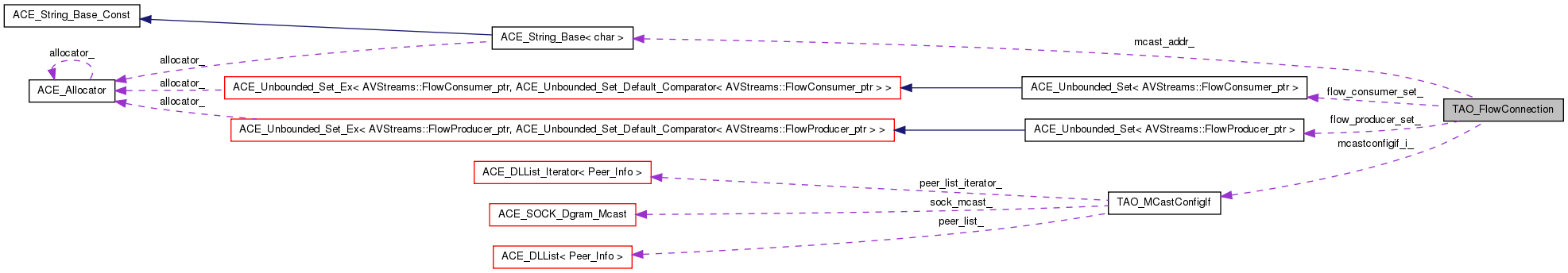

Collaboration diagram for TAO_FlowConnection:

List of all members.

Public Member Functions
	TAO_FlowConnection (void)
	default constructor.
virtual void	stop (void)
	stop this flow.
virtual void	start (void)
	start this flow.
virtual void	destroy (void)
	destroy this flow.
virtual CORBA::Boolean	modify_QoS (AVStreams::QoS &new_qos)
	modify the QoS for this flow.
virtual CORBA::Boolean	use_flow_protocol (const char *fp_name, const CORBA::Any &fp_settings)
	use the specified flow protocol for this flow.
virtual void	push_event (const AVStreams::streamEvent &the_event)
	pushes an event , to be handled by the application.
virtual CORBA::Boolean	connect_devs (AVStreams::FDev_ptr a_party, AVStreams::FDev_ptr b_party, AVStreams::QoS &the_qos)
	connect 2 Flow Devices.
virtual CORBA::Boolean	connect (AVStreams::FlowProducer_ptr flow_producer, AVStreams::FlowConsumer_ptr flow_consumer, AVStreams::QoS &the_qos)
	Connect a flow producer and consumer under this flow connection.
virtual CORBA::Boolean	disconnect (void)
	disconnect this flow connection.
virtual CORBA::Boolean	add_producer (AVStreams::FlowProducer_ptr flow_producer, AVStreams::QoS &the_qos)
	adds the producer to this flow connection.
virtual CORBA::Boolean	add_consumer (AVStreams::FlowConsumer_ptr flow_consumer, AVStreams::QoS &the_qos)
	adds a consumer to this flow connection.
virtual CORBA::Boolean	drop (AVStreams::FlowEndPoint_ptr target)
	drops a flow endpoint from the flow.
int	set_mcast_addr (ACE_CString addr, u_short port)
void	set_protocol (const char *protocol)
Protected Types
typedef ACE_Unbounded_Set < AVStreams::FlowProducer_ptr >	FlowProducer_Set
typedef ACE_Unbounded_Set_Iterator < AVStreams::FlowProducer_ptr >	FlowProducer_SetItor
typedef ACE_Unbounded_Set < AVStreams::FlowConsumer_ptr >	FlowConsumer_Set
typedef ACE_Unbounded_Set_Iterator < AVStreams::FlowConsumer_ptr >	FlowConsumer_SetItor
Protected Attributes
FlowProducer_Set	flow_producer_set_
	The multicast address returned by the producer.
FlowConsumer_Set	flow_consumer_set_
CORBA::String_var	fp_name_
CORBA::Any	fp_settings_
CORBA::String_var	producer_address_
int	ip_multicast_
	IP Multicasting is used.
TAO_MCastConfigIf *	mcastconfigif_i_
AVStreams::MCastConfigIf_var	mcastconfigif_
u_short	mcast_port_
ACE_CString	mcast_addr_
CORBA::String_var	protocol_

---

Detailed Description

This class currently supports only one producer and one consumer per flow.

---

Member Typedef Documentation

typedef ACE_Unbounded_Set<AVStreams::FlowConsumer_ptr> TAO_FlowConnection::FlowConsumer_Set [protected]

typedef ACE_Unbounded_Set_Iterator<AVStreams::FlowConsumer_ptr> TAO_FlowConnection::FlowConsumer_SetItor [protected]

typedef ACE_Unbounded_Set<AVStreams::FlowProducer_ptr> TAO_FlowConnection::FlowProducer_Set [protected]

typedef ACE_Unbounded_Set_Iterator<AVStreams::FlowProducer_ptr> TAO_FlowConnection::FlowProducer_SetItor [protected]

---

Constructor & Destructor Documentation

TAO_FlowConnection::TAO_FlowConnection

(

void

)

default constructor.

---

Member Function Documentation

CORBA::Boolean TAO_FlowConnection::add_consumer	(	AVStreams::FlowConsumer_ptr	flow_consumer,
		AVStreams::QoS &	the_qos
	)		[virtual]

adds a consumer to this flow connection.

CORBA::Boolean TAO_FlowConnection::add_producer	(	AVStreams::FlowProducer_ptr	flow_producer,
		AVStreams::QoS &	the_qos
	)		[virtual]

adds the producer to this flow connection.

CORBA::Boolean TAO_FlowConnection::connect	(	AVStreams::FlowProducer_ptr	flow_producer,
		AVStreams::FlowConsumer_ptr	flow_consumer,
		AVStreams::QoS &	the_qos
	)		[virtual]

Connect a flow producer and consumer under this flow connection.

CORBA::Boolean TAO_FlowConnection::connect_devs	(	AVStreams::FDev_ptr	a_party,
		AVStreams::FDev_ptr	b_party,
		AVStreams::QoS &	the_qos
	)		[virtual]

connect 2 Flow Devices.

void TAO_FlowConnection::destroy

(

void

)

[virtual]

destroy this flow.

CORBA::Boolean TAO_FlowConnection::disconnect

(

void

)

[virtual]

disconnect this flow connection.

CORBA::Boolean TAO_FlowConnection::drop

(

AVStreams::FlowEndPoint_ptr

target )

[virtual]

drops a flow endpoint from the flow.

CORBA::Boolean TAO_FlowConnection::modify_QoS

(

AVStreams::QoS &

new_qos )

[virtual]

modify the QoS for this flow.

void TAO_FlowConnection::push_event

(

const AVStreams::streamEvent &

the_event )

[virtual]

pushes an event , to be handled by the application.

int TAO_FlowConnection::set_mcast_addr	(	ACE_CString	addr,
		u_short	port
	)

void TAO_FlowConnection::set_protocol

(

const char *

protocol )

void TAO_FlowConnection::start

(

void

)

[virtual]

start this flow.

void TAO_FlowConnection::stop

(

void

)

[virtual]

stop this flow.

CORBA::Boolean TAO_FlowConnection::use_flow_protocol	(	const char *	fp_name,
		const CORBA::Any &	fp_settings
	)		[virtual]

use the specified flow protocol for this flow.

---

Member Data Documentation

FlowConsumer_Set TAO_FlowConnection::flow_consumer_set_ [protected]

FlowProducer_Set TAO_FlowConnection::flow_producer_set_ [protected]

The multicast address returned by the producer.

CORBA::String_var TAO_FlowConnection::fp_name_ [protected]

CORBA::Any TAO_FlowConnection::fp_settings_ [protected]

int TAO_FlowConnection::ip_multicast_ [protected]

IP Multicasting is used.

ACE_CString TAO_FlowConnection::mcast_addr_ [protected]

u_short TAO_FlowConnection::mcast_port_ [protected]

AVStreams::MCastConfigIf_var TAO_FlowConnection::mcastconfigif_ [protected]

TAO_MCastConfigIf* TAO_FlowConnection::mcastconfigif_i_ [protected]

CORBA::String_var TAO_FlowConnection::producer_address_ [protected]

CORBA::String_var TAO_FlowConnection::protocol_ [protected]

---

The documentation for this class was generated from the following files:

• AVStreams_i.h
• AVStreams_i.cpp
