ACE_WFMO_Reactor Class Reference

An object oriented event demultiplexor and event handler. ACE_WFMO_Reactor is a Windows-only implementation of the ACE_Reactor interface that uses the WaitForMultipleObjects() event demultiplexer. More...

#include <WFMO_Reactor.h>

Inheritance diagram for ACE_WFMO_Reactor:
Inheritance graph
[legend]

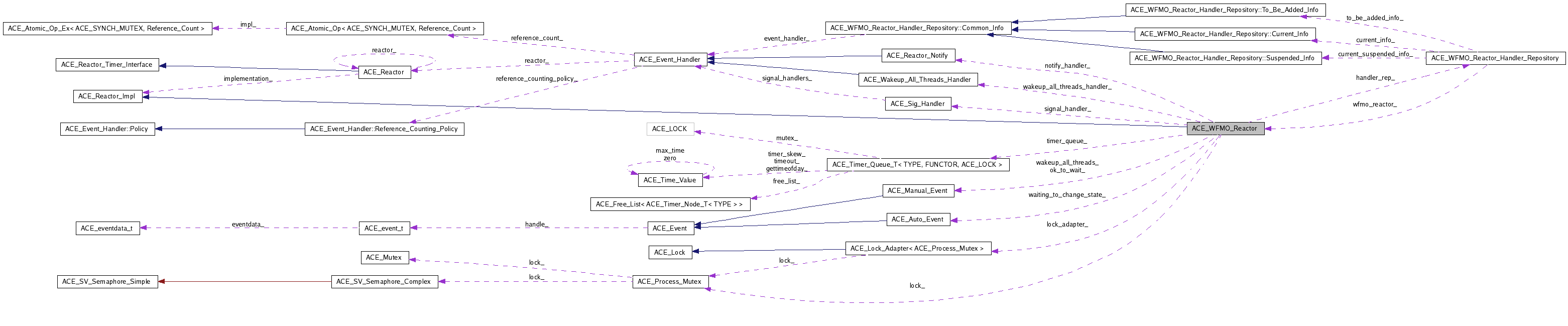

Collaboration diagram for ACE_WFMO_Reactor:
Collaboration graph
[legend]

List of all members.

Public Types

enum  { DEFAULT_SIZE = MAXIMUM_WAIT_OBJECTS - 2 }

Public Member Functions

 ACE_WFMO_Reactor (ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, ACE_Reactor_Notify *=0)
 Initialize ACE_WFMO_Reactor with the default size.
 ACE_WFMO_Reactor (size_t size, int unused=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, ACE_Reactor_Notify *=0)
virtual int open (size_t size=ACE_WFMO_Reactor::DEFAULT_SIZE, bool restart=false, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *=0)
virtual int current_info (ACE_HANDLE, size_t &)
 Returns -1 (not used in this implementation);.
virtual int set_sig_handler (ACE_Sig_Handler *signal_handler)
 Use a user specified signal handler instead.
virtual int timer_queue (ACE_Timer_Queue *tq)
 Set a user-specified timer queue.
virtual ACE_Timer_Queuetimer_queue (void) const
 Return the current ACE_Timer_Queue.
virtual int close (void)
 Close down the ACE_WFMO_Reactor and release all of its resources.
virtual ~ACE_WFMO_Reactor (void)
 Close down the ACE_WFMO_Reactor and release all of its resources.
virtual int work_pending (const ACE_Time_Value &max_wait_time=ACE_Time_Value::zero)
virtual int handle_events (ACE_Time_Value *max_wait_time=0)
virtual int alertable_handle_events (ACE_Time_Value *max_wait_time=0)
virtual int handle_events (ACE_Time_Value &max_wait_time)
virtual int alertable_handle_events (ACE_Time_Value &max_wait_time)
virtual int deactivated (void)
virtual void deactivate (int do_stop)
virtual int register_handler (ACE_Event_Handler *event_handler, ACE_HANDLE event_handle=ACE_INVALID_HANDLE)
virtual int register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)
virtual int register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0)
virtual int remove_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int remove_handler (ACE_HANDLE handle, ACE_Reactor_Mask mask)
virtual int remove_handler (const ACE_Handle_Set &handle_set, ACE_Reactor_Mask)
virtual int remove_handler (int signum, ACE_Sig_Action *new_disp, ACE_Sig_Action *old_disp=0, int sigkey=-1)
virtual int remove_handler (const ACE_Sig_Set &sigset)
 Calls <remove_handler> for every signal in sigset.
virtual int suspend_handler (ACE_Event_Handler *event_handler)
virtual int suspend_handler (ACE_HANDLE handle)
 Suspend handle temporarily.
virtual int suspend_handler (const ACE_Handle_Set &handles)
 Suspend all handles in handle set temporarily.
virtual int suspend_handlers (void)
 Suspend all <handles> temporarily.
virtual int resume_handler (ACE_Event_Handler *event_handler)
virtual int resume_handler (ACE_HANDLE handle)
 Resume handle.
virtual int resume_handler (const ACE_Handle_Set &handles)
 Resume all handles in handle set.
virtual int resume_handlers (void)
 Resume all <handles>.
virtual int resumable_handler (void)
virtual bool uses_event_associations (void)
virtual long schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval=ACE_Time_Value::zero)
virtual int reset_timer_interval (long timer_id, const ACE_Time_Value &interval)
virtual int cancel_timer (ACE_Event_Handler *event_handler, int dont_call_handle_close=1)
virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)
virtual int schedule_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_added)
virtual int schedule_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_added)
virtual int cancel_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_deleted)
virtual int cancel_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_deleted)
virtual int notify (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *=0)
virtual void max_notify_iterations (int)
virtual int max_notify_iterations (void)
virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
ACE_Event_Handlerfind_handler (ACE_HANDLE handle)
virtual int handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)
virtual int handler (int signum, ACE_Event_Handler **=0)
virtual bool initialized (void)
virtual size_t size (void) const
virtual ACE_Locklock (void)
 Returns a reference to the WFMO_Reactor's internal lock.
virtual void wakeup_all_threads (void)
virtual int owner (ACE_thread_t new_owner, ACE_thread_t *old_owner=0)
virtual int owner (ACE_thread_t *owner)
 Return the ID of the "owner" thread.
virtual bool restart (void)
 Get the existing restart value.
virtual bool restart (bool r)
 Set a new value for restart and return the original value.
virtual void requeue_position (int)
 Not implemented.
virtual int requeue_position (void)
 Not implemented.
virtual int mask_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks, int operation)
virtual int mask_ops (ACE_HANDLE handle, ACE_Reactor_Mask masks, int ops)
virtual int ready_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)
 Not implemented.
virtual int ready_ops (ACE_HANDLE handle, ACE_Reactor_Mask, int ops)
 Not implemented.
virtual void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

virtual int register_handler_i (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
 Registration workhorse.
virtual int event_handling (ACE_Time_Value *max_wait_time=0, int alertable=0)
 Event handling workhorse.
virtual int mask_ops_i (ACE_HANDLE io_handle, ACE_Reactor_Mask masks, int operation)
 Bit masking workhorse.
virtual ACE_thread_t owner_i (void)
 Return the ID of the "owner" thread. Does not do any locking.
virtual int ok_to_wait (ACE_Time_Value *max_wait_time, int alertable)
virtual DWORD wait_for_multiple_events (int timeout, int alertable)
 Wait for timer and I/O events to occur.
virtual DWORD poll_remaining_handles (DWORD slot)
 Check for activity on remaining handles.
virtual int expire_timers (void)
virtual int dispatch (DWORD wait_status)
 Dispatches the timers and I/O handlers.
virtual int safe_dispatch (DWORD wait_status)
virtual int dispatch_handles (DWORD slot)
virtual int dispatch_handler (DWORD slot, DWORD max_handlep1)
virtual int simple_dispatch_handler (DWORD slot, ACE_HANDLE event_handle)
virtual int complex_dispatch_handler (DWORD slot, ACE_HANDLE event_handle)
virtual int dispatch_window_messages (void)
 Dispatches window messages. Noop for WFMO_Reactor.
virtual ACE_Reactor_Mask upcall (ACE_Event_Handler *event_handler, ACE_HANDLE io_handle, WSANETWORKEVENTS &events)
virtual int calculate_timeout (ACE_Time_Value *time)
 Used to caluculate the next timeout.
virtual int update_state (void)
 Update the state of the handler repository.
virtual int new_owner (void)
 Check to see if we have a new owner.
virtual int change_owner (void)
 Set owner to new owner.

Protected Attributes

ACE_Sig_Handlersignal_handler_
 Handle signals without requiring global/static variables.
bool delete_signal_handler_
ACE_Timer_Queuetimer_queue_
 Defined as a pointer to allow overriding by derived classes...
bool delete_timer_queue_
bool delete_handler_rep_
 Keeps track of whether we should delete the handler repository.
ACE_Reactor_Notifynotify_handler_
 Used when <notify> is called.
bool delete_notify_handler_
 Keeps track of whether we should delete the notify handler.
ACE_Process_Mutex lock_
ACE_Lock_Adapter
< ACE_Process_Mutex
lock_adapter_
 Adapter used to return internal lock to outside world.
ACE_WFMO_Reactor_Handler_Repository handler_rep_
 Table that maps <ACE_HANDLEs> to <ACE_Event_Handler *>'s.
ACE_Manual_Event ok_to_wait_
ACE_Manual_Event wakeup_all_threads_
ACE_Wakeup_All_Threads_Handler wakeup_all_threads_handler_
 Used when <wakeup_all_threads_> is signaled.
ACE_Auto_Event waiting_to_change_state_
size_t active_threads_
 Count of currently active threads.
ACE_thread_t owner_
ACE_thread_t new_owner_
 The owner to be of the WFMO_Reactor.
ACE_thread_t change_state_thread_
ACE_HANDLE atomic_wait_array_ [2]
bool open_for_business_
 This flag is used to keep track of whether we are already closed.
sig_atomic_t deactivated_

Private Member Functions

 ACE_WFMO_Reactor (const ACE_WFMO_Reactor &)
 Deny access since member-wise won't work...
ACE_WFMO_Reactoroperator= (const ACE_WFMO_Reactor &)

Friends

class ACE_WFMO_Reactor_Handler_Repository
class ACE_WFMO_Reactor_Test

Detailed Description

An object oriented event demultiplexor and event handler. ACE_WFMO_Reactor is a Windows-only implementation of the ACE_Reactor interface that uses the WaitForMultipleObjects() event demultiplexer.

Like the other ACE Reactors, ACE_WFMO_Reactor can schedule timers. It also reacts to signalable handles, such as events (see the documentation for WaitForMultipleObjects() for a complete list of signalable handle types). Therefore, I/O handles are not directly usable for registering for input, output, and exception notification. The exception to this is ACE_SOCK-based handles, which can be registered for input, output, and exception notification just as with other platforms. See Chapter 4 in C++NPv2 for complete details.

Note that changes to the state of ACE_WFMO_Reactor are not instantaneous. Most changes (registration, removal, suspension, and resumption of handles, and changes in ownership) are made when the ACE_WFMO_Reactor reaches a stable state. Users should be careful, especially when removing handlers. This is because the ACE_WFMO_Reactor will call handle_close() on the handler when it is finally removed and not when remove_handler() is called. If the registered handler's pointer is not valid when ACE_WFMO_Reactor calls ACE_Event_Handler::handle_close(), use the DONT_CALL flag with remove_handler(). Preferably, use dynamically allocated event handlers and call "delete this" inside the handle_close() hook method.

Note that although multiple threads can concurrently run the ACE_WFMO_Reactor event loop, the concept of the reactor "owner" is still important. Only the owner thread can expire timers and wait on the notifications handle. Thus, be careful to properly set the owner thread when spawning threads to run the event loop while you are using timers or notifications.


Member Enumeration Documentation

anonymous enum
Enumerator:
DEFAULT_SIZE

Default size of the WFMO_Reactor's handle table.

Two slots will be added to the size parameter in the constructor and open methods which will store handles used for internal management purposes.


Constructor & Destructor Documentation

ACE_WFMO_Reactor::ACE_WFMO_Reactor ( ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
ACE_Reactor_Notify = 0
)

Initialize ACE_WFMO_Reactor with the default size.

ACE_WFMO_Reactor::ACE_WFMO_Reactor ( size_t  size,
int  unused = 0,
ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
ACE_Reactor_Notify = 0
)

Initialize ACE_WFMO_Reactor with the specified size.

Parameters:
size The maximum number of handles the reactor can register. The value should not exceed ACE_WFMO_Reactor::DEFAULT_SIZE. Two slots will be added to the size parameter which will store handles used for internal management purposes.
virtual ACE_WFMO_Reactor::~ACE_WFMO_Reactor ( void   )  [virtual]

Close down the ACE_WFMO_Reactor and release all of its resources.

ACE_WFMO_Reactor::ACE_WFMO_Reactor ( const ACE_WFMO_Reactor  )  [private]

Deny access since member-wise won't work...


Member Function Documentation

virtual int ACE_WFMO_Reactor::alertable_handle_events ( ACE_Time_Value max_wait_time  )  [virtual]

Implements ACE_Reactor_Impl.

Reimplemented in ACE_Msg_WFMO_Reactor.

virtual int ACE_WFMO_Reactor::alertable_handle_events ( ACE_Time_Value max_wait_time = 0  )  [virtual]

Implements ACE_Reactor_Impl.

Reimplemented in ACE_Msg_WFMO_Reactor.

virtual int ACE_WFMO_Reactor::calculate_timeout ( ACE_Time_Value time  )  [protected, virtual]

Used to caluculate the next timeout.

virtual int ACE_WFMO_Reactor::cancel_timer ( long  timer_id,
const void **  arg = 0,
int  dont_call_handle_close = 1
) [virtual]

Cancel the single Event_Handler that matches the timer_id value (which was returned from the schedule method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the Event_Handler was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::cancel_timer ( ACE_Event_Handler event_handler,
int  dont_call_handle_close = 1
) [virtual]

Cancel all Event_Handlers that match the address of event_handler. Returns number of handler's cancelled.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::cancel_wakeup ( ACE_HANDLE  handle,
ACE_Reactor_Mask  masks_to_be_deleted
) [virtual]

Remove <masks_to_be_deleted> to the <handle>'s entry in WFMO_Reactor. The Event_Handler associated with <handle> must already have been registered with WFMO_Reactor.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::cancel_wakeup ( ACE_Event_Handler event_handler,
ACE_Reactor_Mask  masks_to_be_deleted
) [virtual]

Remove <masks_to_be_deleted> to the <handle>'s entry in WFMO_Reactor. The Event_Handler associated with <handle> must already have been registered with WFMO_Reactor.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::change_owner ( void   )  [protected, virtual]

Set owner to new owner.

virtual int ACE_WFMO_Reactor::close ( void   )  [virtual]

Close down the ACE_WFMO_Reactor and release all of its resources.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::complex_dispatch_handler ( DWORD  slot,
ACE_HANDLE  event_handle
) [protected, virtual]

Dispatches a single handler. Returns 0 on success, -1 if the handler was removed.

virtual int ACE_WFMO_Reactor::current_info ( ACE_HANDLE  ,
size_t &
) [virtual]

Returns -1 (not used in this implementation);.

Implements ACE_Reactor_Impl.

virtual void ACE_WFMO_Reactor::deactivate ( int  do_stop  )  [virtual]

Control whether the Reactor will handle any more incoming events or not. If <do_stop> == 1, the Reactor will be disabled. By default, a reactor is in active state and can be deactivated/reactived as wish.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::deactivated ( void   )  [virtual]

Return the status of Reactor. If this function returns 0, the reactor is actively handling events. If it returns non-zero, <handling_events> and <handle_alertable_events> return -1 immediately.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::dispatch ( DWORD  wait_status  )  [protected, virtual]

Dispatches the timers and I/O handlers.

virtual int ACE_WFMO_Reactor::dispatch_handler ( DWORD  slot,
DWORD  max_handlep1
) [protected, virtual]

Dispatches a single handler. Returns 0 on success, -1 if the handler was removed.

virtual int ACE_WFMO_Reactor::dispatch_handles ( DWORD  slot  )  [protected, virtual]

Dispatches any active handles from handles_[slot] to handles_[active_handles_] using <WaitForMultipleObjects> to poll through our handle set looking for active handles.

virtual int ACE_WFMO_Reactor::dispatch_window_messages ( void   )  [protected, virtual]

Dispatches window messages. Noop for WFMO_Reactor.

Reimplemented in ACE_Msg_WFMO_Reactor.

virtual void ACE_WFMO_Reactor::dump ( void   )  const [virtual]

Dump the state of an object.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::event_handling ( ACE_Time_Value max_wait_time = 0,
int  alertable = 0
) [protected, virtual]

Event handling workhorse.

virtual int ACE_WFMO_Reactor::expire_timers ( void   )  [protected, virtual]

Expire timers. Only the owner thread does useful stuff in this function.

ACE_Event_Handler* ACE_WFMO_Reactor::find_handler ( ACE_HANDLE  handle  )  [virtual]

Return the Event_Handler associated with <handle>. Return 0 if <handle> is not registered.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::handle_events ( ACE_Time_Value max_wait_time  )  [virtual]

This method is just like the one above, except the max_wait_time value is a reference and can therefore never be NULL.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, TRUE is passed to <WaitForMultipleObjects> for the <bAlertable> option.

Implements ACE_Reactor_Impl.

Reimplemented in ACE_Msg_WFMO_Reactor.

virtual int ACE_WFMO_Reactor::handle_events ( ACE_Time_Value max_wait_time = 0  )  [virtual]

This event loop driver blocks for up to max_wait_time before returning. It will return earlier if timer events, I/O events, or signal events occur. Note that max_wait_time can be 0, in which case this method blocks indefinitely until events occur.

max_wait_time is decremented to reflect how much time this call took. For instance, if a time value of 3 seconds is passed to handle_events and an event occurs after 2 seconds, max_wait_time will equal 1 second. This can be used if an application wishes to handle events for some fixed amount of time.

<WaitForMultipleObjects> is used as the demultiplexing call

Returns the total number of I/O and timer ACE_Event_Handlers that were dispatched, 0 if the max_wait_time elapsed without dispatching any handlers, or -1 if an error occurs.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, TRUE is passed to <WaitForMultipleObjects> for the <bAlertable> option.

Implements ACE_Reactor_Impl.

Reimplemented in ACE_Msg_WFMO_Reactor.

virtual int ACE_WFMO_Reactor::handler ( int  signum,
ACE_Event_Handler **  = 0
) [virtual]

Check to see if signum is associated with a valid Event_Handler bound to a signal. Return the <event_handler> associated with this handler if <event_handler> != 0.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::handler ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
ACE_Event_Handler **  event_handler = 0
) [virtual]

Check to see if <handle> is associated with a valid Event_Handler bound to mask. Return the event_handler associated with this handler if event_handler != 0.

Implements ACE_Reactor_Impl.

virtual bool ACE_WFMO_Reactor::initialized ( void   )  [virtual]

Returns true if WFMO_Reactor has been successfully initialized, else false.

Implements ACE_Reactor_Impl.

virtual ACE_Lock& ACE_WFMO_Reactor::lock ( void   )  [virtual]

Returns a reference to the WFMO_Reactor's internal lock.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::mask_ops ( ACE_HANDLE  handle,
ACE_Reactor_Mask  masks,
int  ops
) [virtual]

Modify masks of the <handle>'s entry in WFMO_Reactor depending upon <operation>. <handle> must already have been registered with WFMO_Reactor.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::mask_ops ( ACE_Event_Handler event_handler,
ACE_Reactor_Mask  masks,
int  operation
) [virtual]

Modify masks of the event_handler's entry in WFMO_Reactor depending upon <operation>. event_handler must already have been registered with WFMO_Reactor.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::mask_ops_i ( ACE_HANDLE  io_handle,
ACE_Reactor_Mask  masks,
int  operation
) [protected, virtual]

Bit masking workhorse.

virtual int ACE_WFMO_Reactor::max_notify_iterations ( void   )  [virtual]

Get the maximum number of times that the <ACE_WFMO_Reactor_Notify::handle_input> method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop.

Implements ACE_Reactor_Impl.

virtual void ACE_WFMO_Reactor::max_notify_iterations ( int   )  [virtual]

Set the maximum number of times that the <ACE_WFMO_Reactor_Notify::handle_input> method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::new_owner ( void   )  [protected, virtual]

Check to see if we have a new owner.

virtual int ACE_WFMO_Reactor::notify ( ACE_Event_Handler = 0,
ACE_Reactor_Mask  = ACE_Event_Handler::EXCEPT_MASK,
ACE_Time_Value = 0
) [virtual]

Wakeup one <ACE_WFMO_Reactor> thread if it is currently blocked in <WaitForMultipleObjects>. The ACE_Time_Value indicates how long to blocking trying to notify the <WFMO_Reactor>. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in timeout elapses).

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::ok_to_wait ( ACE_Time_Value max_wait_time,
int  alertable
) [protected, virtual]

Wait up to max_wait_time until it's ok to enter WaitForMultipleObjects. Returns 1 (and holding lock_) if ok to wait; -1 (and not holding lock_) if not.

virtual int ACE_WFMO_Reactor::open ( size_t  size = ACE_WFMO_Reactor::DEFAULT_SIZE,
bool  restart = false,
ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify = 0
) [virtual]

Initialize ACE_WFMO_Reactor with the specified size.

Parameters:
size The maximum number of handles the reactor can register. The value should not exceed ACE_WFMO_Reactor::DEFAULT_SIZE. Two slots will be added to the size parameter which will store handles used for internal management purposes.

Implements ACE_Reactor_Impl.

ACE_WFMO_Reactor& ACE_WFMO_Reactor::operator= ( const ACE_WFMO_Reactor  )  [private]
virtual int ACE_WFMO_Reactor::owner ( ACE_thread_t owner  )  [virtual]

Return the ID of the "owner" thread.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::owner ( ACE_thread_t  new_owner,
ACE_thread_t old_owner = 0
) [virtual]

Transfers ownership of the WFMO_Reactor to the new_owner. The transfer will not complete until all threads are ready (just like the handle set).

Implements ACE_Reactor_Impl.

virtual ACE_thread_t ACE_WFMO_Reactor::owner_i ( void   )  [protected, virtual]

Return the ID of the "owner" thread. Does not do any locking.

virtual DWORD ACE_WFMO_Reactor::poll_remaining_handles ( DWORD  slot  )  [protected, virtual]

Check for activity on remaining handles.

Reimplemented in ACE_Msg_WFMO_Reactor.

virtual int ACE_WFMO_Reactor::purge_pending_notifications ( ACE_Event_Handler = 0,
ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK
) [virtual]

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. Returns the number of notifications purged. Returns -1 on error.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::ready_ops ( ACE_HANDLE  handle,
ACE_Reactor_Mask  ,
int  ops
) [virtual]

Not implemented.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::ready_ops ( ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask,
int  ops
) [virtual]

Not implemented.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::register_handler ( const ACE_Sig_Set sigset,
ACE_Event_Handler new_sh,
ACE_Sig_Action new_disp = 0
) [virtual]

Registers new_sh to handle a set of signals sigset using the new_disp.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::register_handler ( int  signum,
ACE_Event_Handler new_sh,
ACE_Sig_Action new_disp = 0,
ACE_Event_Handler **  old_sh = 0,
ACE_Sig_Action old_disp = 0
) [virtual]

Register new_sh to handle the signal signum using the new_disp. Returns the old_sh that was previously registered (if any), along with the old_disp of the signal handler.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::register_handler ( const ACE_Handle_Set handles,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
) [virtual]

Register event_handler with all the handles in the <Handle_Set>.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::register_handler ( ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
) [virtual]

This is a simple version of the above <register_handler> method where the I/O handle will always come from <get_handle> on the <Event_Handler> and the event handle will always be created by <WFMO_Reactor>

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::register_handler ( ACE_HANDLE  io_handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
) [virtual]

This is a simple version of the above <register_handler> method where the I/O handle is passed in and the event handle will always be created by <WFMO_Reactor>

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::register_handler ( ACE_HANDLE  event_handle,
ACE_HANDLE  io_handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
) [virtual]

Register an ACE_Event_Handler <event_handle>. mask specifies the network events that the <event_handler> is interested in. If <io_handle> == <ACE_INVALID_HANDLE> the <ACE_WFMO_Reactor> will call the <get_handle> method of <event_handler> to extract the underlying I/O handle. If the <event_handle> == <ACE_INVALID_HANDLE>, WFMO_Reactor will create an event for associating it with the I/O handle. When the <event_handle> is signalled, the appropriate <handle_*> callback will be invoked on the <Event_Handler>

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::register_handler ( ACE_Event_Handler event_handler,
ACE_HANDLE  event_handle = ACE_INVALID_HANDLE
) [virtual]

Register an ACE_Event_Handler event_handler. Since no Event Mask is passed through this interface, it is assumed that the handle being passed in is an event handle and when the event becomes signaled, <WFMO_Reactor> will call handle_signal on event_handler. If handle == <ACE_INVALID_HANDLE> the <ACE_WFMO_Reactor> will call the <get_handle> method of event_handler to extract the underlying event handle.

virtual int ACE_WFMO_Reactor::register_handler_i ( ACE_HANDLE  event_handle,
ACE_HANDLE  io_handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
) [protected, virtual]

Registration workhorse.

virtual int ACE_WFMO_Reactor::remove_handler ( const ACE_Sig_Set sigset  )  [virtual]

Calls <remove_handler> for every signal in sigset.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::remove_handler ( int  signum,
ACE_Sig_Action new_disp,
ACE_Sig_Action old_disp = 0,
int  sigkey = -1
) [virtual]

Remove the ACE_Event_Handler currently associated with signum. sigkey is ignored in this implementation since there is only one instance of a signal handler. Install the new disposition (if given) and return the previous disposition (if desired by the caller). Returns 0 on success and -1 if signum is invalid.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::remove_handler ( const ACE_Handle_Set handle_set,
ACE_Reactor_Mask
) [virtual]

Removes all the mask bindings for handles in the handle_set bind of <Event_Handler>. If there are no more bindings for any of these handles then they are removed from WFMO_Reactor.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::remove_handler ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
) [virtual]

Removes handle from the <ACE_WFMO_Reactor>. If mask == ACE_Event_Handler::DONT_CALL then the <handle_close> method of the <event_handler> is not invoked. Note that the handle can either be the <event_handle> or the <io_handle>

For the case of I/O entries, this removes the mask binding of <Event_Handler> whose handle is handle from <WFMO_Reactor>. If there are no more bindings for this <event_handler> then it is removed from the WFMO_Reactor. For simple event entries, mask is mostly ignored and the <Event_Handler> is always removed from <WFMO_Reactor>

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::remove_handler ( ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
) [virtual]

Removes event_handler from the <ACE_WFMO_Reactor>. Note that the <ACE_WFMO_Reactor> will call the <get_handle> method of event_handler to extract the underlying handle. If mask == ACE_Event_Handler::DONT_CALL then the <handle_close> method of the event_handler is not invoked. Note that the handle can either be the <event_handle> or the <io_handle>

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::requeue_position ( void   )  [virtual]

Not implemented.

Implements ACE_Reactor_Impl.

virtual void ACE_WFMO_Reactor::requeue_position ( int   )  [virtual]

Not implemented.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::reset_timer_interval ( long  timer_id,
const ACE_Time_Value interval
) [virtual]

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Reactor_Impl.

virtual bool ACE_WFMO_Reactor::restart ( bool  r  )  [virtual]

Set a new value for restart and return the original value.

Implements ACE_Reactor_Impl.

virtual bool ACE_WFMO_Reactor::restart ( void   )  [virtual]

Get the existing restart value.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::resumable_handler ( void   )  [virtual]

Does the reactor allow the application to resume the handle on its own ie. can it pass on the control of handle resumption to the application. A positive value indicates that the handlers are application resumable. A value of 0 indicates otherwise.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::resume_handler ( const ACE_Handle_Set handles  )  [virtual]

Resume all handles in handle set.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::resume_handler ( ACE_HANDLE  handle  )  [virtual]

Resume handle.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::resume_handler ( ACE_Event_Handler event_handler  )  [virtual]

Resume event_handler. Use <ACE_Event_Handler::get_handle> to get the handle.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::resume_handlers ( void   )  [virtual]

Resume all <handles>.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::safe_dispatch ( DWORD  wait_status  )  [protected, virtual]

Protect against structured exceptions caused by user code when dispatching handles

virtual long ACE_WFMO_Reactor::schedule_timer ( ACE_Event_Handler event_handler,
const void *  arg,
const ACE_Time_Value delay,
const ACE_Time_Value interval = ACE_Time_Value::zero
) [virtual]

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:
cancel_timer()
reset_timer_interval()
Parameters:
event_handler event handler to schedule on reactor
arg argument passed to the handle_timeout() method of event_handler
delay time interval after which the timer will expire
interval time interval after which the timer will be automatically rescheduled
Returns:
-1 on failure, a timer_id value on success

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::schedule_wakeup ( ACE_HANDLE  handle,
ACE_Reactor_Mask  masks_to_be_added
) [virtual]

Add masks_to_be_added to the handle's entry in WFMO_Reactor. The Event_Handler associated with handle must already have been registered with WFMO_Reactor.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::schedule_wakeup ( ACE_Event_Handler event_handler,
ACE_Reactor_Mask  masks_to_be_added
) [virtual]

Add masks_to_be_added to the event_handler's entry in WFMO_Reactor. event_handler must already have been registered with WFMO_Reactor.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::set_sig_handler ( ACE_Sig_Handler signal_handler  )  [virtual]

Use a user specified signal handler instead.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::simple_dispatch_handler ( DWORD  slot,
ACE_HANDLE  event_handle
) [protected, virtual]

Dispatches a single handler. Returns 0 on success, -1 if the handler was removed.

virtual size_t ACE_WFMO_Reactor::size ( void   )  const [virtual]

Returns the current size of the WFMO_Reactor's internal descriptor table.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::suspend_handler ( const ACE_Handle_Set handles  )  [virtual]

Suspend all handles in handle set temporarily.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::suspend_handler ( ACE_HANDLE  handle  )  [virtual]

Suspend handle temporarily.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::suspend_handler ( ACE_Event_Handler event_handler  )  [virtual]

Suspend event_handler temporarily. Use <ACE_Event_Handler::get_handle> to get the handle.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::suspend_handlers ( void   )  [virtual]

Suspend all <handles> temporarily.

Implements ACE_Reactor_Impl.

virtual ACE_Timer_Queue* ACE_WFMO_Reactor::timer_queue ( void   )  const [virtual]

Return the current ACE_Timer_Queue.

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::timer_queue ( ACE_Timer_Queue tq  )  [virtual]

Set a user-specified timer queue.

Implements ACE_Reactor_Impl.

virtual ACE_Reactor_Mask ACE_WFMO_Reactor::upcall ( ACE_Event_Handler event_handler,
ACE_HANDLE  io_handle,
WSANETWORKEVENTS events
) [protected, virtual]
virtual int ACE_WFMO_Reactor::update_state ( void   )  [protected, virtual]

Update the state of the handler repository.

virtual bool ACE_WFMO_Reactor::uses_event_associations ( void   )  [virtual]

Return true if we any event associations were made by the reactor for the handles that it waits on, false otherwise. Since the WFMO_Reactor does use event associations, this function always return true.

Implements ACE_Reactor_Impl.

virtual DWORD ACE_WFMO_Reactor::wait_for_multiple_events ( int  timeout,
int  alertable
) [protected, virtual]

Wait for timer and I/O events to occur.

Reimplemented in ACE_Msg_WFMO_Reactor.

virtual void ACE_WFMO_Reactor::wakeup_all_threads ( void   )  [virtual]

Wake up all threads in WaitForMultipleObjects so that they can reconsult the handle set

Implements ACE_Reactor_Impl.

virtual int ACE_WFMO_Reactor::work_pending ( const ACE_Time_Value max_wait_time = ACE_Time_Value::zero  )  [virtual]

This method is not currently implemented. We recommend that you use handle_events (ACE_Time_Value::zero) to get basically the same effect, i.e., it won't block the caller if there are no events.

Implements ACE_Reactor_Impl.


Friends And Related Function Documentation

friend class ACE_WFMO_Reactor_Handler_Repository [friend]
friend class ACE_WFMO_Reactor_Test [friend]

Member Data Documentation

Declare the dynamic allocation hooks.

Reimplemented from ACE_Reactor_Impl.

Count of currently active threads.

ACE_HANDLE ACE_WFMO_Reactor::atomic_wait_array_[2] [protected]

This is an array of ACE_HANDLEs which keep track of the <lock_> and <ok_to_wait_> handles

This is the thread which is responsible for the changing the state of the <WFMO_Reactor> handle set

This flag is used to keep track of whether we are actively handling events or not.

Keeps track of whether we should delete the handler repository.

Keeps track of whether we should delete the notify handler.

Keeps track of whether we should delete the signal handler (if we didn't create it, then we don't delete it).

Keeps track of whether we should delete the timer queue (if we didn't create it, then we don't delete it).

Table that maps <ACE_HANDLEs> to <ACE_Event_Handler *>'s.

Synchronization for the ACE_WFMO_Reactor.

A Process Mutex is used here because of two reasons: (a) The implementation of ACE_Thread_Mutex uses CriticalSections CriticalSections are not waitable using WaitForMultipleObjects (b) This is really not a process mutex because it is not named. No other process can use this mutex.

Adapter used to return internal lock to outside world.

The owner to be of the WFMO_Reactor.

Used when <notify> is called.

A manual event used to block threads from proceeding into WaitForMultipleObjects

This flag is used to keep track of whether we are already closed.

The thread which is "owner" of the WFMO_Reactor. The owner concept is used because we don't want multiple threads to try to expire timers. Therefore the "owner" thread is the only one allowed to expire timers. Also, the owner thread is the only thread which waits on the notify handle. Note that the ownership can be transferred.

Handle signals without requiring global/static variables.

Defined as a pointer to allow overriding by derived classes...

The changing thread waits on this event, till all threads are not active anymore

A manual event is used so that we can wake everyone up (e.g., when ACE_Event_Handlers are bounded and unbound from the handler repository).

Used when <wakeup_all_threads_> is signaled.


The documentation for this class was generated from the following file:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines

Generated on Mon Nov 30 00:54:27 2009 for ACE by  doxygen 1.6.1
