ACE_Proactor Class Reference

A manager for asynchronous event demultiplexing. More...

#include <Proactor.h>

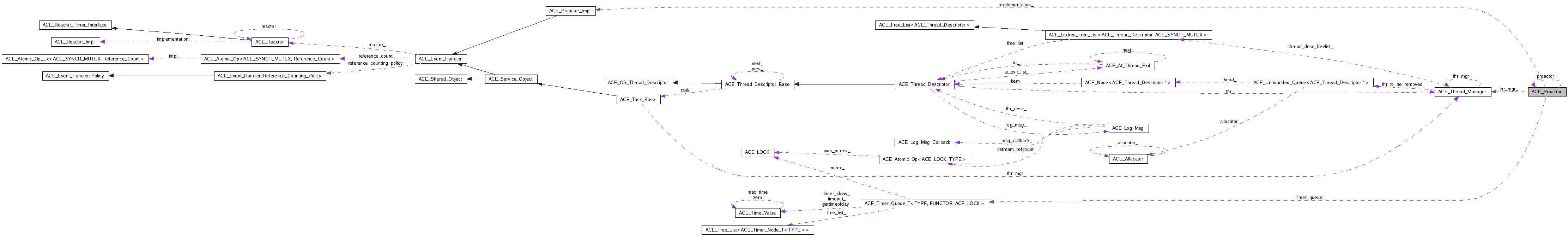

Collaboration diagram for ACE_Proactor:

Classes
class	Timer_Queue
Public Types
typedef ACE_Timer_Queue_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_QUEUE
	Public type.
typedef int(*	PROACTOR_EVENT_HOOK )(ACE_Proactor *)
Public Member Functions
	ACE_Proactor (ACE_Proactor_Impl implementation=0, bool delete_implementation=false, TIMER_QUEUE tq=0)
	~ACE_Proactor (void)
	Destruction.
int	close (void)
	Close the associated `ACE_Proactor_Impl` implementation object.
int	proactor_run_event_loop (PROACTOR_EVENT_HOOK=0)
int	proactor_run_event_loop (ACE_Time_Value &tv, PROACTOR_EVENT_HOOK=0)
int	proactor_end_event_loop (void)
int	proactor_event_loop_done (void)
	Report if the ACE_Proactor event loop is finished.
int	proactor_reset_event_loop (void)
int	register_handle (ACE_HANDLE handle, const void *completion_key)
long	schedule_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &time)
long	schedule_repeating_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &interval)
long	schedule_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &time, const ACE_Time_Value &interval)
int	cancel_timer (ACE_Handler &handler, int dont_call_handle_close=1)
int	cancel_timer (long timer_id, const void **act=0, int dont_call_handle_close=1)
int	handle_events (ACE_Time_Value &wait_time)
int	handle_events (void)
int	wake_up_dispatch_threads (void)
	Add wakeup dispatch threads (reinit).
int	close_dispatch_threads (int wait)
	Close all dispatch threads.
size_t	number_of_threads (void) const
	Get number of thread used as a parameter to CreatIoCompletionPort.
void	number_of_threads (size_t threads)
	Set number of thread used as a parameter to CreatIoCompletionPort.
TIMER_QUEUE *	timer_queue (void) const
	Get timer queue.
void	timer_queue (TIMER_QUEUE *timer_queue)
	Set timer queue.
ACE_HANDLE	get_handle (void) const
ACE_Proactor_Impl *	implementation (void) const
	Get the implementation class.
ACE_Asynch_Read_Stream_Impl *	create_asynch_read_stream (void)
ACE_Asynch_Write_Stream_Impl *	create_asynch_write_stream (void)
ACE_Asynch_Read_File_Impl *	create_asynch_read_file (void)
ACE_Asynch_Write_File_Impl *	create_asynch_write_file (void)
ACE_Asynch_Accept_Impl *	create_asynch_accept (void)
	Create the correct implementation class for doing Asynch_Accept.
ACE_Asynch_Connect_Impl *	create_asynch_connect (void)
	Create the correct implementation class for doing Asynch_Connect.
ACE_Asynch_Transmit_File_Impl *	create_asynch_transmit_file (void)
ACE_Asynch_Read_Dgram_Impl *	create_asynch_read_dgram (void)
ACE_Asynch_Write_Dgram_Impl *	create_asynch_write_dgram (void)
ACE_Asynch_Read_Stream_Result_Impl *	create_asynch_read_stream_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Write_Stream_Result_Impl *	create_asynch_write_stream_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_write, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Read_File_Result_Impl *	create_asynch_read_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Write_File_Result_Impl *	create_asynch_write_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_write, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Read_Dgram_Result_Impl *	create_asynch_read_dgram_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block message_block, size_t bytes_to_read, int flags, int protocol_family, const void act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Write_Dgram_Result_Impl *	create_asynch_write_dgram_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block message_block, size_t bytes_to_write, int flags, const void act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Accept_Result_Impl *	create_asynch_accept_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
	Create the correct implementation class for ACE_Asynch_Accept::Result.
ACE_Asynch_Connect_Result_Impl *	create_asynch_connect_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
	Create the correct implementation class for ACE_Asynch_Connect::Result.
ACE_Asynch_Transmit_File_Result_Impl *	create_asynch_transmit_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer header_and_trailer, u_long bytes_to_write, u_long offset, u_long offset_high, u_long bytes_per_send, u_long flags, const void act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Result_Impl *	create_asynch_timer (ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
	ACE_Proactor (size_t=0, Timer_Queue *=0)
	~ACE_Proactor (void)
int	handle_events (void)
int	handle_events (ACE_Time_Value &)
Static Public Member Functions
static ACE_Proactor *	instance (size_t threads=0)
static ACE_Proactor *	instance (ACE_Proactor *proactor, bool delete_proactor=false)
static void	close_singleton (void)
	Delete the dynamically allocated Singleton.
static void	cleanup (void instance, void arg)
static const ACE_TCHAR *	dll_name (void)
	Name of dll in which the singleton instance lives.
static const ACE_TCHAR *	name (void)
	Name of component--ACE_Proactor in this case.
static int	run_event_loop (void)
static int	run_event_loop (ACE_Time_Value &tv)
static int	end_event_loop (void)
static int	reset_event_loop (void)
static int	check_reconfiguration (ACE_Proactor *)
static int	event_loop_done (void)
	Report if the <ACE_Proactor::instance> event loop is finished.
static ACE_Proactor *	instance (size_t threads=0)
	Placeholder to enable compilation on non-Win32 platforms.
static ACE_Proactor *	instance (ACE_Proactor *)
	Placeholder to enable compilation on non-Win32 platforms.
static void	close_singleton (void)
	Placeholder to enable compilation on non-Win32 platforms.
static int	run_event_loop (void)
	Placeholder to enable compilation on non-Win32 platforms.
static int	run_event_loop (ACE_Time_Value &tv)
	Placeholder to enable compilation on non-Win32 platforms.
static int	end_event_loop (void)
	Placeholder to enable compilation on non-Win32 platforms.
static sig_atomic_t	event_loop_done (void)
	Placeholder to enable compilation on non-Win32 platforms.
Protected Member Functions
int	proactor_post_wakeup_completions (int how_many)
void	implementation (ACE_Proactor_Impl *implementation)
	Set the implementation class.
Static Protected Member Functions
static int	post_wakeup_completions (int how_many)
Protected Attributes
ACE_Proactor_Impl *	implementation_
bool	delete_implementation_
ACE_Proactor_Timer_Handler *	timer_handler_
	Handles timeout events.
ACE_Thread_Manager	thr_mgr_
	This will manage the thread in the Timer_Handler.
TIMER_QUEUE *	timer_queue_
	Timer Queue.
int	delete_timer_queue_
	Flag on whether to delete the timer queue.
sig_atomic_t	end_event_loop_
	Terminate the proactor event loop.
sig_atomic_t	event_loop_thread_count_
	Number of threads in the event loop.
ACE_SYNCH_MUTEX	mutex_
	Mutex to protect work with lists.
Static Protected Attributes
static ACE_Proactor *	proactor_
	Pointer to a process-wide ACE_Proactor.
static bool	delete_proactor_
	Must delete the <proactor_> if true.
Private Types
typedef ACE_Timer_Queue_Iterator_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_QUEUE_ITERATOR
typedef ACE_Timer_List_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_LIST
typedef ACE_Timer_List_Iterator_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_LIST_ITERATOR
typedef ACE_Timer_Heap_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_HEAP
typedef ACE_Timer_Heap_Iterator_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_HEAP_ITERATOR
typedef ACE_Timer_Wheel_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_WHEEL
typedef ACE_Timer_Wheel_Iterator_T < ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX >	TIMER_WHEEL_ITERATOR
Private Member Functions
	ACE_Proactor (const ACE_Proactor &)
	Deny access since member-wise won't work...
ACE_Proactor &	operator= (const ACE_Proactor &)
Friends
class	ACE_Proactor_Timer_Handler

Detailed Description

A manager for asynchronous event demultiplexing.

See the Proactor pattern description at http://www.cs.wustl.edu/~schmidt/proactor.ps.gz for more details.

Member Typedef Documentation

typedef int(* ACE_Proactor::PROACTOR_EVENT_HOOK)(ACE_Proactor *)

You can add a hook to various run_event methods and the hook will be called after handling every proactor event. If this function returns 0, proactor_run_event_loop will check for the return value of handle_events. If it is -1, the the proactor_run_event_loop will return (pre-maturely.)

typedef ACE_Timer_Heap_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_HEAP [private]

typedef ACE_Timer_Heap_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_HEAP_ITERATOR [private]

typedef ACE_Timer_List_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_LIST [private]

typedef ACE_Timer_List_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_LIST_ITERATOR [private]

typedef ACE_Timer_Queue_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_QUEUE

Public type.

typedef ACE_Timer_Queue_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_QUEUE_ITERATOR [private]

typedef ACE_Timer_Wheel_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_WHEEL [private]

typedef ACE_Timer_Wheel_Iterator_T<ACE_Handler *, ACE_Proactor_Handle_Timeout_Upcall, ACE_SYNCH_RECURSIVE_MUTEX> ACE_Proactor::TIMER_WHEEL_ITERATOR [private]

Constructor & Destructor Documentation

ACE_Proactor::ACE_Proactor	(	ACE_Proactor_Impl *	implementation = `0`,
		bool	delete_implementation = `false`,
		TIMER_QUEUE *	tq = `0`
	)

Constructor. If implementation is 0, the correct implementation object will be created. delete_implementation flag determines whether the implementation object should be deleted by the Proactor or not. If tq is 0, a new TIMER_QUEUE is created.

ACE_Proactor::~ACE_Proactor ( void )

Destruction.

ACE_Proactor::ACE_Proactor ( const ACE_Proactor & ) [private]

Deny access since member-wise won't work...

ACE_Proactor::ACE_Proactor	(	size_t	= `0`,
		Timer_Queue *	= `0`
	)			`[inline]`

ACE_Proactor::~ACE_Proactor ( void ) [inline]

Member Function Documentation

int ACE_Proactor::cancel_timer	(	long	timer_id,
		const void **	act = `0`,
		int	dont_call_handle_close = `1`
	)

Cancel the single <ACE_Handler> that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the <Handler> was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

int ACE_Proactor::cancel_timer	(	ACE_Handler &	handler,
		int	dont_call_handle_close = `1`
	)

Cancel all timers associated with this handler. Returns number of timers cancelled.

static int ACE_Proactor::check_reconfiguration ( ACE_Proactor * ) [static]

The singleton proactor is used by the ACE_Service_Config. Therefore, we must check for the reconfiguration request and handle it after handling an event.

static void ACE_Proactor::cleanup	(	void *	instance,
		void *	arg
	)			`[static]`

Cleanup method, used by the ACE_Object_Manager to destroy the singleton.

int ACE_Proactor::close ( void )

Close the associated ACE_Proactor_Impl implementation object.

If

delete_implementation was specified to the open() method, the implementation object is also deleted.

int ACE_Proactor::close_dispatch_threads ( int wait )

Close all dispatch threads.

static void ACE_Proactor::close_singleton ( void ) [static]

Placeholder to enable compilation on non-Win32 platforms.

void ACE_Proactor::close_singleton ( void ) [static]

Delete the dynamically allocated Singleton.

ACE_Asynch_Accept_Impl* ACE_Proactor::create_asynch_accept ( void )

Create the correct implementation class for doing Asynch_Accept.

ACE_Asynch_Accept_Result_Impl* ACE_Proactor::create_asynch_accept_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	listen_handle,
		ACE_HANDLE	accept_handle,
		ACE_Message_Block &	message_block,
		u_long	bytes_to_read,
		const void *	act,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Accept::Result.

ACE_Asynch_Connect_Impl* ACE_Proactor::create_asynch_connect ( void )

Create the correct implementation class for doing Asynch_Connect.

ACE_Asynch_Connect_Result_Impl* ACE_Proactor::create_asynch_connect_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	connect_handle,
		const void *	act,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Connect::Result.

ACE_Asynch_Read_Dgram_Impl* ACE_Proactor::create_asynch_read_dgram ( void )

Create the correct implementation class for doing Asynch_Read_Dgram.

ACE_Asynch_Read_Dgram_Result_Impl* ACE_Proactor::create_asynch_read_dgram_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	handle,
		ACE_Message_Block *	message_block,
		size_t	bytes_to_read,
		int	flags,
		int	protocol_family,
		const void *	act,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

ACE_Asynch_Read_File_Impl* ACE_Proactor::create_asynch_read_file ( void )

Create the correct implementation class for doing Asynch_Read_File.

ACE_Asynch_Read_File_Result_Impl* ACE_Proactor::create_asynch_read_file_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	handle,
		ACE_Message_Block &	message_block,
		u_long	bytes_to_read,
		const void *	act,
		u_long	offset,
		u_long	offset_high,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Read_File::Result.

ACE_Asynch_Read_Stream_Impl* ACE_Proactor::create_asynch_read_stream ( void )

Create the correct implementation class for doing Asynch_Read_Stream.

ACE_Asynch_Read_Stream_Result_Impl* ACE_Proactor::create_asynch_read_stream_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	handle,
		ACE_Message_Block &	message_block,
		u_long	bytes_to_read,
		const void *	act,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

ACE_Asynch_Result_Impl* ACE_Proactor::create_asynch_timer	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		const void *	act,
		const ACE_Time_Value &	tv,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create a timer result object which can be used with the Timer mechanism of the Proactor. If signal_number is -1, <POSIX_SIG_Proactor> will create a Timer object with a meaningful signal number, choosing the largest signal number from the signal mask of the Proactor.

ACE_Asynch_Transmit_File_Impl* ACE_Proactor::create_asynch_transmit_file ( void )

Create the correct implementation class for doing Asynch_Transmit_File.

ACE_Asynch_Transmit_File_Result_Impl* ACE_Proactor::create_asynch_transmit_file_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	socket,
		ACE_HANDLE	file,
		ACE_Asynch_Transmit_File::Header_And_Trailer *	header_and_trailer,
		u_long	bytes_to_write,
		u_long	offset,
		u_long	offset_high,
		u_long	bytes_per_send,
		u_long	flags,
		const void *	act,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

ACE_Asynch_Write_Dgram_Impl* ACE_Proactor::create_asynch_write_dgram ( void )

Create the correct implementation class for doing Asynch_Write_Dgram.

ACE_Asynch_Write_Dgram_Result_Impl* ACE_Proactor::create_asynch_write_dgram_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	handle,
		ACE_Message_Block *	message_block,
		size_t	bytes_to_write,
		int	flags,
		const void *	act,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

ACE_Asynch_Write_File_Impl* ACE_Proactor::create_asynch_write_file ( void )

Create the correct implementation class for doing Asynch_Write_File.

ACE_Asynch_Write_File_Result_Impl* ACE_Proactor::create_asynch_write_file_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	handle,
		ACE_Message_Block &	message_block,
		u_long	bytes_to_write,
		const void *	act,
		u_long	offset,
		u_long	offset_high,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Write_File::Result.

ACE_Asynch_Write_Stream_Impl* ACE_Proactor::create_asynch_write_stream ( void )

Create the correct implementation class for doing Asynch_Write_Stream.

ACE_Asynch_Write_Stream_Result_Impl* ACE_Proactor::create_asynch_write_stream_result	(	ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	handle,
		ACE_Message_Block &	message_block,
		u_long	bytes_to_write,
		const void *	act,
		ACE_HANDLE	event = `ACE_INVALID_HANDLE`,
		int	priority = `0`,
		int	signal_number = `ACE_SIGRTMIN`
	)

Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

static const ACE_TCHAR* ACE_Proactor::dll_name ( void ) [static]

Name of dll in which the singleton instance lives.

static int ACE_Proactor::end_event_loop ( void ) [static]

Placeholder to enable compilation on non-Win32 platforms.

int ACE_Proactor::end_event_loop ( void ) [static]

Instruct the <ACE_Proactor::instance> to terminate its event loop. This method wakes up all the threads blocked on waiting for completions and end the event loop.

static sig_atomic_t ACE_Proactor::event_loop_done ( void ) [static]

Placeholder to enable compilation on non-Win32 platforms.

int ACE_Proactor::event_loop_done ( void ) [static]

Report if the <ACE_Proactor::instance> event loop is finished.

ACE_HANDLE ACE_Proactor::get_handle ( void ) const

Get the event handle. It is a no-op in POSIX platforms and it returns ACE_INVALID_HANDLE.

int ACE_Proactor::handle_events ( ACE_Time_Value & ) [inline]

int ACE_Proactor::handle_events ( void ) [inline]

int ACE_Proactor::handle_events ( void )

Block indefinitely until at least one event is dispatched.

Returns:: Returns 1 when a completion is dispatched. On error, returns -1 and sets errno accordingly.

int ACE_Proactor::handle_events ( ACE_Time_Value & wait_time )

Dispatch a single set of events, waiting up to a specified time limit if necessary.

Parameters:

wait_time

the time to wait for an event to occur. This is a relative time. On successful return, the time is updated to reflect the amount of time spent waiting for event(s) to occur.

Returns:: Returns 0 if no events occur before the wait_time expires. Returns 1 when a completion is dispatched. On error, returns -1 and sets errno accordingly.

void ACE_Proactor::implementation ( ACE_Proactor_Impl * implementation ) [protected]

Set the implementation class.

ACE_Proactor_Impl* ACE_Proactor::implementation ( void ) const

Get the implementation class.

ACE_Proactor * ACE_Proactor::instance ( ACE_Proactor * ) [static]

Placeholder to enable compilation on non-Win32 platforms.

static ACE_Proactor* ACE_Proactor::instance ( size_t threads = 0 ) [static]

Placeholder to enable compilation on non-Win32 platforms.

static ACE_Proactor* ACE_Proactor::instance	(	ACE_Proactor *	proactor,
		bool	delete_proactor = `false`
	)			`[static]`

Set pointer to a process-wide ACE_Proactor and return existing pointer.

ACE_Proactor * ACE_Proactor::instance ( size_t threads = 0 ) [static]

Get pointer to a process-wide ACE_Proactor. threads should be part of another method.

static const ACE_TCHAR* ACE_Proactor::name ( void ) [static]

Name of component--ACE_Proactor in this case.

void ACE_Proactor::number_of_threads ( size_t threads )

Set number of thread used as a parameter to CreatIoCompletionPort.

size_t ACE_Proactor::number_of_threads ( void ) const

Get number of thread used as a parameter to CreatIoCompletionPort.

ACE_Proactor& ACE_Proactor::operator= ( const ACE_Proactor & ) [private]

int ACE_Proactor::post_wakeup_completions ( int how_many ) [static, protected]

Post <how_many> completions to the completion port so that all threads can wake up. This is used in conjunction with the <run_event_loop>.

int ACE_Proactor::proactor_end_event_loop ( void )

Instruct the ACE_Proactor to terminate its event loop and notifies the ACE_Proactor so that it can wake up and close down gracefully.

int ACE_Proactor::proactor_event_loop_done ( void )

Report if the ACE_Proactor event loop is finished.

int ACE_Proactor::proactor_post_wakeup_completions ( int how_many ) [protected]

Post <how_many> completions to the completion port so that all threads can wake up. This is used in conjunction with the <proactor_run_event_loop>.

int ACE_Proactor::proactor_reset_event_loop ( void )

Resets the <ACE_Proactor::end_event_loop_> static so that the <run_event_loop> method can be restarted.

int ACE_Proactor::proactor_run_event_loop	(	ACE_Time_Value &	tv,
		PROACTOR_EVENT_HOOK	= `0`
	)

Run the event loop until the <ACE_Proactor::handle_events> method returns -1, the <end_proactor_event_loop> method is invoked, or the ACE_Time_Value expires, in which case a 0 is returned.

int ACE_Proactor::proactor_run_event_loop ( PROACTOR_EVENT_HOOK = 0 )

Run the event loop until the <ACE_Proactor::handle_events> method returns -1 or the <end_proactor_event_loop> method is invoked.

int ACE_Proactor::register_handle	(	ACE_HANDLE	handle,
		const void *	completion_key
	)

This method adds the handle to the I/O completion port. This function is a no-op function for Unix systems and returns 0;

int ACE_Proactor::reset_event_loop ( void ) [static]

Resets the <ACE_Proactor::end_event_loop_> static so that the <run_event_loop> method can be restarted.

static int ACE_Proactor::run_event_loop ( ACE_Time_Value & tv ) [static]

Placeholder to enable compilation on non-Win32 platforms.

static int ACE_Proactor::run_event_loop ( void ) [static]

Placeholder to enable compilation on non-Win32 platforms.

int ACE_Proactor::run_event_loop ( ACE_Time_Value & tv ) [static]

Run the event loop until the <ACE_Proactor::handle_events> method returns -1, the <end_event_loop> method is invoked, or the ACE_Time_Value expires, in which case 0 is returned.

int ACE_Proactor::run_event_loop ( void ) [static]

Run the event loop until the <ACE_Proactor::handle_events> method returns -1 or the <end_event_loop> method is invoked.

long ACE_Proactor::schedule_repeating_timer	(	ACE_Handler &	handler,
		const void *	act,
		const ACE_Time_Value &	interval
	)

long ACE_Proactor::schedule_timer	(	ACE_Handler &	handler,
		const void *	act,
		const ACE_Time_Value &	time,
		const ACE_Time_Value &	interval
	)

This combines the above two methods into one. Mostly for backward compatibility.

long ACE_Proactor::schedule_timer	(	ACE_Handler &	handler,
		const void *	act,
		const ACE_Time_Value &	time
	)

Schedule a handler that will expire after <time>. If it expires then act is passed in as the value to the handler's <handle_timeout> callback method. This method returns a <timer_id>. This <timer_id> can be used to cancel a timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

void ACE_Proactor::timer_queue ( TIMER_QUEUE * timer_queue )

Set timer queue.

TIMER_QUEUE* ACE_Proactor::timer_queue ( void ) const

Get timer queue.

int ACE_Proactor::wake_up_dispatch_threads ( void )

Add wakeup dispatch threads (reinit).
