TAO_OutputCDR Class Reference

A CDR stream for writing, i.e. for marshalling. More...

#include <CDR.h>

Inheritance diagram for TAO_OutputCDR:

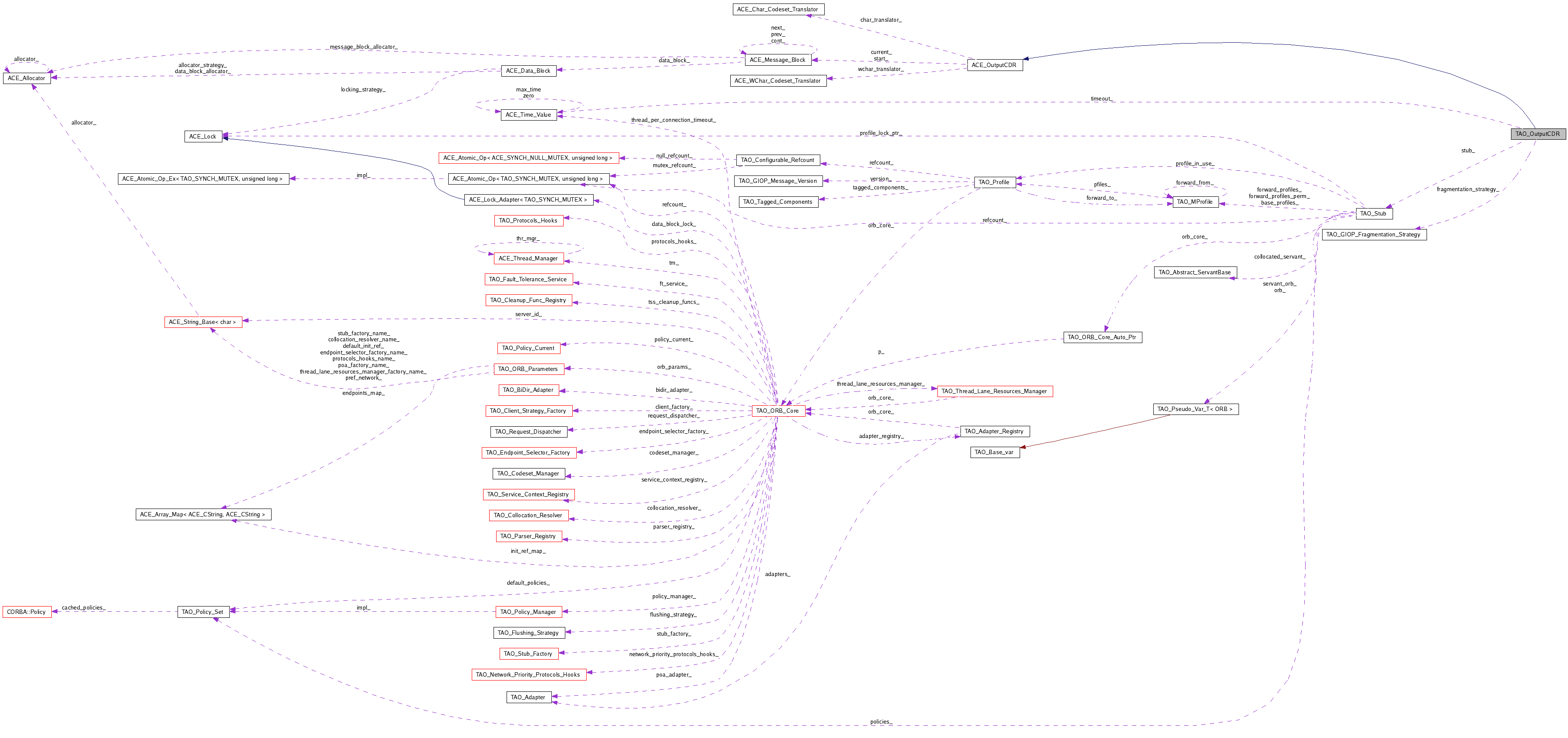

Collaboration diagram for TAO_OutputCDR:

List of all members.

Public Member Functions

TAO_OutputCDR (size_t size=0, int byte_order=ACE_CDR_BYTE_ORDER, ACE_Allocator *buffer_allocator=0, ACE_Allocator *data_block_allocator=0, ACE_Allocator *message_block_allocator=0, size_t memcpy_tradeoff=0, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR)

TAO_OutputCDR (char *data, size_t size, int byte_order=ACE_CDR_BYTE_ORDER, ACE_Allocator *buffer_allocator=0, ACE_Allocator *data_block_allocator=0, ACE_Allocator *message_block_allocator=0, size_t memcpy_tradeoff=0, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR)

TAO_OutputCDR (char *data, size_t size, int byte_order, ACE_Allocator *buffer_allocator, ACE_Allocator *data_block_allocator, ACE_Allocator *message_block_allocator, size_t memcpy_tradeoff, TAO_GIOP_Fragmentation_Strategy *fs, ACE_CDR::Octet major_version, ACE_CDR::Octet minor_version)

TAO_OutputCDR (ACE_Message_Block *data, int byte_order=ACE_CDR_BYTE_ORDER, size_t memcpy_tradeoff=0, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR)

TAO_OutputCDR (ACE_Data_Block *data, int byte_order=ACE_CDR_BYTE_ORDER, ACE_Allocator *message_block_allocator=0, size_t memcpy_tradeoff=0, TAO_GIOP_Fragmentation_Strategy *fs=0, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR)

~TAO_OutputCDR (void)

Destructor.

void get_version (TAO_GIOP_Message_Version &giop_version)

Outgoing GIOP Fragment Related Methods

These methods are only used when fragmenting outgoing GIOP requests and replies.

bool fragment_stream (ACE_CDR::ULong pending_alignment, ACE_CDR::ULong pending_length)

Fragment this output CDR stream if necessary.

bool more_fragments (void) const

Are there more data fragments to come?

void more_fragments (bool more)

Specify whether there are more data fragments to come.

void message_attributes (CORBA::ULong request_id, TAO_Stub *stub, TAO_Message_Semantics message_semantics, ACE_Time_Value *timeout)

Set fragmented message attributes.

CORBA::ULong request_id (void) const

Fragmented message request ID.

TAO_Stub * stub (void) const

Stub object associated with the request.

TAO_Message_Semantics message_semantics (void) const

Message semantics (twoway, oneway, reply).

ACE_Time_Value * timeout (void) const

Maximum time to wait for outgoing message to be sent.

Static Public Member Functions

static void throw_stub_exception (int error_num)

static void throw_skel_exception (int error_num)

Private Member Functions

TAO_OutputCDR (const TAO_OutputCDR &rhs)

TAO_OutputCDR & operator= (const TAO_OutputCDR &rhs)

Private Attributes

Outgoing GIOP Fragment Related Attributes

These attributes are only used when fragmenting outgoing GIOP requests and replies.

TAO_GIOP_Fragmentation_Strategy
*const fragmentation_strategy_

bool more_fragments_

Are there more data fragments to come?

CORBA::ULong request_id_

Request ID for the request currently being marshaled.

TAO_Stub * stub_

Stub object associated with the request.

TAO_Message_Semantics message_semantics_

Twoway, oneway, reply?

ACE_Time_Value * timeout_

Request/reply send timeout.

Friends

class TAO_InputCDR

For reading from a output CDR stream.

Detailed Description

A CDR stream for writing, i.e. for marshalling.

This class is based on the the CORBA spec for Java (98-02-29), java class omg.org.CORBA.portable.OutputStream. It diverts in a few ways: + Operations taking arrays don't have offsets, because in C++ it is easier to describe an array starting from x+offset. + Operations return an error status, because exceptions are not widely available in C++ (yet). A particularly useful static member function for this buffer is an interpretive encoding routine, usable as a typecode interpreter callback. Ditto for decoding. These are used to support all OMG-IDL datatypes, even those not supported directly by put/get primitives.

Constructor & Destructor Documentation

TAO_OutputCDR::TAO_OutputCDR	(	size_t	size = `0`,
		int	byte_order = `ACE_CDR_BYTE_ORDER`,
		ACE_Allocator *	buffer_allocator = `0`,
		ACE_Allocator *	data_block_allocator = `0`,
		ACE_Allocator *	message_block_allocator = `0`,
		size_t	memcpy_tradeoff = `0`,
		ACE_CDR::Octet	major_version = `TAO_DEF_GIOP_MAJOR`,
		ACE_CDR::Octet	minor_version = `TAO_DEF_GIOP_MINOR`
	)

Default constructor, allocates size bytes in the internal buffer, if size == 0 it allocates the default size.

TAO_OutputCDR::TAO_OutputCDR	(	char *	data,
		size_t	size,
		int	byte_order = `ACE_CDR_BYTE_ORDER`,
		ACE_Allocator *	buffer_allocator = `0`,
		ACE_Allocator *	data_block_allocator = `0`,
		ACE_Allocator *	message_block_allocator = `0`,
		size_t	memcpy_tradeoff = `0`,
		ACE_CDR::Octet	major_version = `TAO_DEF_GIOP_MAJOR`,
		ACE_CDR::Octet	minor_version = `TAO_DEF_GIOP_MINOR`
	)

Build a CDR stream with an initial buffer, it will *not* remove data, since it did not allocated it.

TAO_OutputCDR::TAO_OutputCDR	(	char *	data,
		size_t	size,
		int	byte_order,
		ACE_Allocator *	buffer_allocator,
		ACE_Allocator *	data_block_allocator,
		ACE_Allocator *	message_block_allocator,
		size_t	memcpy_tradeoff,
		TAO_GIOP_Fragmentation_Strategy *	fs,
		ACE_CDR::Octet	major_version,
		ACE_CDR::Octet	minor_version
	)

Build a CDR stream with an initial buffer, it will *not* remove data since it did not allocated it, and enable fragmentation support.

TAO_OutputCDR::TAO_OutputCDR	(	ACE_Message_Block *	data,
		int	byte_order = `ACE_CDR_BYTE_ORDER`,
		size_t	memcpy_tradeoff = `0`,
		ACE_CDR::Octet	major_version = `TAO_DEF_GIOP_MAJOR`,
		ACE_CDR::Octet	minor_version = `TAO_DEF_GIOP_MINOR`
	)

Build a CDR stream with an initial Message_Block chain, it will *not* remove data, since it did not allocate it.

TAO_OutputCDR::TAO_OutputCDR	(	ACE_Data_Block *	data,
		int	byte_order = `ACE_CDR_BYTE_ORDER`,
		ACE_Allocator *	message_block_allocator = `0`,
		size_t	memcpy_tradeoff = `0`,
		TAO_GIOP_Fragmentation_Strategy *	fs = `0`,
		ACE_CDR::Octet	major_version = `TAO_DEF_GIOP_MAJOR`,
		ACE_CDR::Octet	minor_version = `TAO_DEF_GIOP_MINOR`
	)

Build a CDR stream with an initial data block, it will *not* remove data, since it did not allocated it.

TAO_OutputCDR::~TAO_OutputCDR ( void ) [inline]

Destructor.

TAO_OutputCDR::TAO_OutputCDR ( const TAO_OutputCDR & rhs ) [private]

Member Function Documentation

bool TAO_OutputCDR::fragment_stream	(	ACE_CDR::ULong	pending_alignment,
		ACE_CDR::ULong	pending_length
	)

Fragment this output CDR stream if necessary.

Fragmentation will done through GIOP fragments when the length of the CDR stream length will exceed the configured threshold.

void TAO_OutputCDR::get_version ( TAO_GIOP_Message_Version & giop_version ) [inline]

void TAO_OutputCDR::message_attributes	(	CORBA::ULong	request_id,
		TAO_Stub *	stub,
		TAO_Message_Semantics	message_semantics,
		ACE_Time_Value *	timeout
	)			`[inline]`

Set fragmented message attributes.

TAO_Message_Semantics TAO_OutputCDR::message_semantics ( void ) const [inline]

Message semantics (twoway, oneway, reply).

void TAO_OutputCDR::more_fragments ( bool more ) [inline]

Specify whether there are more data fragments to come.

bool TAO_OutputCDR::more_fragments ( void ) const [inline]

Are there more data fragments to come?

TAO_OutputCDR& TAO_OutputCDR::operator= ( const TAO_OutputCDR & rhs ) [private]

CORBA::ULong TAO_OutputCDR::request_id ( void ) const [inline]

Fragmented message request ID.

TAO_Stub * TAO_OutputCDR::stub ( void ) const [inline]

Stub object associated with the request.

void TAO_OutputCDR::throw_skel_exception ( int error_num ) [static]

void TAO_OutputCDR::throw_stub_exception ( int error_num ) [static]

ACE_Time_Value * TAO_OutputCDR::timeout ( void ) const [inline]

Maximum time to wait for outgoing message to be sent.

Friends And Related Function Documentation

friend class TAO_InputCDR [friend]

For reading from a output CDR stream.

Member Data Documentation

TAO_GIOP_Fragmentation_Strategy* const TAO_OutputCDR::fragmentation_strategy_ [private]

Strategy that sends data currently marshaled into this TAO_OutputCDR stream if necessary.

TAO_Message_Semantics TAO_OutputCDR::message_semantics_ [private]

Twoway, oneway, reply?

See also:: TAO_Transport

bool TAO_OutputCDR::more_fragments_ [private]

Are there more data fragments to come?

CORBA::ULong TAO_OutputCDR::request_id_ [private]

Request ID for the request currently being marshaled.

TAO_Stub* TAO_OutputCDR::stub_ [private]

Stub object associated with the request.

ACE_Time_Value* TAO_OutputCDR::timeout_ [private]

Request/reply send timeout.

The documentation for this class was generated from the following files:
