TAO_InputCDR Class Reference

A CDR stream for reading, i.e. for demarshalling. More...

#include <CDR.h>

Inheritance diagram for TAO_InputCDR:

Inheritance graph
[legend]

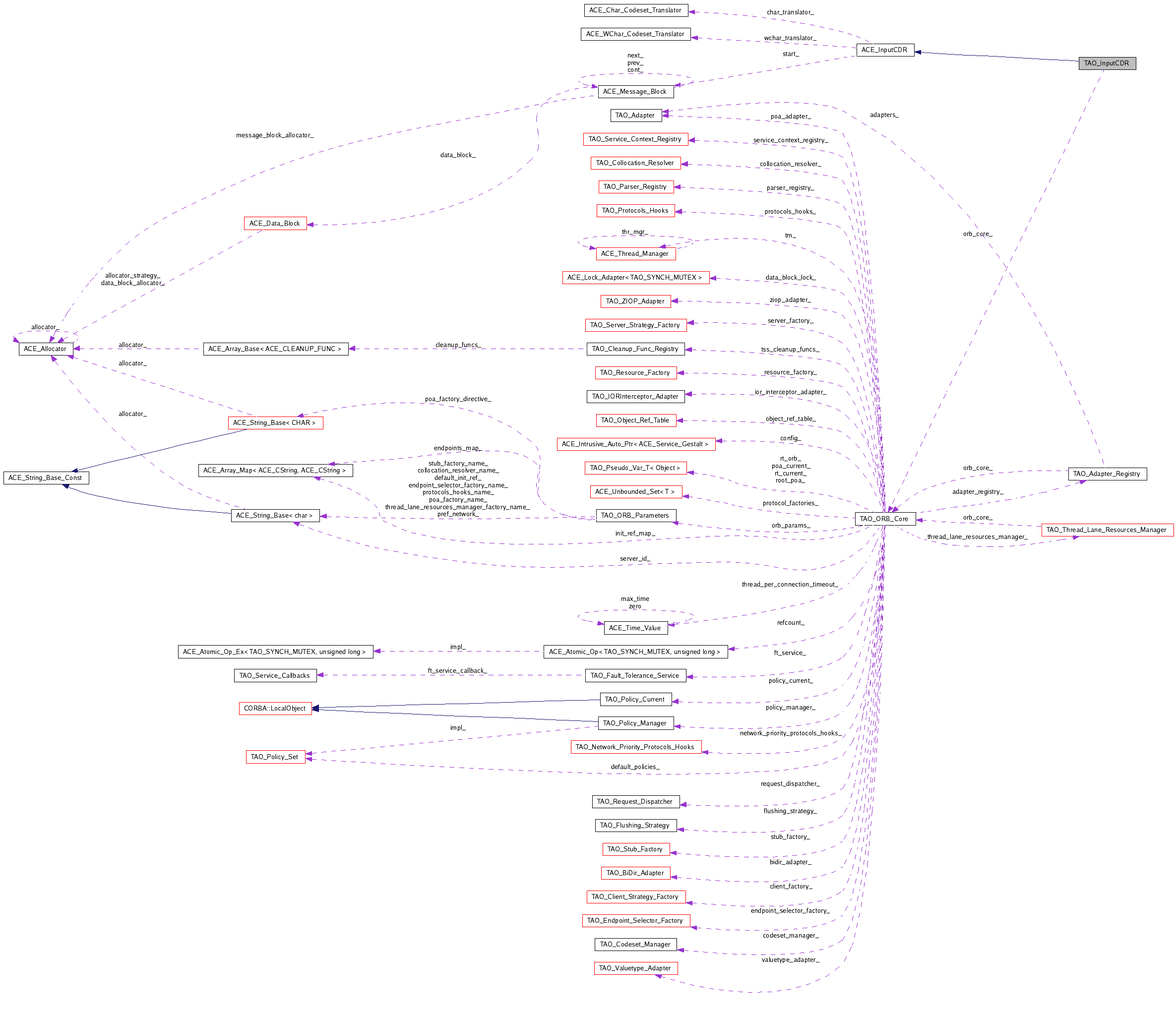

Collaboration diagram for TAO_InputCDR:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_InputCDR (const char *buf, size_t bufsiz, int byte_order=ACE_CDR_BYTE_ORDER, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR, TAO_ORB_Core *orb_core=0)
 TAO_InputCDR (size_t bufsiz, int byte_order=ACE_CDR_BYTE_ORDER, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR, TAO_ORB_Core *orb_core=0)
 TAO_InputCDR (const ACE_Message_Block *data, int byte_order=ACE_CDR_BYTE_ORDER, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR, TAO_ORB_Core *orb_core=0)
 Create an input stream from an ACE_Message_Block.
 TAO_InputCDR (const ACE_Message_Block *data, ACE_Lock *lock, int byte_order=ACE_CDR_BYTE_ORDER, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR, TAO_ORB_Core *orb_core=0)
 TAO_InputCDR (ACE_Data_Block *data, ACE_Message_Block::Message_Flags flag=0, int byte_order=ACE_CDR_BYTE_ORDER, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR, TAO_ORB_Core *orb_core=0)
 Create an input stream from an ACE_Data_Block.
 TAO_InputCDR (ACE_Data_Block *data, ACE_Message_Block::Message_Flags flag, size_t read_pointer_position, size_t write_pointer_position, int byte_order=ACE_CDR_BYTE_ORDER, ACE_CDR::Octet major_version=TAO_DEF_GIOP_MAJOR, ACE_CDR::Octet minor_version=TAO_DEF_GIOP_MINOR, TAO_ORB_Core *orb_core=0)
 Create an input stream from an ACE_Data_Block.
 TAO_InputCDR (const TAO_InputCDR &rhs)
 TAO_InputCDR (const TAO_InputCDR &rhs, size_t size, ACE_CDR::Long offset)
 TAO_InputCDR (const TAO_InputCDR &rhs, size_t size)
 TAO_InputCDR (const TAO_OutputCDR &rhs, ACE_Allocator *buffer_allocator=0, ACE_Allocator *data_block_allocator=0, ACE_Allocator *message_block_allocator=0, TAO_ORB_Core *orb_core=0)
 Create an input CDR from an output CDR.
 TAO_InputCDR (ACE_InputCDR::Transfer_Contents rhs, TAO_ORB_Core *orb_core=0)
 ~TAO_InputCDR (void)
 Destructor.
TAO_ORB_Core * orb_core (void) const
 Accessor.
ACE_Message_Block::Message_Flags clr_mb_flags (ACE_Message_Block::Message_Flags less_flags)

Static Public Member Functions

static void throw_stub_exception (int error_num)
static void throw_skel_exception (int error_num)

Private Attributes

TAO_ORB_Core * orb_core_
 The ORB_Core, required to extract object references.

Detailed Description

A CDR stream for reading, i.e. for demarshalling.

This class is based on the the CORBA spec for Java (98-02-29), java class omg.org.CORBA.portable.InputStream. It diverts in a few ways: + Operations to retrieve basic types take parameters by reference. + Operations taking arrays don't have offsets, because in C++ it is easier to describe an array starting from x+offset. + Operations return an error status, because exceptions are not widely available in C++ (yet). A particularly useful static member function for this buffer is an interpretive encoding routine, usable as a typecode interpreter callback. Ditto for decoding. These are used to support all OMG-IDL datatypes, even those not supported directly by put/get primitives.

Constructor & Destructor Documentation

TAO_InputCDR::TAO_InputCDR ( const char *  buf,
size_t  bufsiz,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_CDR::Octet  major_version = TAO_DEF_GIOP_MAJOR,
ACE_CDR::Octet  minor_version = TAO_DEF_GIOP_MINOR,
TAO_ORB_Core *  orb_core = 0
) [inline]

Create an input stream from an arbitrary buffer, care must be exercised wrt alignment, because this contructor will *not* work if the buffer is unproperly aligned.

TAO_InputCDR::TAO_InputCDR ( size_t  bufsiz,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_CDR::Octet  major_version = TAO_DEF_GIOP_MAJOR,
ACE_CDR::Octet  minor_version = TAO_DEF_GIOP_MINOR,
TAO_ORB_Core *  orb_core = 0
) [inline]

Create an empty input stream. The caller is responsible for putting the right data and providing the right alignment.

TAO_InputCDR::TAO_InputCDR ( const ACE_Message_Block *  data,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_CDR::Octet  major_version = TAO_DEF_GIOP_MAJOR,
ACE_CDR::Octet  minor_version = TAO_DEF_GIOP_MINOR,
TAO_ORB_Core *  orb_core = 0
) [inline]

Create an input stream from an ACE_Message_Block.

TAO_InputCDR::TAO_InputCDR ( const ACE_Message_Block *  data,
ACE_Lock *  lock,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_CDR::Octet  major_version = TAO_DEF_GIOP_MAJOR,
ACE_CDR::Octet  minor_version = TAO_DEF_GIOP_MINOR,
TAO_ORB_Core *  orb_core = 0
) [inline]

Create an input stream from an ACE_Message_Block with an optional lock used to protect the data.

TAO_InputCDR::TAO_InputCDR ( ACE_Data_Block *  data,
ACE_Message_Block::Message_Flags  flag = 0,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_CDR::Octet  major_version = TAO_DEF_GIOP_MAJOR,
ACE_CDR::Octet  minor_version = TAO_DEF_GIOP_MINOR,
TAO_ORB_Core *  orb_core = 0
) [inline]

Create an input stream from an ACE_Data_Block.

TAO_InputCDR::TAO_InputCDR ( ACE_Data_Block *  data,
ACE_Message_Block::Message_Flags  flag,
size_t  read_pointer_position,
size_t  write_pointer_position,
int  byte_order = ACE_CDR_BYTE_ORDER,
ACE_CDR::Octet  major_version = TAO_DEF_GIOP_MAJOR,
ACE_CDR::Octet  minor_version = TAO_DEF_GIOP_MINOR,
TAO_ORB_Core *  orb_core = 0
) [inline]

Create an input stream from an ACE_Data_Block.

TAO_InputCDR::TAO_InputCDR ( const TAO_InputCDR &  rhs  )  [inline]

Make a copy of the current stream state, but does not copy the internal buffer; so the same stream can be read multiple times efficiently.

TAO_InputCDR::TAO_InputCDR ( const TAO_InputCDR &  rhs,
size_t  size,
ACE_CDR::Long  offset
) [inline]

When interpreting indirected TypeCodes it is useful to make a "copy" of the stream starting in the new position.

TAO_InputCDR::TAO_InputCDR ( const TAO_InputCDR &  rhs,
size_t  size
) [inline]

This creates an encapsulated stream, the first byte must be (per the spec) the byte order of the encapsulation. The default values for the allocators in this constructor are not 0, but are generated by the ORB. Refer to the constructor body in CDR.cpp for the code that supplies these values to the base class constructor.

TAO_InputCDR::TAO_InputCDR ( const TAO_OutputCDR &  rhs,
ACE_Allocator *  buffer_allocator = 0,
ACE_Allocator *  data_block_allocator = 0,
ACE_Allocator *  message_block_allocator = 0,
TAO_ORB_Core *  orb_core = 0
)

Create an input CDR from an output CDR.

TAO_InputCDR::TAO_InputCDR ( ACE_InputCDR::Transfer_Contents  rhs,
TAO_ORB_Core *  orb_core = 0
) [inline]

Initialize the contents of one CDR from another, without data copying and with minimimum locking overhead.

TAO_InputCDR::~TAO_InputCDR ( void   )  [inline]

Destructor.

Member Function Documentation

ACE_Message_Block::Message_Flags TAO_InputCDR::clr_mb_flags ( ACE_Message_Block::Message_Flags  less_flags  )

TAO_ORB_Core * TAO_InputCDR::orb_core ( void   )  const [inline]

Accessor.

void TAO_InputCDR::throw_skel_exception ( int  error_num  )  [static]

void TAO_InputCDR::throw_stub_exception ( int  error_num  )  [static]

Member Data Documentation

TAO_ORB_Core* TAO_InputCDR::orb_core_ [private]

The ORB_Core, required to extract object references.

The documentation for this class was generated from the following files:
