TAO_Connector Class Reference

Generic Connector interface definitions. More...

#include <Transport_Connector.h>

Inheritance diagram for TAO_Connector:

Inheritance graph
[legend]

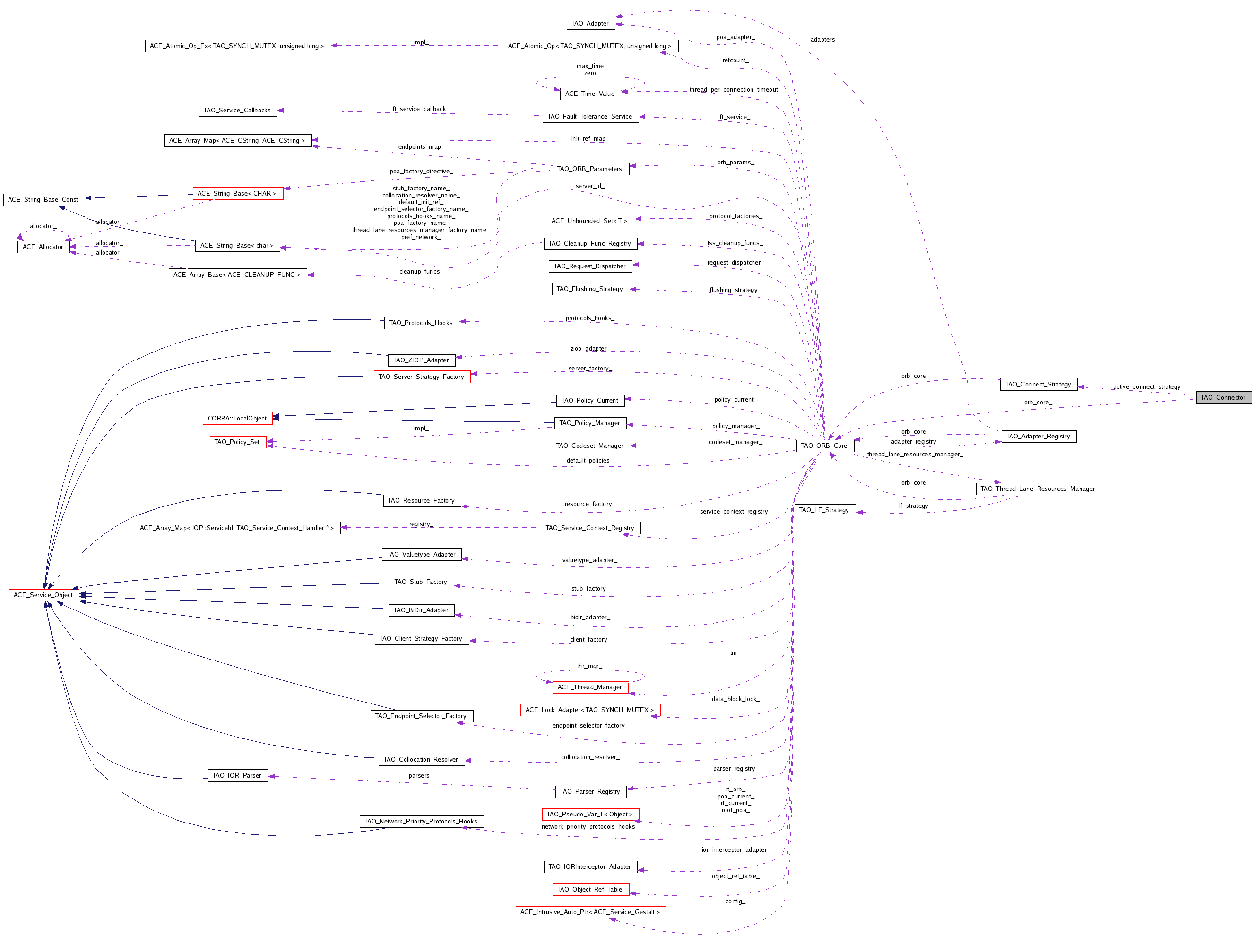

Collaboration diagram for TAO_Connector:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_Connector (CORBA::ULong tag)
 Default constructor.
virtual ~TAO_Connector (void)
 The destructor.
CORBA::ULong tag (void) const
int make_mprofile (const char *ior, TAO_MProfile &mprofile)
virtual TAO_Profilecorbaloc_scan (const char *ior, size_t &len)
virtual int open (TAO_ORB_Core *orb_core)=0
 Initialize object and register with reactor.
virtual int close (void)=0
 Shutdown Connector bridge and concrete Connector.
virtual TAO_Transportconnect (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *timeout)
virtual TAO_Transportparallel_connect (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *timeout)
virtual TAO_Profilecreate_profile (TAO_InputCDR &cdr)=0
virtual int check_prefix (const char *endpoint)=0
virtual char object_key_delimiter (void) const =0
 Return the object key delimiter to use or expect.

Protected Member Functions

virtual int supports_parallel_connects (void) const
virtual TAO_Profilemake_profile (void)=0
 Create a profile with a given endpoint.
virtual int set_validate_endpoint (TAO_Endpoint *endpoint)=0
virtual TAO_Transportmake_connection (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface &desc, ACE_Time_Value *timeout)=0
 Make a connection.
virtual TAO_Transportmake_parallel_connection (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface &desc, ACE_Time_Value *timeout)
virtual int cancel_svc_handler (TAO_Connection_Handler *svc_handler)=0
 Cancel the passed cvs handler from the connector.
virtual int check_connection_closure (TAO_Connection_Handler *connection_handler)
 Check whether the connection is not closed.
virtual bool wait_for_connection_completion (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface &desc, TAO_Transport *&transport, ACE_Time_Value *timeout)
virtual bool wait_for_connection_completion (TAO::Profile_Transport_Resolver *r, TAO_Transport *&the_winner, TAO_Transport **transport, unsigned int count, TAO_LF_Multi_Event *mev, ACE_Time_Value *timeout)
bool new_connection_is_ok (size_t busy_count)
 See if a new connection is allowed.
bool wait_for_transport (TAO::Profile_Transport_Resolver *r, TAO_Transport *base_transport, ACE_Time_Value *timeout, bool force_wait)
void orb_core (TAO_ORB_Core *orb_core)
 Set the ORB Core pointer.
int create_connect_strategy (void)
 Create a connect strategy.
TAO_ORB_Coreorb_core (void)
 Return the TAO_ORB_Core pointer.

Protected Attributes

TAO_Connect_Strategyactive_connect_strategy_
 The (a)synch connect strategy.

Private Attributes

CORBA::ULong const tag_
 IOP protocol tag.
TAO_ORB_Coreorb_core_
 Pointer to our ORB core.


Detailed Description

Generic Connector interface definitions.

Base class for connector bridge object.

Todo:
Need to rename the class as TAO_Transport_Connector.

Constructor & Destructor Documentation

TAO_Connector::TAO_Connector ( CORBA::ULong  tag  )

Default constructor.

TAO_Connector::~TAO_Connector ( void   )  [virtual]

The destructor.


Member Function Documentation

virtual int TAO_Connector::cancel_svc_handler ( TAO_Connection_Handler svc_handler  )  [protected, pure virtual]

Cancel the passed cvs handler from the connector.

Implemented in TAO_IIOP_Connector.

int TAO_Connector::check_connection_closure ( TAO_Connection_Handler connection_handler  )  [protected, virtual]

Check whether the connection is not closed.

Return values:
0 The connection happens to be not closed, but is now open because an other thread managed to open the handler
-1 The connection is closed

virtual int TAO_Connector::check_prefix ( const char *  endpoint  )  [pure virtual]

Check that the prefix of the provided endpoint is valid for use with a given pluggable protocol.

Implemented in TAO_IIOP_Connector.

virtual int TAO_Connector::close ( void   )  [pure virtual]

Shutdown Connector bridge and concrete Connector.

Implemented in TAO_IIOP_Connector.

TAO_Transport * TAO_Connector::connect ( TAO::Profile_Transport_Resolver *  r,
TAO_Transport_Descriptor_Interface desc,
ACE_Time_Value timeout
) [virtual]

To support pluggable we need to abstract away the details of the connect () method so it can be called from the invocation code independent of the actual transport protocol in use.

TAO_Profile * TAO_Connector::corbaloc_scan ( const char *  ior,
size_t &  len
) [virtual]

Helper function to assist corbaloc parsing. The default simply validates the protocol identifyier and scans up to the next comma or slash. Any protocol that has a specific need, such as uiop, can override this method to provide a custom scanner. The profile returned is either null if this the ior does not match or an empty profile of the correct type, obtained from make_profile().

int TAO_Connector::create_connect_strategy ( void   )  [protected]

Create a connect strategy.

virtual TAO_Profile* TAO_Connector::create_profile ( TAO_InputCDR cdr  )  [pure virtual]

Create a profile for this protocol and initialize it based on the encapsulation in cdr

Implemented in TAO_IIOP_Connector.

virtual TAO_Transport* TAO_Connector::make_connection ( TAO::Profile_Transport_Resolver *  r,
TAO_Transport_Descriptor_Interface desc,
ACE_Time_Value timeout
) [protected, pure virtual]

Make a connection.

Implemented in TAO_IIOP_Connector.

int TAO_Connector::make_mprofile ( const char *  ior,
TAO_MProfile mprofile
)

Parse a string containing a URL style IOR and return an MProfile. Verify that ior is in the correct format.

TAO_Transport * TAO_Connector::make_parallel_connection ( TAO::Profile_Transport_Resolver *  r,
TAO_Transport_Descriptor_Interface desc,
ACE_Time_Value timeout
) [protected, virtual]

Make a connection using - not a pure virtual since not all protocols support this.

Reimplemented in TAO_IIOP_Connector.

virtual TAO_Profile* TAO_Connector::make_profile ( void   )  [protected, pure virtual]

Create a profile with a given endpoint.

Implemented in TAO_IIOP_Connector.

bool TAO_Connector::new_connection_is_ok ( size_t  busy_count  )  [protected]

See if a new connection is allowed.

virtual char TAO_Connector::object_key_delimiter ( void   )  const [pure virtual]

Return the object key delimiter to use or expect.

Implemented in TAO_IIOP_Connector.

virtual int TAO_Connector::open ( TAO_ORB_Core orb_core  )  [pure virtual]

Initialize object and register with reactor.

Implemented in TAO_IIOP_Connector.

TAO_ORB_Core * TAO_Connector::orb_core ( void   )  [protected]

Return the TAO_ORB_Core pointer.

void TAO_Connector::orb_core ( TAO_ORB_Core orb_core  )  [protected]

Set the ORB Core pointer.

TAO_Transport * TAO_Connector::parallel_connect ( TAO::Profile_Transport_Resolver *  r,
TAO_Transport_Descriptor_Interface desc,
ACE_Time_Value timeout
) [virtual]

A variation on connect that will try simultanious connections on all endpoints listed in the desc.

virtual int TAO_Connector::set_validate_endpoint ( TAO_Endpoint endpoint  )  [protected, pure virtual]

Set and validate endpoint. We need to do this to initialize our remote *_Addr's which have not been done during IOR decode.

Implemented in TAO_IIOP_Connector.

int TAO_Connector::supports_parallel_connects ( void   )  const [protected, virtual]

A flag indicating the actual connector supports parallel connection attempts. The base implementation alwayse returns 0. Override to return non-zero if parallel connection attempts may be tried.

Reimplemented in TAO_IIOP_Connector.

CORBA::ULong TAO_Connector::tag ( void   )  const

The tag identifying the specific ORB transport layer protocol. For example IOP::TAG_INTERNET_IOP == 0. The tag is used in the IOR to identify the type of profile included. IOR -> {{tag0, profile0} {tag1, profile1} ...}. The IOP module defines the ProfileId typedef to be a CORBA::ULong.

bool TAO_Connector::wait_for_connection_completion ( TAO::Profile_Transport_Resolver *  r,
TAO_Transport *&  the_winner,
TAO_Transport **  transport,
unsigned int  count,
TAO_LF_Multi_Event mev,
ACE_Time_Value timeout
) [protected, virtual]

In the case of a parallel connection attempt, we take an array of transports, and wait on any of them. When the first one completes, the rest are closed.

bool TAO_Connector::wait_for_connection_completion ( TAO::Profile_Transport_Resolver *  r,
TAO_Transport_Descriptor_Interface desc,
TAO_Transport *&  transport,
ACE_Time_Value timeout
) [protected, virtual]

Wait for connection completion. We have a transport that is not connected yet, wait until it is connected.

Return values:
true When we could use transport
Returns:
false When we can't use the transport

bool TAO_Connector::wait_for_transport ( TAO::Profile_Transport_Resolver *  r,
TAO_Transport base_transport,
ACE_Time_Value timeout,
bool  force_wait
) [protected]

Wait for a transport to be connected Note: no longer changes transport reference count @ returns true if wait was uneventful @ false if error occurred during wait


Member Data Documentation

The (a)synch connect strategy.

Pointer to our ORB core.

IOP protocol tag.


The documentation for this class was generated from the following files:
