ACE_SPIPE Class Reference

Defines the member functions for the base class of the ACE_SPIPE abstraction. More...

#include <SPIPE.h>

Inheritance diagram for ACE_SPIPE:

Inheritance graph
[legend]

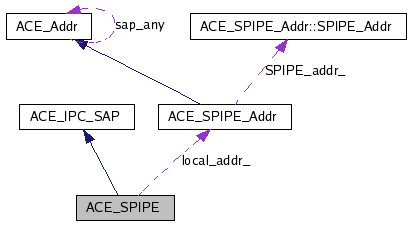

Collaboration diagram for ACE_SPIPE:

Collaboration graph
[legend]

List of all members.

Public Member Functions

int close (void)
 Close down the SPIPE without removing the rendezvous point.
int remove (void)
int get_local_addr (ACE_SPIPE_Addr &) const
 Return the local address of this endpoint.
int disable (int signum) const
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

 ACE_SPIPE (void)
 Ensure that this class is an abstract base class.

Protected Attributes

ACE_SPIPE_Addr local_addr_
 Our local address.


Detailed Description

Defines the member functions for the base class of the ACE_SPIPE abstraction.

ACE_SPIPE was designed as a wrapper facade for STREAM pipes. On Windows, however, ACE_SPIPE is a wrapper for Named Pipes. Therefore, on Windows, it is better to use the ACE_Proactor or blocking operations in lieu of using the ACE_Reactor.

See also:
ACE_SPIPE_Acceptor for additional notes on use with ACE_Reactor on Windows.
Warning:
Windows: Works only on Windows NT 4 and higher.

Works on non-Windows platforms only when ACE_HAS_STREAM_PIPES is defined.


Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_SPIPE::ACE_SPIPE ( void   )  [protected]

Ensure that this class is an abstract base class.


Member Function Documentation

int ACE_SPIPE::close ( void   )

Close down the SPIPE without removing the rendezvous point.

Closes the underlying pipe handle and sets this object's handle value to ACE_INVALID_HANDLE.

Returns:
0 for success; -1 for failure. If a failure occurs, further error information is available from ACE_OS::last_error().

Reimplemented in ACE_SPIPE_Acceptor, ACE_UPIPE_Acceptor, and ACE_UPIPE_Stream.

int ACE_SPIPE::remove ( void   )

Close down the SPIPE and remove the rendezvous point from the file system.

Returns:
0 for success; -1 for failure. If a failure occurs, further error information is available from ACE_OS::last_error().

Reimplemented in ACE_SPIPE_Acceptor, and ACE_UPIPE_Acceptor.

int ACE_SPIPE::get_local_addr ( ACE_SPIPE_Addr local_sap  )  const

Return the local address of this endpoint.

Returns the local address of the SPIPE's endpoint in

  • addr.
    Returns:
    0 for success; -1 for failure. If a failure occurs, further error information is available from ACE_OS::last_error().

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_SPIPE::disable ( int  signum  )  const

Disable signal

  • signum.
    Note:
    This reimplements the inherited method from ACE_IPC_SAP. Since the signal actions do not make any sense on Windows, this method intercepts the call and NOPs it. On non-Windows, it is passed through to ACE_IPC_SAP::disable().

Reimplemented from ACE_IPC_SAP.

void ACE_SPIPE::dump ( void   )  const

Dump the state of an object.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_SPIPE_Acceptor, ACE_SPIPE_Stream, ACE_UPIPE_Acceptor, and ACE_UPIPE_Stream.


Member Data Documentation

Declare the dynamic allocation hooks.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_SPIPE_Acceptor, ACE_SPIPE_Stream, ACE_UPIPE_Acceptor, and ACE_UPIPE_Stream.

Our local address.


The documentation for this class was generated from the following files:

Generated on Wed Apr 23 02:41:44 2008 for ACE by  doxygen 1.5.5
