TAO::ObjectKey_Table Class Reference

Table that maintains the set of ObjectKey's seen by the ORB. More...

#include <ObjectKey_Table.h>

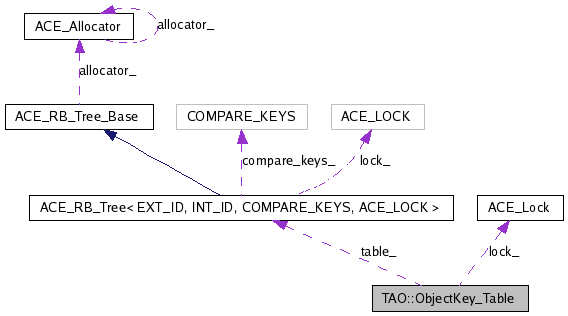

Collaboration diagram for TAO::ObjectKey_Table:

Collaboration graph

List of all members.

Public Member Functions

 ObjectKey_Table (void)
 Default Constructor and destructor..
 ~ObjectKey_Table (void)
int init (TAO_ORB_Core *orb)
int destroy (void)
 Iterates and unbinds the contents of the table.
int bind (const ObjectKey &key, Refcounted_ObjectKey *&key_new)
 Bind the ObjectKey in the table.
int unbind (TAO::Refcounted_ObjectKey *&key)
 Unbind an ObjectKey from the table.

Protected Member Functions

int bind_i (const ObjectKey &key, Refcounted_ObjectKey *&key_new)
 Implementation for bind ().
int unbind_i (Refcounted_ObjectKey *&key)
 Implementation for unbind ().

Private Types

typedef ACE_RB_Tree
< TAO::ObjectKey,
TAO::Refcounted_ObjectKey *,

Private Attributes

 Lock for the table.
TABLE table_
 Table that contains the data.

Detailed Description

Table that maintains the set of ObjectKey's seen by the ORB.

The ORB maintains one table for the whole ORB. ObjectKeys generated by the ORB or the ones seen by the ORB from remote ORB's are stored here. The ObjectKeys are stored through a wrapper which encapsulates the refcount on them. This class actually provides the synchronization mechanism for manipulating the reference counts on the object keys provided by the wrapper class.

This class does not offer a find () call with a reason. The call to bind () will return a pointer which is expected to be cached by the client/caller and use the pointer in every invocation.

This class uses the ACE_RB_Tree to maintain the table of ObjectKeys. The RB_Tree has good insertion and lookup properties. Its Iteration properties are not that good, but we dont need to do much iteration unless we are closing down the table.

The reasons to use RB_Tree are its good dynamic properties. We should try to strategize the class to use either a Hash_Map or a RB_Tree based on some runtime option. For that we need an adapter class in ACE, like an ACE_Lock_Adapter class. We will do that if our instrumentation shows the need for it.

Member Typedef Documentation

typedef ACE_RB_Tree<TAO::ObjectKey, TAO::Refcounted_ObjectKey *, TAO::Less_Than_ObjectKey, ACE_Null_Mutex> TAO::ObjectKey_Table::TABLE [private]

Constructor & Destructor Documentation

TAO::ObjectKey_Table::ObjectKey_Table ( void   )

Default Constructor and destructor..

TAO::ObjectKey_Table::~ObjectKey_Table ( void   )

Member Function Documentation

int TAO::ObjectKey_Table::init ( TAO_ORB_Core orb  )

Initialize method that sets up the underlying lock and other related stuff.

Create the lock that is needed for internal usage.

int TAO::ObjectKey_Table::destroy ( void   )

Iterates and unbinds the contents of the table.

int TAO::ObjectKey_Table::bind ( const ObjectKey key,
TAO::Refcounted_ObjectKey *&  key_new

Bind the ObjectKey in the table.

Bind an ObjectKey in the table and return a pointer to the Refcounted_ObjectKey which the client can use. If the ObjectKey is already available in the table, this operation just increments the refcount on the ObjectKey. If the ObjectKey is new it is bounded to the table. Returns a 0 on success and a -1 on failure.

int TAO::ObjectKey_Table::unbind ( TAO::Refcounted_ObjectKey *&  key  )

Unbind an ObjectKey from the table.

int TAO::ObjectKey_Table::bind_i ( const ObjectKey key,
TAO::Refcounted_ObjectKey *&  key_new
) [protected]

Implementation for bind ().

int TAO::ObjectKey_Table::unbind_i ( TAO::Refcounted_ObjectKey *&  key_new  )  [protected]

Implementation for unbind ().

Member Data Documentation

ACE_Lock* TAO::ObjectKey_Table::lock_ [private]

Lock for the table.

TABLE TAO::ObjectKey_Table::table_ [private]

Table that contains the data.

The documentation for this class was generated from the following files:
